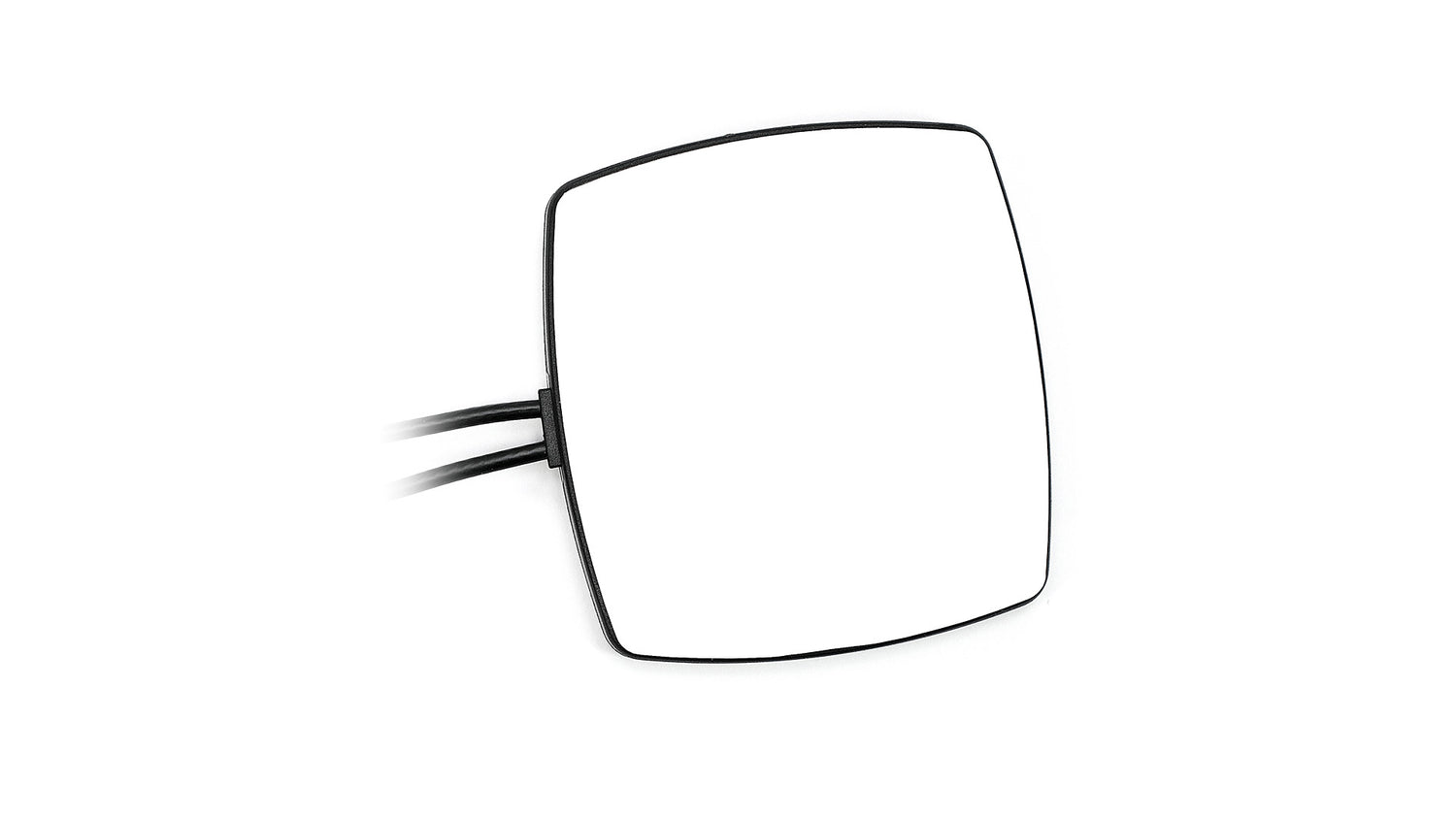

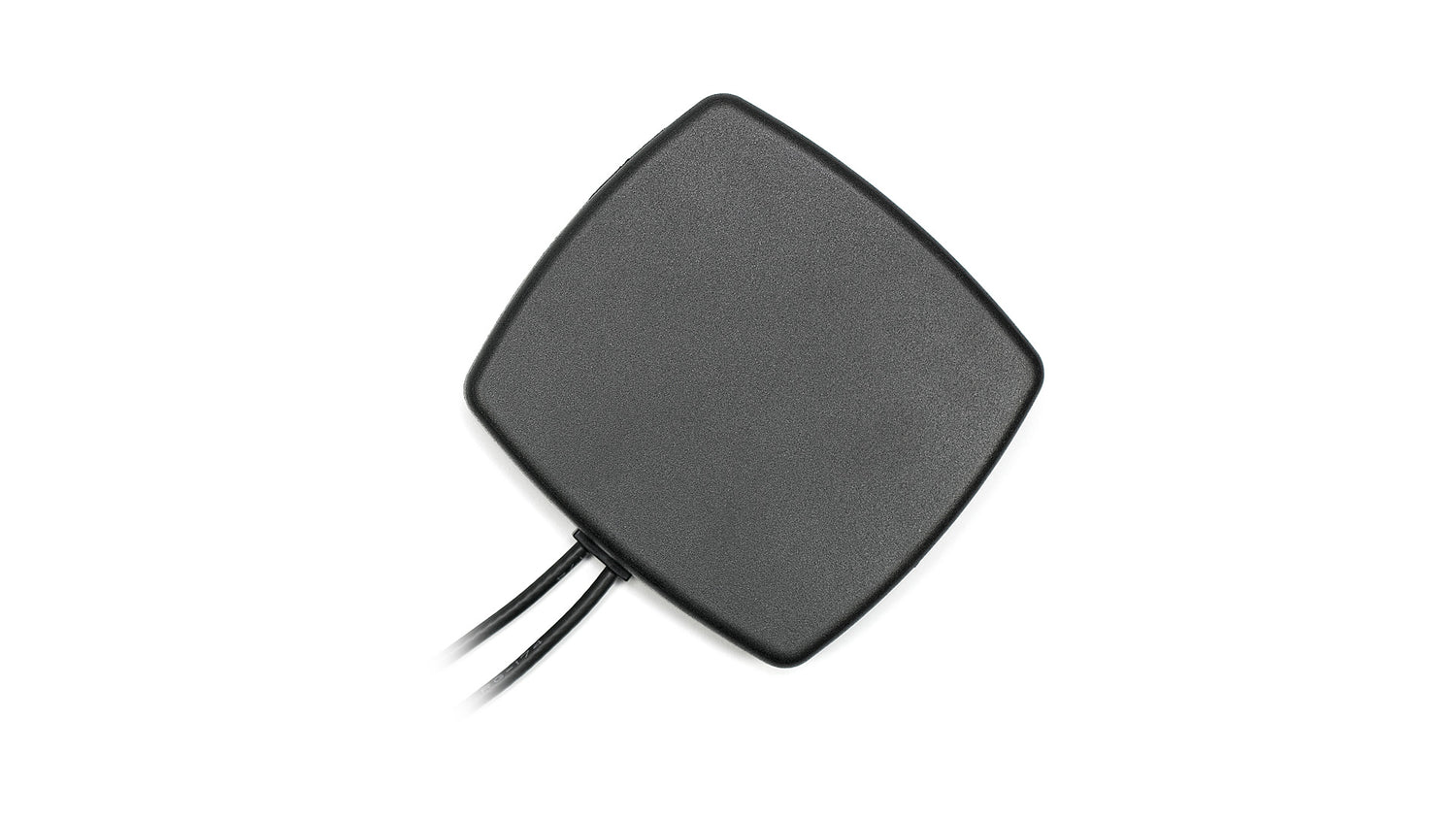

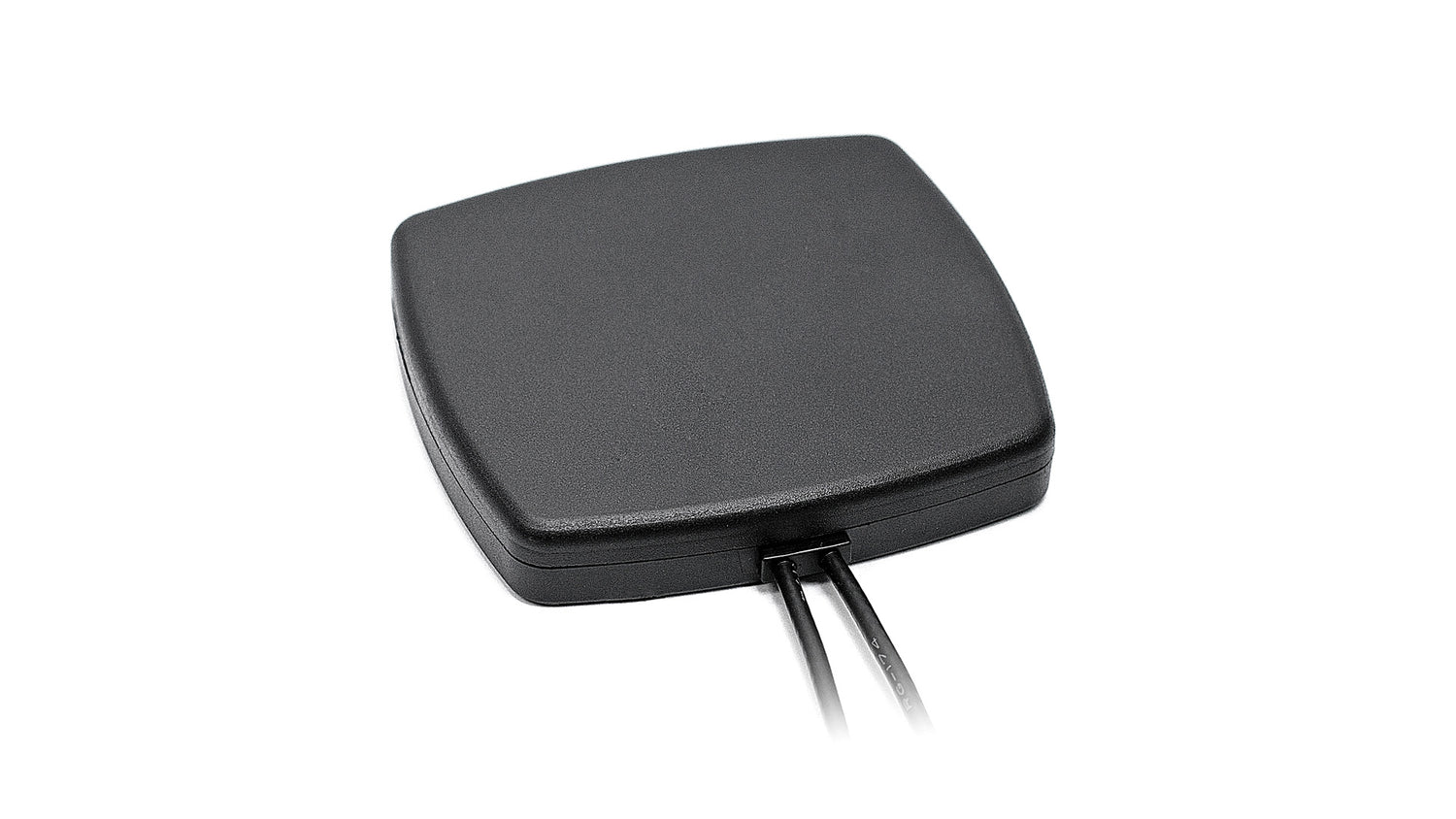

This compact, low-profile antenna is designed for reliable 4G/LTE, 3G, and 2G connectivity in a wide range of applications. Its ground plane independence and wideband support make it ideal for mobile networks, IoT, asset tracking, smart cities, and more. The 2-in-1 MIMO configuration ensures enhanced data throughput and robust signal quality, even in challenging environments. The adhesive mount allows for flexible and easy installation on various surfaces, making it suitable for automotive, industrial, and telecommunication deployments.
Connections
2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Type: Combination
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.2:1, ~2.2:1
Efficiency (%): ~55.6, ~56.0, ~38.7
Peak Gain (dBi): ~2.9, ~3.2, ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.3:1, ~1.2:1, ~2.0:1
Efficiency (%): ~50.5, ~53.9, ~41.2
Peak Gain (dBi): ~2.7, ~3.5, ~2.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6024Pa",
"title": "Falcon 2× 4G LTE/3G/2G MIMO Compact Ultra Versatile Adhesive Mount Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "80 x 76 x 16",
"elements": [
{
"elementID": "Cellular 1 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-9.7",
"vswr": "~2.2:1",
"efficiency_percent": "~55.6",
"peakGain_dbi": "~2.9",
"averageGain_db": "~-2.6"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-21.5",
"vswr": "~1.2:1",
"efficiency_percent": "~56.0",
"peakGain_dbi": "~3.2",
"averageGain_db": "~-2.5"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-8.8",
"vswr": "~2.2:1",
"efficiency_percent": "~38.7",
"peakGain_dbi": "~2.1",
"averageGain_db": "~-4.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Cellular 2 (MIMO)",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-9.3",
"vswr": "~2.3:1",
"efficiency_percent": "~50.5",
"peakGain_dbi": "~2.7",
"averageGain_db": "~-3.0"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-20.8",
"vswr": "~1.2:1",
"efficiency_percent": "~53.9",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-2.7"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-10.0",
"vswr": "~2.0:1",
"efficiency_percent": "~41.2",
"peakGain_dbi": "~2.2",
"averageGain_db": "~-3.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular 1",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Cellular 2",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
