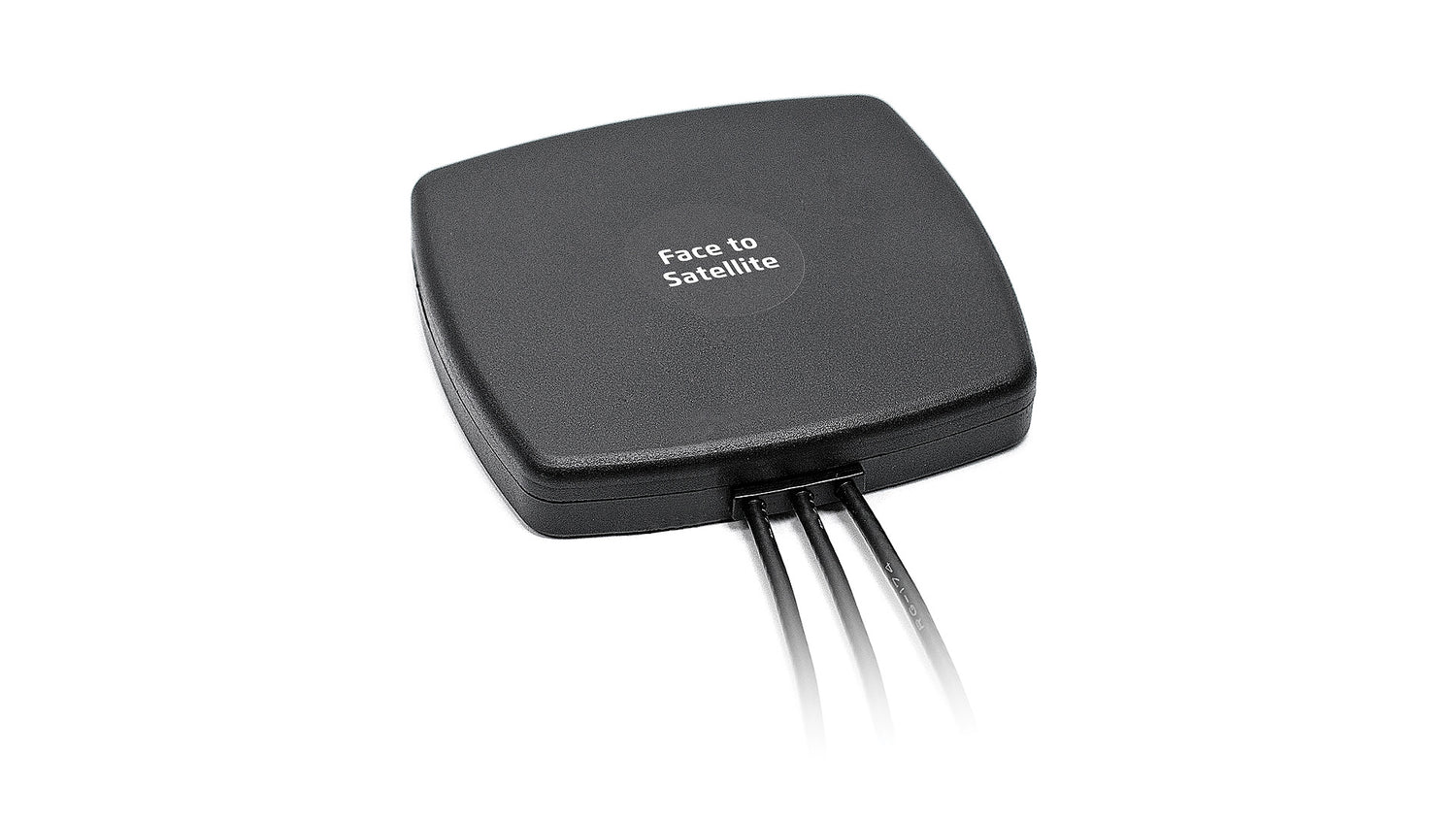

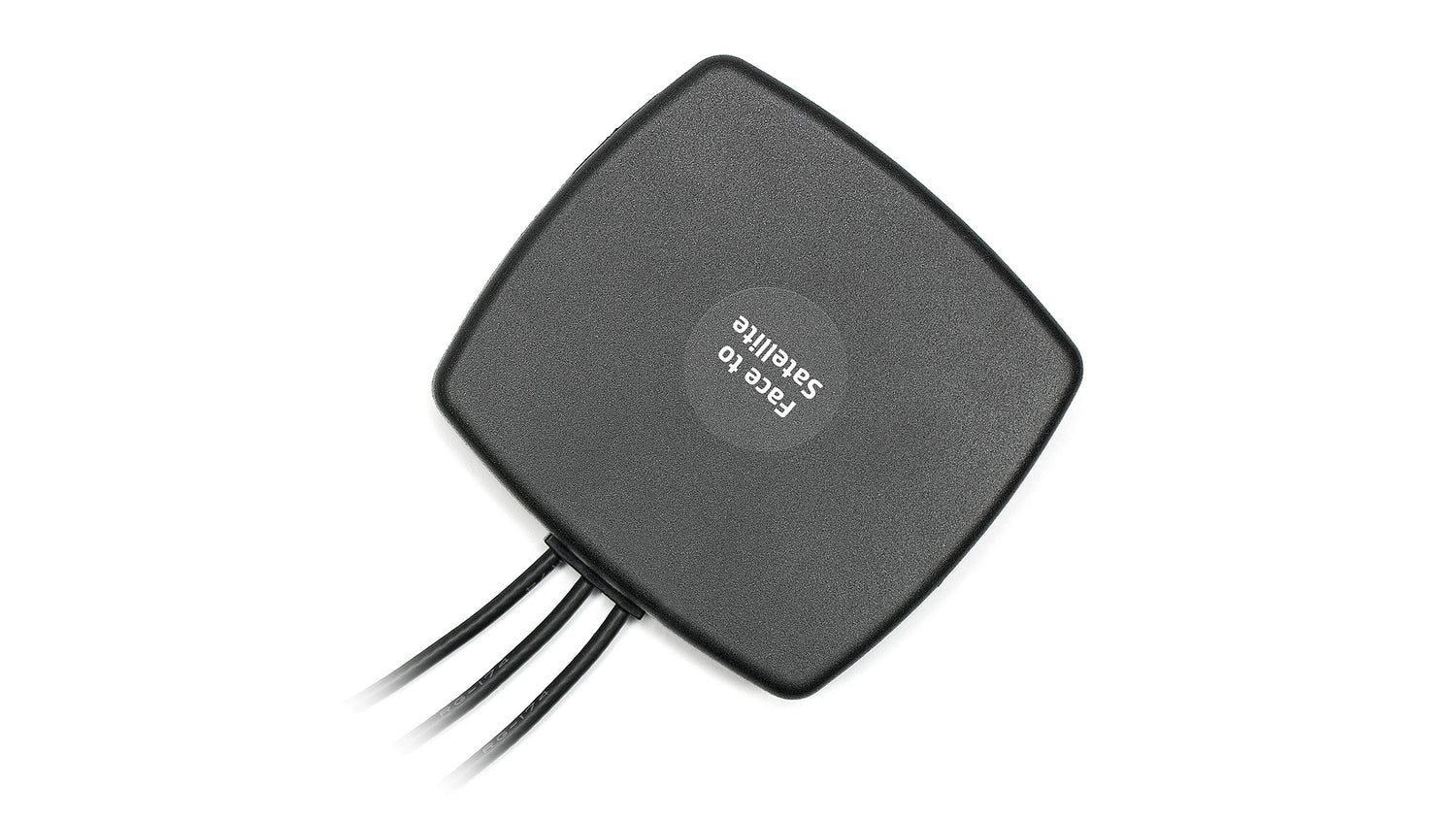

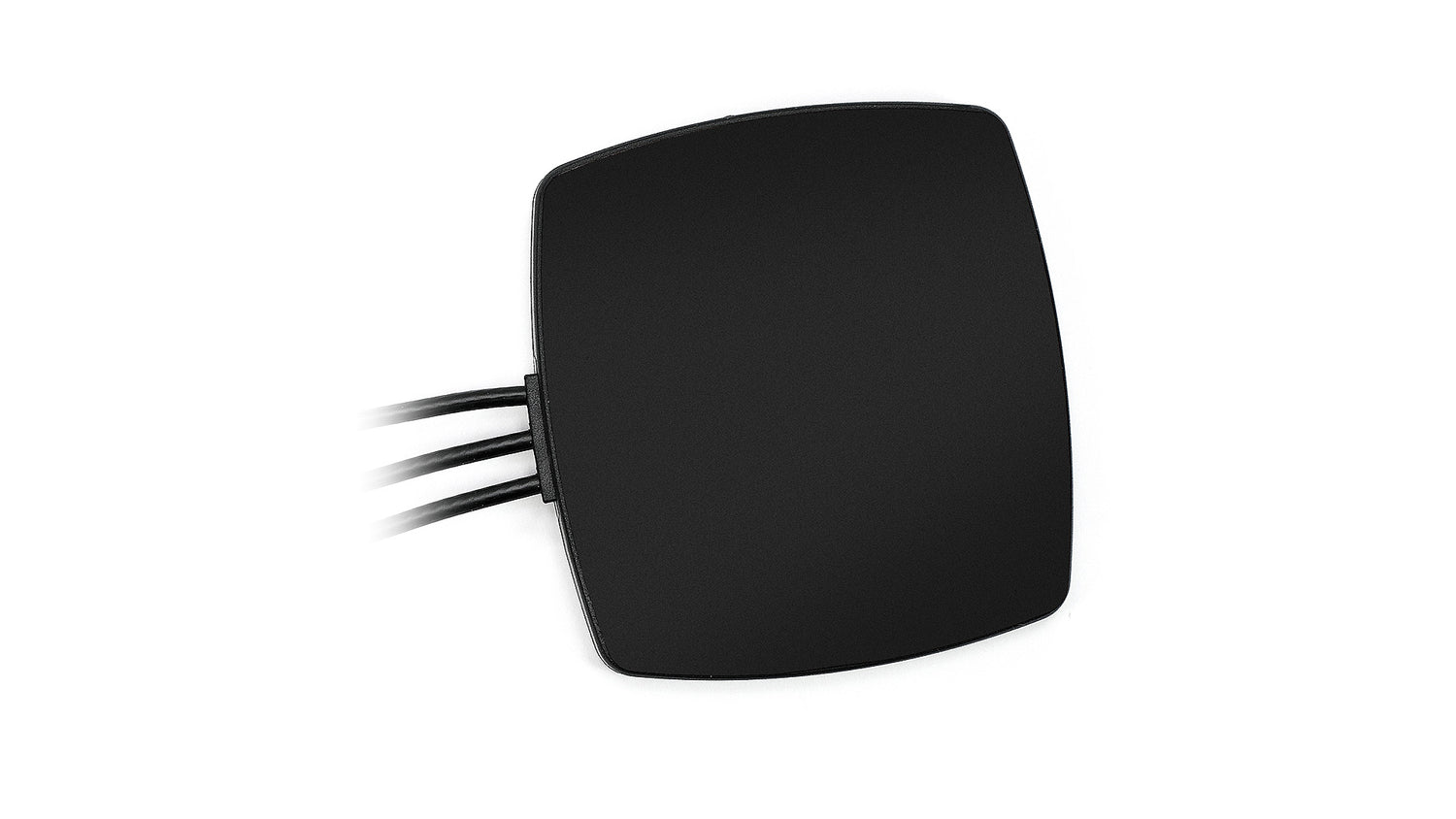

This low-profile magnetic mount antenna delivers reliable multi-technology connectivity for a wide range of applications. Designed for use with LTE, Wi-Fi, and GNSS devices, it supports worldwide utility bands for 4G, 3G, and 2G networks. The antenna is ground plane independent and features an active GNSS element with pre-filtering for enhanced navigation accuracy. Its robust construction and compact form factor make it ideal for automotive, industrial, and IoT deployments where space and durability are critical.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
Peak Gain (dBi): ~2.9, ~3.2, ~2.1
VSWR: ~2.2:1, ~1.2:1, ~2.2:1
Efficiency (%): ~55.6, ~56.0, ~38.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - 2.4/5.0 GHz ISM
Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.3:1
Efficiency (%): ~50, ~30
Peak Gain (dBi): ~3.2, ~4.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 3 - GPS/GLONASS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6050MGF",
"title": "Falcon 4G LTE/3G/2G WiFi ISM GPS/GLONASS/Galileo Magnetic Antenna",
"mountingType": "Magnetic Mount",
"ipRating": null,
"dimensions_mm": "80 x 76 x 13",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-7.5",
"vswr": "~2.6:1",
"efficiency_percent": "~40.1",
"peakGain_dbi": "~1.9",
"averageGain_db": "~-4.1"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-7.4",
"vswr": "~2.5:1",
"efficiency_percent": "~46.3",
"peakGain_dbi": "~4.2",
"averageGain_db": "~-3.5"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-13.4",
"vswr": "~1.6:1",
"efficiency_percent": "~49.2",
"peakGain_dbi": "~5.7",
"averageGain_db": "~-3.1"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi / ISM",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": "~-12.3",
"vswr": "~1.7:1",
"efficiency_percent": "~44.8",
"peakGain_dbi": "~2.8",
"averageGain_db": "~-3.5"
},
{
"range_mhz": "4920-5925",
"returnLoss_db": "~-15.7",
"vswr": "~1.5:1",
"efficiency_percent": "~29.8",
"peakGain_dbi": "~3.6",
"averageGain_db": "~-5.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "<=-15.0",
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "<=-15.0",
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi / ISM",
"type": "RP-SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
