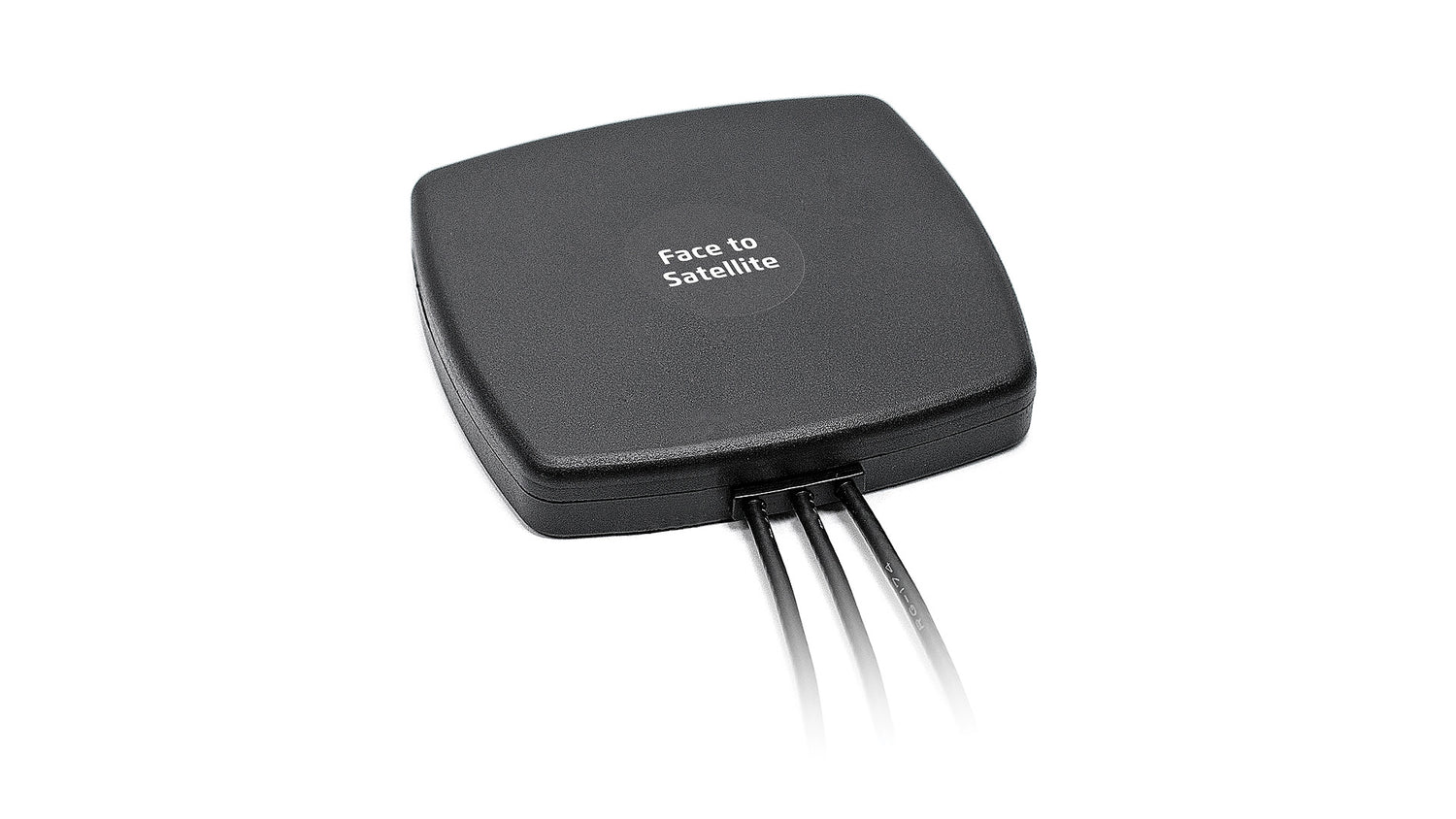

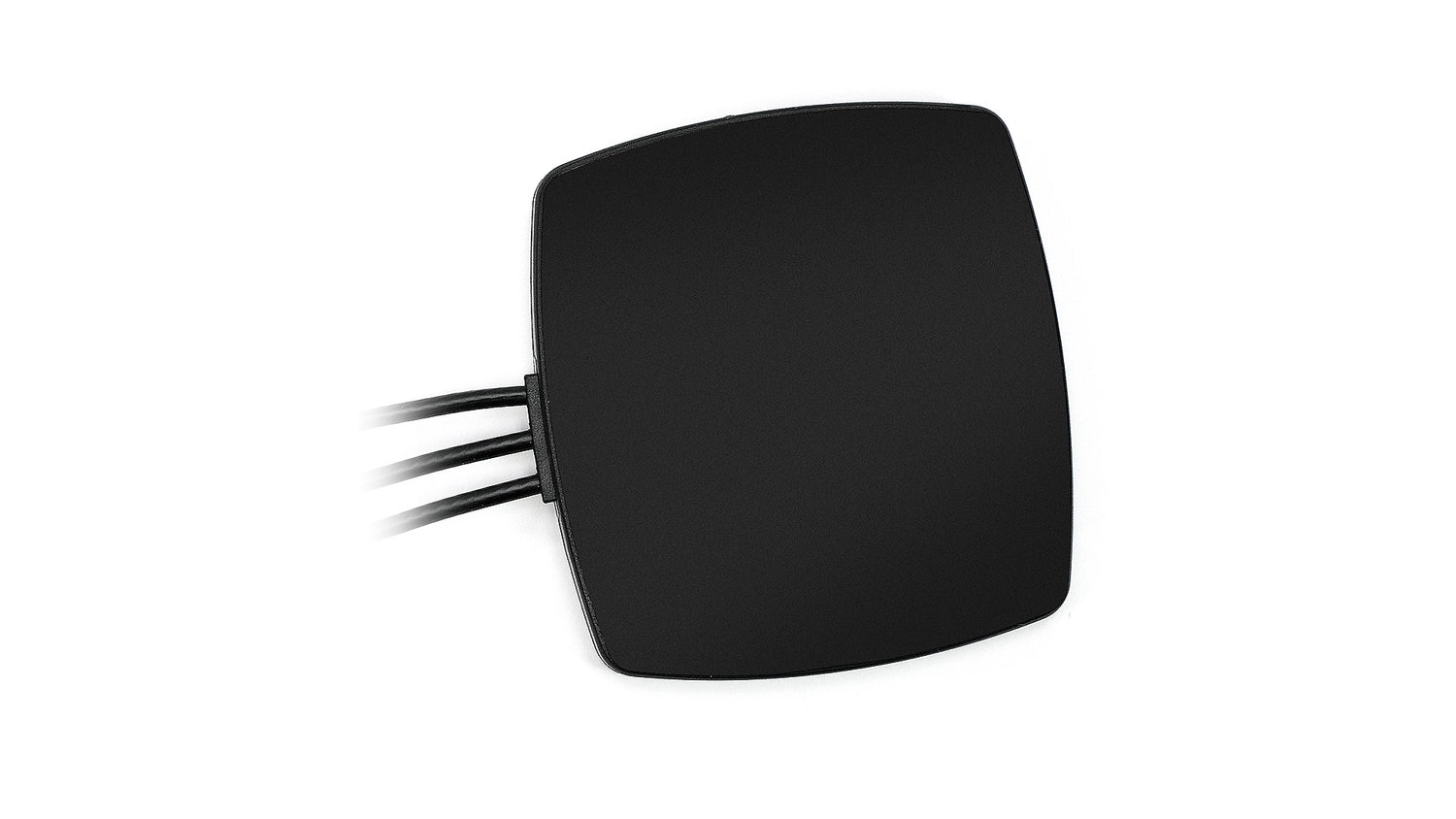

This low-profile, ground plane independent antenna is designed for versatile connectivity across cellular, GNSS, and Wi-Fi/ISM bands. Its 3-in-1 combination supports LTE, Wi-Fi, and satellite navigation devices, making it ideal for applications such as asset tracking, telematics, IoT, smart cities, and more. The adhesive mount allows for easy installation on a variety of surfaces, while the active GNSS element ensures reliable positioning. The antenna is suitable for use in demanding environments where wideband coverage and robust performance are required.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination
Dimensions: 80 x 76 x 16 mm
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.2:1, ~2.2:1
Efficiency (%): ~55.6, ~56.0, ~38.7
Peak Gain (dBi): ~2.9, ~3.2, ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - 2.4/5.0 GHz ISM
Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.3:1
Efficiency (%): ~50, ~30
Peak Gain (dBi): ~3.2, ~4.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 3 - GPS/GLONASS
Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6050PGF",
"title": "Falcon 4G LTE/3G/2G Wi-Fi ISM GPS/GLONASS/Galileo Versatile Antenna",
"mountingType": "Adhesive Mount",
"ipRating": "IP67",
"dimensions_mm": "80 x 76 x 16",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": null,
"vswr": "~2.2:1",
"efficiency_percent": "~55.6",
"peakGain_dbi": "~2.9",
"averageGain_db": null
},
{
"range_mhz": "1710-2170",
"returnLoss_db": null,
"vswr": "~1.2:1",
"efficiency_percent": "~56.0",
"peakGain_dbi": "~3.2",
"averageGain_db": null
},
{
"range_mhz": "2500-2700",
"returnLoss_db": null,
"vswr": "~2.2:1",
"efficiency_percent": "~38.7",
"peakGain_dbi": "~2.1",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "Wi-Fi / ISM",
"type": "Wi-Fi",
"technologies": [
"Wi-Fi",
"Bluetooth",
"ZigBee",
"ISM"
],
"frequencies": [
{
"range_mhz": "2410-2490",
"returnLoss_db": null,
"vswr": "~1.3:1",
"efficiency_percent": "~50",
"peakGain_dbi": "~3.2",
"averageGain_db": null
},
{
"range_mhz": "4920-5925",
"returnLoss_db": null,
"vswr": "~1.3:1",
"efficiency_percent": "~30",
"peakGain_dbi": "~4.2",
"averageGain_db": null
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": null,
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": null,
"vswr": "<=1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "Wi-Fi / ISM",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
