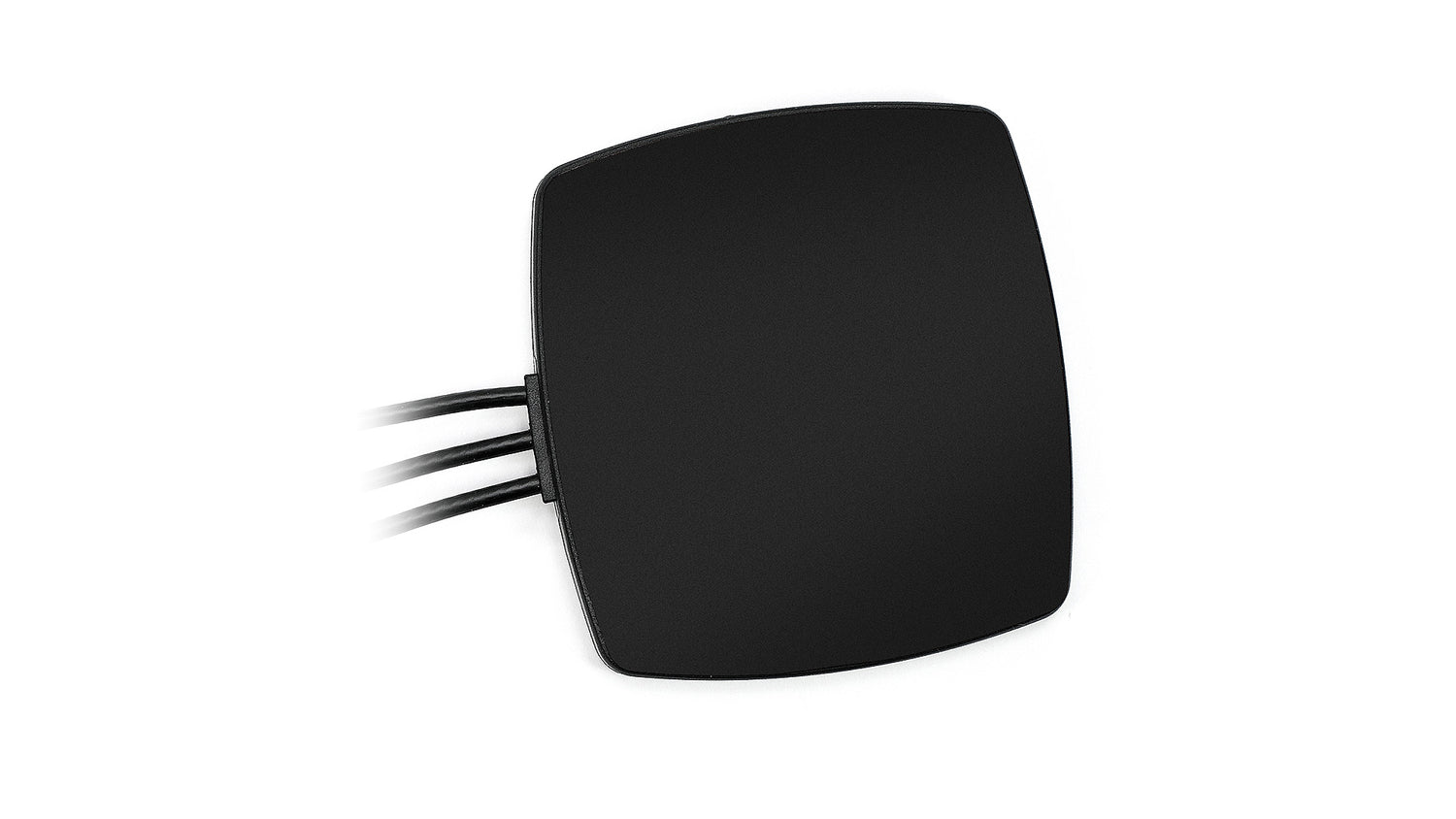

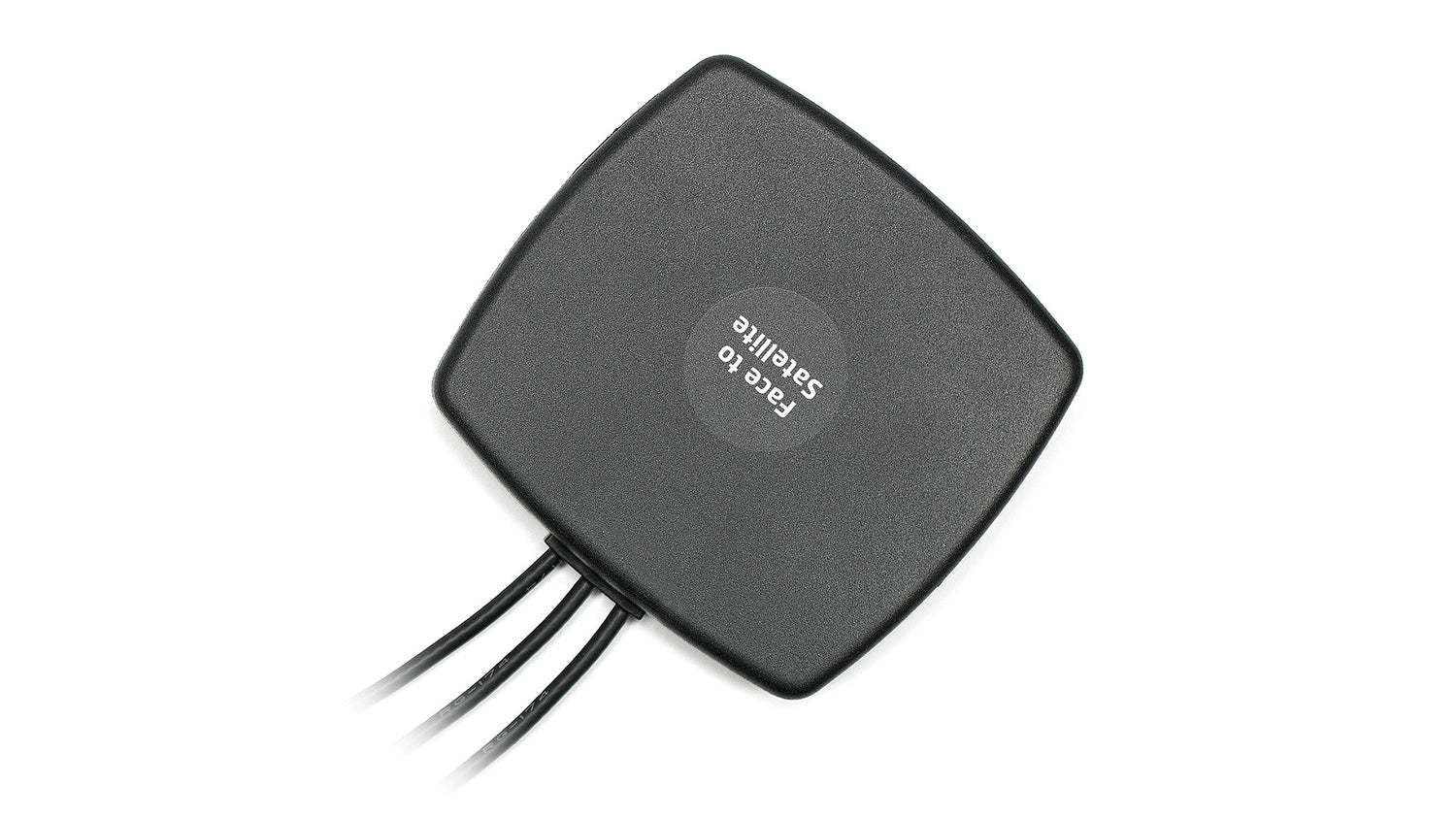

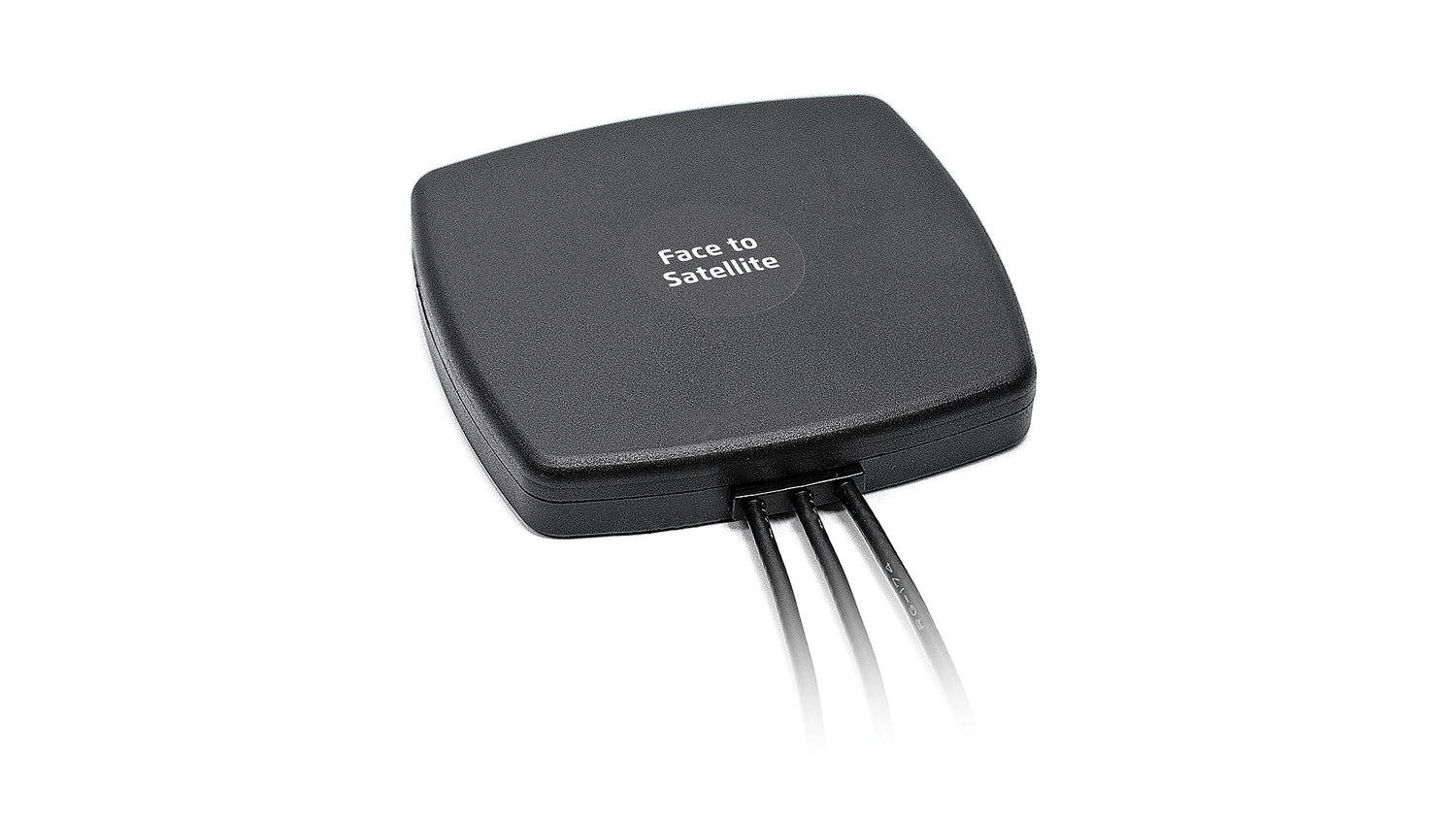

2J6084PGFa 5G, GNSS adhesive mount Antenna 3-in-1 SMA-M 300cm

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1337

Description

This compact, low-profile antenna is designed for enhanced global coverage in demanding outdoor environments. It supports 5GNR, 4G LTE, FirstNet, CBRS, LPWA, NB-IoT, 3G, 2G, and GNSS (GPS, QZSS, Galileo, GLONASS) technologies, making it ideal for MIMO devices and precision navigation applications. The adhesive mount allows for quick and easy installation on a variety of non-metal surfaces, while the robust ABS/UV-stable housing ensures durability in harsh conditions. Its omni-directional radiation pattern maximizes signal strength and throughput, and the active GNSS element provides reliable positioning even in challenging environments. Typical use cases include terminals, base stations, routers, IoT/smart home, asset tracking, vehicle telematics, and emergency services.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

  • Connector Type: SMA-Male
  • Cable Length: 300cm
  • Cable Type: DACAR302 (5GNR), LL100 (GNSS)

Installation / Environmental

The housing is manufactured from black or white ABS / UV stable material offering exceptional durability at a low cost for maximum protection from extreme outdoor applications. Cable 1 and 2 come with standard SMA-Male connector and 300 cm long DACAR302 Coaxial cable, a popular choice for automotive applications due to its environmental properties, best coupling resistance and stable impedance. Cable 3 comes with standard SMA-Male connector and 300 cm long LL100 Low Loss Coaxial cable offering an economical solution with excellent performance for short antenna runs. A wide range of alternative connectors and cables are available for customization. The compact design (80 x 76 x 16 mm), ground plane independence and high-grade adhesive mounting allow for easy installation on any non-metal surfaces. All products are RoHS compliant.


Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-6.9, ~-13.5, ~-9.1, ~-7.2
VSWR: ~3.4:1, ~1.7:1, ~2.3:1, ~2.6:1
Efficiency (%): ~42.6, ~58.8, ~37.5, ~31.8
Peak Gain (dBi): ~2.4, ~4.4, ~2.0, ~1.1
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-6.1, ~-15.5, ~-9.2, ~-8.0
VSWR: ~3.5:1, ~1.6:1, ~2.3:1, ~2.3:1
Efficiency (%): ~43.9, ~63.9, ~36.8, ~31.1
Peak Gain (dBi): ~1.9, ~4.7, ~1.9, ~1.4
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6084PGFa", "title": "Falcon 5GNR/4G/3G/2G/CDMA MIMO and GPS/GLONASS Adhesive Mount Antenna", "mountingType": "Adhesive Mount", "ipRating": null, "dimensions_mm": "80 x 76 x 16", "elements": [ { "elementID": "Cellular 1 (MIMO)", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "CAT-X", "CAT-Mx", "CAT-NBx", "NB-IoT", "3G", "2G", "CDMA" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-6.9", "vswr": "~3.4:1", "efficiency_percent": "~42.6", "peakGain_dbi": "~2.4", "averageGain_db": "~-3.9" }, { "range_mhz": "1427-2690", "returnLoss_db": "~-13.5", "vswr": "~1.7:1", "efficiency_percent": "~58.8", "peakGain_dbi": "~4.4", "averageGain_db": "~-2.3" }, { "range_mhz": "3300-5000", "returnLoss_db": "~-9.1", "vswr": "~2.3:1", "efficiency_percent": "~37.5", "peakGain_dbi": "~2.0", "averageGain_db": "~-4.3" }, { "range_mhz": "5150-5925", "returnLoss_db": "~-7.2", "vswr": "~2.6:1", "efficiency_percent": "~31.8", "peakGain_dbi": "~1.1", "averageGain_db": "~-5.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "Cellular 2 (MIMO)", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "CAT-X", "CAT-Mx", "CAT-NBx", "NB-IoT", "3G", "2G", "CDMA" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-6.1", "vswr": "~3.5:1", "efficiency_percent": "~43.9", "peakGain_dbi": "~1.9", "averageGain_db": "~-4.0" }, { "range_mhz": "1427-2690", "returnLoss_db": "~-15.5", "vswr": "~1.6:1", "efficiency_percent": "~63.9", "peakGain_dbi": "~4.7", "averageGain_db": "~-2.2" }, { "range_mhz": "3300-5000", "returnLoss_db": "~-9.2", "vswr": "~2.3:1", "efficiency_percent": "~36.8", "peakGain_dbi": "~1.9", "averageGain_db": "~-4.4" }, { "range_mhz": "5150-5925", "returnLoss_db": "~-8.0", "vswr": "~2.3:1", "efficiency_percent": "~31.1", "peakGain_dbi": "~1.4", "averageGain_db": "~-4.8" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "Galileo", "QZSS" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": null, "vswr": "<=1.4:1", "efficiency_percent": null, "peakGain_dbi": "28", "averageGain_db": null }, { "range_mhz": "1598-1606", "returnLoss_db": null, "vswr": "<=1.4:1", "efficiency_percent": null, "peakGain_dbi": "28", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "Cellular 1", "type": "SMA-Male", "cableType": "DACAR302", "cableLength_mm": 3000 }, { "elementIDRef": "Cellular 2", "type": "SMA-Male", "cableType": "DACAR302", "cableLength_mm": 3000 }, { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": "DACAR302", "cableLength_mm": 3000 } ] }
