Description

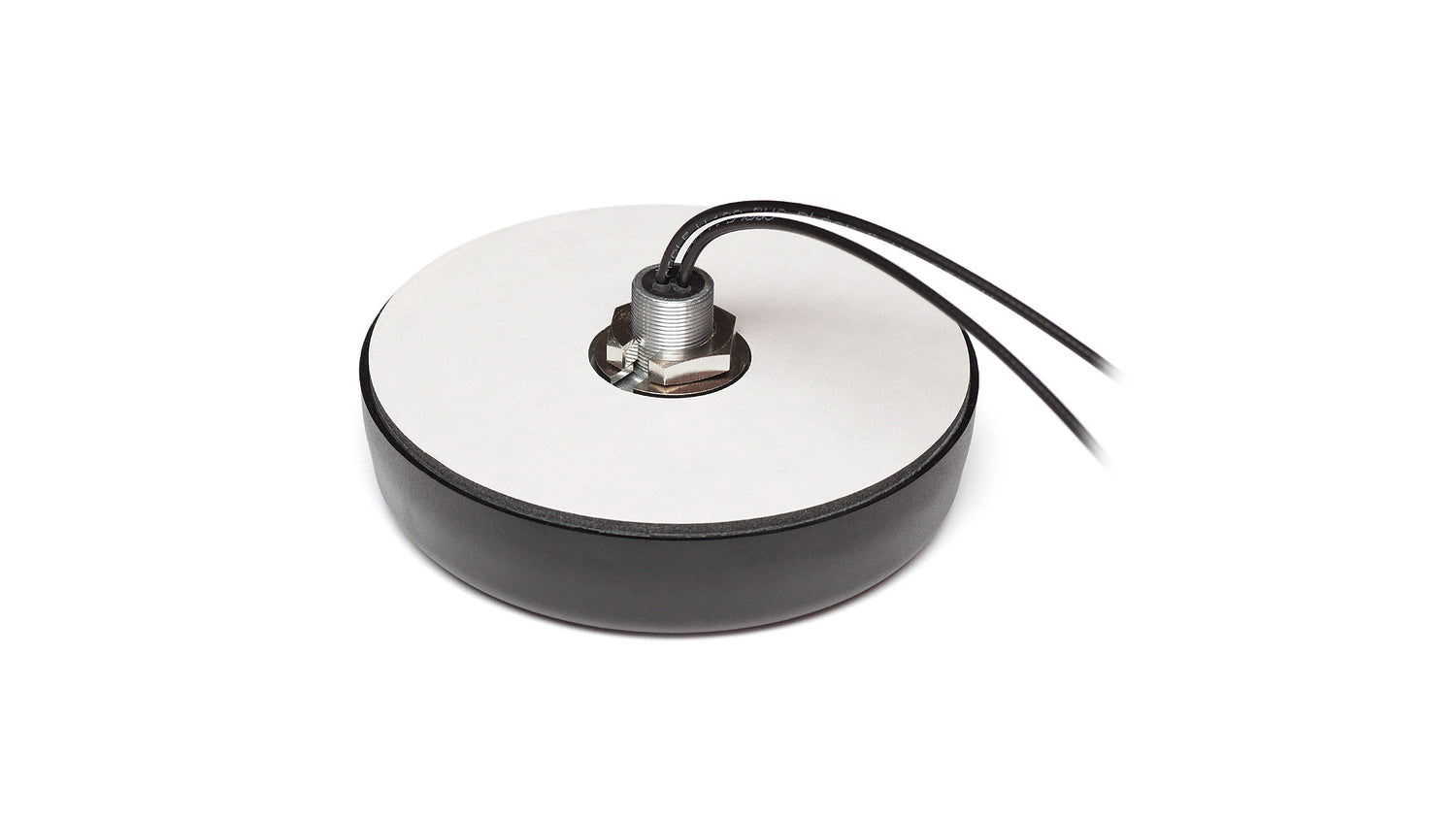

This heavy-duty antenna is designed for reliable performance in demanding environments, featuring an anti-rotation screw mount for secure installation. It combines cellular connectivity (3G/2G) with high-precision GNSS (GPS, GLONASS, Galileo, QZSS) for versatile applications such as asset tracking, fleet management, and industrial monitoring. The robust construction ensures durability and protection against harsh weather, making it ideal for automotive, telematics, and outdoor deployments.
Connections
3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Combination
Location: External
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.1:1, ~1.7:1
Efficiency (%): ~43, ~38
Peak Gain (dBi): ~1.8, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
Impedance (Ohm): 50
Active Gain (dB): 23 @ 3V, 24 @ 5V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 22 @ 5V
Power Consumption (mW): max 138
