2J  |  SKU: 2J6507BGF

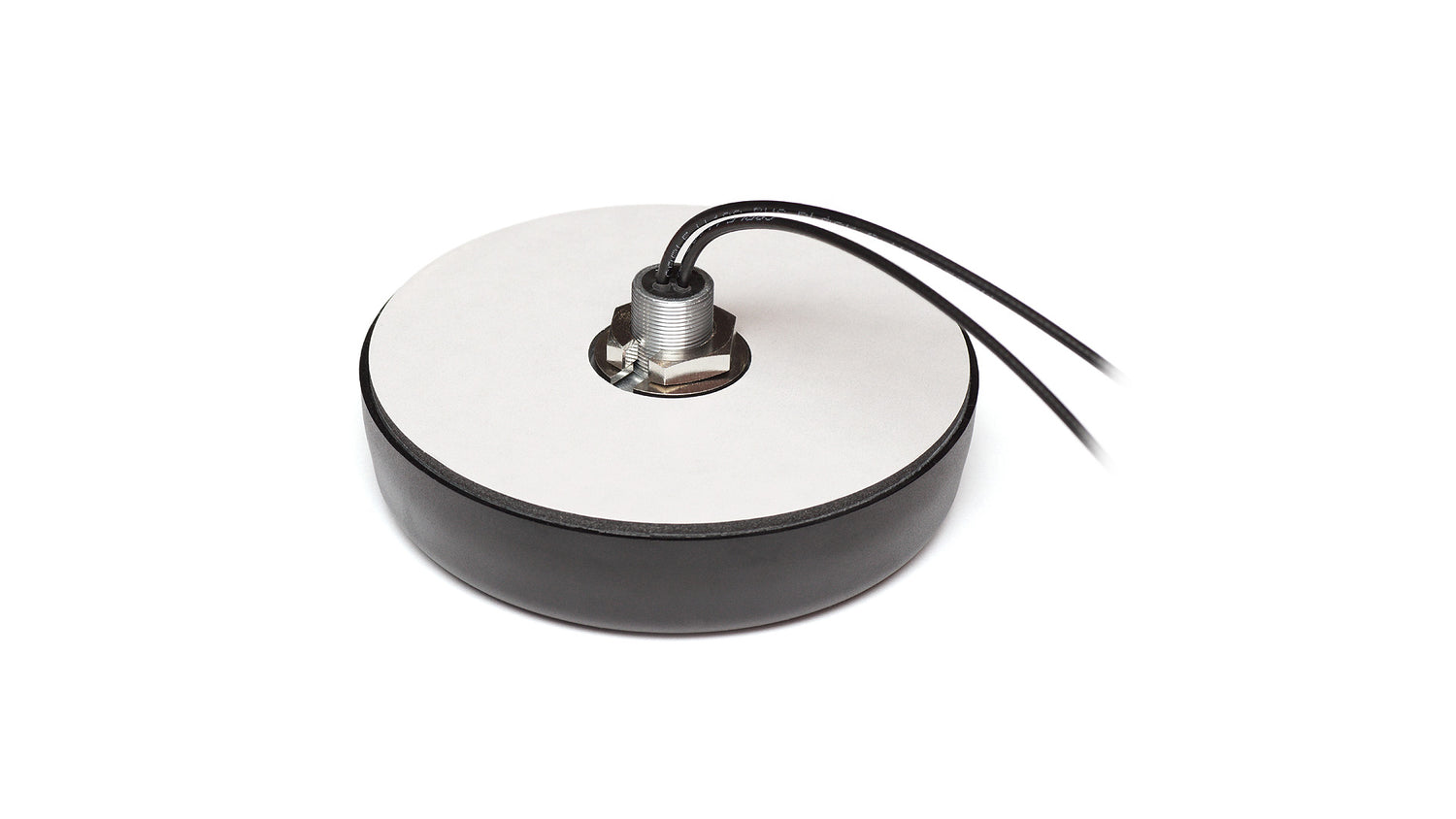

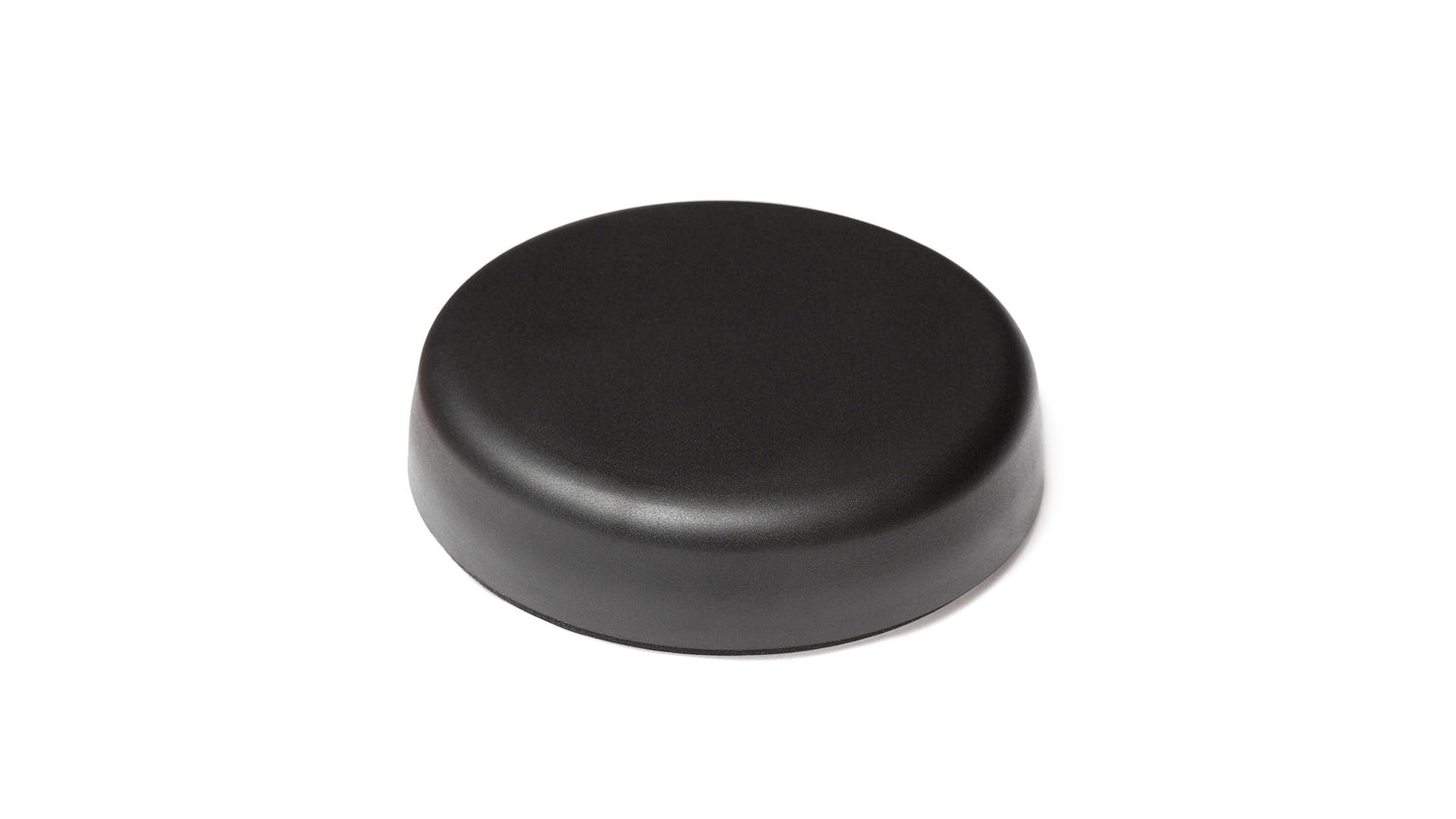

2J6507BGF TETRA/UHF, GNSS screw mount Antenna Combination

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This heavy-duty antenna is engineered for robust performance in demanding environments, supporting both TETRA/UHF and GNSS technologies. Its screw mount design ensures secure installation, while the anti-rotation mounting system enhances stability. The antenna is ideal for applications such as public safety, fleet management, smart cities, logistics, and more, where reliable communication and precise positioning are essential. With high ingress protection ratings (IP67, IP69) and impact resistance (IK09), it is suitable for outdoor and industrial use.

Connections

GPS/GLO/QZSS/Galileo/L1
380-470MHz/LPWA/TETRA/UHF


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Screw Mount
Type: Combination
Satellite Navigation: GNSS
Dimensions: Ø 136 x 31.5 mm

Connection 1 - TETRA/UHF

Standards: TETRA/UHF
Frequency: 380-470 MHz
VSWR: ~4.8:1
Efficiency (%): ~36.8
Peak Gain (dBi): ~-0.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Connection 2 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage Range (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 22 @ 5V
Power Consumption (mW): max 138 mW

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6507BGF", "title": "TETRA/UHF and GPS/GLONASS/Galileo Heavy Duty Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69K", "dimensions_mm": "Ø 146 x 31.5", "elements": [ { "elementID": "TETRA/UHF", "type": "Cellular", "technologies": [ "TETRA", "UHF", "LPWA" ], "frequencies": [ { "range_mhz": "380-470", "returnLoss_db": "~-5.5", "vswr": "~4.8:1", "efficiency_percent": "~36.8", "peakGain_dbi": "~-0.2", "averageGain_db": "~-4.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 }, { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "Galileo", "QZSS" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~3.6", "averageGain_db": null }, { "range_mhz": "1598-1606", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~3.6", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "TETRA/UHF", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 }, { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": "LMR100", "cableLength_mm": 3000 } ] }
