2J  |  SKU: 2J6510M

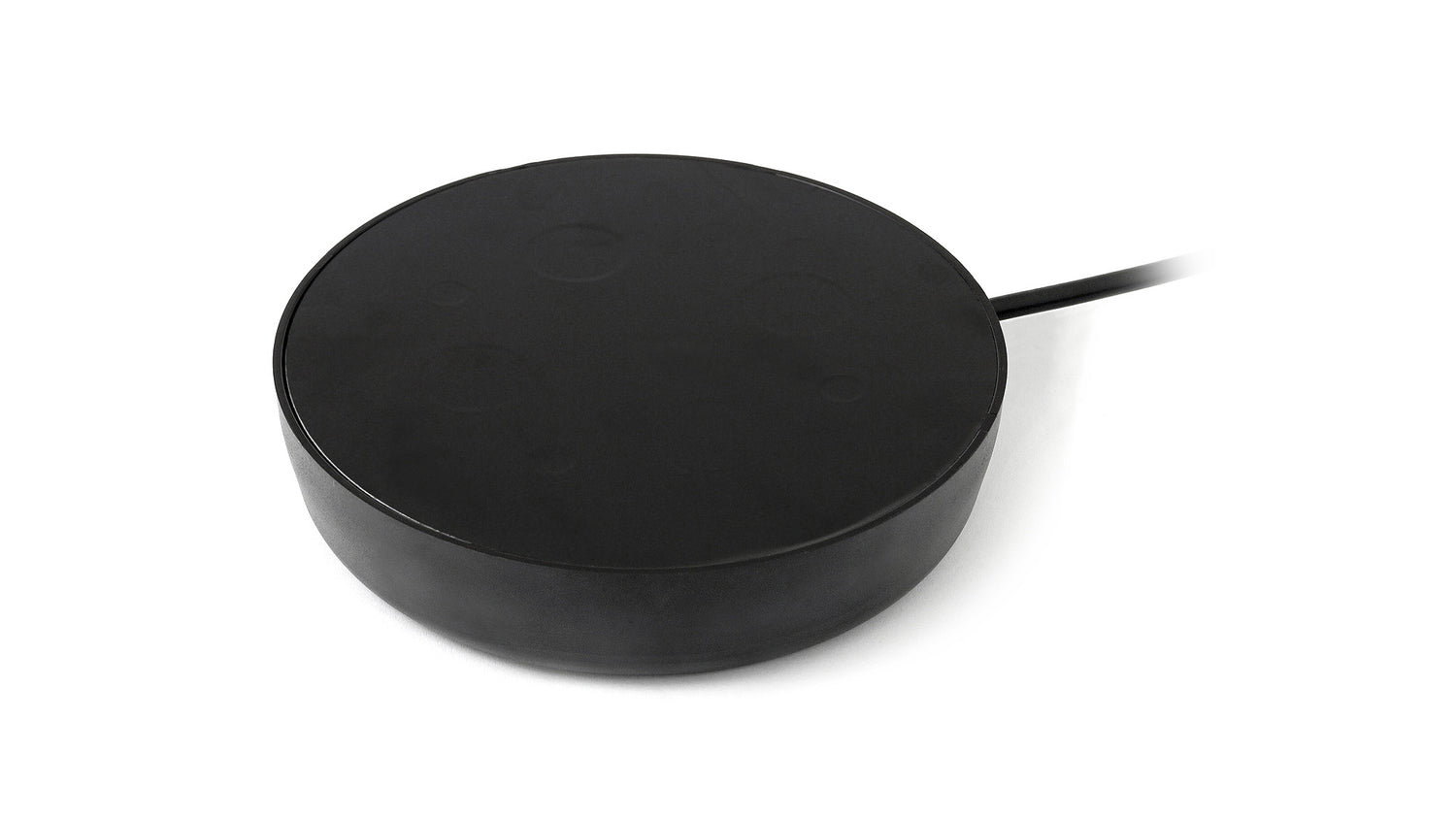

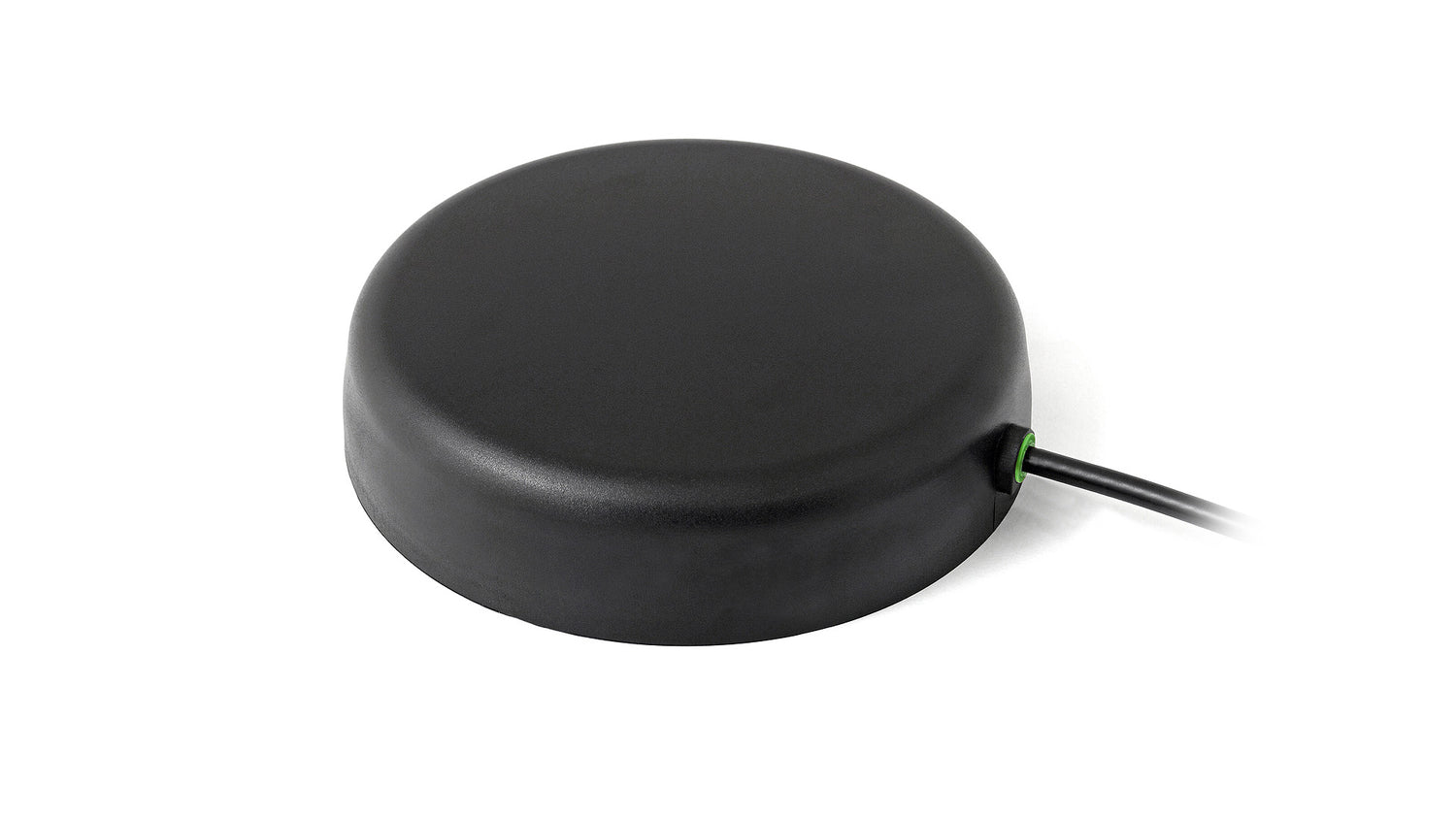

2J6510M ISM magnetic mount Antenna IP67 IP69K

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This heavy-duty antenna is designed for reliable performance in demanding environments, supporting 433 MHz ISM applications such as LoRa, Sigfox, LPWA, and RFID. Its robust construction and ground plane dependent design make it ideal for industrial IoT, smart cities, asset tracking, and remote monitoring. The antenna is protected with IP67, IP69K, and IK09 ratings, ensuring resistance to water, dust, and mechanical impacts.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single
Dimensions: Ø 135.5 × 30 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.1:1
Efficiency (%): ~58.1
Peak Gain (dBi): ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6510M", "title": "433 MHz ISM Magnetic Mounting Antenna", "mountingType": "Magnetic Mount", "ipRating": "IP67/IP69K", "dimensions_mm": "Ø 135.5 x 30", "elements": [ { "elementID": "ISM 433MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-27.5", "vswr": "~1.1:1", "efficiency_percent": "~58.1", "peakGain_dbi": "~2.9", "averageGain_db": "~-2.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 433MHz", "type": "SMA-Male", "cableType": "RG58", "cableLength_mm": 3000 } ] }
