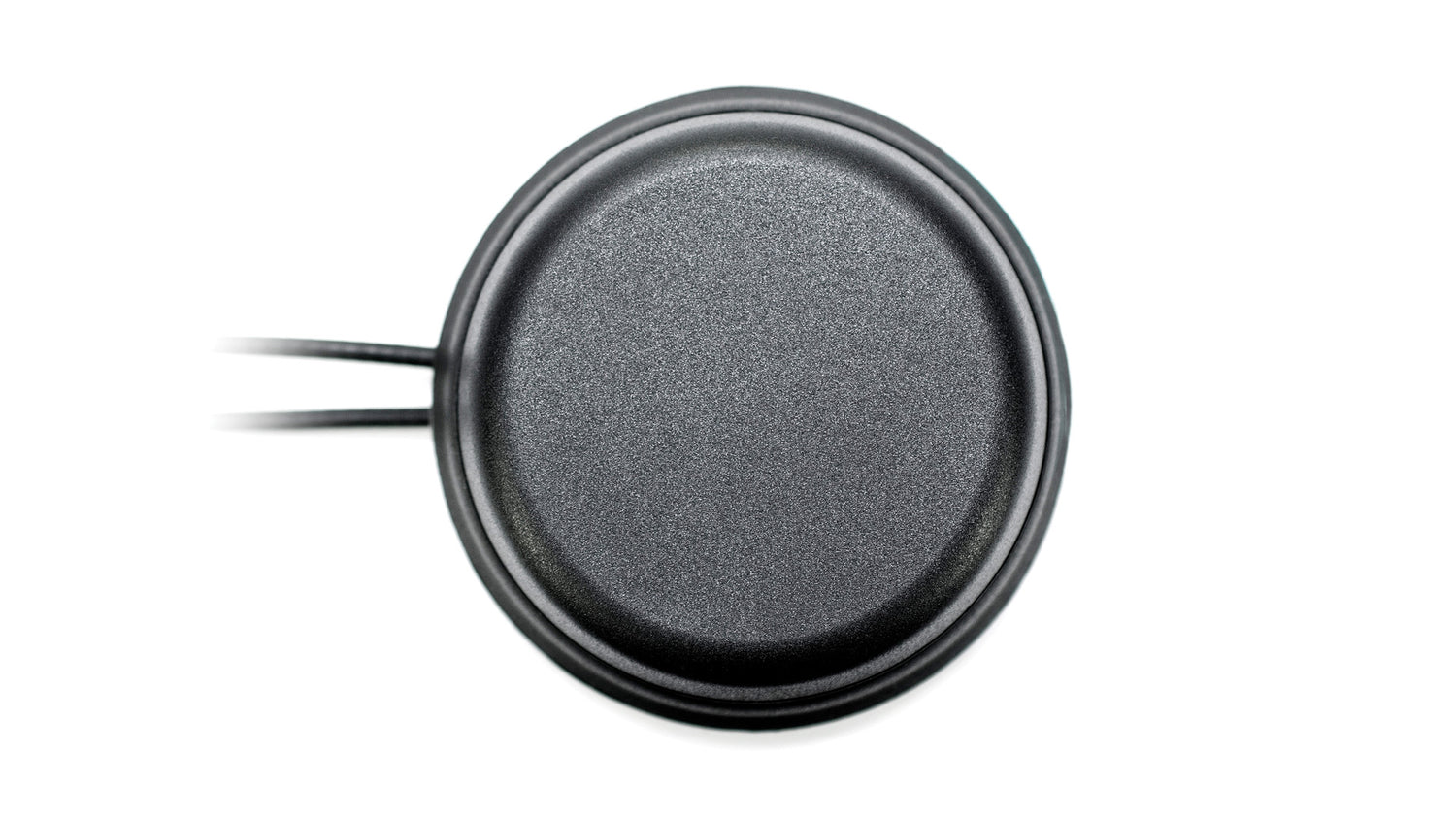

This low-profile, ground plane independent antenna is designed for reliable 3G/2G cellular and GNSS connectivity in demanding environments. Its 2-in-1 combination design makes it ideal for applications such as asset tracking, fleet management, telematics, and smart city infrastructure. The antenna features anti-rotation mounting for secure installation and is suitable for use in harsh outdoor conditions thanks to its IP67 and IP69K protection ratings.
Connections
3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 3G, 2G
Location: External

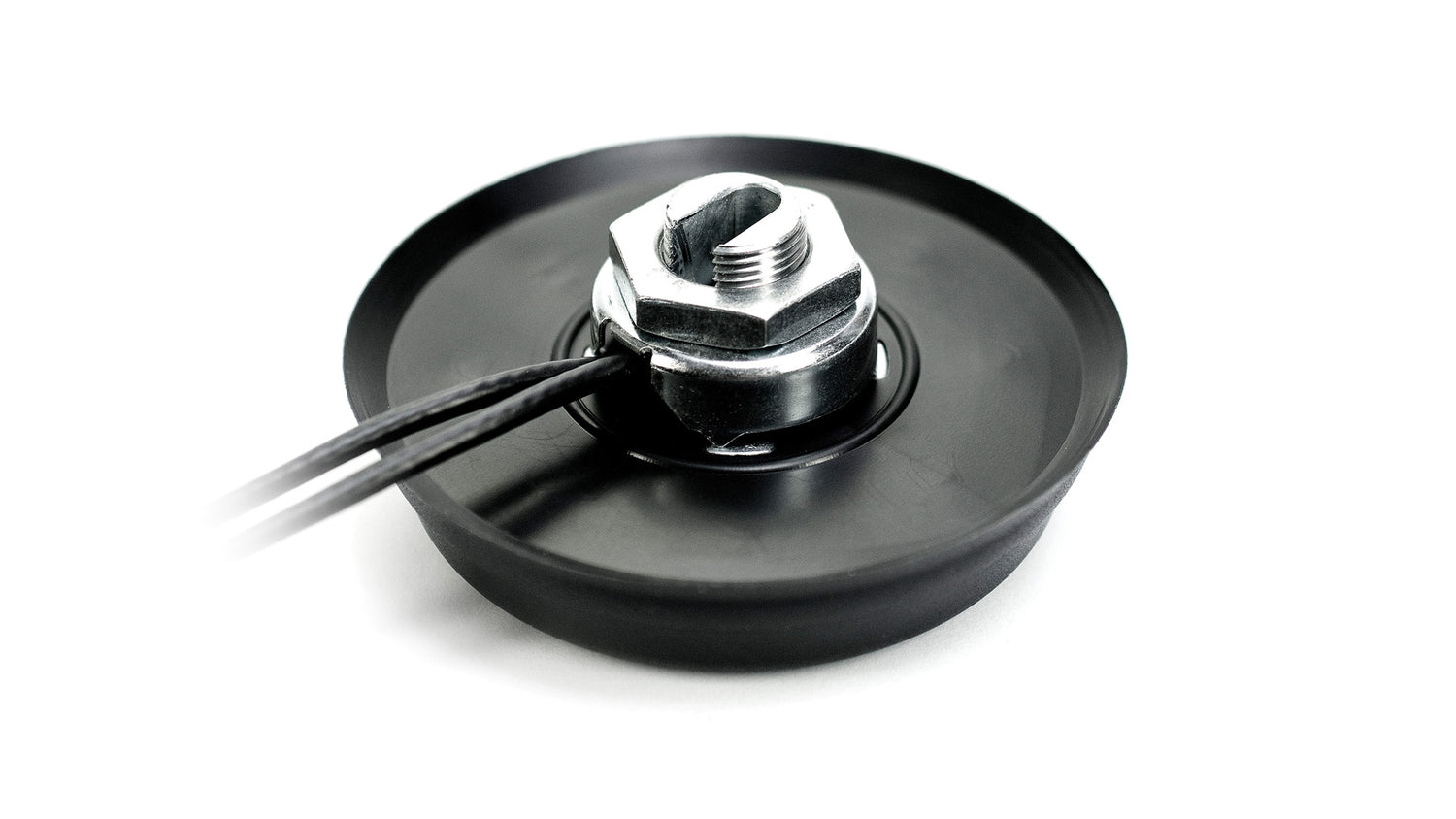

Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.7:1, ~2.1:1
Efficiency (%): ~17.6, ~11.4
Peak Gain (dBi): ~-3.6, ~-3.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Active Gain (dB): 27 dB @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6600BGF",
"title": "Cellular and GNSS Screw Mount Combination Antenna",
"mountingType": "Screw Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "Ø 77.3 x 15",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"2G",
"3G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-7.4",
"vswr": "~2.7:1",
"efficiency_percent": "~17.6",
"peakGain_dbi": "~-3.6",
"averageGain_db": "~-8.4"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-9.1",
"vswr": "~2.1:1",
"efficiency_percent": "~11.4",
"peakGain_dbi": "~-3.3",
"averageGain_db": "~-9.5"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "≤-15.0",
"vswr": "≤1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~27",
"averageGain_db": null
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "≤-15.0",
"vswr": "≤1.4:1",
"efficiency_percent": null,
"peakGain_dbi": "~27",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
