2J  |  SKU: 2J6615B-868

2J6615B-868 ISM screw mount Antenna IP67 IP69K

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

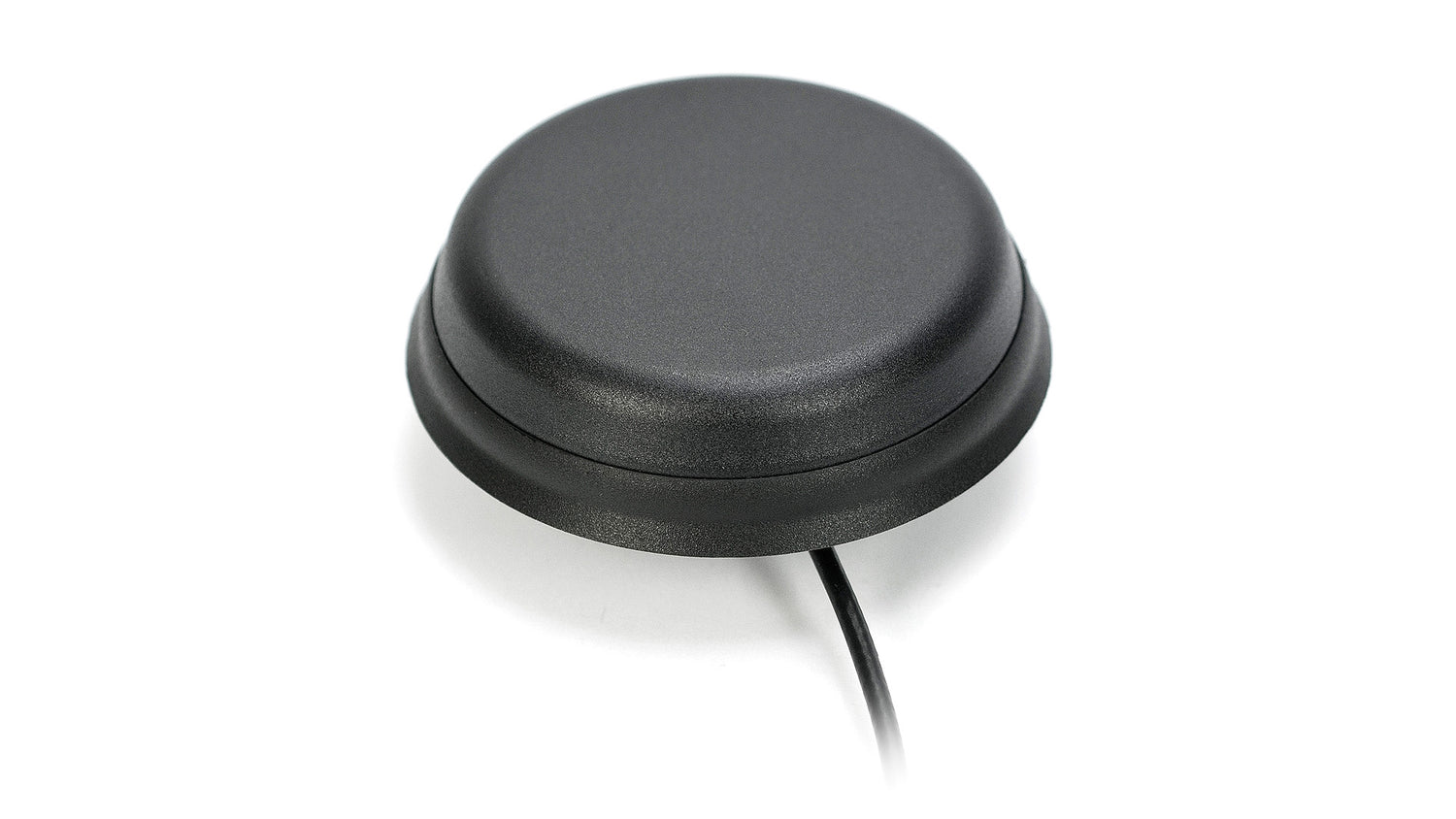

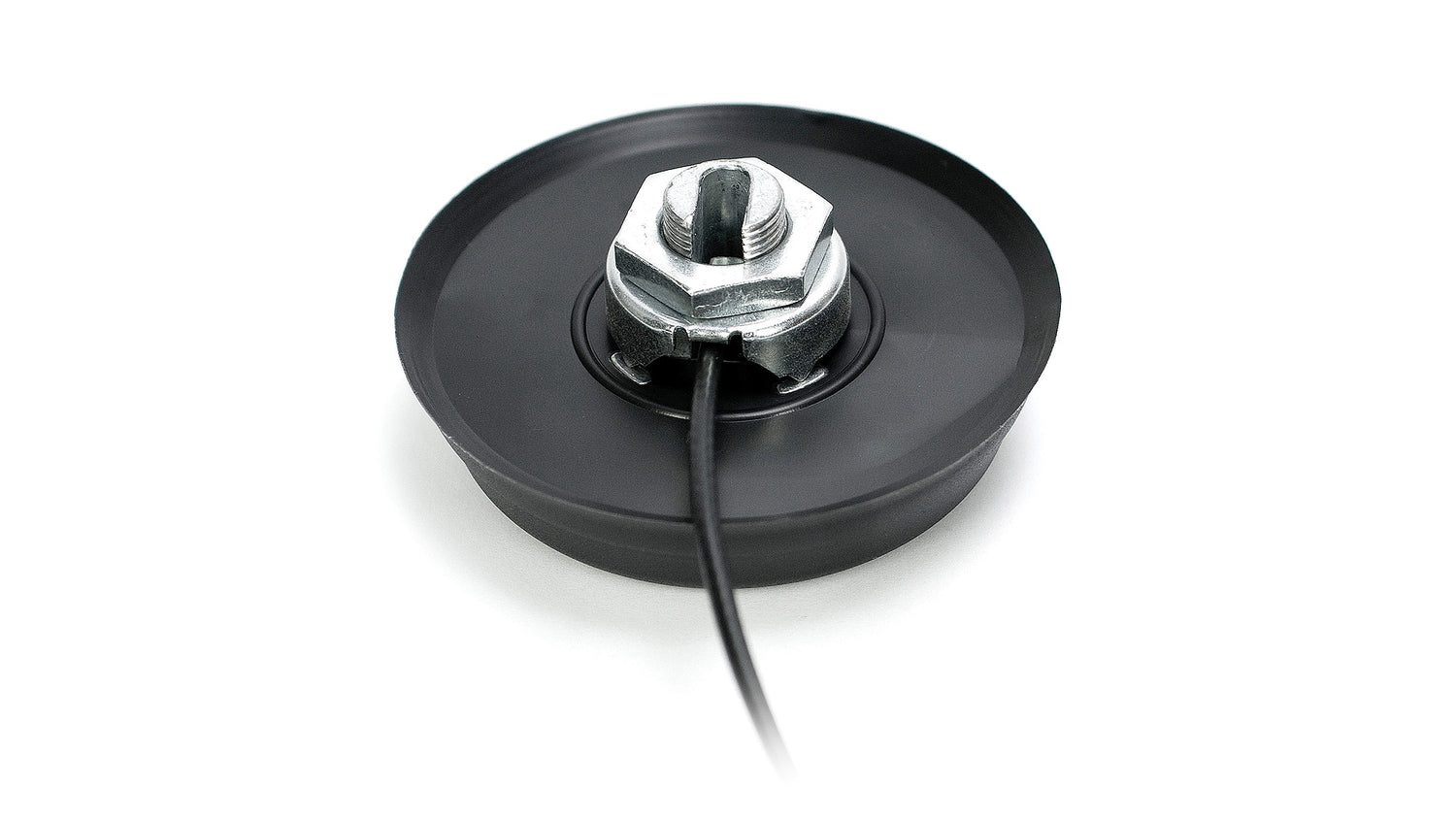

This low-profile antenna is designed for reliable ISM band performance at 868 MHz, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its robust construction ensures durability in harsh environments, while the anti-rotation screw mount provides secure installation. The antenna is IP67 and IP69K rated for superior protection against dust and water, making it suitable for both indoor and outdoor deployments. Customizable cable and connector options are available to meet specific installation requirements.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Single
Location: External
Dimensions: Ø 77.3 x 15 mm

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.2:1
Efficiency (%): ~42.1
Peak Gain (dBi): ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6615B-868", "title": "868 MHz ISM Low Profile Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69K", "dimensions_mm": "Ø 77.3 x 15", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-21.3", "vswr": "~1.2:1", "efficiency_percent": "~42.1", "peakGain_dbi": "~2.0", "averageGain_db": "~-3.8" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
