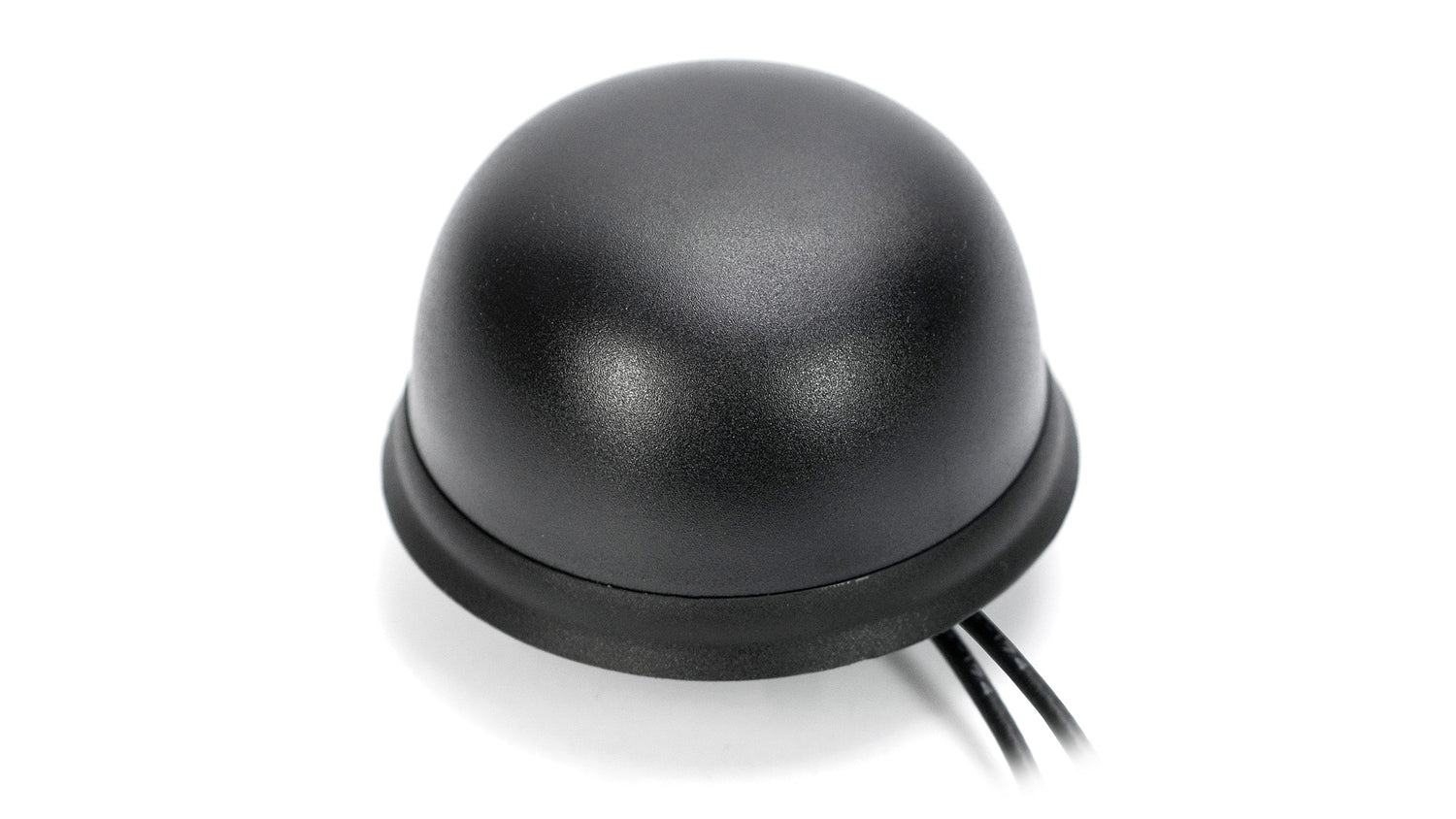

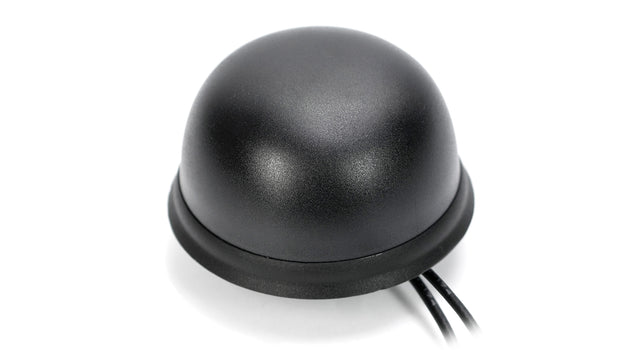

2J6703B Wi-Fi, ISM, GNSS screw mount Antenna IP67/IP69K/IK10

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1249

Description

This heavy-duty combination antenna is engineered for robust performance in demanding environments. Featuring both Wi-Fi/ISM and active GNSS (GPS/QZSS/Galileo) connectivity, it is ideal for applications such as smart cities, transportation, asset tracking, and industrial automation. The ground plane independent design and anti-rotation screw mount ensure secure installation and reliable operation. With high peak gain for Wi-Fi and active gain for GNSS, this antenna is suitable for a wide range of IoT, navigation, and wireless communication solutions. Its rugged housing meets IP67, IP69K, and IK10 standards for maximum protection against water, dust, and impact.

Connections

GPS/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External

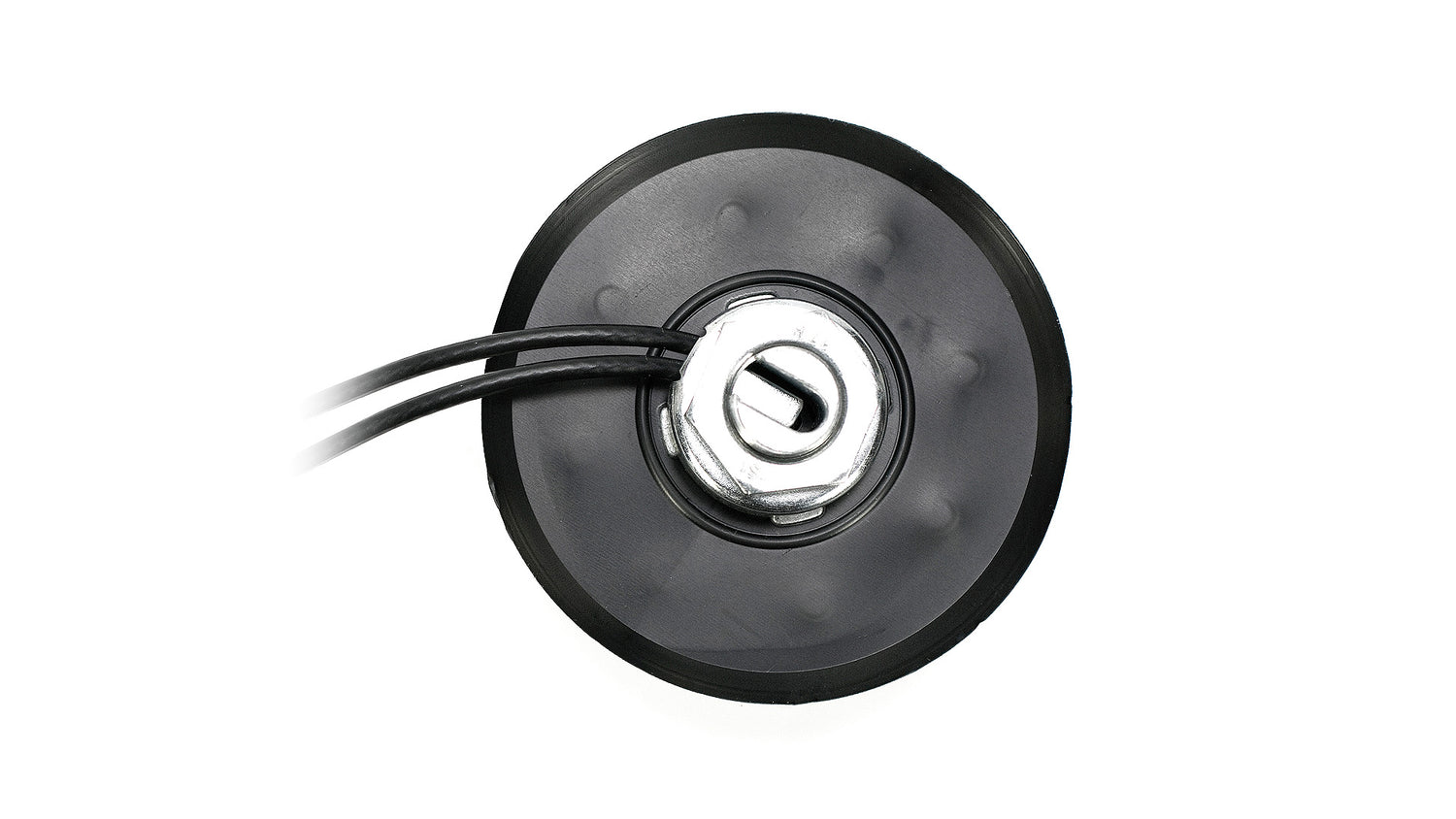

Mounting: Screw Mount
Type: Combination

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.2:1, ~1.4:1
Efficiency (%): ~35, ~33
Peak Gain (dBi): ~4.3, ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GPS

Standards: GPS/QZSS/Galileo
Frequency: 1575.42 MHz
VSWR: <=1.2:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 26 @ 3 V
Saw Filter Type: No-Filter
Voltage (V): 3 - 5
Current (mA): 15 - 25
Power Consumption (mW): 45 - 125

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6703B", "title": "WiFi ISM GPS/Galileo Anti-Rotation Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69K", "dimensions_mm": "77.3 x 37.8", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi / ISM", "technologies": [ "Wi-Fi", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-20", "vswr": "~1.2:1", "efficiency_percent": "~35", "peakGain_dbi": "~4.3", "averageGain_db": "~-4.4" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-15", "vswr": "~1.4:1", "efficiency_percent": "~33", "peakGain_dbi": "~1.8", "averageGain_db": "~-4.8" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 }, { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "QZSS", "Galileo" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": "~-20.8", "vswr": "~1.2:1", "efficiency_percent": null, "peakGain_dbi": "~26", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 }, { "elementIDRef": "GNSS", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
