2J  |  SKU: 2J6704B

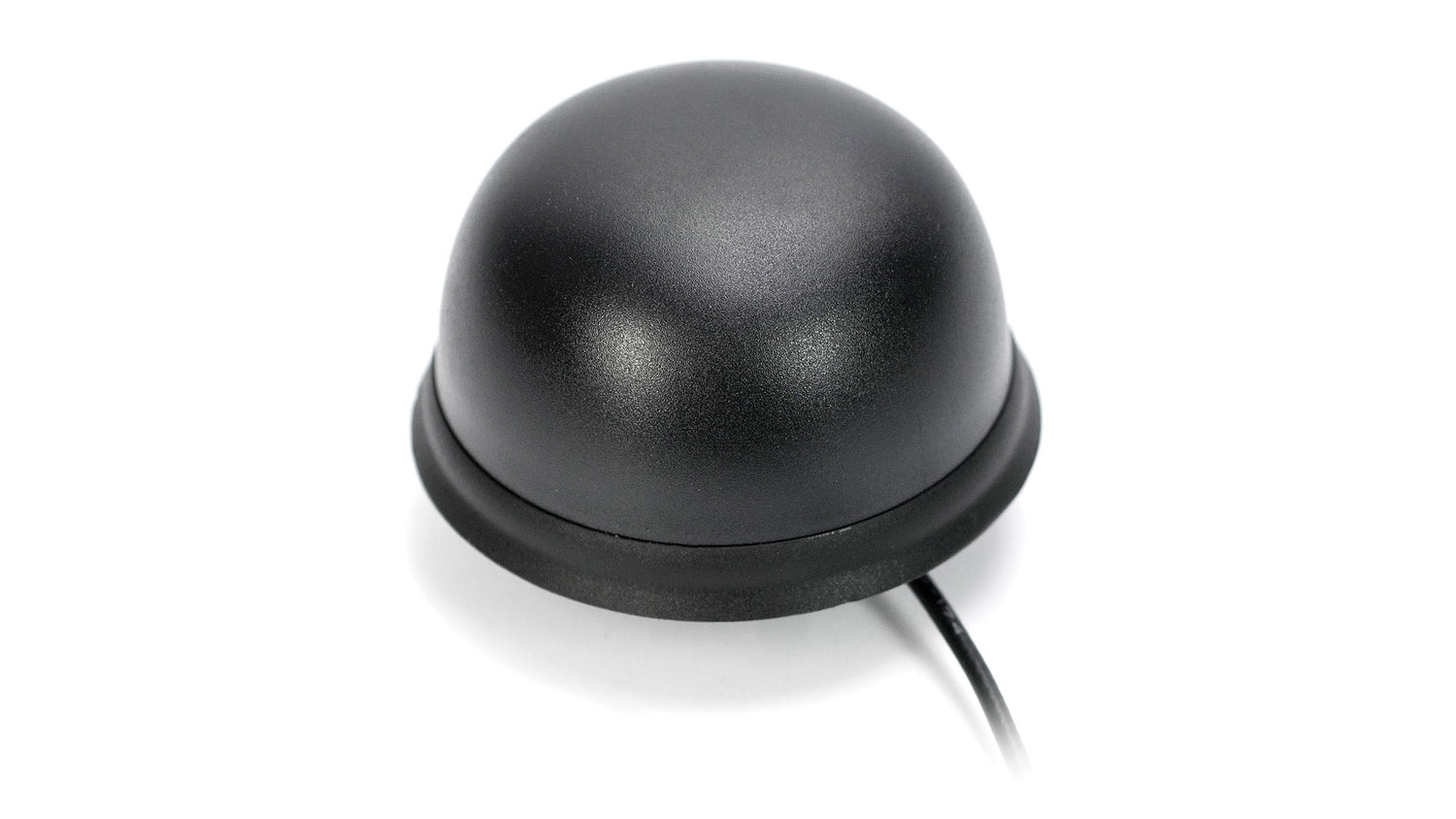

2J6704B 3G, 2G screw mount Antenna IP67/IP69K/IK10

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

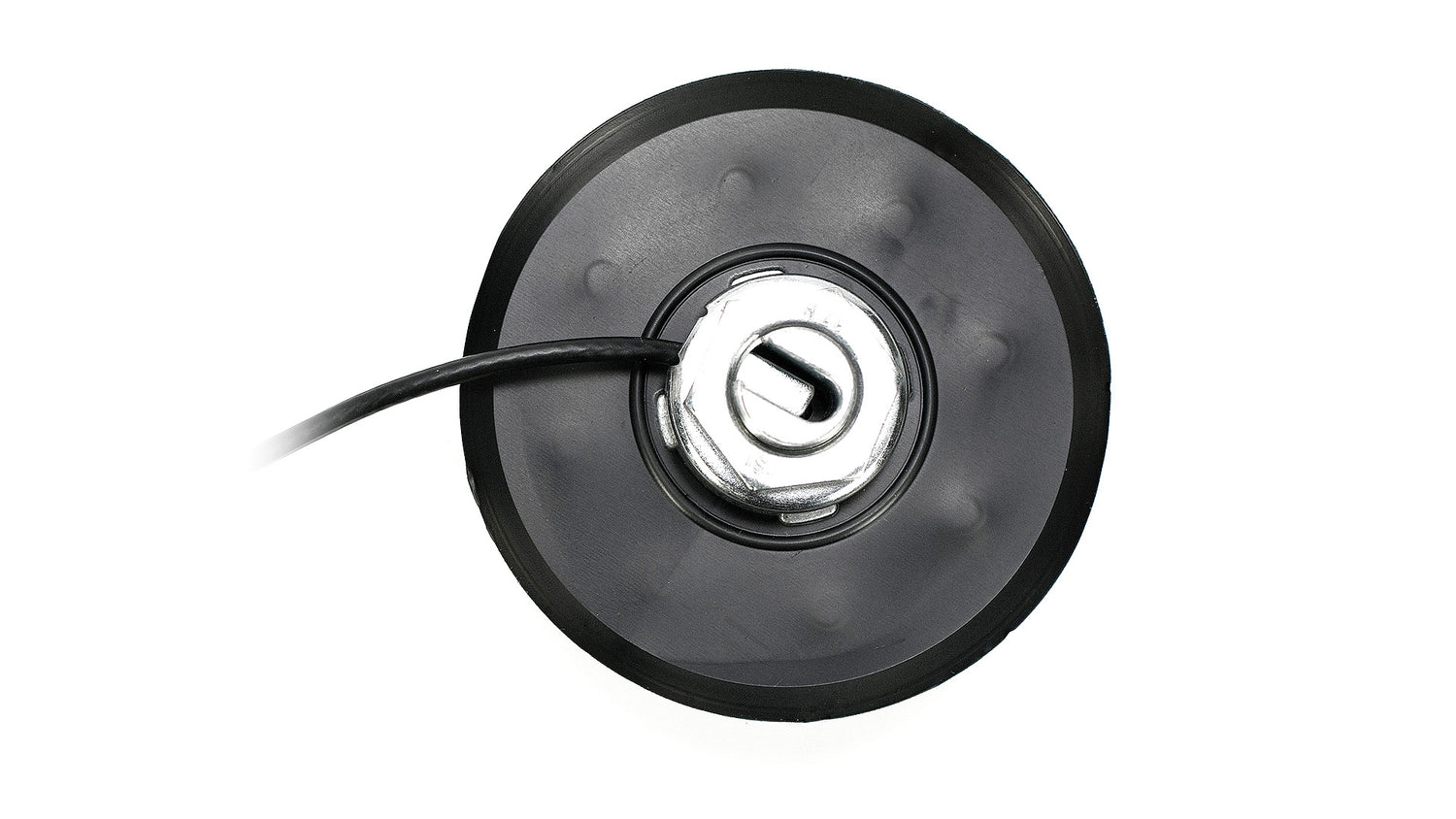

This heavy-duty screw mount antenna is designed for reliable 3G and 2G cellular connectivity in demanding environments. Its robust construction ensures durability and resistance to harsh conditions, making it ideal for applications such as mobile networks, asset tracking, machine control, automotive, and industrial monitoring. The antenna features anti-rotation mounting and is ground plane dependent, providing stable performance for a wide range of wireless communication needs.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Single
Dimensions: Ø 77.3 × 36.5 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~3.0:1, ~2.0:1
Efficiency (%): ~18.1, ~20.5
Peak Gain (dBi): ~-4.1, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6704B", "title": "CELLULAR Screw Mount Heavy Duty Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69K", "dimensions_mm": "Ø 77.3 x 36.5", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-6.5", "vswr": "~3.0:1", "efficiency_percent": "~18.1", "peakGain_dbi": "~-4.1", "averageGain_db": "~-8.6" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-10.0", "vswr": "~2.0:1", "efficiency_percent": "~20.5", "peakGain_dbi": "~-0.3", "averageGain_db": "~-7.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
