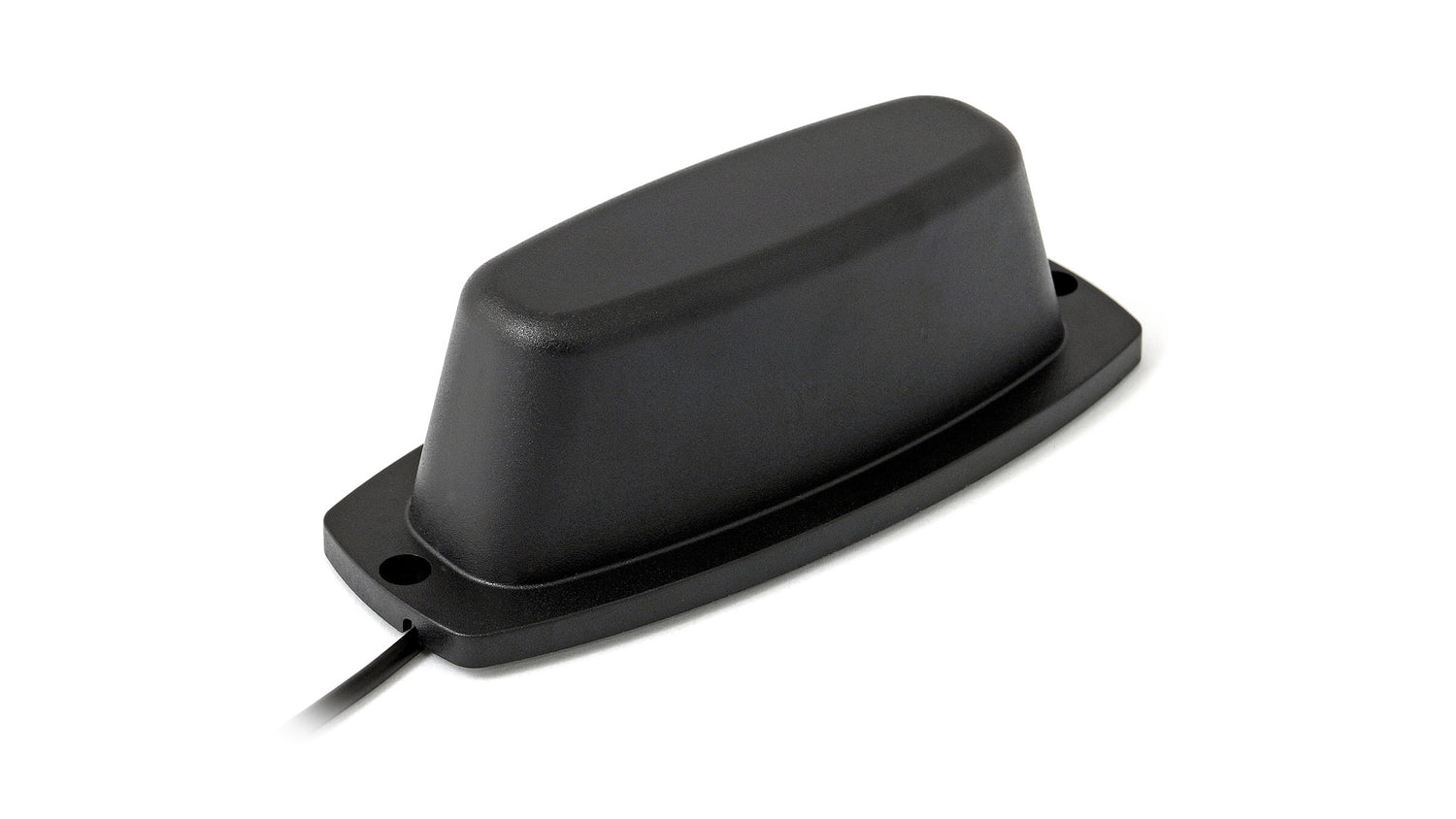

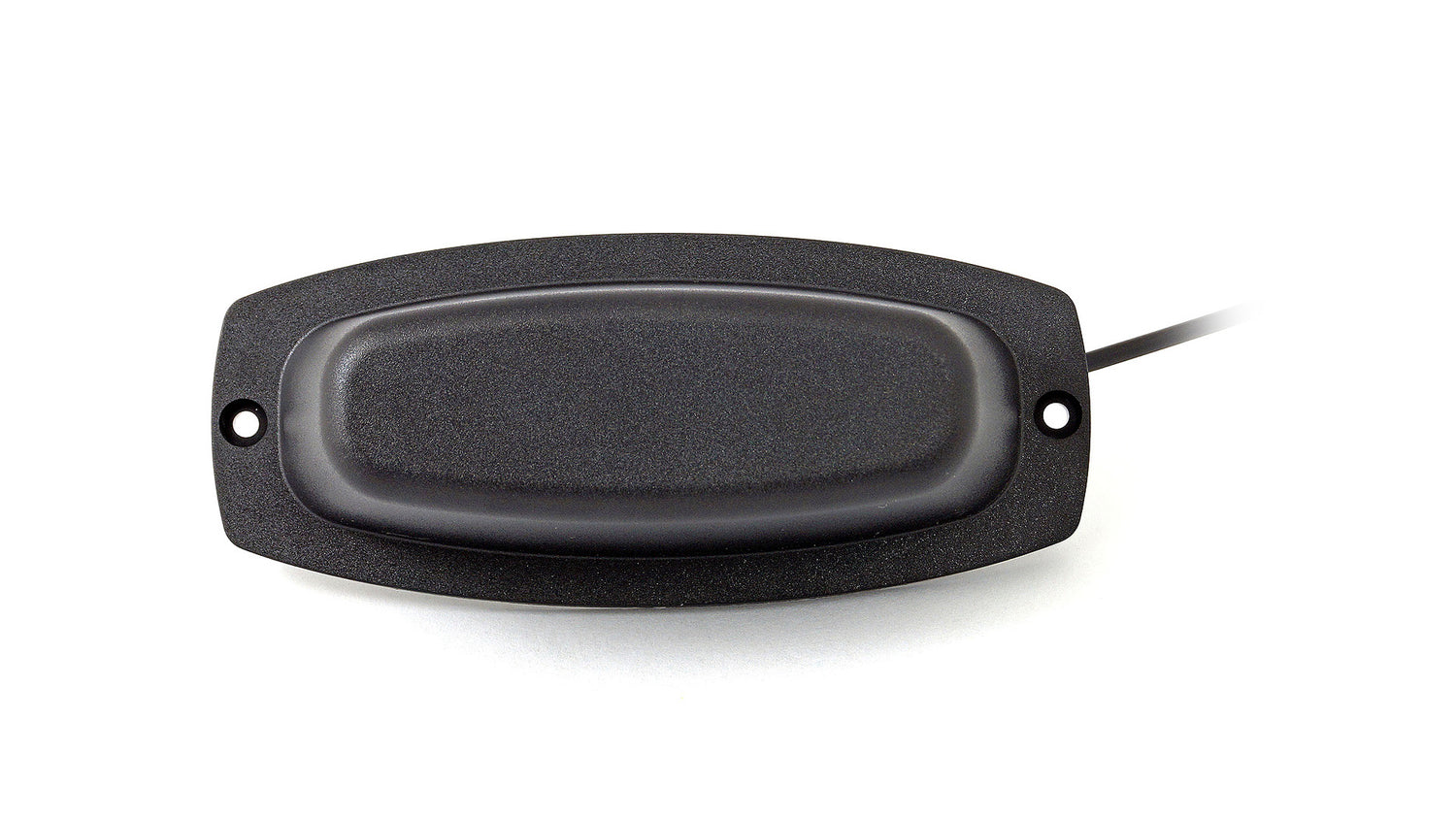

This versatile antenna is designed for reliable 3G and 2G cellular connectivity, making it ideal for a wide range of applications including mobile networks, asset tracking, telematics, and more. Its compact form factor and ground plane dependent design ensure optimal performance in challenging environments. The antenna supports both adhesive and magnetic mounting options, providing flexibility for installation on various surfaces.
Connections
3G/2G/CELL
Technical Specifications
Operating Temperature: -40 °C to +85 °C

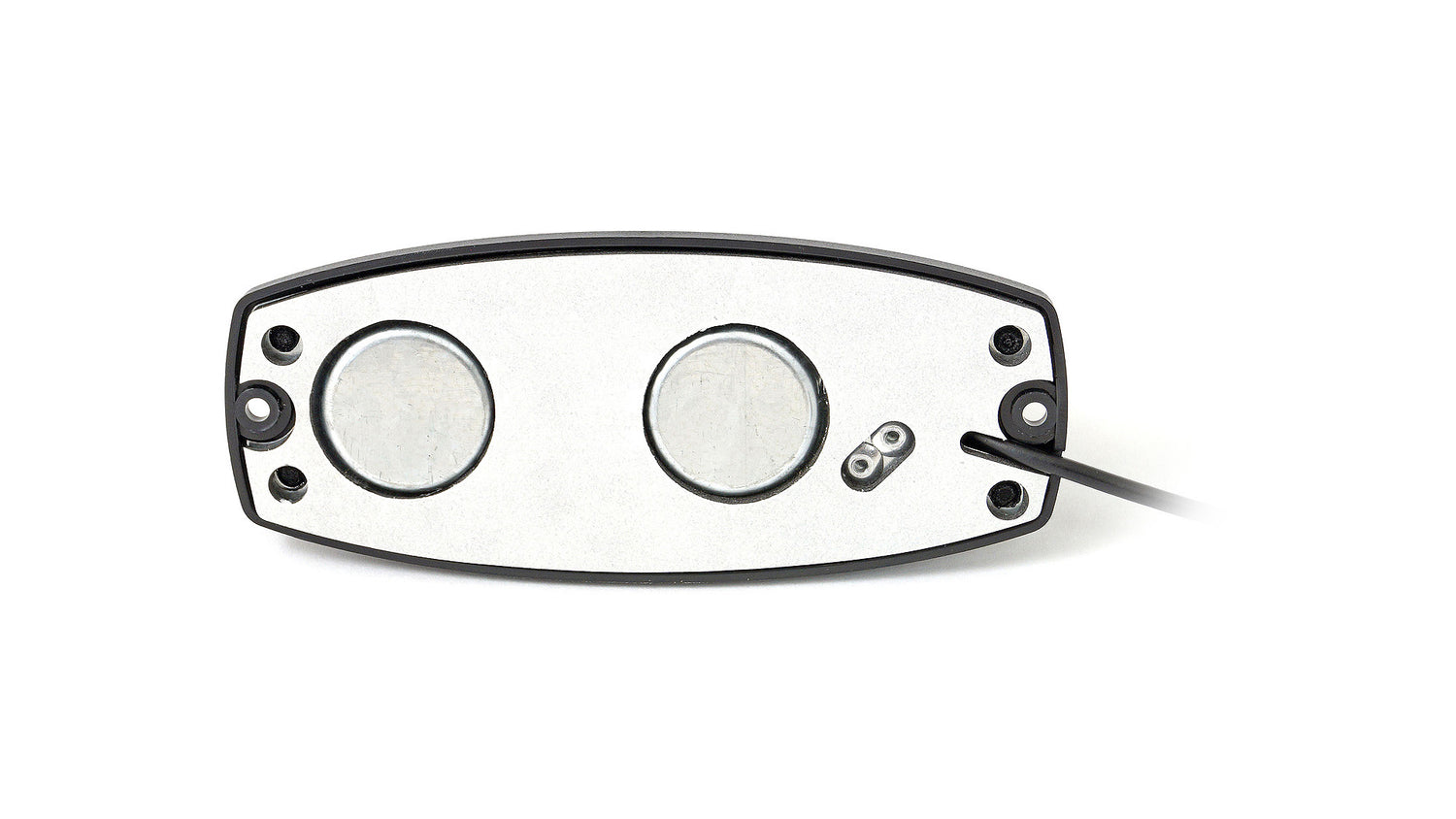

Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Type: Single
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~39, ~36
Peak Gain (dBi): ~0.9, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6804MP",
"title": "Cellular Adhesive/Magnetic Mount Customizable Antenna",
"mountingType": "Adhesive/Magnetic Mount",
"ipRating": null,
"dimensions_mm": "117 x 49.5 x 38",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-15.5",
"vswr": "~1.4:1",
"efficiency_percent": "~39",
"peakGain_dbi": "~0.9",
"averageGain_db": "~-4.0"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-14.5",
"vswr": "~1.5:1",
"efficiency_percent": "~36",
"peakGain_dbi": "~0.7",
"averageGain_db": "~-4.4"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 50
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
