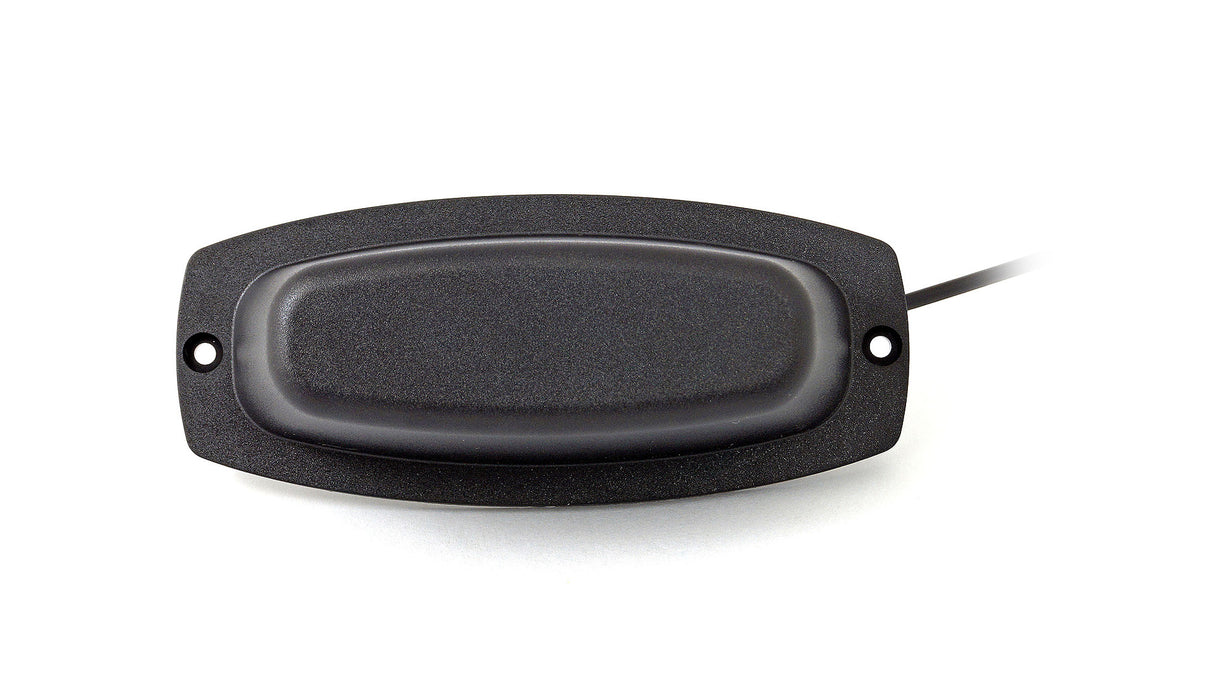

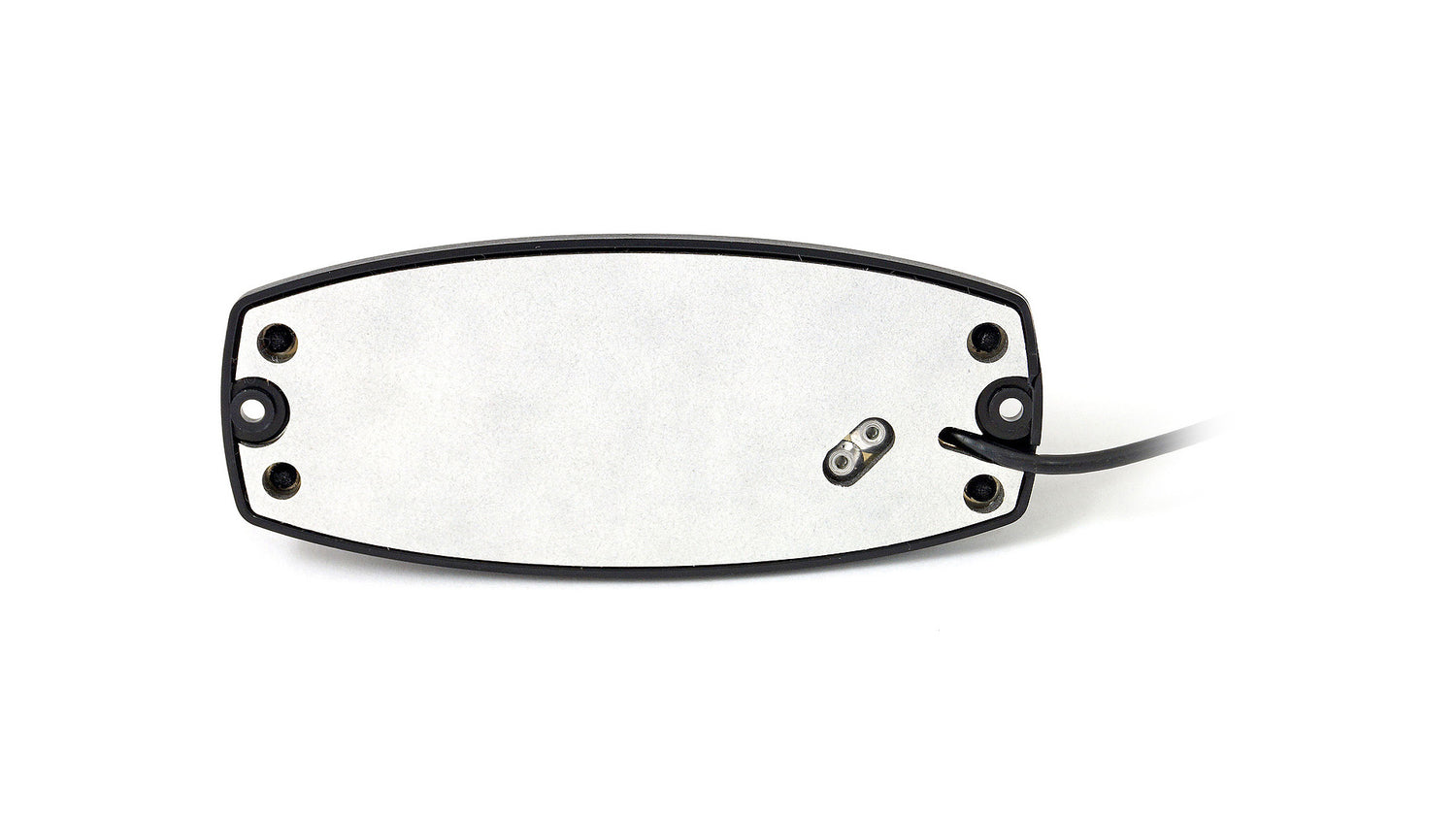

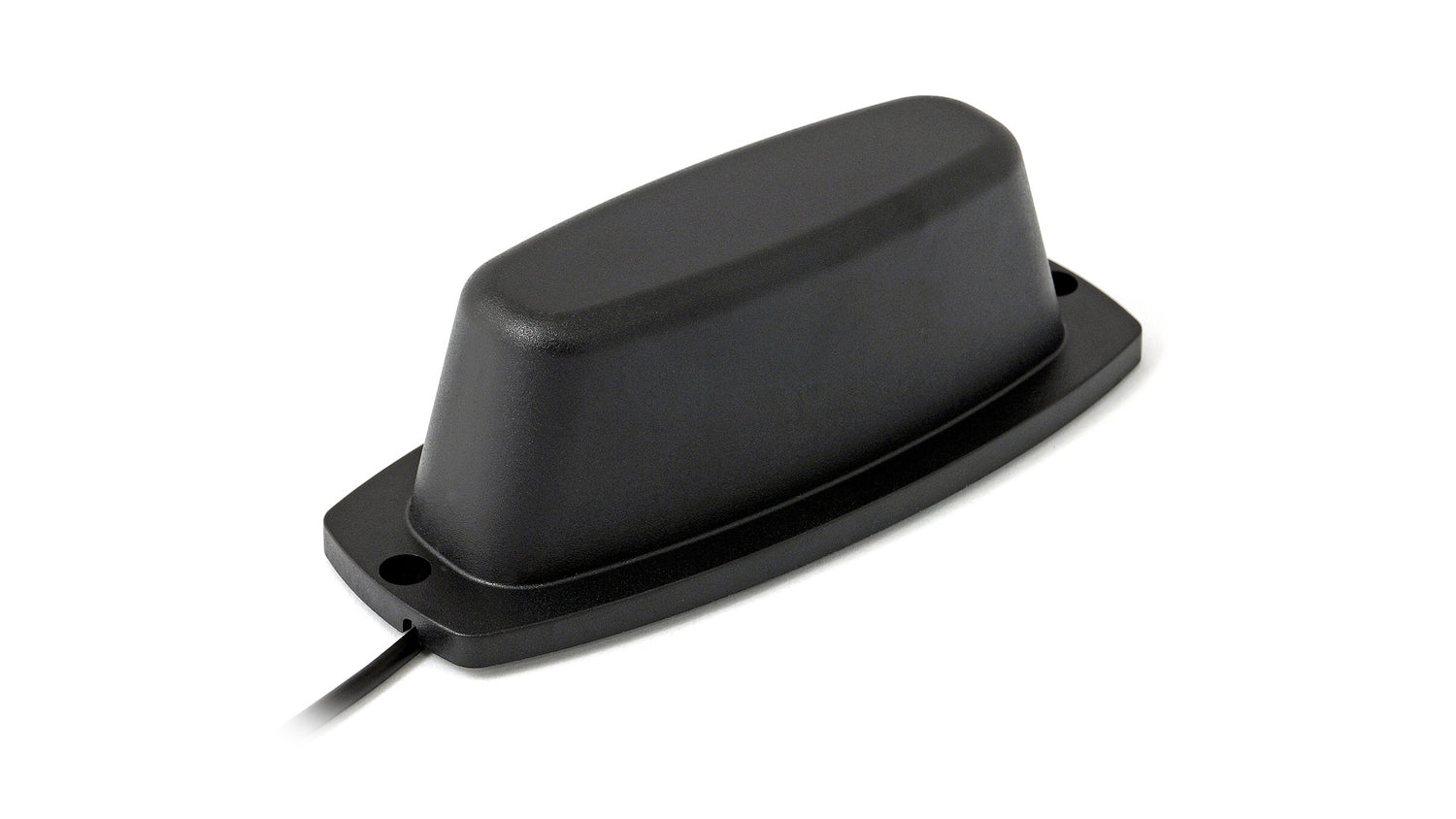

This adhesive mount antenna is designed for reliable 3G and 2G cellular connectivity, optimized for installation on metal surfaces. Its ground plane dependent design ensures stable performance, making it ideal for applications such as mobile and cellular networks, machine control, asset tracking, automotive, and telecommunication systems. The customizable cable and connector options allow for flexible integration into a wide range of devices and environments.
Connections
3G/2G/CELL
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~39, ~26
Peak Gain (dBi): ~0.7, ~0.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6804P",
"title": "Cellular For Metal Surfaces Adhesive Customizable Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "117 x 49.5 x 38",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-15.5",
"vswr": "~1.4:1",
"efficiency_percent": "~39",
"peakGain_dbi": "~0.7",
"averageGain_db": "~-4.2"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-14.5",
"vswr": "~1.5:1",
"efficiency_percent": "~26",
"peakGain_dbi": "~0.2",
"averageGain_db": "~-5.9"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 50
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
