2J  |  SKU: 2J6A24B

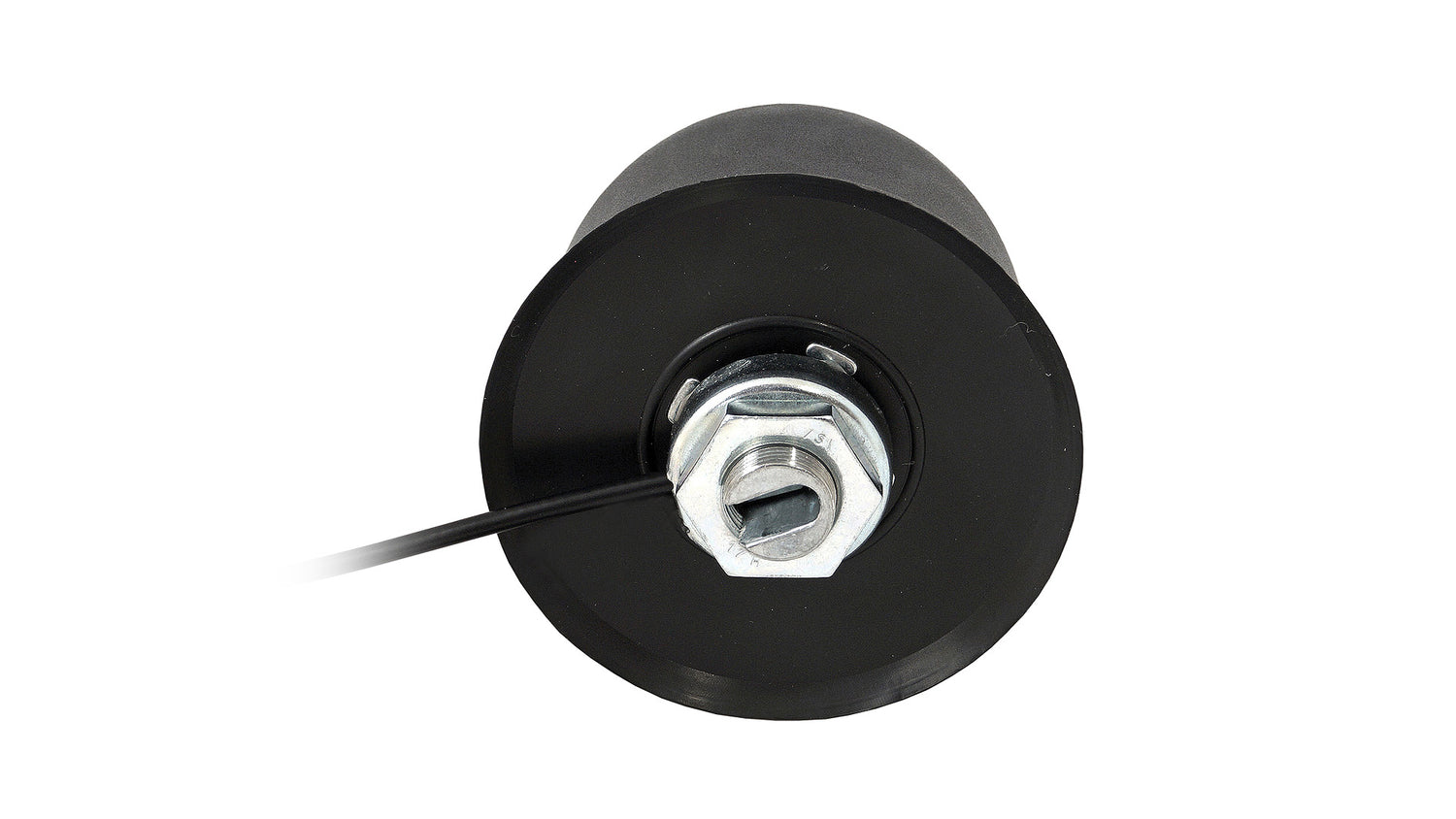

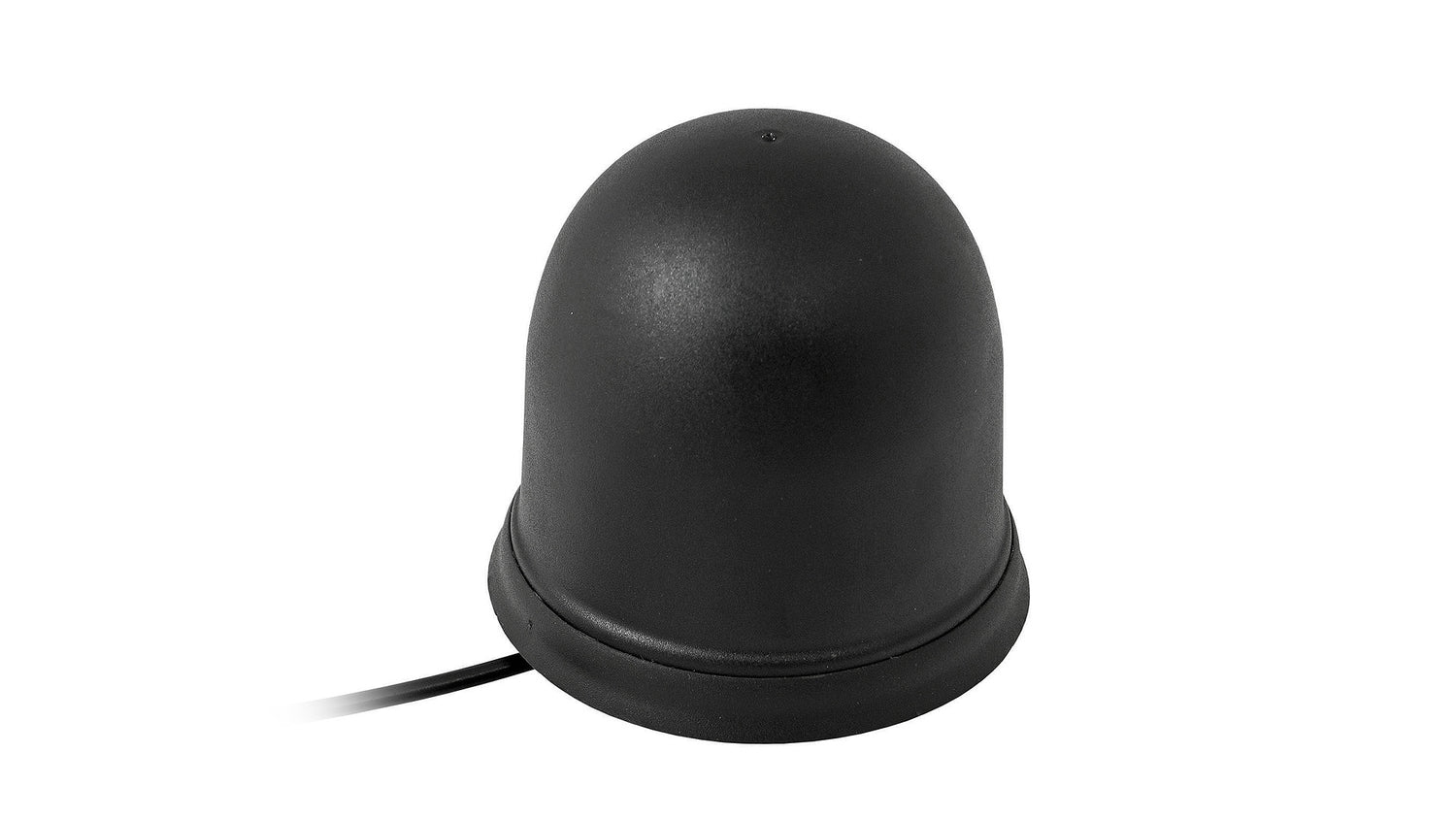

2J6A24B 4G/LTE screw mount Antenna IP67 IK09 IP69K

€39,50
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This rugged antenna is designed for reliable cellular connectivity across 4G LTE, 3G, and 2G networks. Its ground plane dependent design ensures optimal performance in a wide range of industrial and commercial applications. The heavy-duty construction, anti-rotation mounting, and high ingress protection ratings (IP67, IK09, IP69K) make it ideal for harsh environments where durability and weather resistance are critical. Suitable for use in mobile and cellular networks, asset tracking, IoT, smart cities, fleet management, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Cellular Technologies: 4G/LTE, 3G, 2G
Location: External
Mounting: Screw Mount
Type: Single
Dimensions: Ø 77.3 × 65.5 mm

Connection 1 - CELLULAR/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~1.5:1, ~1.5:1
Efficiency (%): ~52, ~62, ~50
Peak Gain (dBi): ~0.7, ~3.4, ~4.0
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J6A24B", "title": "4G LTE/3G/2G Ground Plane Dependent Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67 / IP69K", "dimensions_mm": "Ø 77.3 × 65.5", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "FirstNet", "LPWA", "NB-IoT", "Cat-X-Mx-NBx", "3G", "2G" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-10.3", "vswr": "~2.1:1", "efficiency_percent": "~52", "peakGain_dbi": "~0.7", "averageGain_db": "~-2.9" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.8", "vswr": "~1.5:1", "efficiency_percent": "~62", "peakGain_dbi": "~3.4", "averageGain_db": "~-2.1" }, { "range_mhz": "2500-2700", "returnLoss_db": "~-15.1", "vswr": "~1.5:1", "efficiency_percent": "~50", "peakGain_dbi": "~4.0", "averageGain_db": "~-3.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "SMA-Male", "cableType": "DACAR 302", "cableLength_mm": 3000 } ] }
