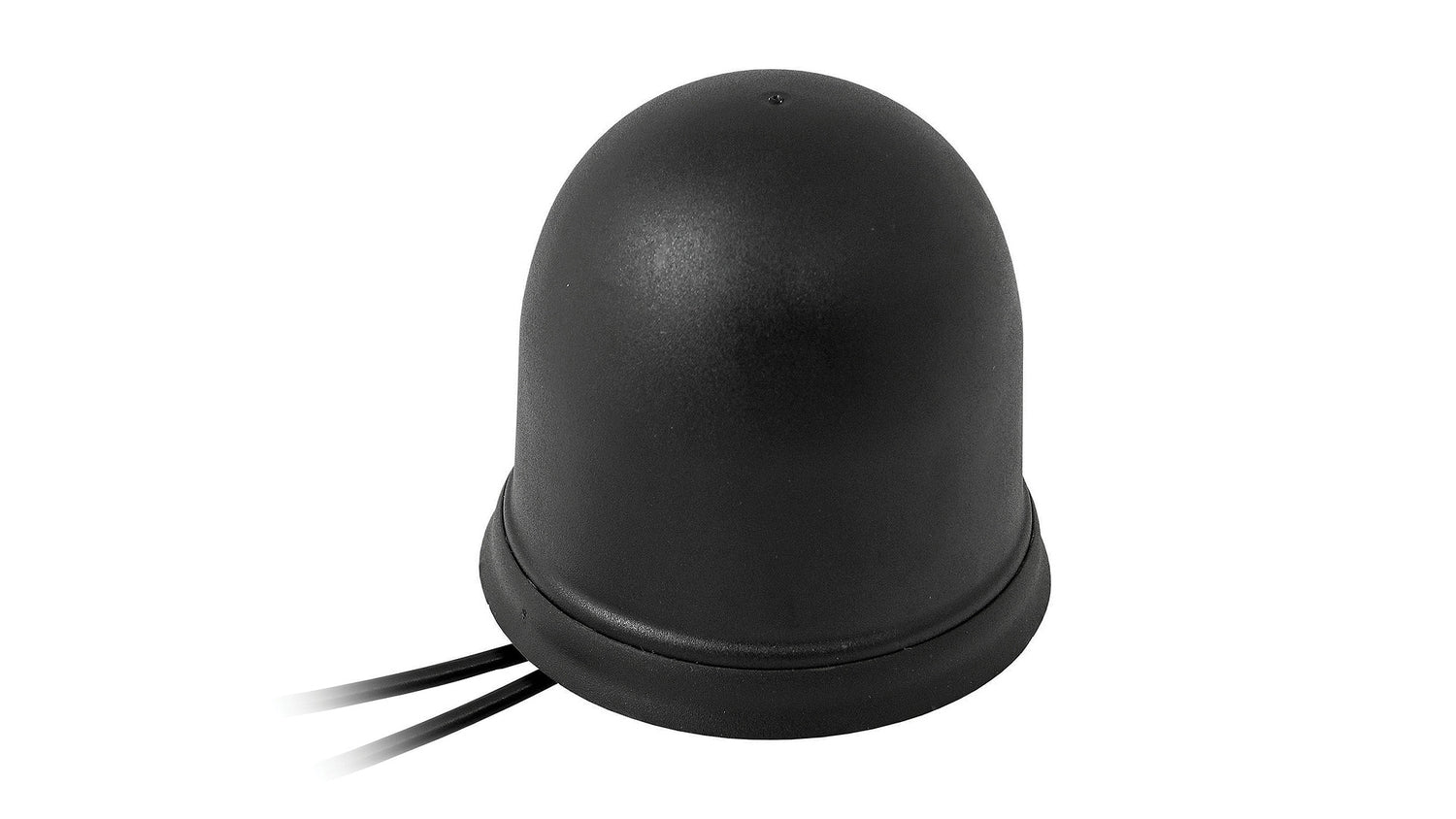

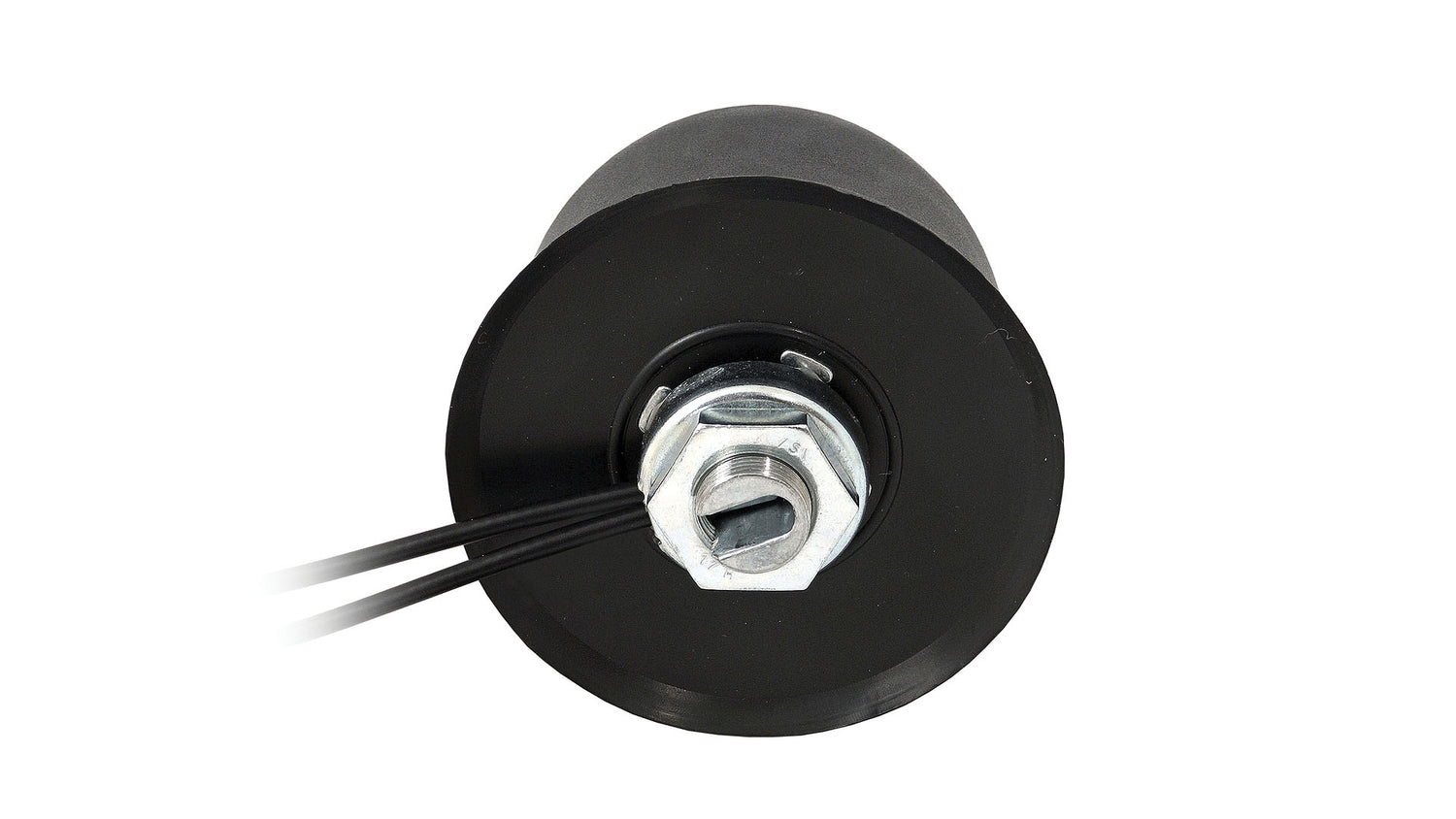

This rugged combination antenna is designed for reliable performance in demanding environments, supporting both 4G/LTE cellular and GNSS (GPS, Galileo, QZSS) navigation technologies. Its screw mount design ensures secure installation, while the anti-rotation feature and heavy-duty construction make it ideal for automotive, industrial, and outdoor applications. The antenna features a pre-filtered active GNSS element for enhanced signal quality and is protected with high ingress ratings for use in harsh conditions.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Combination
Location: External
Cellular Technologies: 4G/LTE, 3G, 2G
Satellite Navigation: GNSS
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.5:1, ~2.4:1
Efficiency (%): ~56, ~51, ~39
Peak Gain (dBi): ~2, ~4, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo
Frequency: 1575.42 MHz
VSWR: ≤1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 – 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2 kV
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J6A41BF",
"title": "4G LTE/3G/2G, GPS/Galileo Pre-Filter GNSS Anti-Rotation Screw Mount Antenna",
"mountingType": "Screw Mount",
"ipRating": "IP67 / IP69K / IK09",
"dimensions_mm": "Ø 77.3 x 65.5",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-8.5",
"vswr": "~2.2:1",
"efficiency_percent": "~56",
"peakGain_dbi": "~2.0",
"averageGain_db": "~-2.6"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-13.9",
"vswr": "~1.5:1",
"efficiency_percent": "~51",
"peakGain_dbi": "~4.0",
"averageGain_db": "~-2.9"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-7.7",
"vswr": "~2.4:1",
"efficiency_percent": "~39",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-4.2"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"QZSS",
"Galileo"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "<=-15.0",
"vswr": "<=1.5:1",
"efficiency_percent": null,
"peakGain_dbi": "~28",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "DACAR 302",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "LMR100",
"cableLength_mm": 3000
}
]
}
