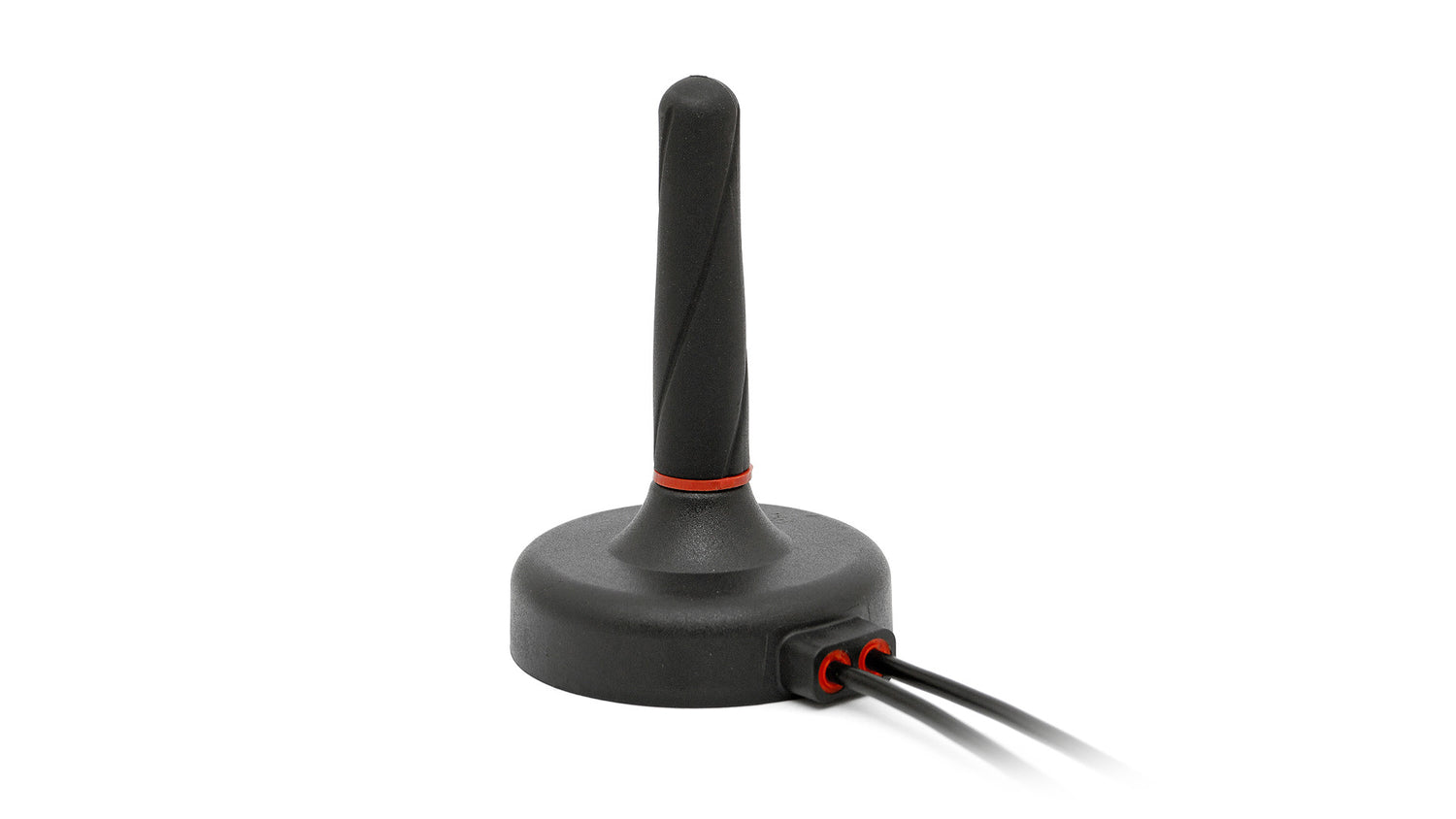

This high-performance combination antenna is designed for reliable connectivity in demanding environments. It supports both 4G/LTE cellular and GNSS (GPS, Galileo, GLONASS, QZSS) technologies, making it ideal for applications such as asset tracking, fleet management, telematics, and industrial IoT. The magnetic mount allows for quick and secure installation on metal surfaces, while the robust housing ensures durability in harsh outdoor conditions. With IP67 and IP69K protection, this antenna is well-suited for automotive, transportation, and mission-critical deployments.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Combination
Dimensions: Ø 54 × 80 mm
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~1.6:1, ~1.5:1
Efficiency (%): ~57, ~53, ~46
Peak Gain (dBi): ~1.3, ~2.0, ~2.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.2:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 26 @ 3V / 27 @ 5V
Voltage (V): 2.7 – 5.5
Current (mA): 15 - 25
Power Consumption (mW): 40 - 137
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J7541MG",
"title": "4G LTE/3G/2G, GPS/Galileo High Performance Magnetic Mount Antenna",
"mountingType": "Magnetic Mount",
"ipRating": "IP67/IP69K",
"dimensions_mm": "Ø 54 × 80",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-11.6",
"vswr": "~2.1:1",
"efficiency_percent": "~57",
"peakGain_dbi": "~1.3",
"averageGain_db": "~-2.4"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-13.0",
"vswr": "~1.6:1",
"efficiency_percent": "~53",
"peakGain_dbi": "~2.0",
"averageGain_db": "~-2.7"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-15.2",
"vswr": "~1.5:1",
"efficiency_percent": "~46",
"peakGain_dbi": "~2.6",
"averageGain_db": "~-3.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "~-20",
"vswr": "~1.2:1",
"efficiency_percent": null,
"peakGain_dbi": "~27",
"averageGain_db": null
},
{
"range_mhz": "1598-1610",
"returnLoss_db": "~-20",
"vswr": "~1.2:1",
"efficiency_percent": null,
"peakGain_dbi": "~27",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 2000
}
]
}
