2J | SKU: 2J7615B-915

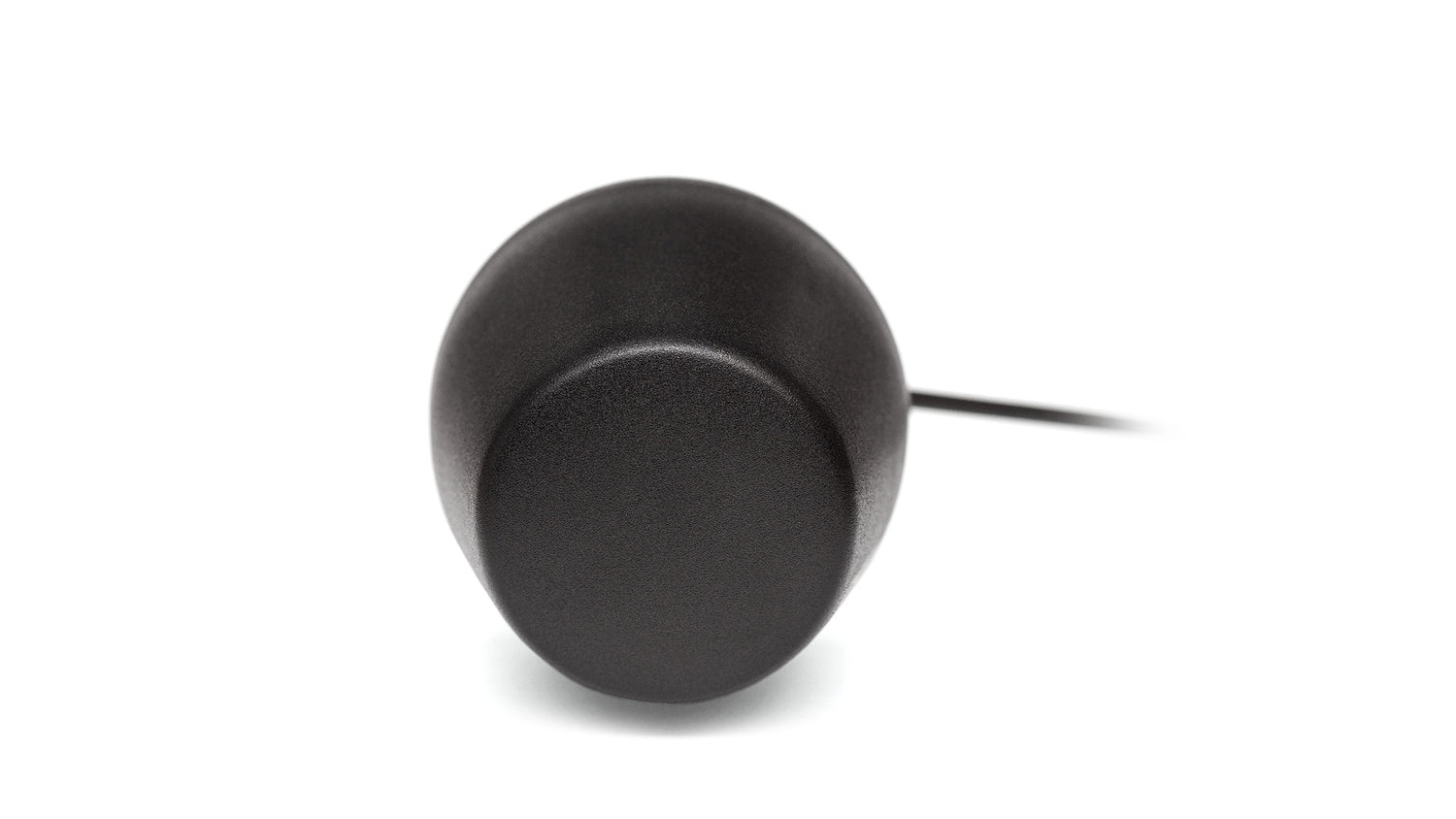

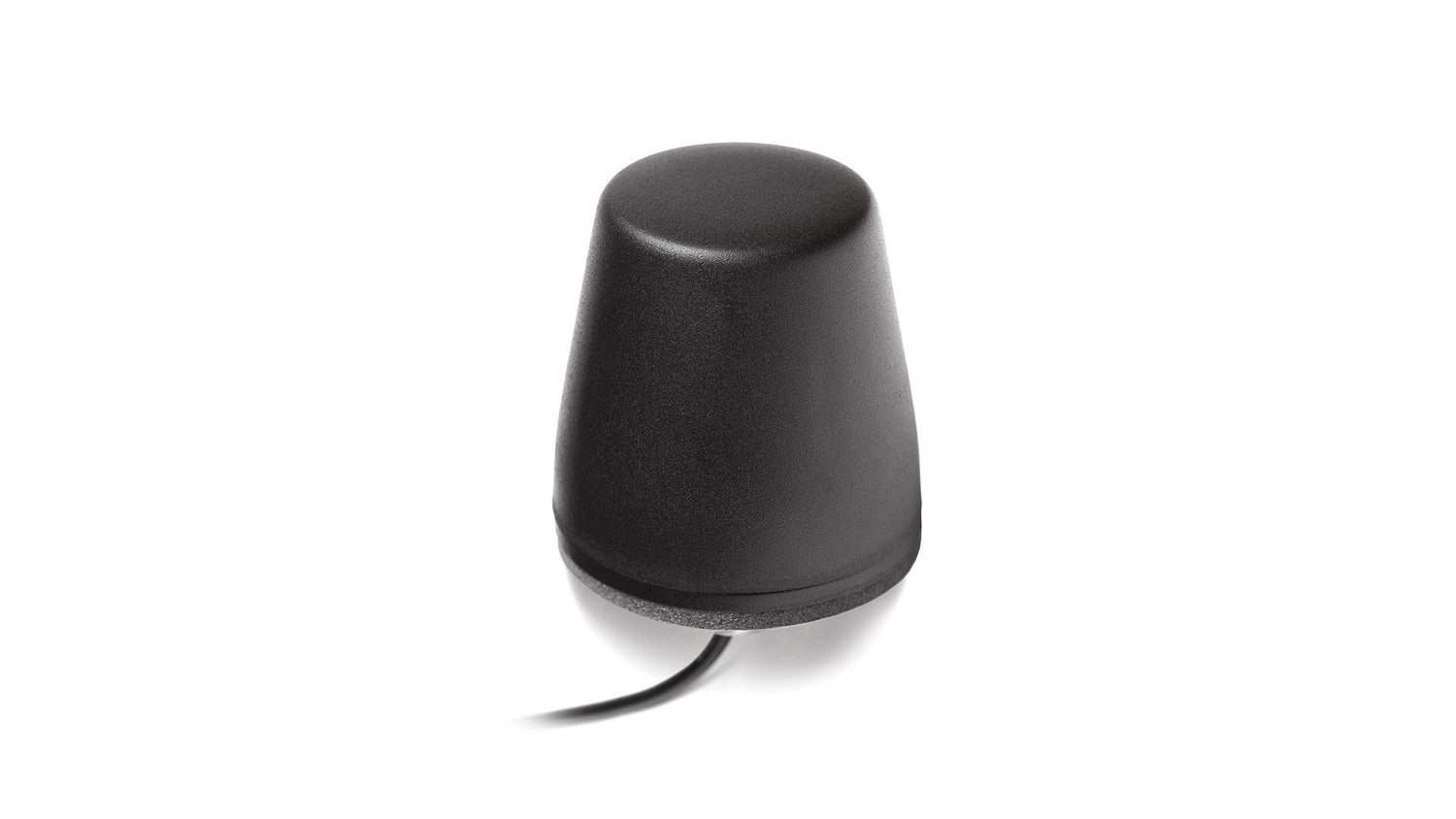

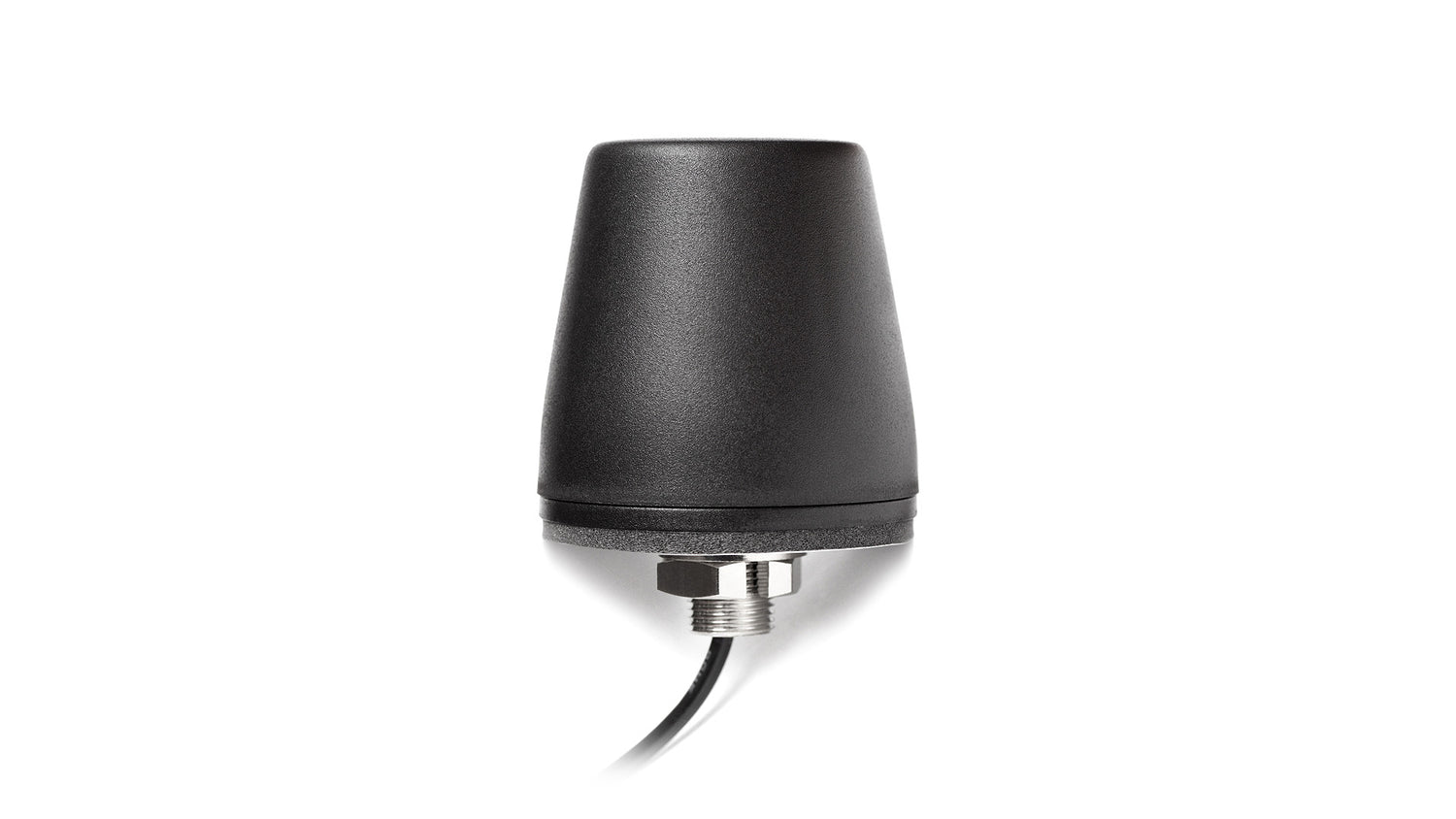

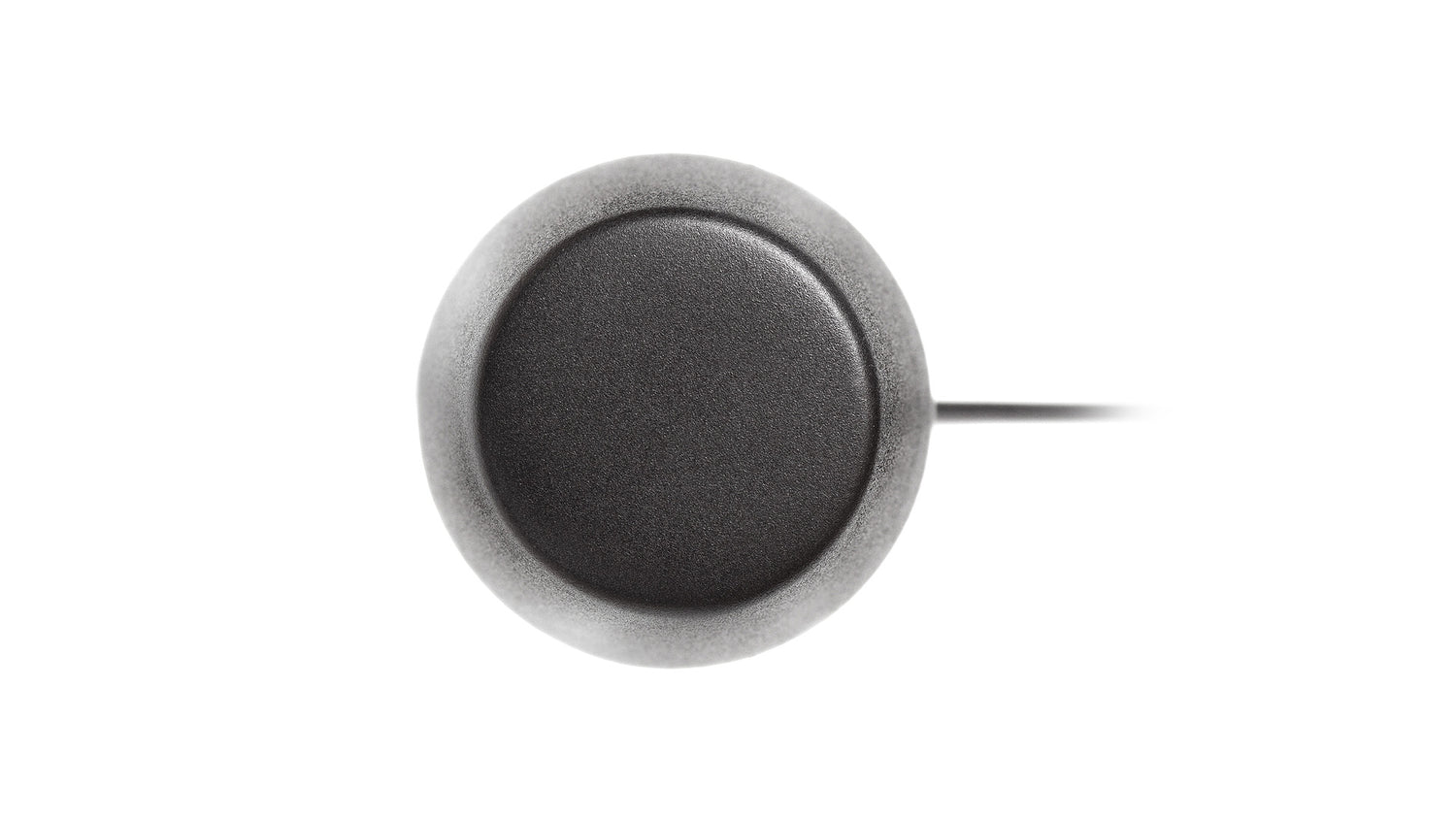

2J7615B-915 ISM screw mount Antenna IP67/IP69

Name: 2J7615B-915 ISM screw mount Antenna IP67/IP69
Brand: 2J
SKU: 2J7615B-915
Availability: OutOfStock

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This low-profile antenna is designed for reliable performance in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its compact Mini Shaker form factor and screw mount design allow for easy installation in a variety of environments, while the ground plane independent construction ensures consistent signal quality. The antenna is fully customizable with cable and connector options to suit your specific requirements. With robust IP67 and IP69 protection, it is well-suited for demanding outdoor and industrial use.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
LPWAN & IoT Communication: Sigfox, LoRa, LPWA

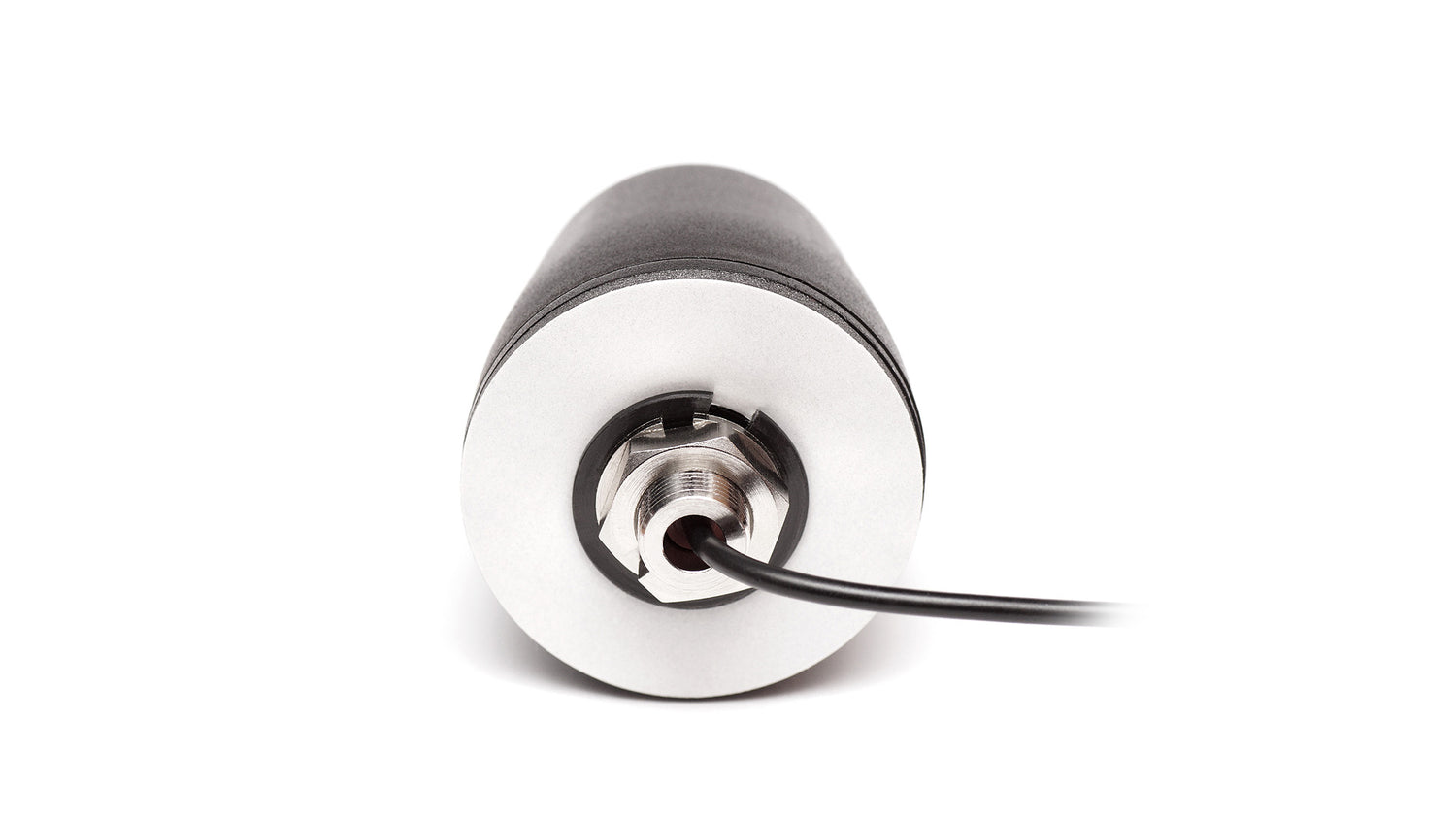

Mounting: Screw Mount
Short-Range Wireless Standards: ZigBee
Type: Single
Dimensions: Ø 50 x 50.8 mm

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~2.1:1
Efficiency (%): ~50.5
Peak Gain (dBi): ~2.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J7615B-915", "title": "Mini-Shaker 915 MHz ISM Low-Profile Screw Mount Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69", "dimensions_mm": "Ø 50 x 50.8", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-10.1", "vswr": "~2.1:1", "efficiency_percent": "~50.5", "peakGain_dbi": "~2.5", "averageGain_db": "~-3.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "SMA-Male", "cableType": "DACAR100", "cableLength_mm": 3000 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
