2J  |  SKU: 2J7715B-433

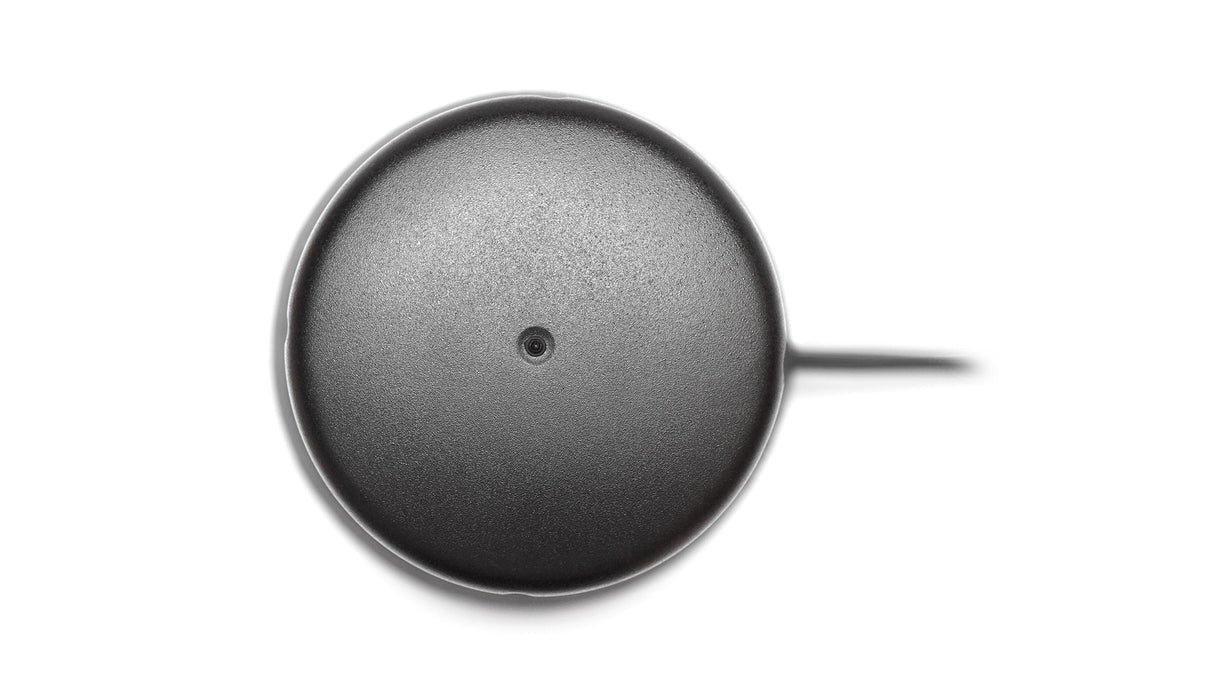

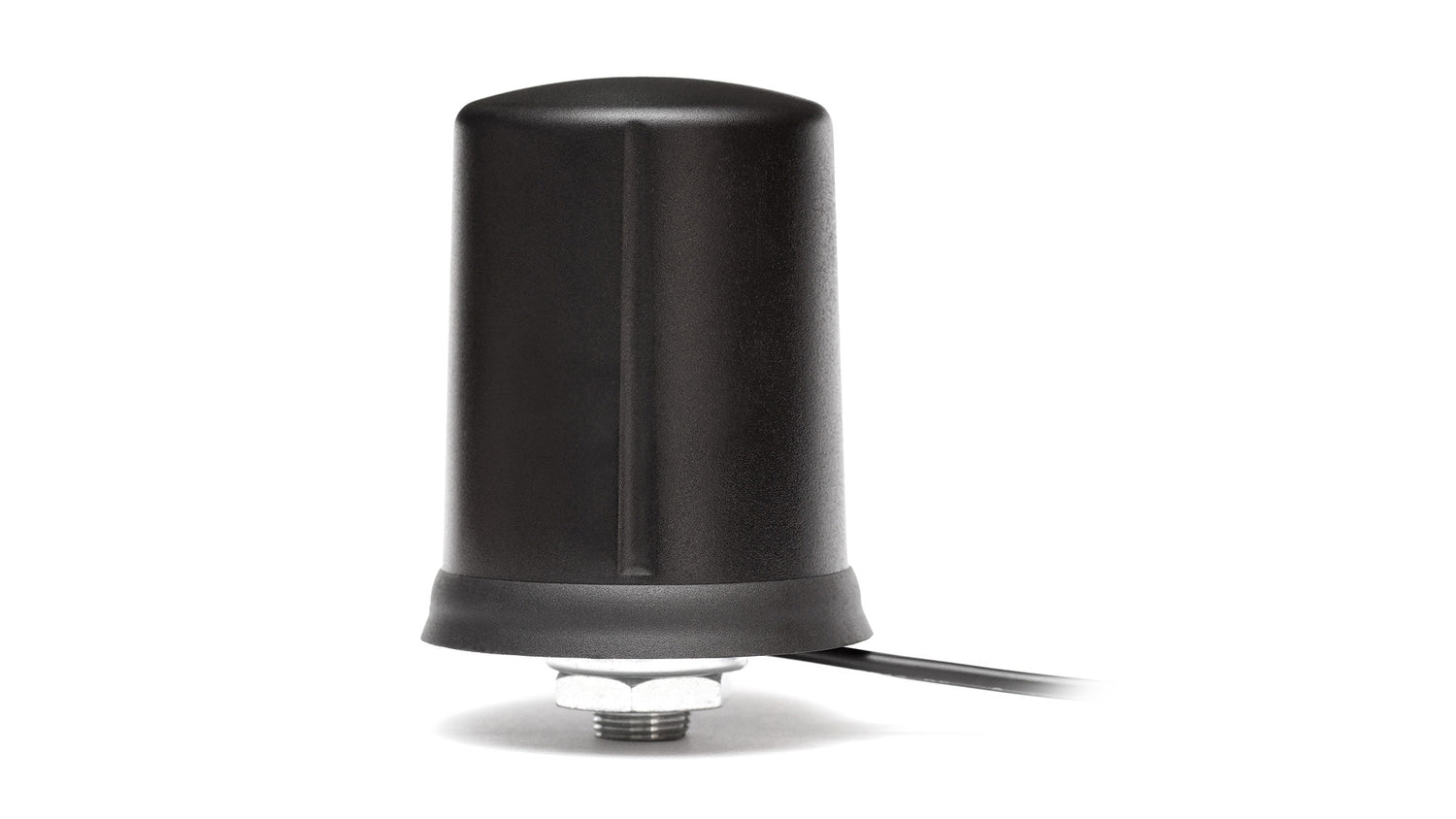

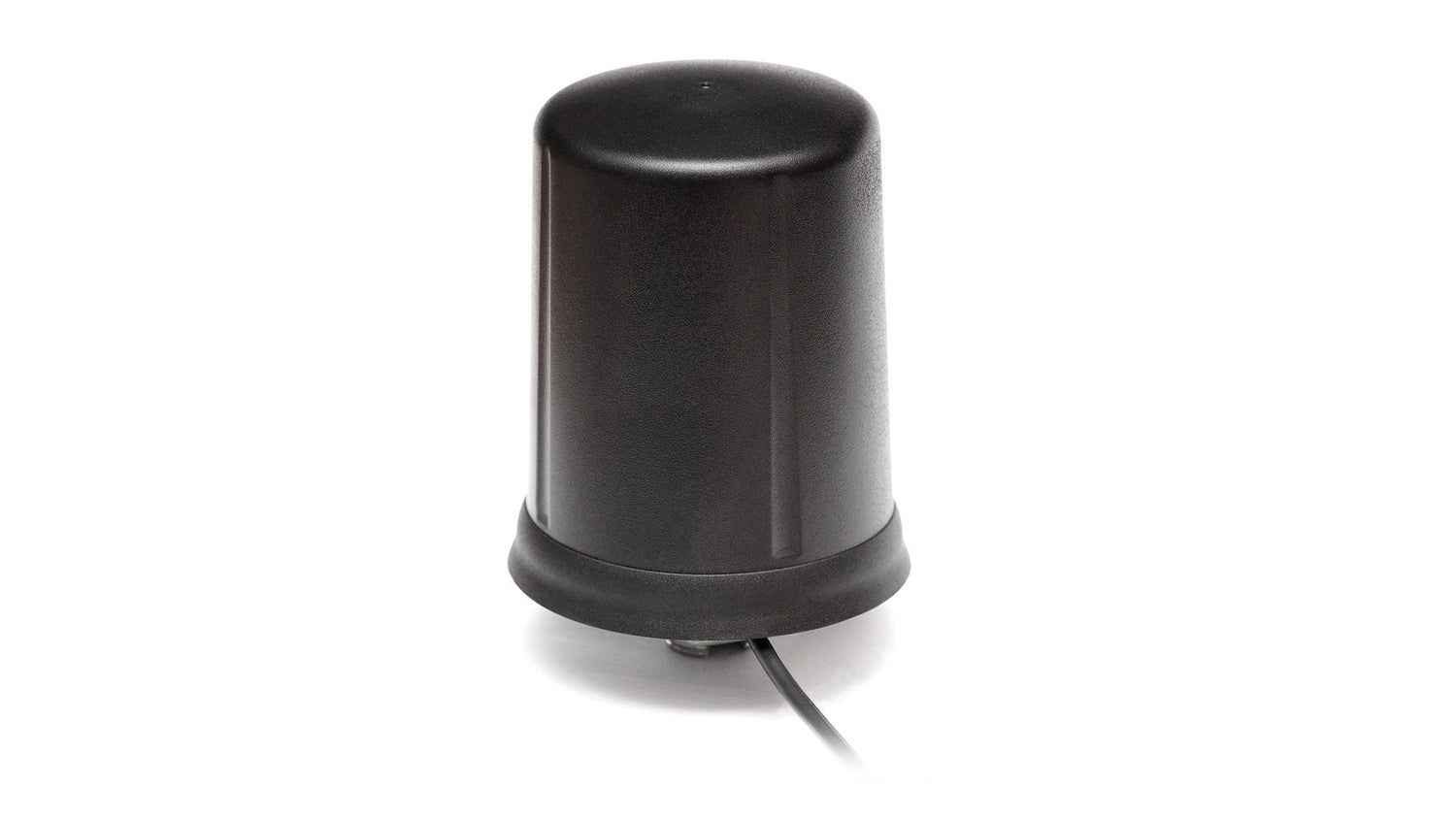

2J7715B-433 ISM screw mount Antenna IP67/IP69/IK09

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

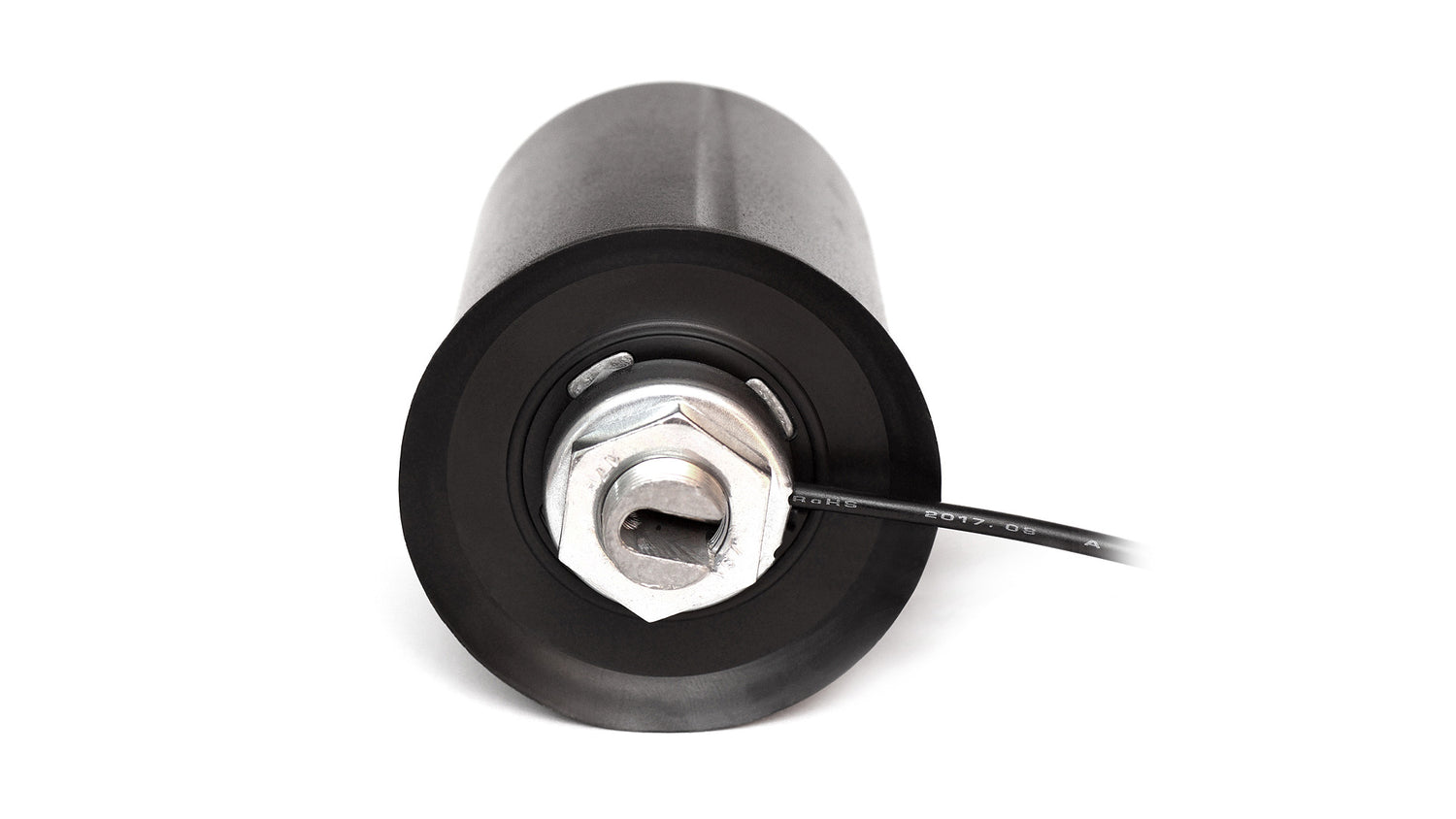

This high-performance antenna is designed for reliable operation in the 433 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its robust screw mount design ensures secure installation and long-term durability, even in demanding environments. The antenna is ground plane dependent and features anti-rotation mounting for added stability. With certifications for IP67, IP69, and IK09, it offers excellent protection against water, dust, and mechanical impacts, making it suitable for both indoor and outdoor use.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Dimensions: Ø 60 x 69 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.1:1
Efficiency (%): ~40.4
Peak Gain (dBi): ~0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J7715B-433", "title": "433 MHz ISM Screw Mount Ground Plane Dependent Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69", "dimensions_mm": "Ø 60 x 69", "elements": [ { "elementID": "ISM 433 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-27.4", "vswr": "~1.1:1", "efficiency_percent": "~40.4", "peakGain_dbi": "~0.3", "averageGain_db": "~-4.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 433 MHz", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }
