2J  |  SKU: 2J7715M-433

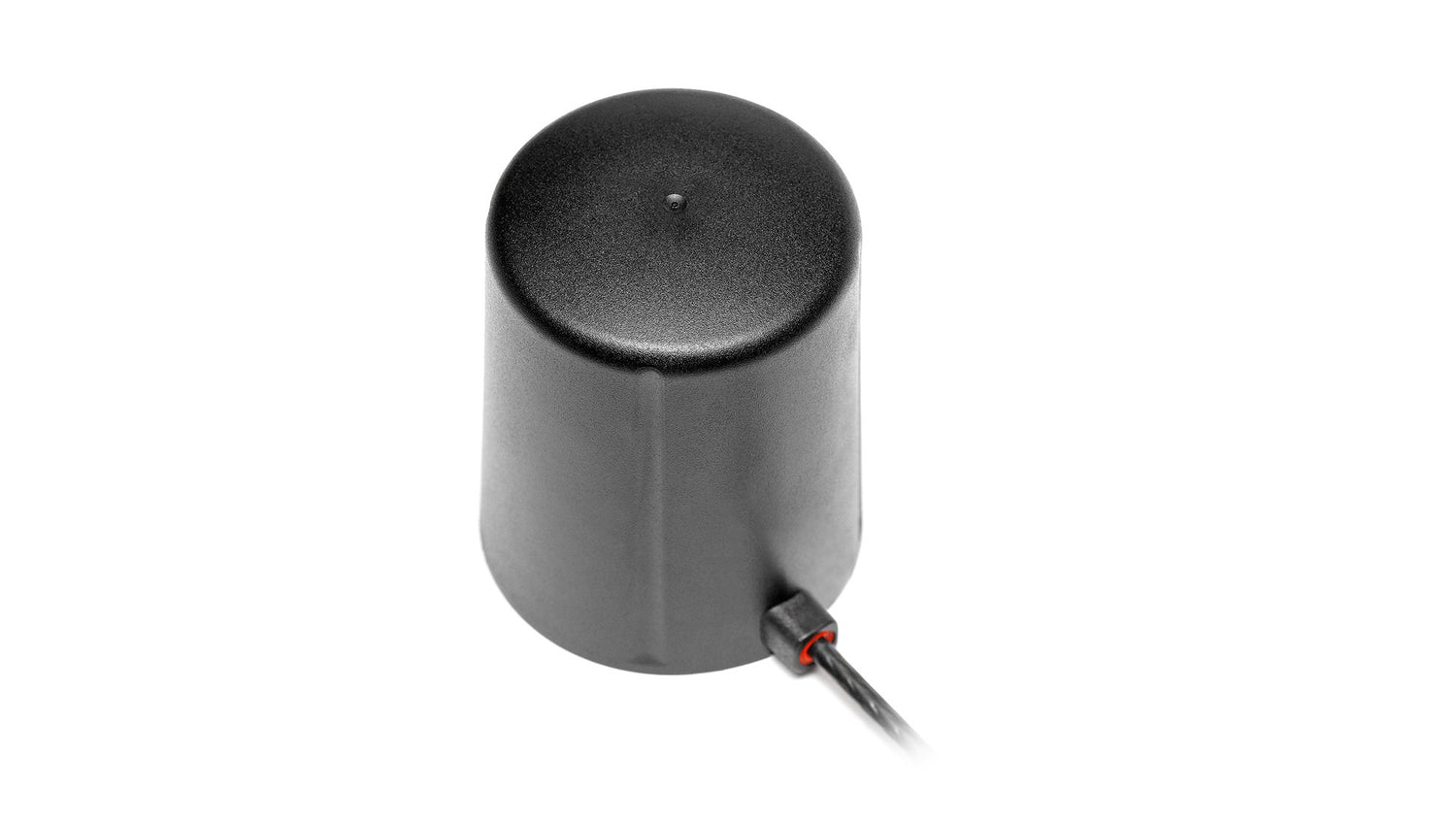

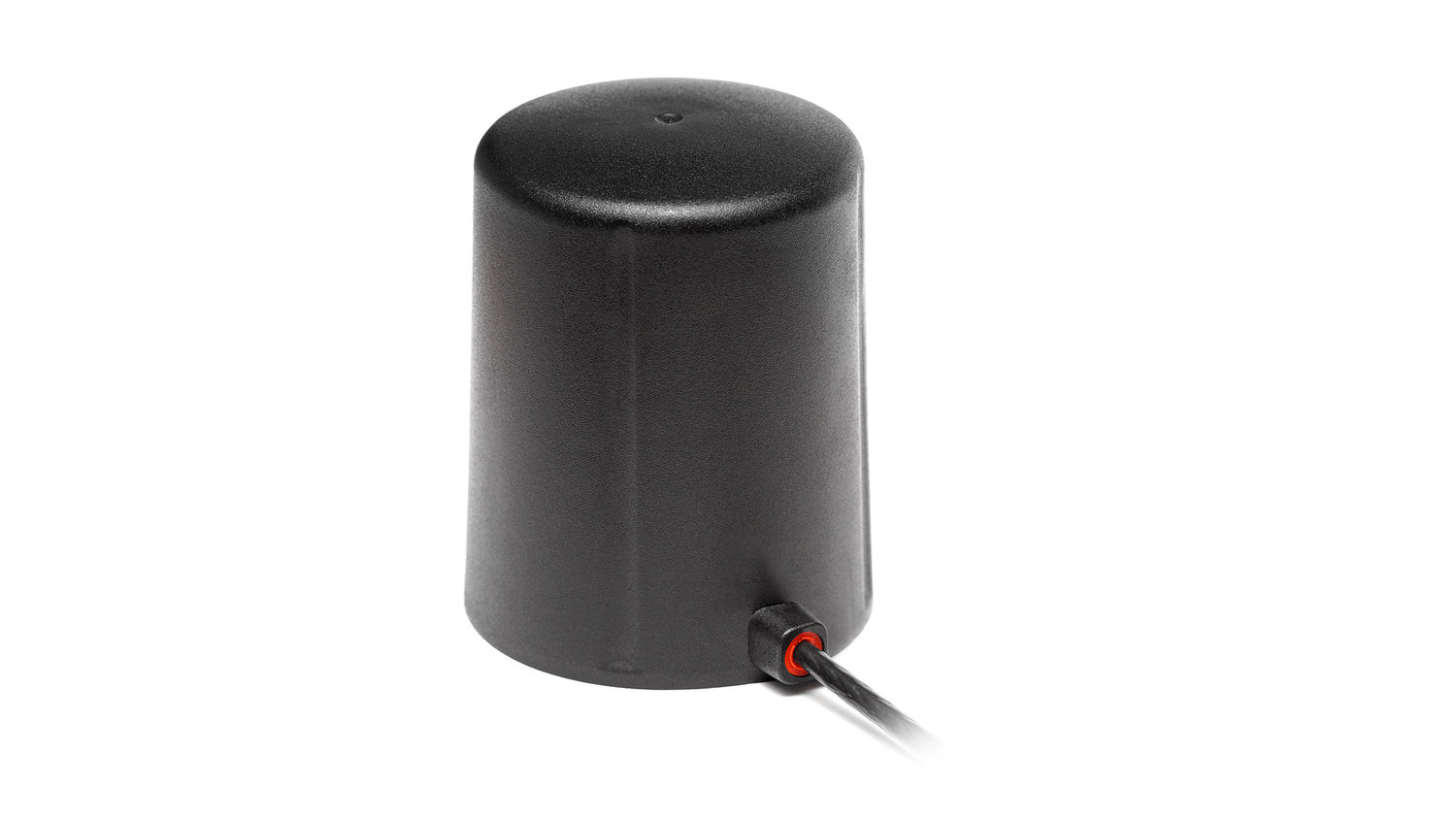

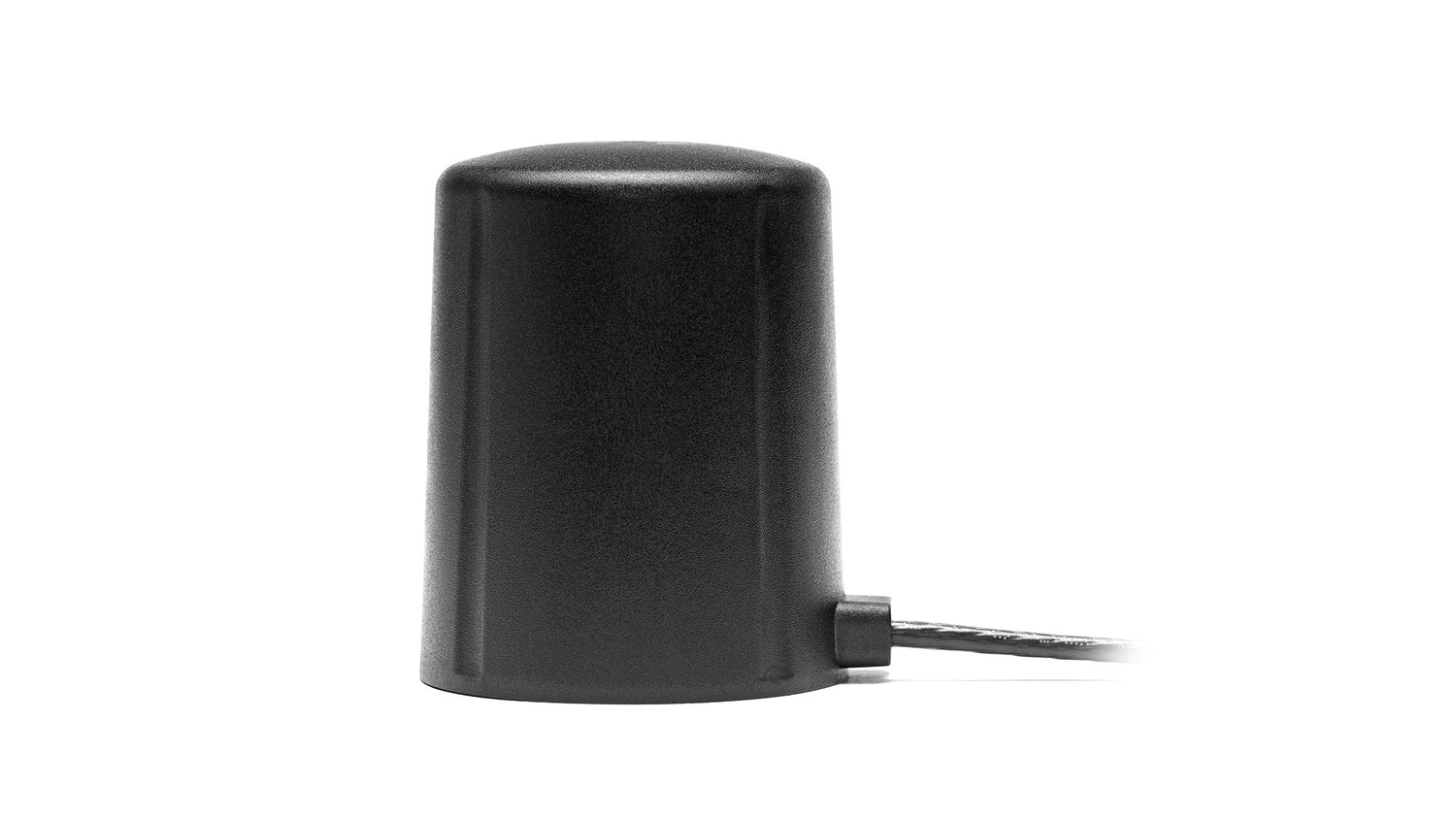

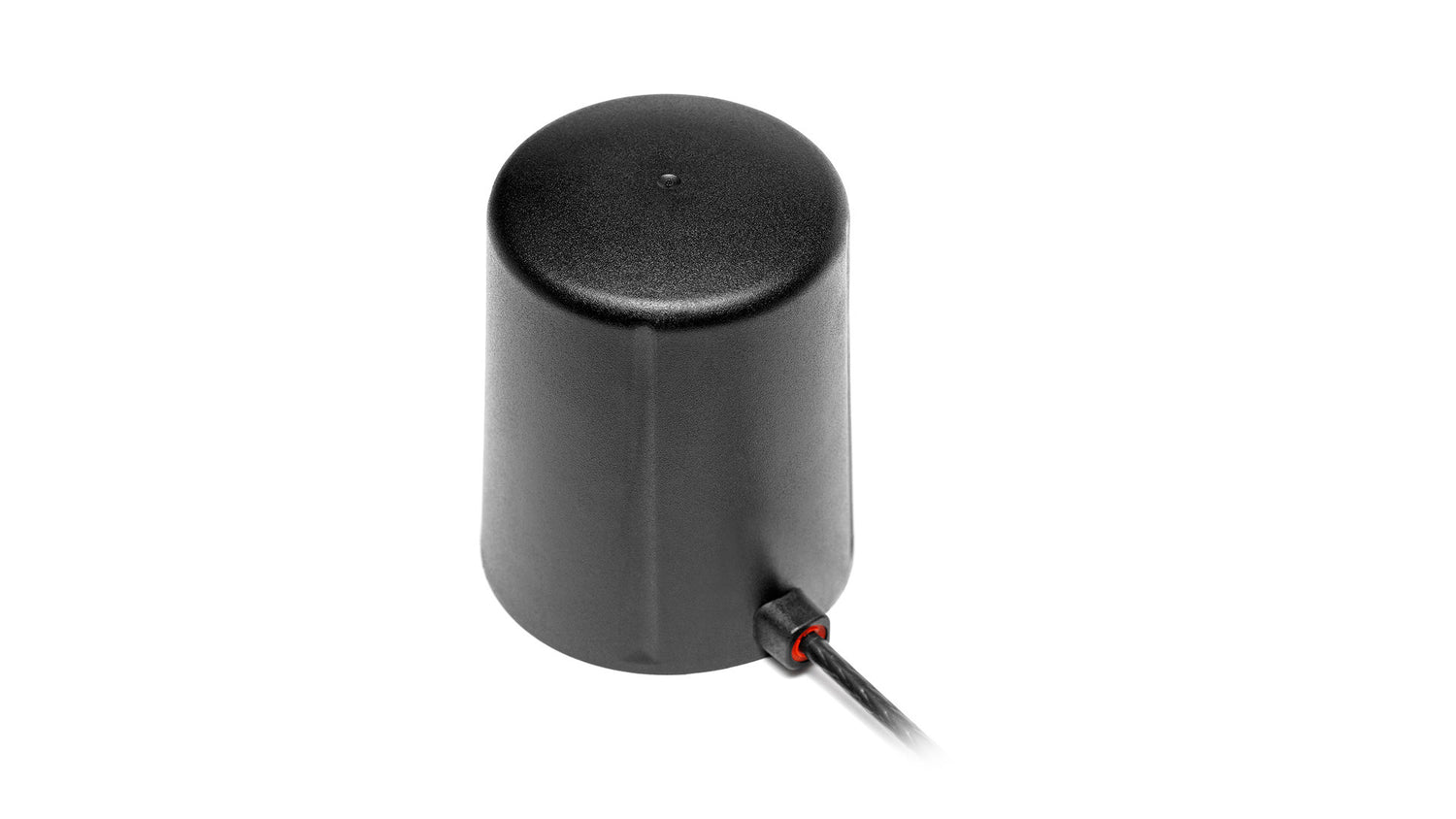

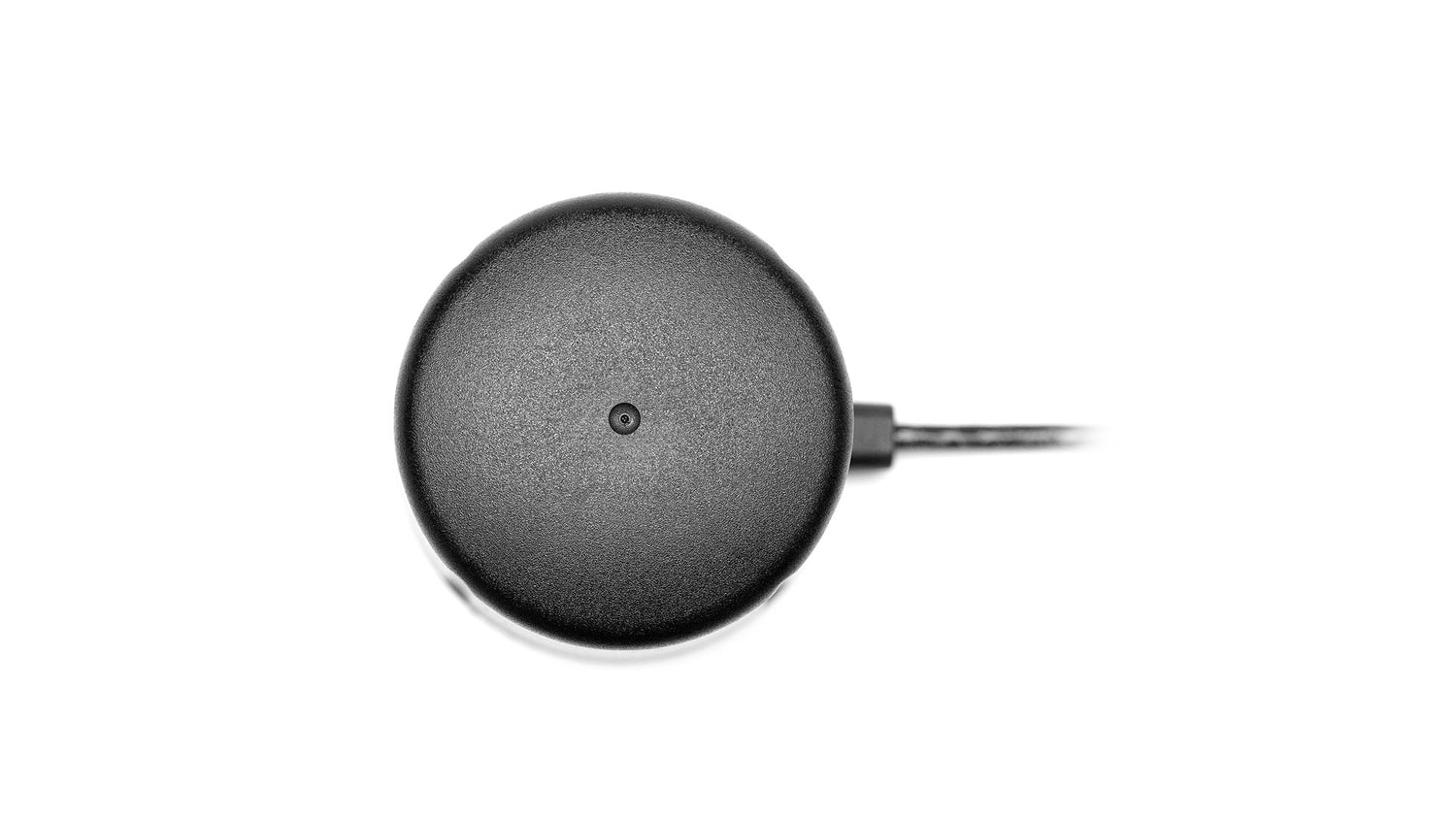

2J7715M-433 ISM magnetic mount Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance magnetic mount antenna is designed for reliable operation in the 433 MHz ISM band. Its ground plane dependent design ensures optimal performance for a wide range of industrial and IoT applications. The robust construction and heavy-duty build make it suitable for demanding environments, while the customizable cable and connector options provide flexibility for integration into various systems.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Magnetic Mount
Type: Single
Dimensions: Ø 54 x 68.2 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.2:1
Efficiency (%): ~41.1
Peak Gain (dBi): ~0.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J7715M-433", "title": "433 MHz ISM Magnetic Mount Ground Plane Dependent Antenna", "mountingType": "Magnetic Mount", "ipRating": "IP67/IP69", "dimensions_mm": "Ø 54 x 68.2", "elements": [ { "elementID": "ISM 433 MHz", "type": "ISM", "technologies": [ "ISM", "LoRa", "Sigfox", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-20.7", "vswr": "~1.2:1", "efficiency_percent": "~41.1", "peakGain_dbi": "~0.0", "averageGain_db": "~-3.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "ISM 433 MHz", "type": "SMA-Male", "cableType": "LL100", "cableLength_mm": 3000 } ] }
