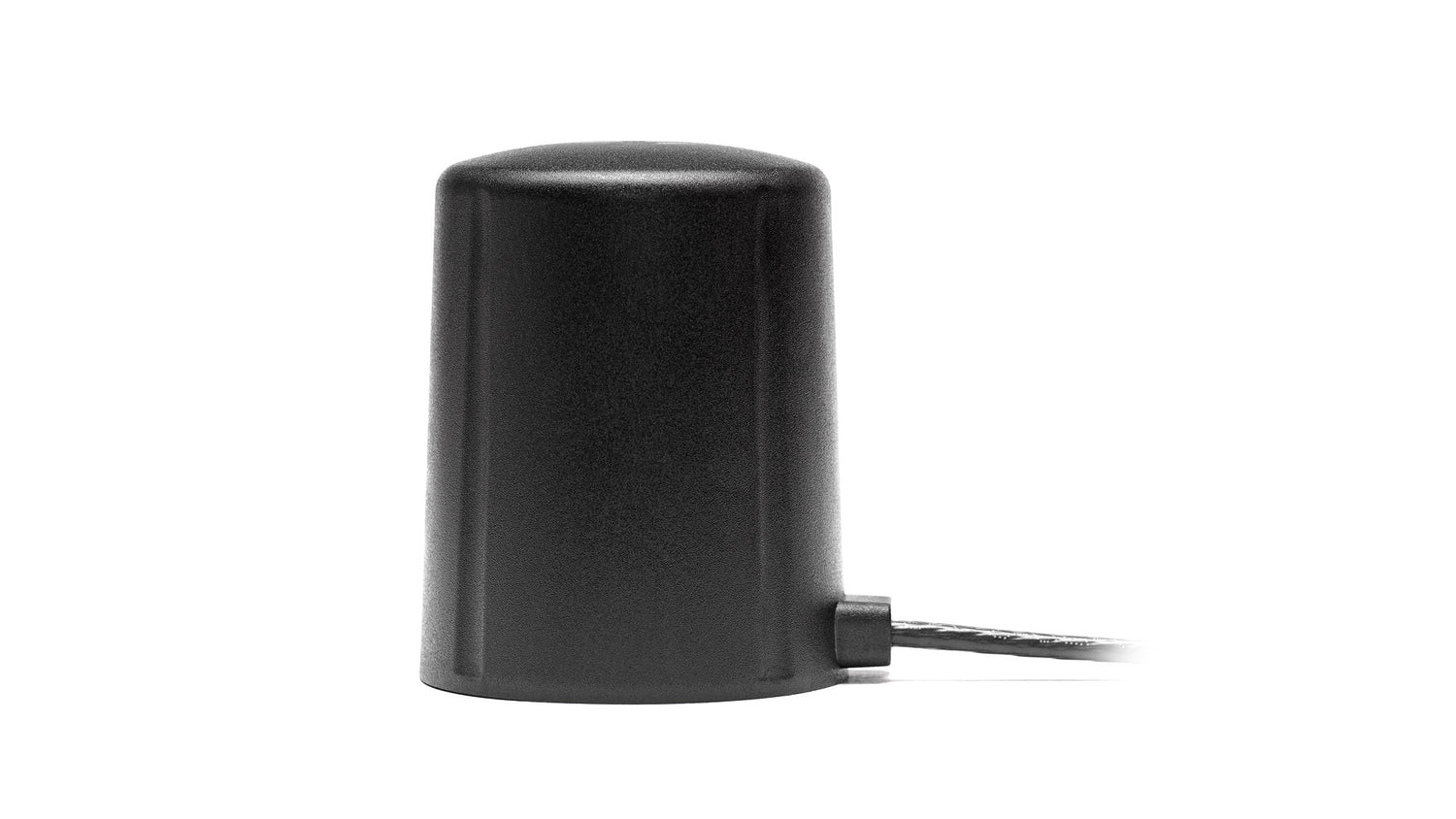

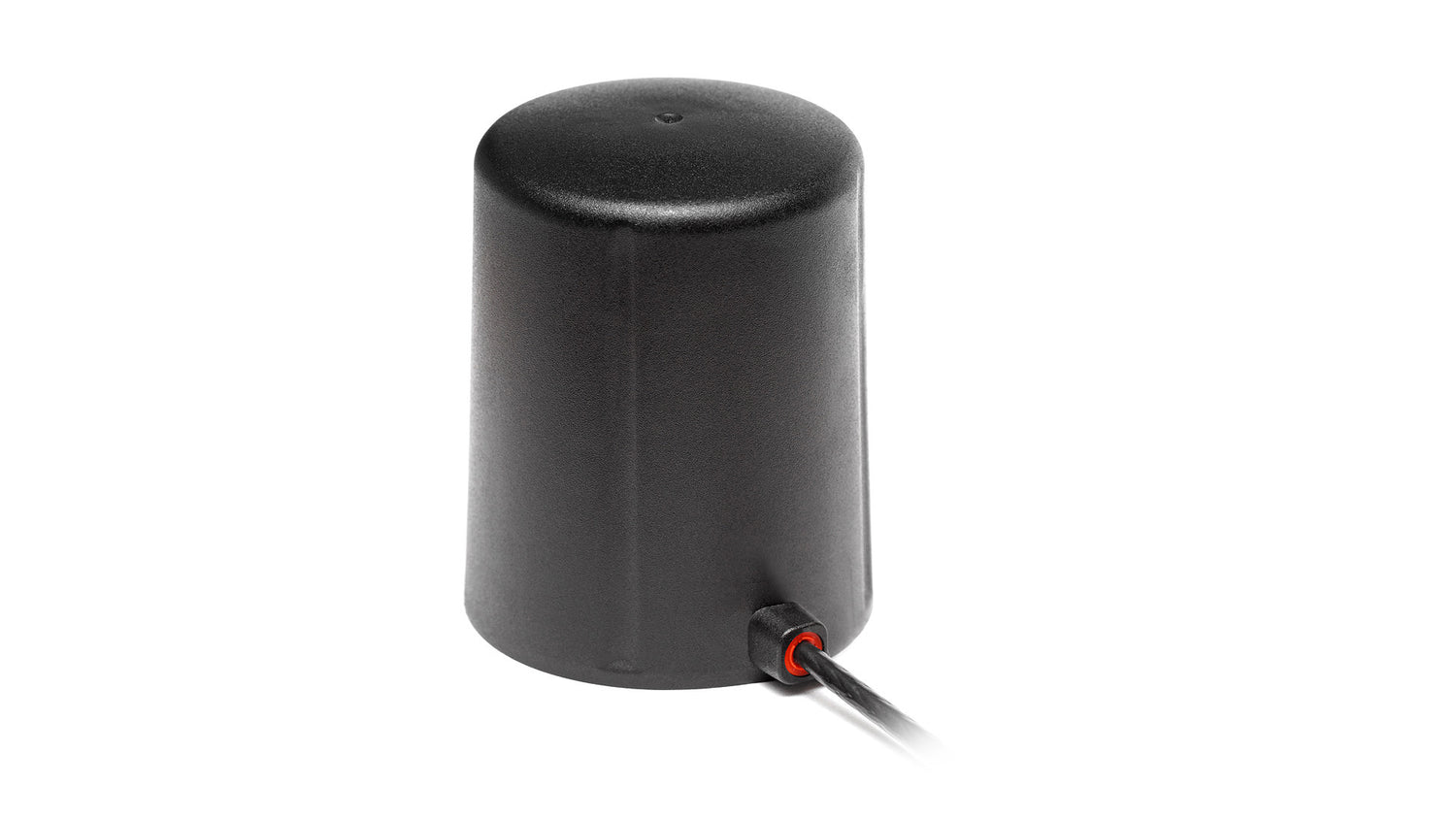

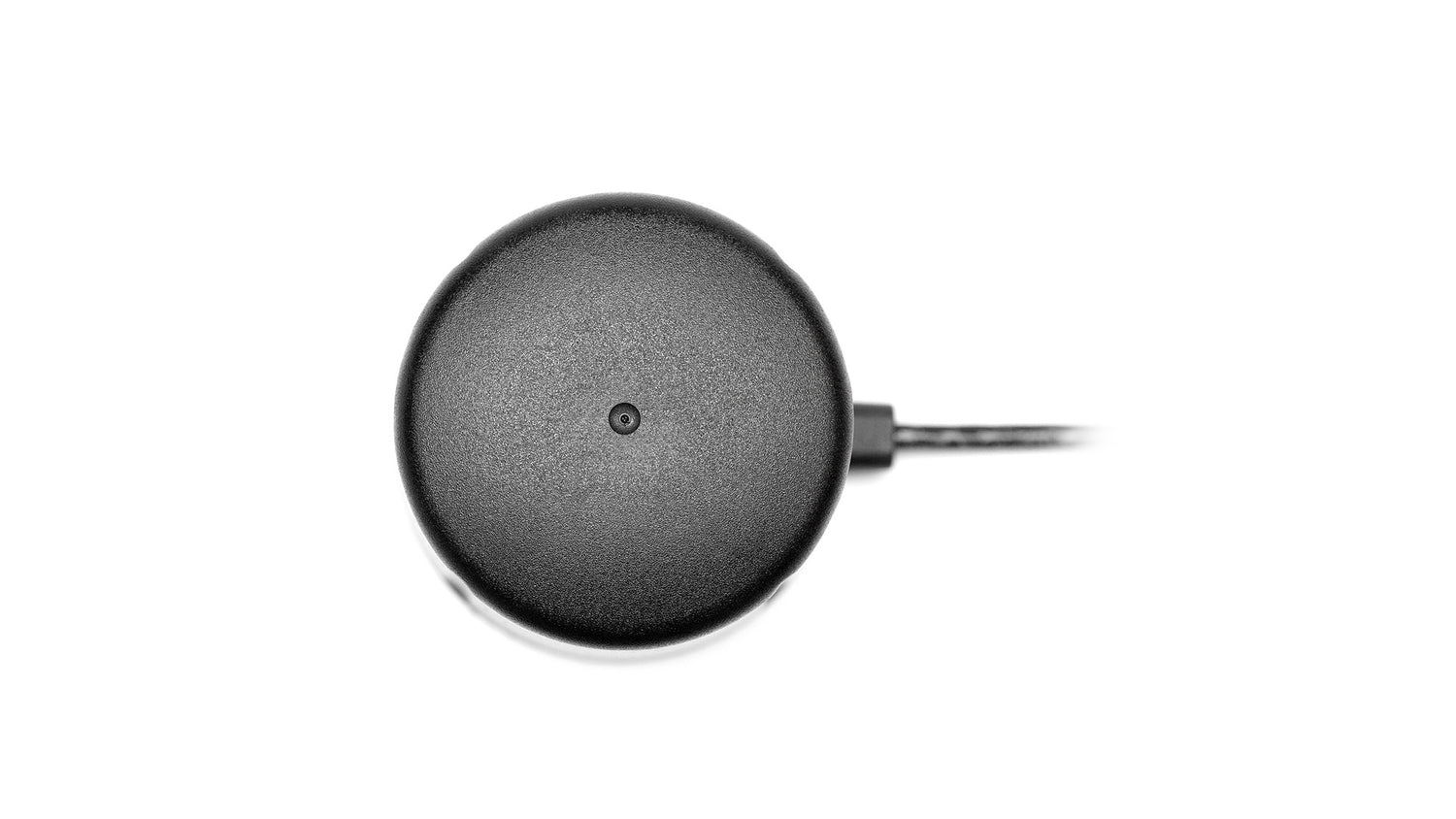

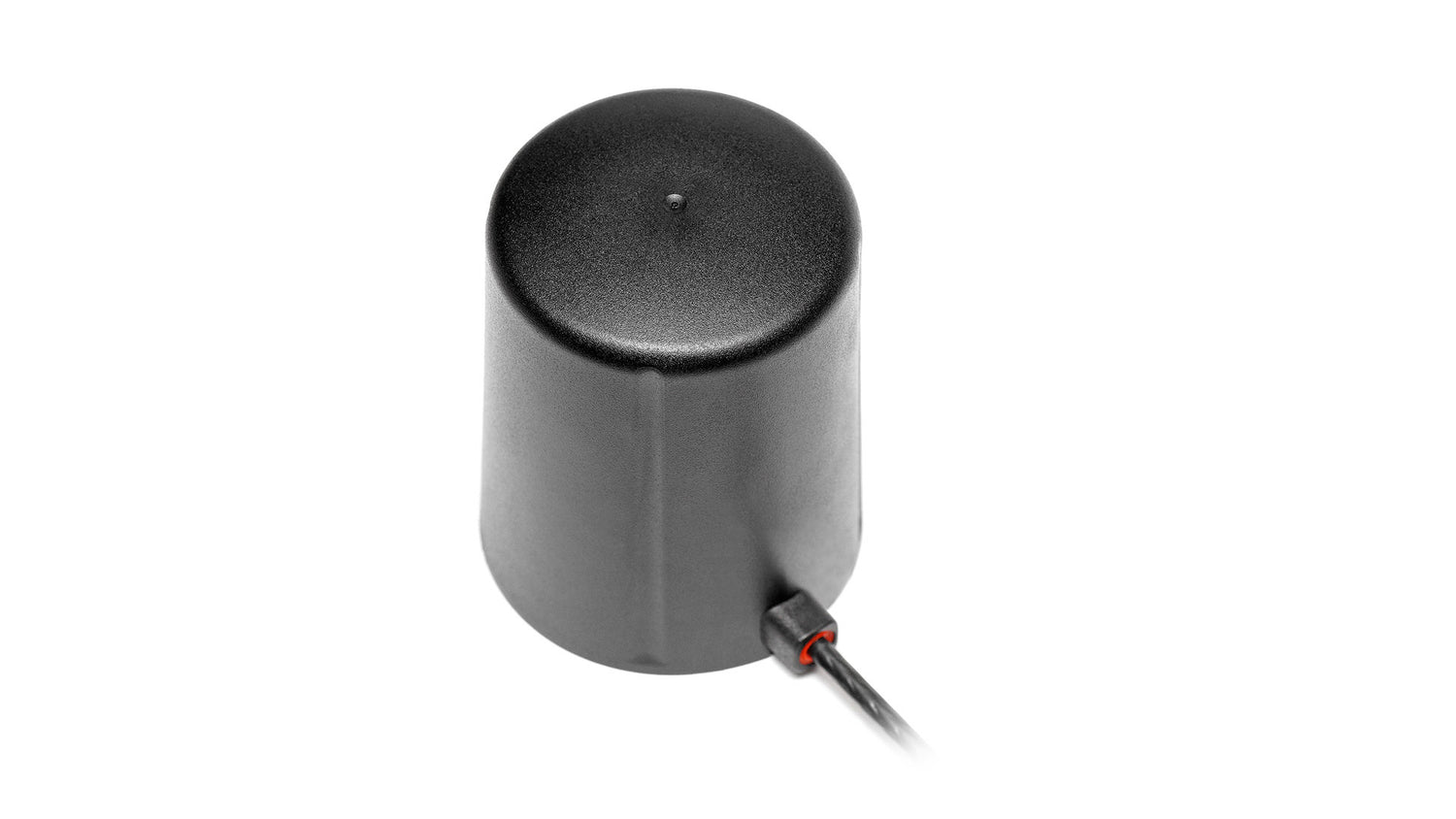

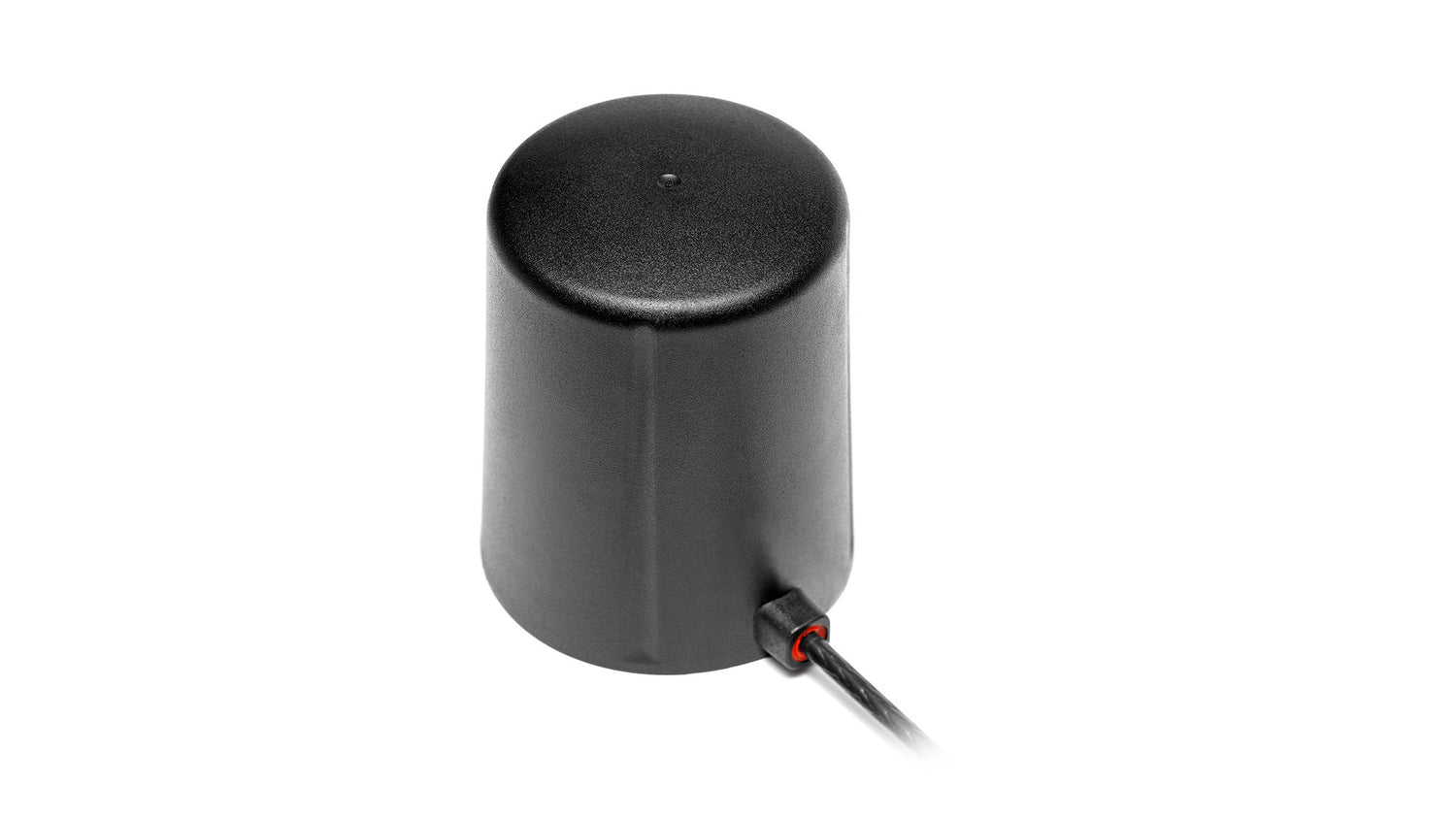

This high-performance magnetic mount antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide range of applications. Its rugged construction and low-profile design make it ideal for demanding environments where durability and consistent signal strength are essential. The antenna is suitable for use in automotive, industrial, telematics, IoT, and mission-critical communication systems. With certifications for IP69, IP67, and IK09, it offers excellent protection against water, dust, and mechanical impacts, ensuring long-term operation in harsh conditions.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single
Connection 1 - CELLULAR/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.2:1, ~1.4:1
Efficiency (%): ~60.1, ~68.0, ~56.4
Peak Gain (dBi): ~1.8, ~3.1, ~2.9
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J7724M",
"title": "Shaker 4G LTE/3G/2G High Performance Magnetic Mount Antenna",
"mountingType": "Magnetic Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "Ø 54 x 68.2",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-11.0",
"vswr": "~1.9:1",
"efficiency_percent": "~60.1",
"peakGain_dbi": "~1.8",
"averageGain_db": "~-2.2"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-21.8",
"vswr": "~1.2:1",
"efficiency_percent": "~68.0",
"peakGain_dbi": "~3.1",
"averageGain_db": "~-1.7"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-17.5",
"vswr": "~1.4:1",
"efficiency_percent": "~56.4",
"peakGain_dbi": "~2.9",
"averageGain_db": "~-2.5"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "LL100",
"cableLength_mm": 3000
}
]
}
