2J  |  SKU: 2J8410B

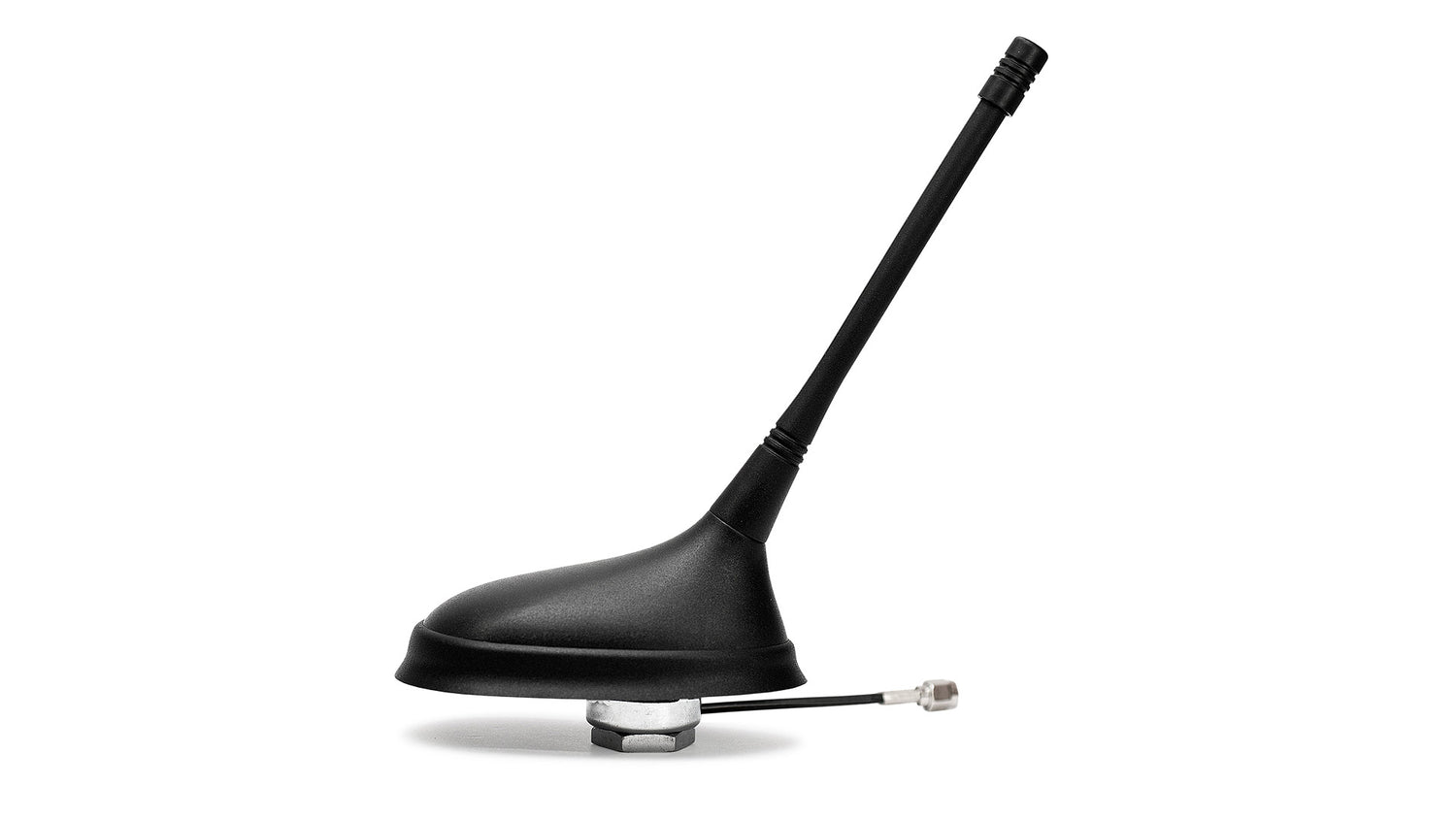

2J8410B TETRA, UHF screw mount Antenna IP67 IP69

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-gain antenna is designed for reliable performance in TETRA and UHF frequency bands, making it ideal for mission-critical communications, public safety, and professional applications. Its robust construction ensures durability and consistent signal quality, even in demanding environments. The screw mount design provides secure installation and anti-rotation mounting, while the antenna's high efficiency and peak gain support optimal connectivity for security, defense, asset tracking, and first responder fleets.

Connections

380-470MHz/LPWA/TETRA/UHF


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Single
Dimensions: 99 × 60 × 154 mm

Connection 1 - TETRA/UHF

Standards: TETRA/UHF
Frequency: 380-470 MHz
VSWR: ~1.3:1
Efficiency (%): ~59.1
Peak Gain (dBi): ~2.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2J8410B", "title": "380-470 MHz High Gain Antenna", "mountingType": "Screw Mount", "ipRating": "IP67/IP69", "dimensions_mm": "99 × 60 × 154", "elements": [ { "elementID": "TETRA/UHF", "type": "Cellular", "technologies": [ "TETRA", "UHF" ], "frequencies": [ { "range_mhz": "380-470", "returnLoss_db": "~-20.5", "vswr": "~1.3:1", "efficiency_percent": "~59.1", "peakGain_dbi": "~2.2", "averageGain_db": "~-2.3" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 50 } ], "connectors": [ { "elementIDRef": "TETRA/UHF", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 3000 } ] }
