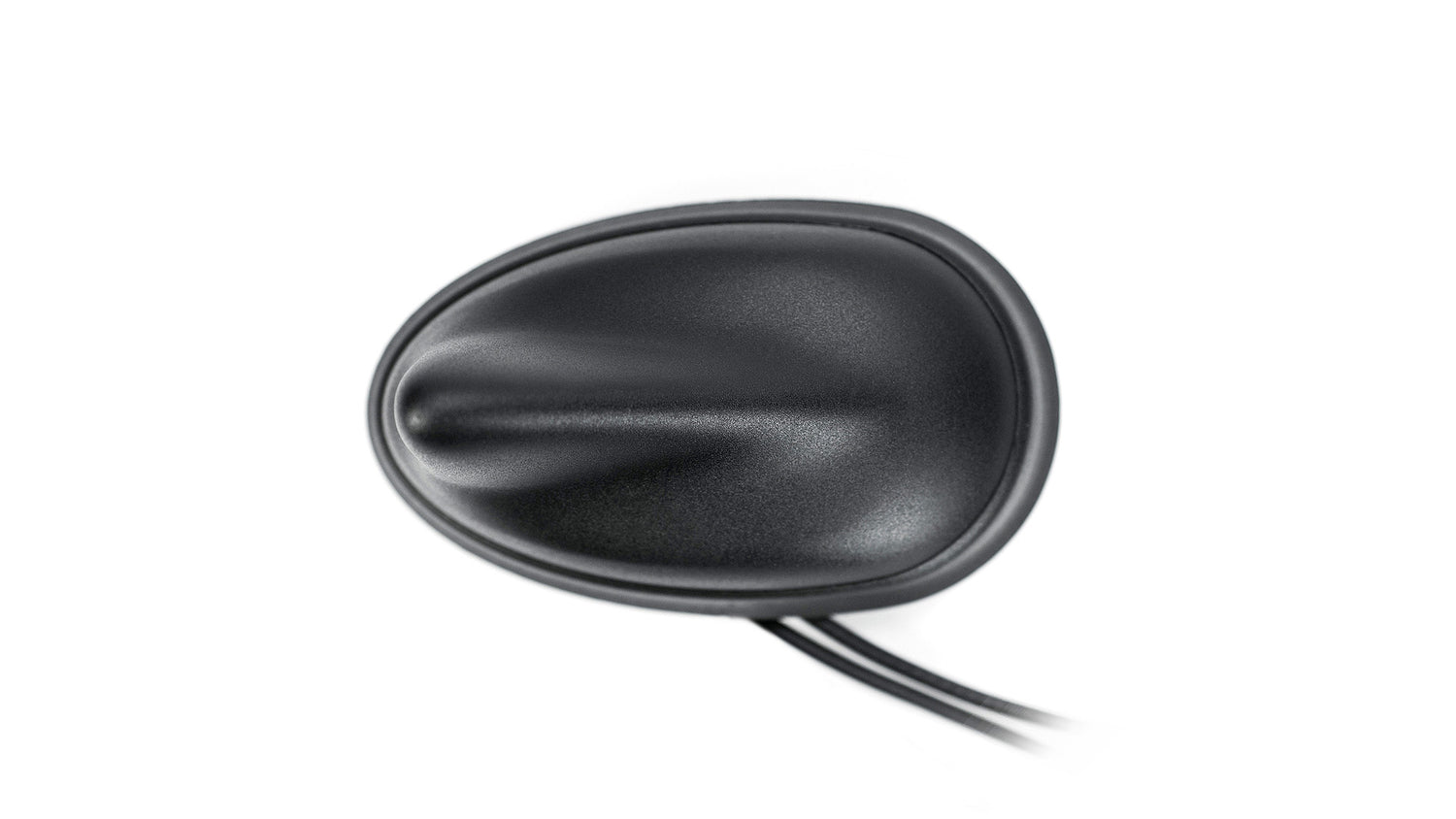

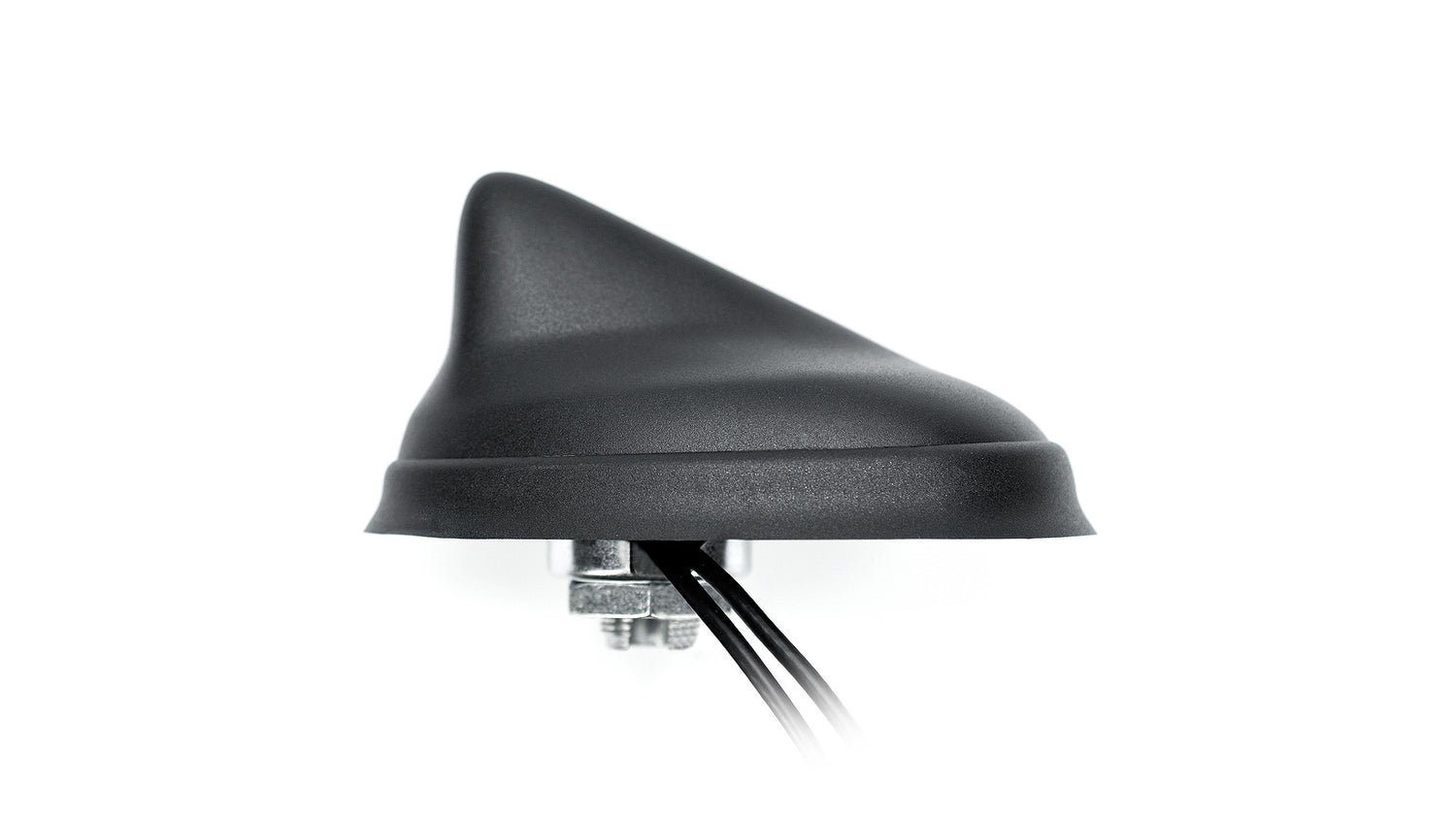

This compact combination antenna is designed for reliable cellular and GNSS connectivity in demanding environments. Its screw mount design ensures secure installation on vehicles, equipment, or fixed infrastructure. The antenna is ideal for applications such as asset tracking, fleet management, telematics, and navigation systems, where robust performance and environmental protection are essential.
Connections
3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C

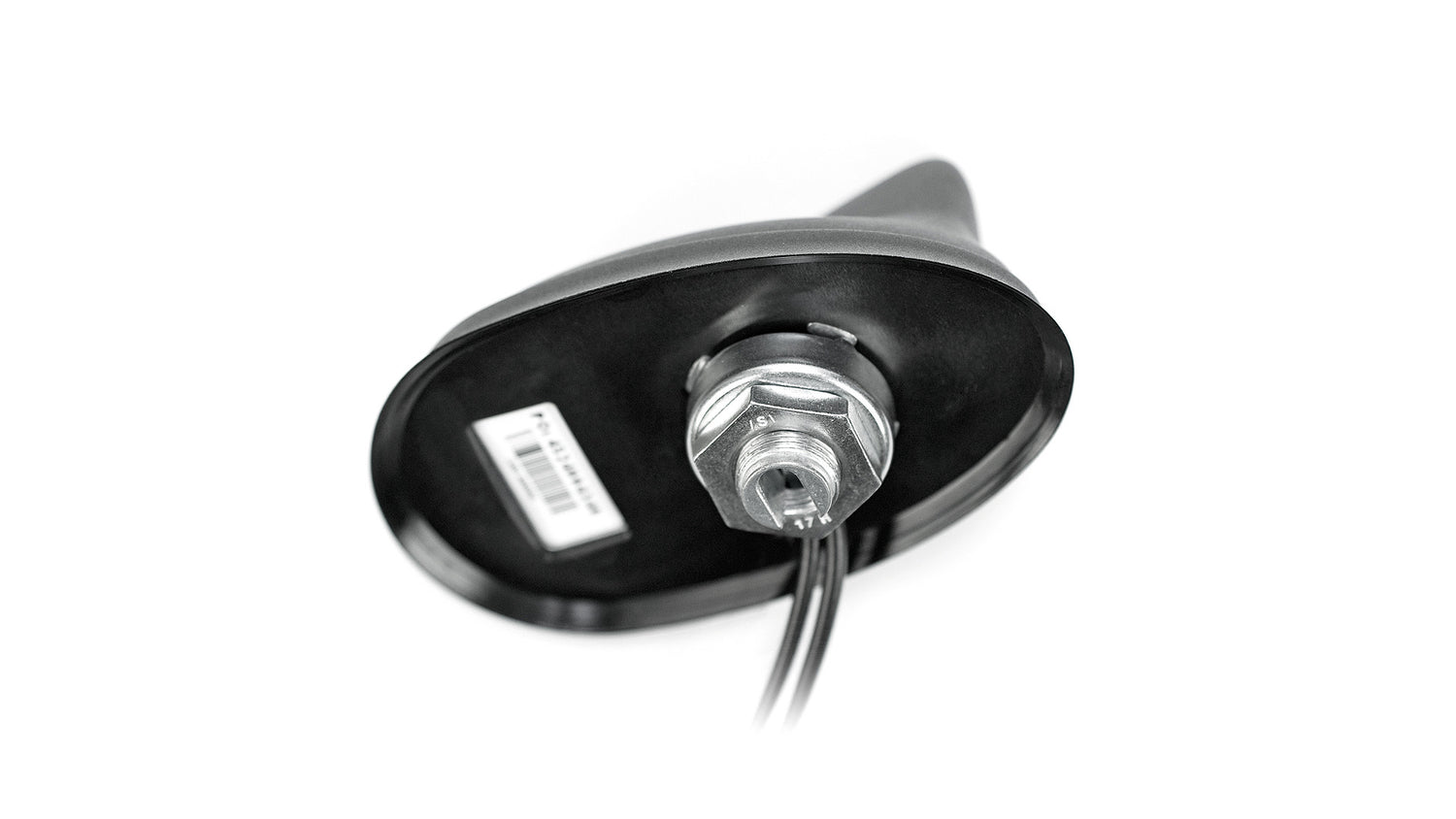

Mounting: Screw Mount
Type: Combination
Location: External
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.5:1, ~1.6:1
Efficiency (%): ~7.7, ~12.2
Peak Gain (dBi): ~-6.7, ~-3.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Connection 2 - GNSS
Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
Impedance (Ohm): 50
Active Gain (dB): 23 @ 3V, 24 @ 5V
Saw Filter Type: Pre-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 40 - 137
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2J8600BGF",
"title": "Cellular and GNSS Screw Mount Antenna",
"mountingType": "Screw Mount",
"ipRating": "IP67/IP69",
"dimensions_mm": "98 × 60 × 46",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-9.1",
"vswr": "~2.5:1",
"efficiency_percent": "~7.7",
"peakGain_dbi": "~-6.7",
"averageGain_db": "~-12.3"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-13.7",
"vswr": "~1.6:1",
"efficiency_percent": "~12.2",
"peakGain_dbi": "~-3.9",
"averageGain_db": "~-9.6"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
},
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"Galileo",
"QZSS"
],
"frequencies": [
{
"range_mhz": "1575.42",
"returnLoss_db": "~-14",
"vswr": "~1.2:1",
"efficiency_percent": null,
"peakGain_dbi": "~23 @ 3V / ~24 @ 5V",
"averageGain_db": null
},
{
"range_mhz": "1598-1610",
"returnLoss_db": "~-14",
"vswr": "~1.2:1",
"efficiency_percent": null,
"peakGain_dbi": "~23 @ 3V / ~24 @ 5V",
"averageGain_db": null
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
},
{
"elementIDRef": "GNSS",
"type": "SMA-Male",
"cableType": "RG174",
"cableLength_mm": 3000
}
]
}
