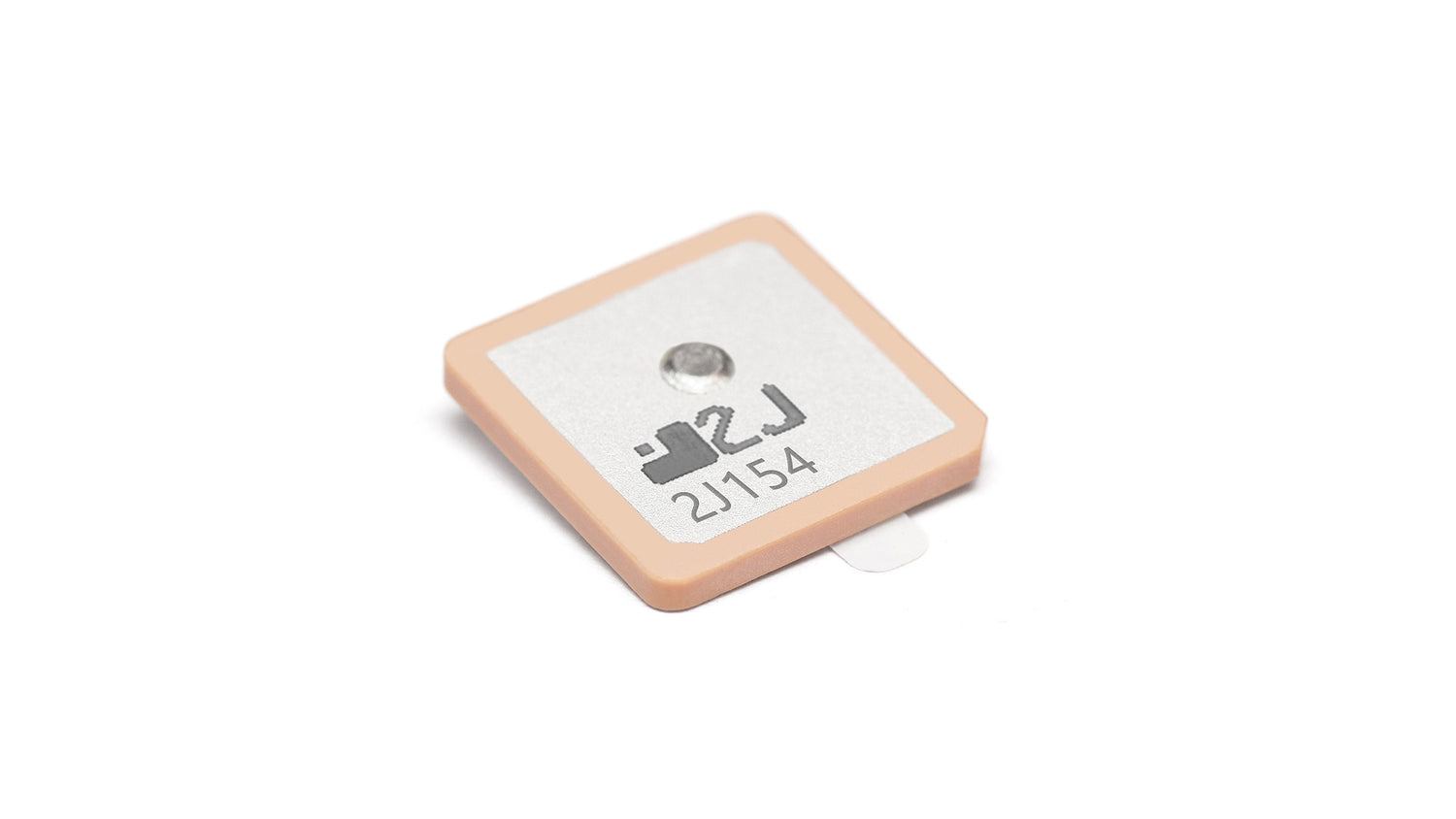

2JCP1820101Da GNSS thru-hole mount ceramic passive Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This high-efficiency embedded ceramic antenna is designed for reliable GNSS performance, supporting GPS, BeiDou, QZSS, and Galileo standards. Its ground plane dependent design ensures optimal signal reception, making it ideal for integration into compact devices and applications where space is limited. The antenna features right-hand circular polarization (RHCP) and is suitable for use in consumer electronics, robotics, drones, fleet management, smart cities, and more. Its robust construction and high peak gain make it a versatile solution for demanding navigation and tracking applications.

Connections

GPS/BEI/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42 MHz
Passive Gain (dBi): ~3.6, ~4.0
Efficiency (%): ~63.1, ~64.0
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Polarization: RHCP

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JCP1820101Da", "title": "GPS/BeiDou 1561–1575 MHz High Efficiency Ground Plane Dependent Ceramic Passive Antenna", "mountingType": "Thru-Hole Mount", "ipRating": null, "dimensions_mm": "18.5 x 18.5 x 2", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "BeiDou", "Galileo", "QZSS", "SBAS" ], "frequencies": [ { "range_mhz": "1561.09", "returnLoss_db": "~-18.4", "vswr": "~1.3:1", "efficiency_percent": "~63.1", "peakGain_dbi": "~3.6", "averageGain_db": "~-2.0" }, { "range_mhz": "1575.42", "returnLoss_db": "~-16.3", "vswr": "~1.4:1", "efficiency_percent": "~64.0", "peakGain_dbi": "~4.0", "averageGain_db": "~-1.9" } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [] }
