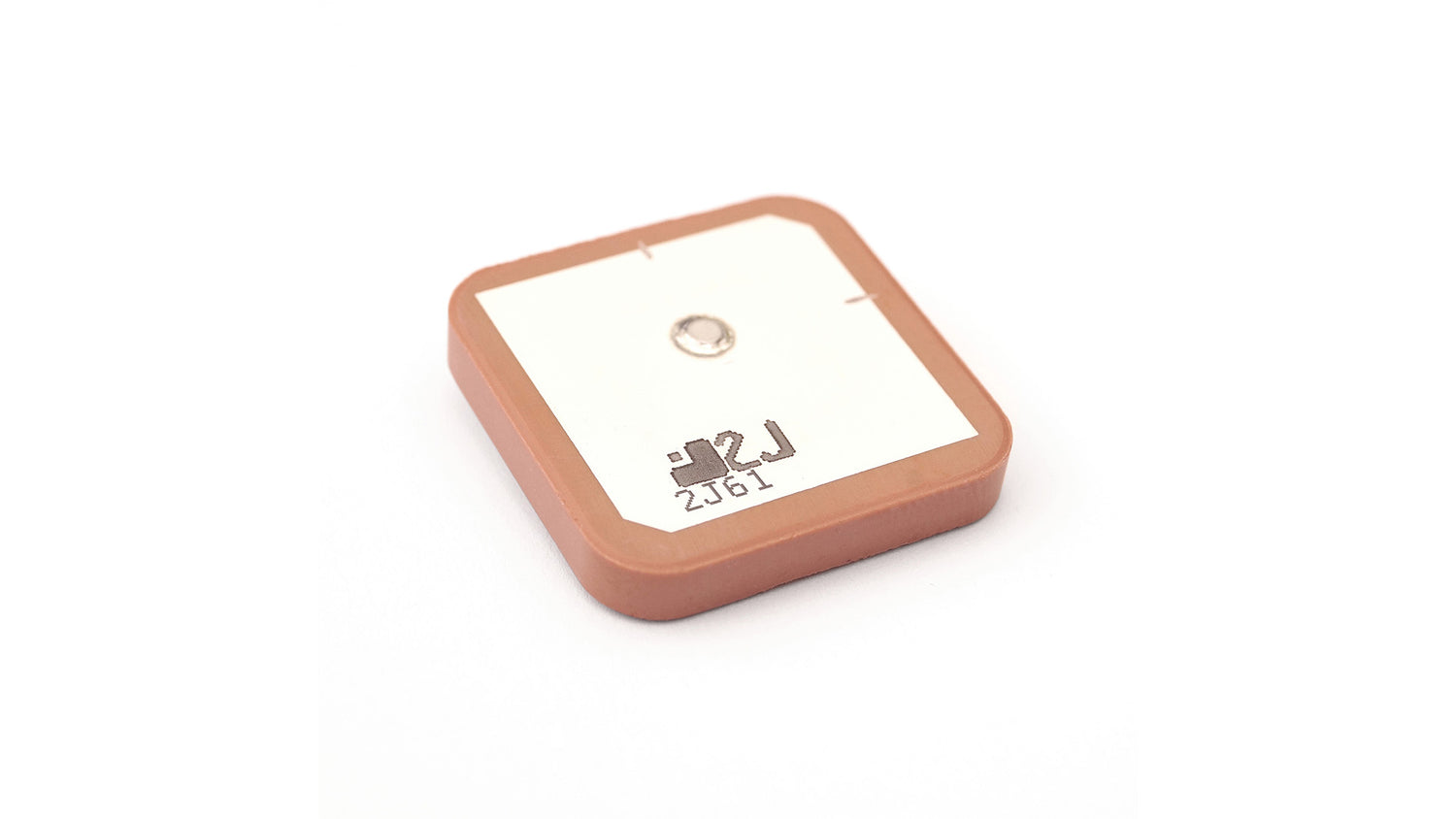

This high-gain ceramic passive antenna is designed for reliable GNSS signal reception, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. Its compact, embedded form factor makes it ideal for integration into a wide range of applications such as consumer electronics, robotics, drones, fleet management, smart cities, and more. The antenna offers high efficiency and peak gain, making it suitable for demanding navigation and tracking environments.
Connections
GPS/GLO/BEI/QZSS/Galileo/L1
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Thru-Hole Mount Ceramic
Location: Internal
Satellite Navigation: GNSS
Type: Single
Dimensions: 25 x 25 x 4 mm
Connection 1 - GNSS
Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~4.2, ~4.5, ~5.0
Efficiency (%): ~72.2, ~79.7, ~81.6
Radiation Pattern: Hemispherical
Polarization: RHCP
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JCP2540101Ca",
"title": "GPS/GLONASS/BeiDou/QZSS/Galileo High Gain Thru-Hole Mount Ceramic Passive Antenna",
"mountingType": "Thru-Hole Mount",
"ipRating": null,
"dimensions_mm": "25 x 25 x 4",
"elements": [
{
"elementID": "GNSS",
"type": "GNSS",
"technologies": [
"GPS",
"GLONASS",
"BeiDou",
"QZSS",
"Galileo"
],
"frequencies": [
{
"range_mhz": "1561.098",
"returnLoss_db": "~-12.2",
"vswr": "~1.6:1",
"efficiency_percent": "~72.2",
"peakGain_dbi": "~4.2",
"averageGain_db": "~-1.4"
},
{
"range_mhz": "1575.42",
"returnLoss_db": "~-9.4",
"vswr": "~2.0:1",
"efficiency_percent": "~79.7",
"peakGain_dbi": "~4.5",
"averageGain_db": "~-1.0"
},
{
"range_mhz": "1598-1606",
"returnLoss_db": "~-15.7",
"vswr": "~1.4:1",
"efficiency_percent": "~81.6",
"peakGain_dbi": "~5.0",
"averageGain_db": "~-0.9"
}
],
"polarization": "RHCP",
"radiationPattern": "Hemispherical",
"impedance_ohms": 50,
"maxInputPower_w": null
}
],
"connectors": []
}
