2J  |  SKU: 2JD0510-C728N

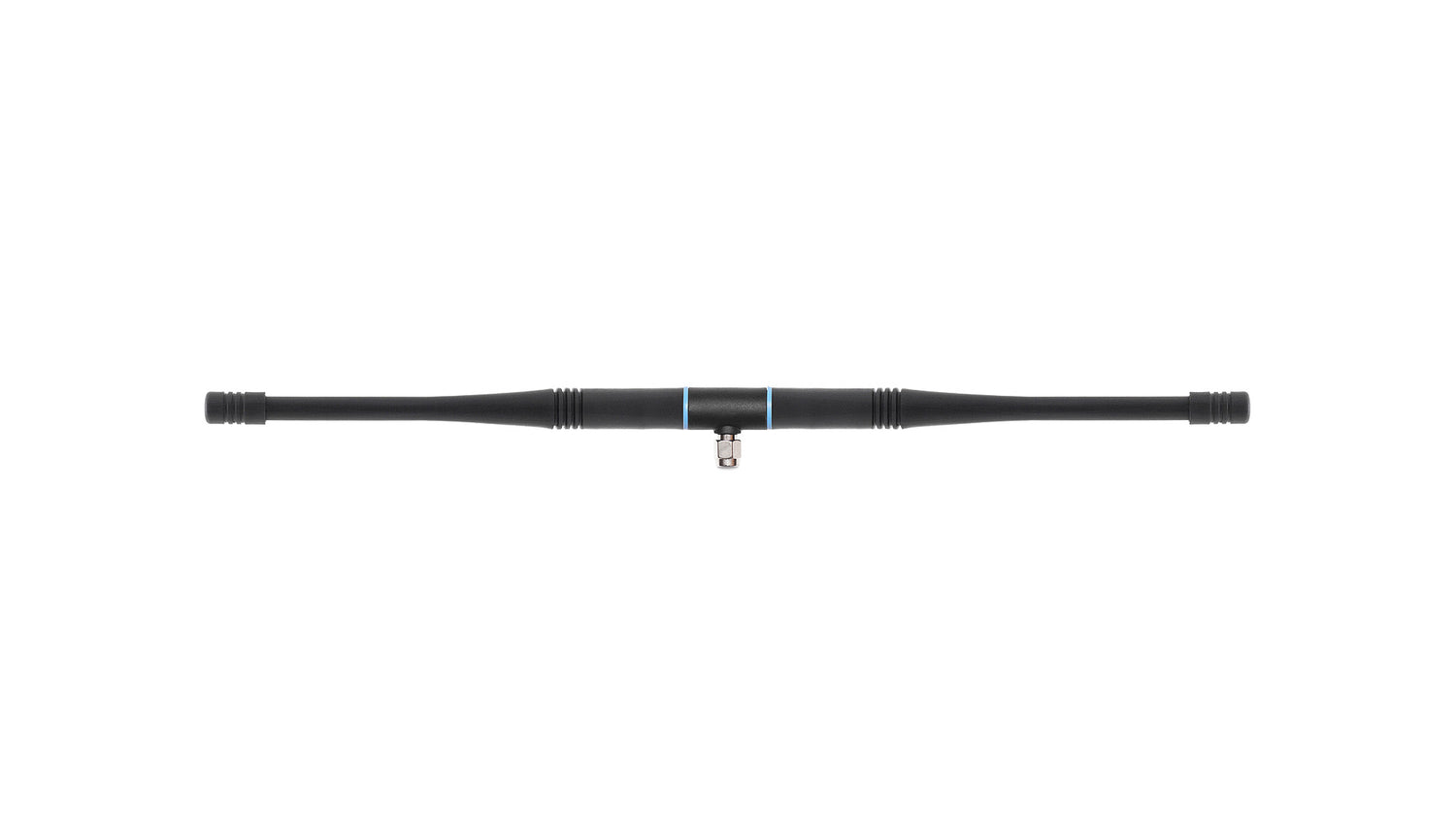

2JD0510-C728N TETRA, UHF, LPWA connector mount Dipole Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance dipole antenna is designed for reliable operation in the 380-470 MHz frequency range, supporting TETRA, UHF, and LPWA applications. Its ground plane independent design ensures consistent performance across various installation environments. The antenna is tunable to the desired center frequency, making it suitable for mission-critical communications, public safety, defense, asset tracking, and first responder fleets. With a narrowband focus and robust construction, it is ideal for demanding professional and industrial use cases.

Connections

380-470MHz/LPWA/TETRA/UHF


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: Ø 13.6 × 380 mm

Connection 1 - TETRA/UHF

Standards: TETRA/UHF
Frequency: 380-470 MHz
VSWR: ~4.1:1
Efficiency (%): ~59.3
Peak Gain (dBi): ~0.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JD0510-C728N", "title": "380-470 MHz Connector Mount Dipole Antenna", "mountingType": "Connector Mount", "ipRating": null, "dimensions_mm": "Ø 13.6 × 380", "elements": [ { "elementID": "TETRA/UHF", "type": "Cellular", "technologies": [ "TETRA", "UHF", "LPWA" ], "frequencies": [ { "range_mhz": "380-470", "returnLoss_db": "~-7.7", "vswr": "~4.1:1", "efficiency_percent": "~59.3", "peakGain_dbi": "~0.8", "averageGain_db": "~-2.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "TETRA/UHF", "type": "SMA-Male", "cableType": "RG174", "cableLength_mm": 2000 } ] }
