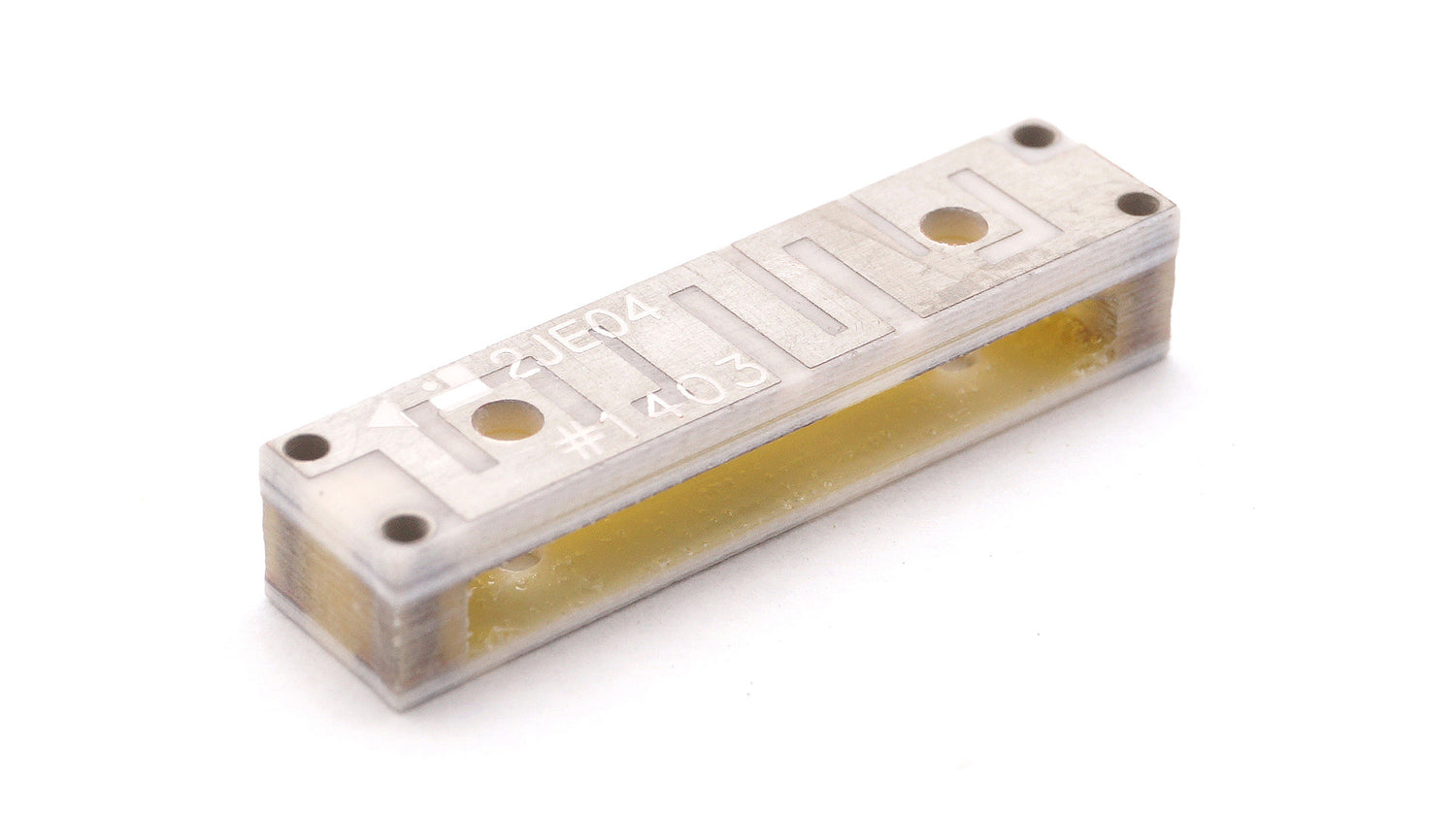

2JE04 3G, 2G cellular SMT fiberglass surface mount embedded Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact SMT fiberglass antenna is designed for seamless integration into embedded systems requiring reliable 3G and 2G cellular connectivity. Its ground plane dependent design ensures optimal performance in space-constrained applications, while the fiberglass construction provides durability and high performance. Ideal for consumer electronics, robotics, asset tracking, wearables, and a wide range of IoT and M2M solutions, this antenna offers easy integration and cost-effective cellular communication.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +105 °C
Mounting: Surface Mount Fiberglass
Location: Internal
Type: Single
Dimensions: 24 x 5.5 x 4.4 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: <=3:1, <=3:1
Efficiency (%): ~55, ~45
Peak Gain (dBi): ~1, ~3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JE04", "title": "Cellular SMT Fiberglass Embedded Antenna", "mountingType": "Surface Mount", "ipRating": null, "dimensions_mm": "24 x 5.5 x 4.4", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-6", "vswr": "~3:1", "efficiency_percent": "~55", "peakGain_dbi": "~1", "averageGain_db": "~-2.6" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-6", "vswr": "~3:1", "efficiency_percent": "~45", "peakGain_dbi": "~3", "averageGain_db": "~-3.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [] }
