2J | SKU: 2JE06a

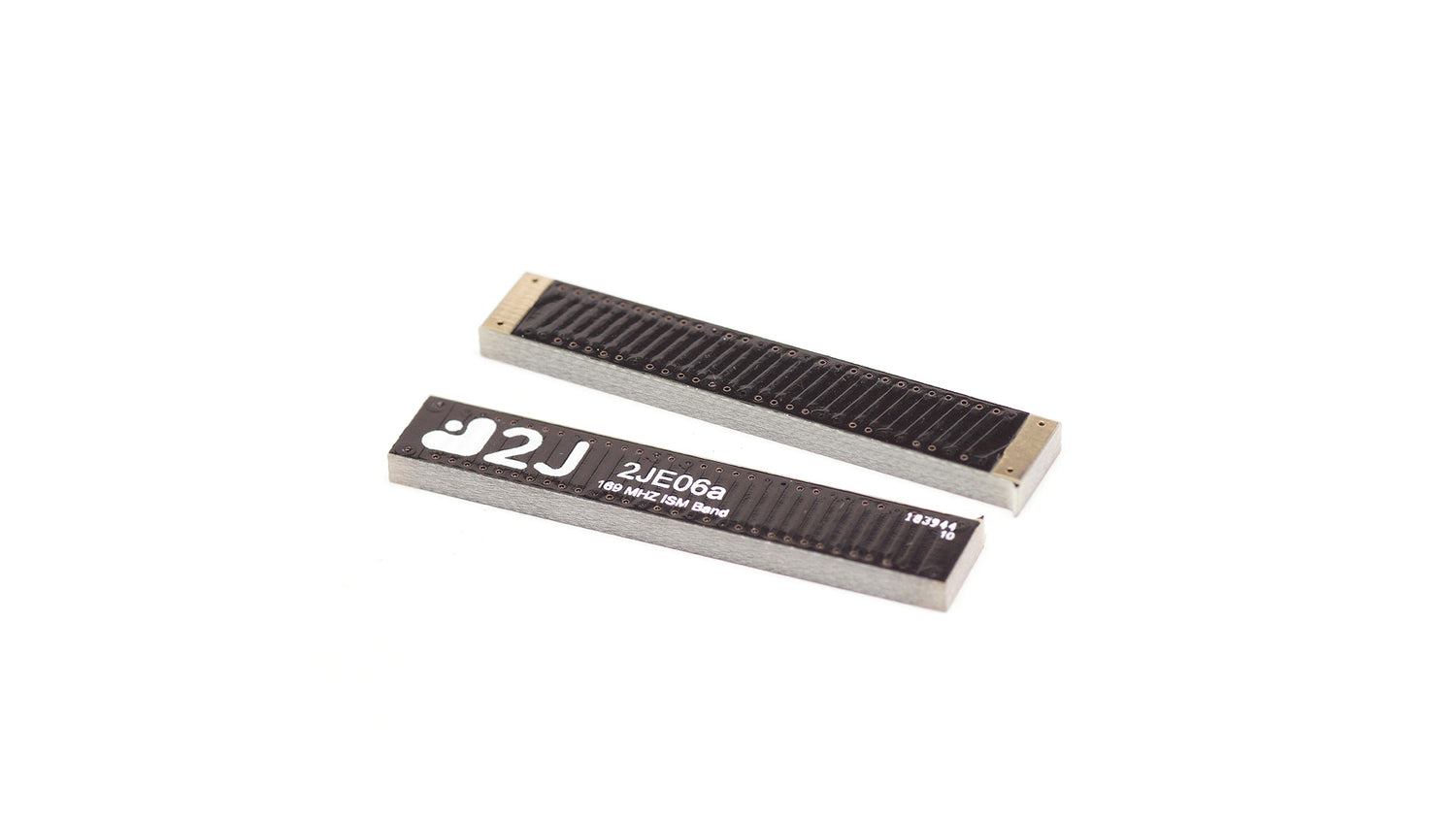

2JE06a ISM, ERMES surface mount fiberglass Antenna

Name: 2JE06a ISM, ERMES surface mount fiberglass Antenna
Brand: 2J
SKU: 2JE06a
Availability: OutOfStock

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact surface mount antenna is designed for reliable long-range wireless communication in the 169 MHz ISM and ERMES bands. Its low-profile fiberglass construction ensures durability and easy integration into space-constrained designs. The antenna is ground plane dependent and optimized for applications such as smart meters, industrial remote controls, and other ISM band equipment. Its omnidirectional radiation pattern and compatibility with reflow processes make it ideal for automated manufacturing environments.

Connections

169MHz/ERMES/VHF

Technical Specifications

Operating Temperature: -40°C to +105°C
Mounting: Surface Mount Fiberglass
Location: Internal
Type: Single
Dimensions: 40 x 7 x 2.4 mm

Connection 1 - 169 MHz ISM (ERMES)

Standards: ERMES, ISM, VHF
Frequency: 169.4-169.9 MHz
VSWR: ~1.2:1
Peak Gain (dBi): ~-6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JE06a", "title": "Compact Fiberglass 169 MHz ISM-ERMES Surface Mount Antenna", "mountingType": "Surface Mount", "ipRating": null, "dimensions_mm": "40 x 7 x 2.4", "elements": [ { "elementID": "ISM 169 MHz", "type": "ISM", "technologies": [ "ERMES", "ISM", "VHF" ], "frequencies": [ { "range_mhz": "169.4-169.9", "returnLoss_db": "~-20.0", "vswr": "~1.2:1", "efficiency_percent": null, "peakGain_dbi": "~-6.0", "averageGain_db": null } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 10 } ], "connectors": [] }
