2J  |  SKU: 2JE07i

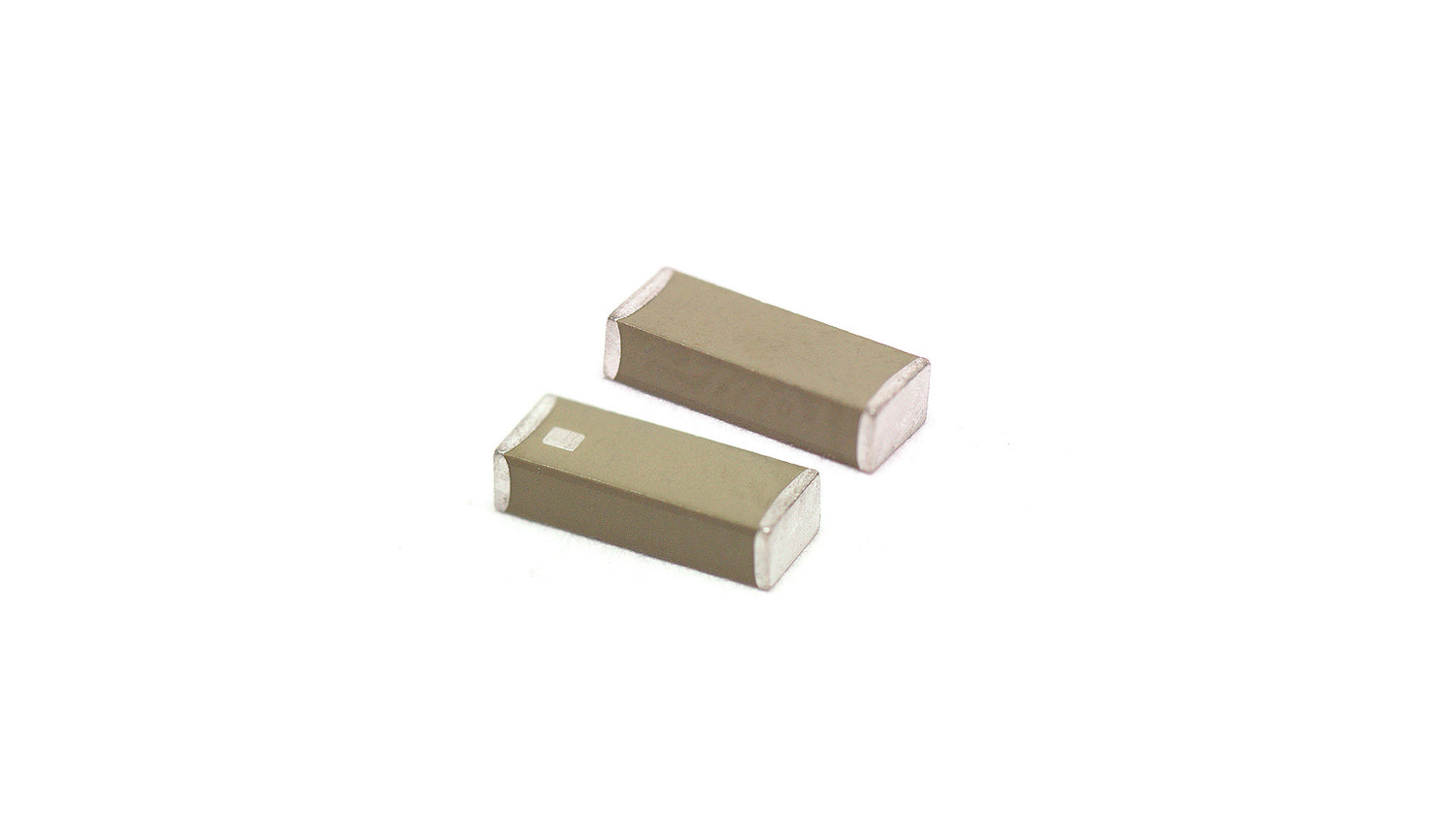

2JE07i Wi-Fi, ISM surface mount ceramic Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact surface mount ceramic antenna is engineered for reliable short-range wireless communication in the 5.0 GHz ISM band. Its military-grade precision and omni-directional radiation pattern ensure stable, high-speed data transmission for a wide range of applications, including smart devices, industrial, commercial, and residential systems. The antenna's ceramic housing provides excellent durability, and its ground plane dependent design allows for easy integration into space-constrained devices.

  • Compact and robust ceramic construction
  • Optimized for 5.0 GHz Wi-Fi and ISM applications
  • Omni-directional radiation for consistent coverage
  • Easy integration with SMT mounting
  • Suitable for smart phones, IoT, and embedded systems

Connections

5.0GHz/WiFi/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: Internal
Mounting: Surface Mount Ceramic
Type: Single
Dimensions: 5.2 × 2 × 1.2 mm

Connection 1 - 5.0 GHz ISM

Standards: WiFi, ISM
Frequency: 4920-5925 MHz
VSWR: ~2.1:1
Efficiency (%): ~55.9
Peak Gain (dBi): ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JE07i", "title": "5.0 GHz ISM Surface Mount Compact Ceramic Antenna", "mountingType": "Surface Mount", "ipRating": null, "dimensions_mm": "5.2 x 2 x 1.2", "elements": [ { "elementID": "Wi-Fi/ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi", "ISM (5.0 GHz)" ], "frequencies": [ { "range_mhz": "4920-5925", "returnLoss_db": "~-11.2", "vswr": "~2.1:1", "efficiency_percent": "~55.9", "peakGain_dbi": "~2.1", "averageGain_db": "~-2.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 10 } ], "connectors": [] }
