2J  |  SKU: 2JE17

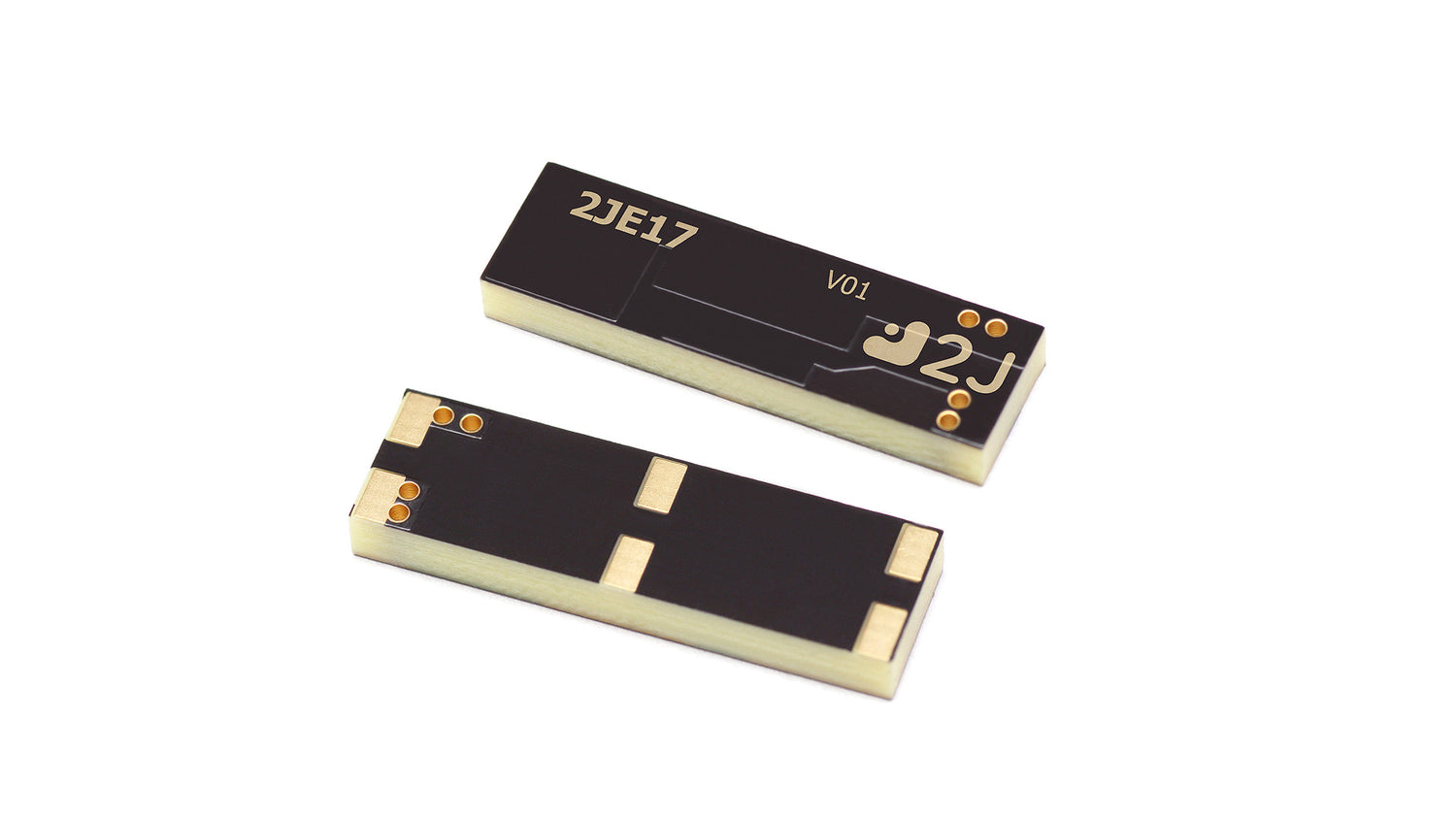

2JE17 3G, 2G cellular surface mount fiberglass embedded Antenna

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance embedded antenna is designed for reliable 3G and 2G cellular connectivity. Its compact fiberglass construction makes it ideal for integration into space-constrained devices, offering robust performance and easy installation. The antenna is ground plane dependent and well-suited for applications such as consumer electronics, robotics, embedded solutions, mobile and cellular networks, machine control, wearables, asset tracking, civil and automotive uses, telecommunication, broadband communications, wireless security, energy monitoring, air quality monitoring, and telemetry/telematics.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +105 °C
Mounting: Surface Mount Fiberglass
Location: Internal
Type: Single
Dimensions: 26 x 7.6 x 3 mm

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 791-960, 1710-2170 MHz
VSWR: ~2.0:1, ~1.8:1
Efficiency (%): ~67.5, ~70.8
Peak Gain (dBi): ~2.2, ~2.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JE17", "title": "Cellular High Performance Fiberglass Embedded Antenna", "mountingType": "Surface Mount", "ipRating": null, "dimensions_mm": "26 x 7.6 x 3", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "791-960", "returnLoss_db": "~-11.65", "vswr": "~2.0:1", "efficiency_percent": "~67.5", "peakGain_dbi": "~2.2", "averageGain_db": "~-1.7" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-13.3", "vswr": "~1.8:1", "efficiency_percent": "~70.8", "peakGain_dbi": "~2.2", "averageGain_db": "~-1.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [] }
