Description

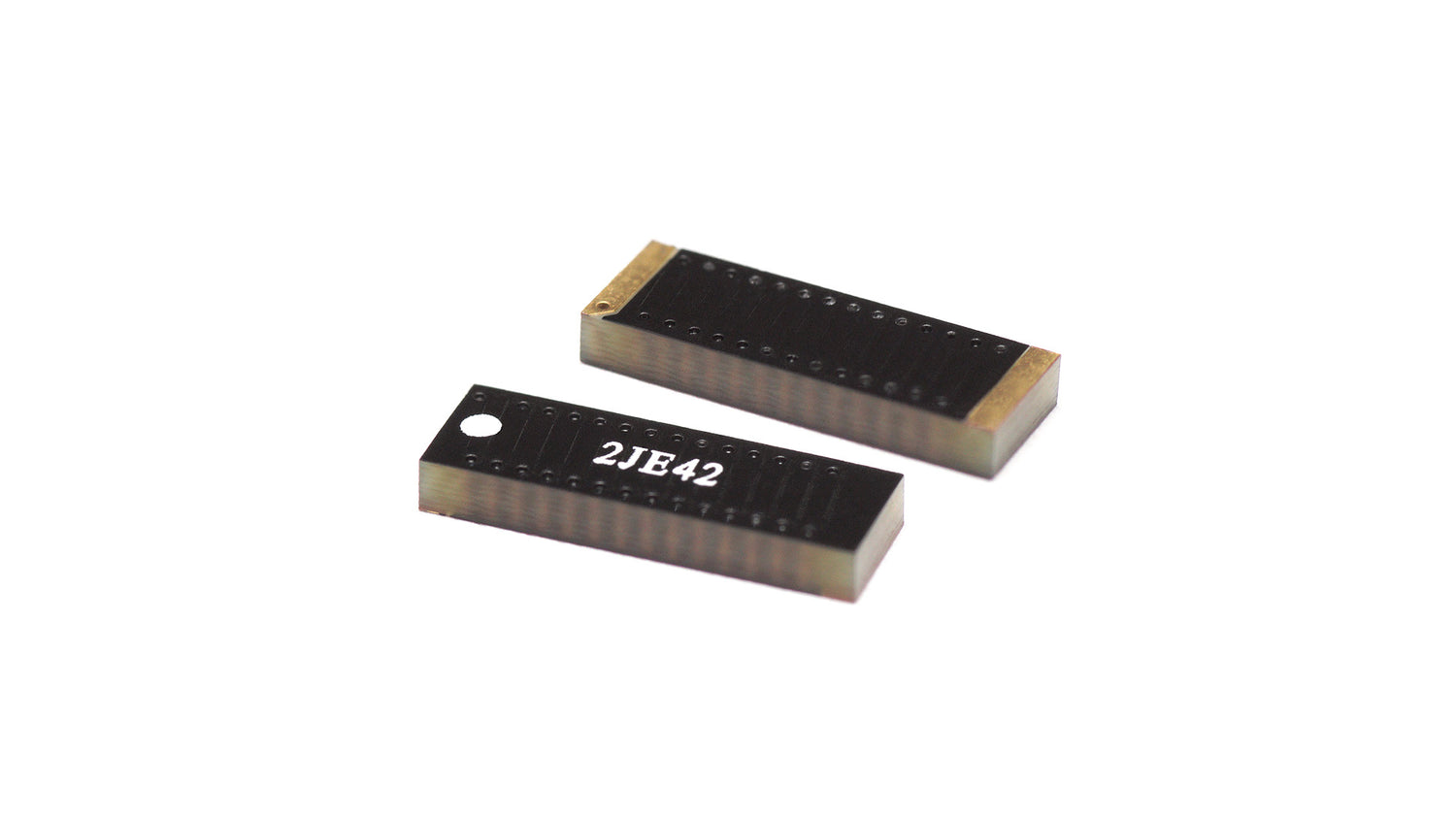

This compact surface mount antenna is engineered for reliable, high-efficiency wireless connectivity in the 915 MHz ISM band. Its omnidirectional radiation pattern ensures uninterrupted performance, making it ideal for short-range wireless transmissions and automation devices in home, office, industrial, and automotive environments. The fiberglass construction provides durability, while the ground plane dependent design allows for seamless integration in space-constrained applications.
Connections
915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM
Installation / Environmental
The antenna is ground plane dependent with a required minimum integration area of 15mm x 15mm, allowing for seamless installation where space is limited. The quality fiberglass design offers durability and can withstand temperatures between -40°C and +85°C. The antenna is RoHS compliant and delivered on tape and reel for efficient automated manufacturing.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Location: Internal
LPWAN & IoT Communication: LPWA, SigFox, LoRa
Mounting: Surface Mount Fiberglass
Short-Range Wireless Standards: ZigBee
Type: Single
Dimensions: 12 x 4 x 1.6 mm
Connection 1 - 915 MHz ISM
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.9:1
Peak Gain (dBi): ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 1
