2J  |  SKU: 2JF0102P-010MC137-UFL

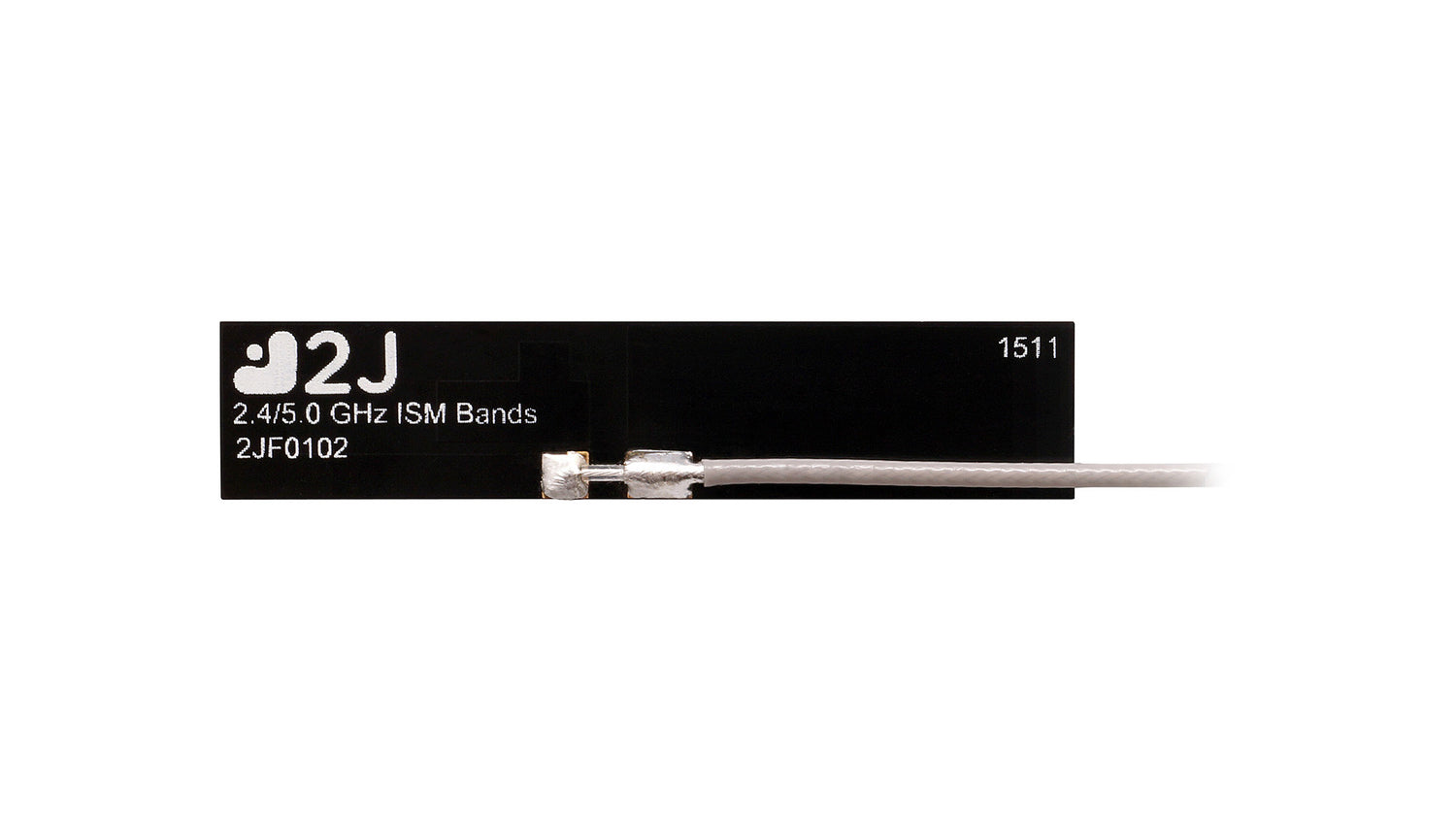

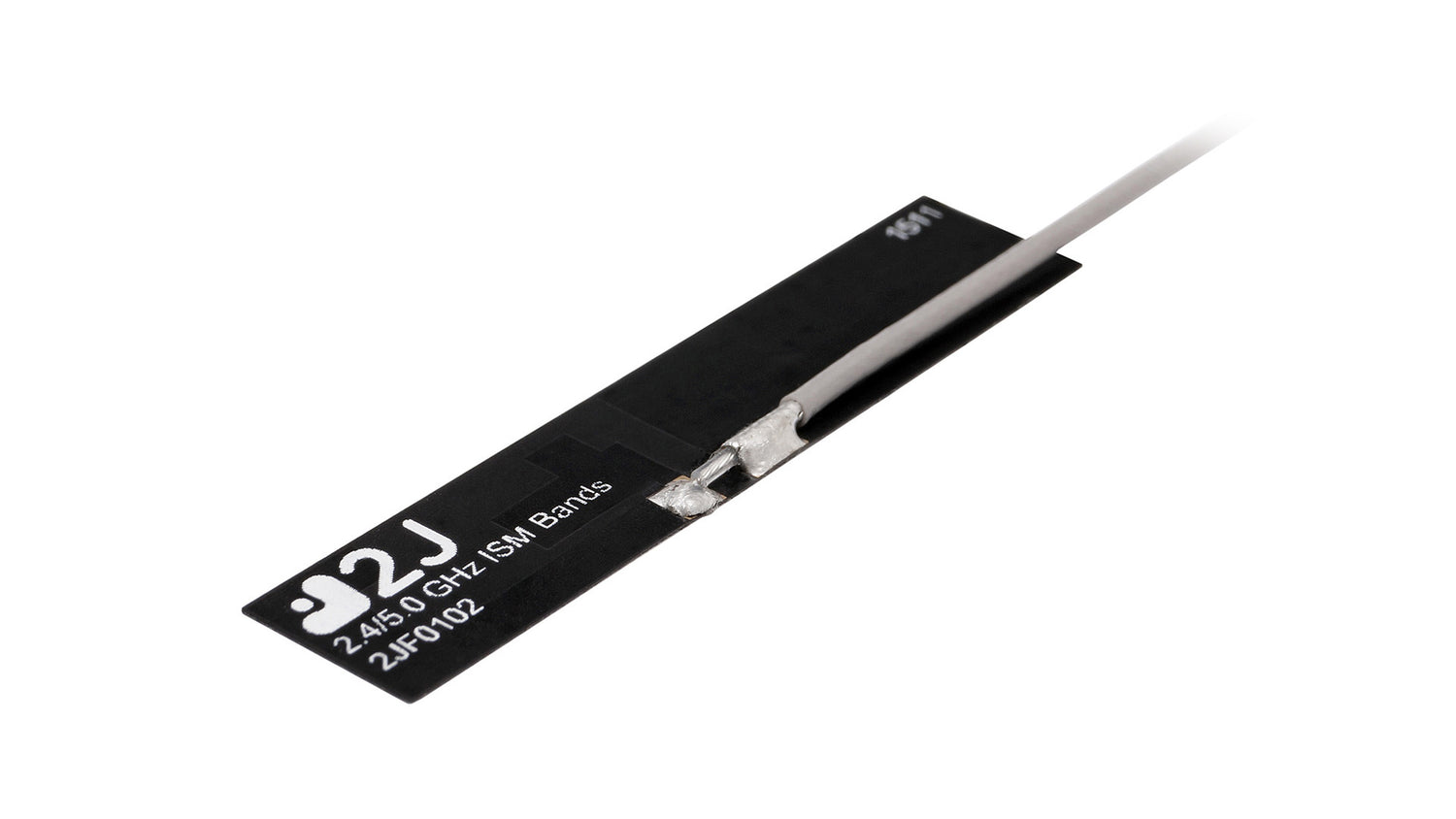

2JF0102P Wi-Fi 6E/7, ISM flexible adhesive internal Antenna U.FL 10cm

€9,00
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This ultra-thin, flexible adhesive antenna is designed for high-performance Wi-Fi 6E/7 and ISM band applications. Its ground plane independence and compact form factor make it ideal for integration into consumer electronics, robotics, drones, smart home devices, and more. The antenna delivers high efficiency and peak gain, supporting demanding throughput, speed, and reliability requirements for modern wireless systems.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

  • Connector Type: U.FL-Male
  • Cable Length: 10cm
  • Cable Type: MC137


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single
Dimensions: 39.6x 8.4 x 0.1 mm

Connection 1 - Wi-Fi 6E/7, ISM

Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
VSWR: ~1.2:1, ~1.4:1, ~2.1:1
Efficiency (%): ~76, ~82, ~60.4
Peak Gain (dBi): ~2.2, ~3.8, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0102P", "title": "2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Flexible Ultra-Thin PCB Adhesive Antenna", "mountingType": "Self-Adhesive (Adhesive Mount Flexible)", "ipRating": null, "dimensions_mm": "39.6 x 8.4 x 0.1", "elements": [ { "elementID": "Wi-Fi / ISM Element", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-20.8", "vswr": "~1.2:1", "efficiency_percent": "~76", "peakGain_dbi": "~2.2", "averageGain_db": "~-1.2" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-15.5", "vswr": "~1.4:1", "efficiency_percent": "~82", "peakGain_dbi": "~3.8", "averageGain_db": "~-0.8" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-8.9", "vswr": "~2.1:1", "efficiency_percent": "~60.4", "peakGain_dbi": "~3.2", "averageGain_db": "~-2.2" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM Element", "type": "U.FL", "cableType": "1.37mm", "cableLength_mm": 100 } ] }
