2J  |  SKU: 2JF0183P

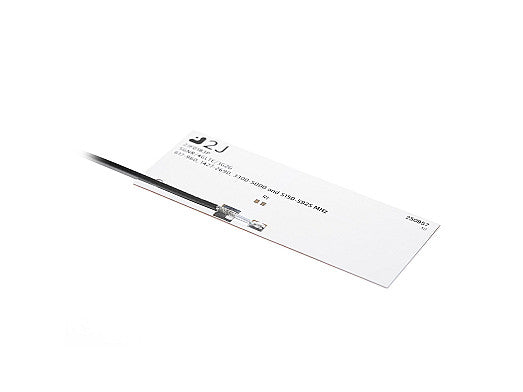

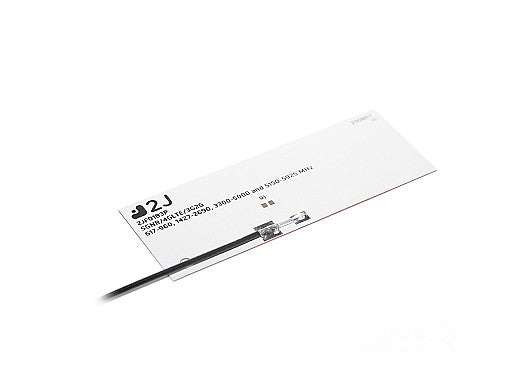

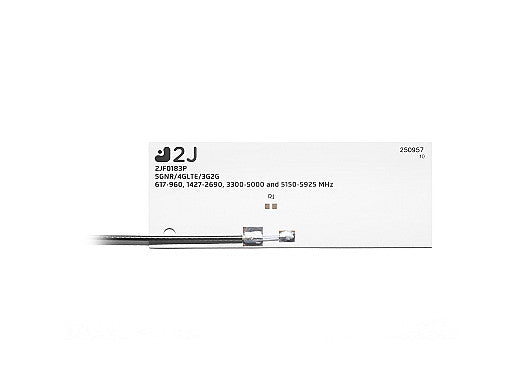

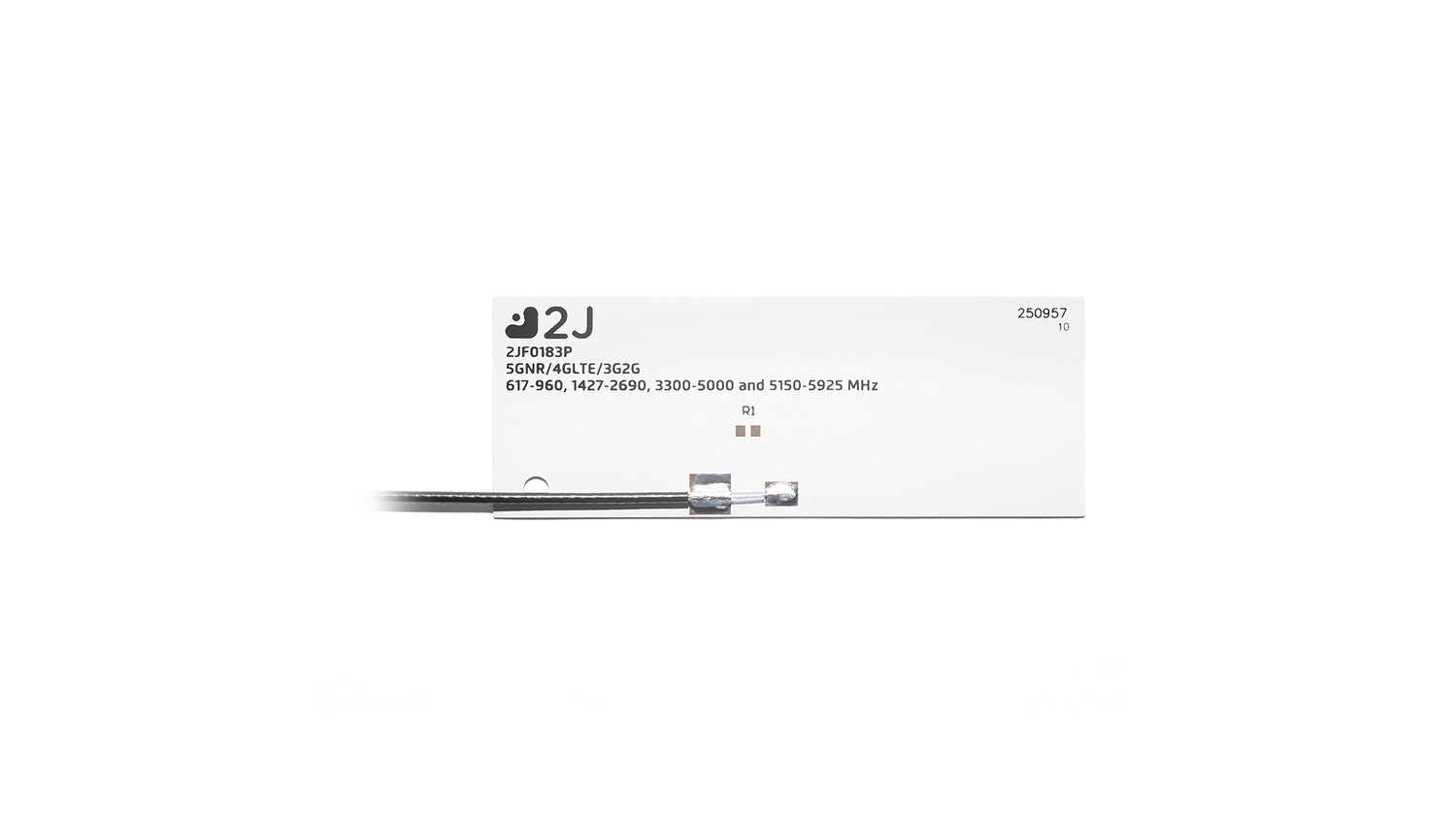

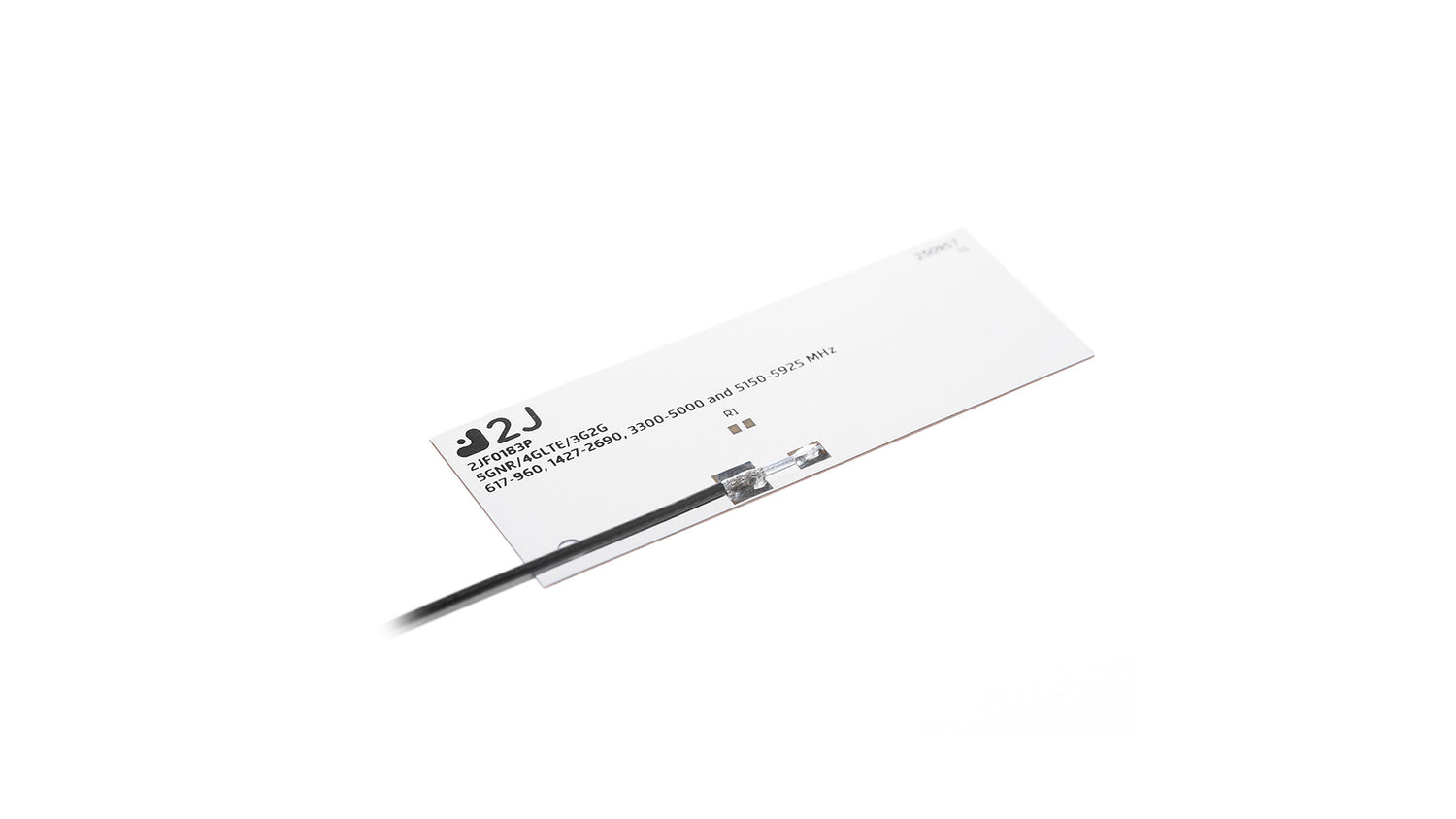

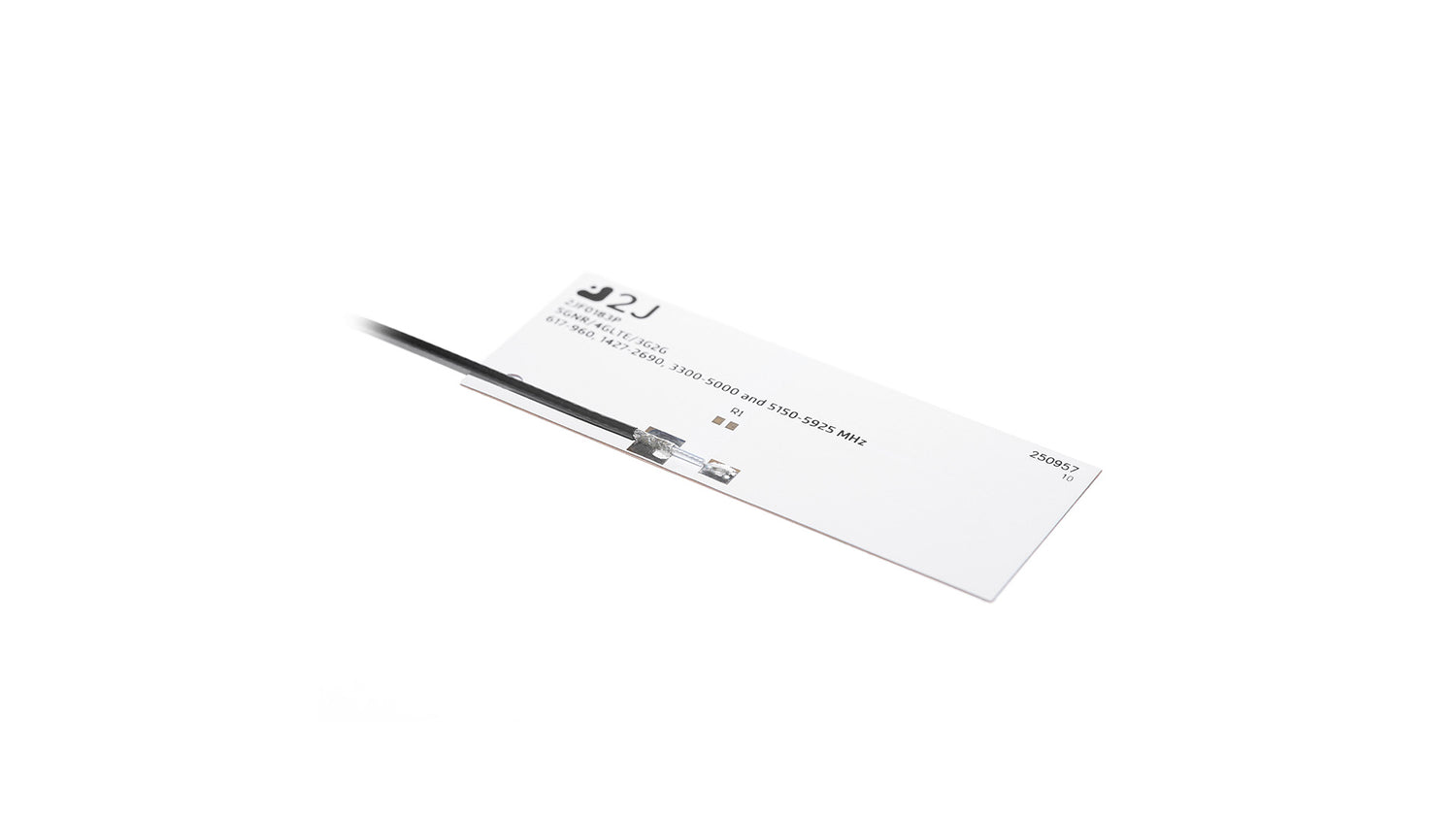

2JF0183P 5G adhesive Antenna flexible polymer internal adhesive mount

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This ultra-thin, high-performance antenna delivers superior connectivity across 5G, 4G, 3G, and 2G networks. Its flexible polymer construction and adhesive mount make it ideal for seamless integration into compact devices and challenging installation environments. The antenna is ground plane independent, ensuring reliable performance regardless of placement. Perfect for IoT devices, wearables, drones, and a wide range of consumer and industrial applications.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Cellular Technologies: 5G, 4G, 3G, 2G
Type: Single
Dimensions: 70.4 × 26.4 × 0.3 mm

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.8, ~-12.5, ~-6.2, ~-6.4
VSWR: ~3.0:1, ~1.9:1, ~3.6:1, ~2.9:1
Efficiency (%): ~31.7, ~65.1, ~38.3, ~40.2
Peak Gain (dBi): ~-1.7, ~2.4, ~2.2, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0183P", "title": "5GNR/4GLTE/3G/2G Flexible Polymer Adhesive Antenna", "mountingType": "Adhesive Mount Flexible", "ipRating": null, "dimensions_mm": "70.4 × 26.4 × 0.3", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "3G", "2G" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-8.8", "vswr": "~3.0:1", "efficiency_percent": "~31.7", "peakGain_dbi": "~-1.7", "averageGain_db": "~-5.4" }, { "range_mhz": "1427-2690", "returnLoss_db": "~-12.5", "vswr": "~1.9:1", "efficiency_percent": "~65.1", "peakGain_dbi": "~2.4", "averageGain_db": "~-2.0" }, { "range_mhz": "3300-5000", "returnLoss_db": "~-6.2", "vswr": "~3.6:1", "efficiency_percent": "~38.3", "peakGain_dbi": "~2.2", "averageGain_db": "~-4.3" }, { "range_mhz": "5150-5925", "returnLoss_db": "~-6.4", "vswr": "~2.9:1", "efficiency_percent": "~40.2", "peakGain_dbi": "~2.3", "averageGain_db": "~-4.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [] }
