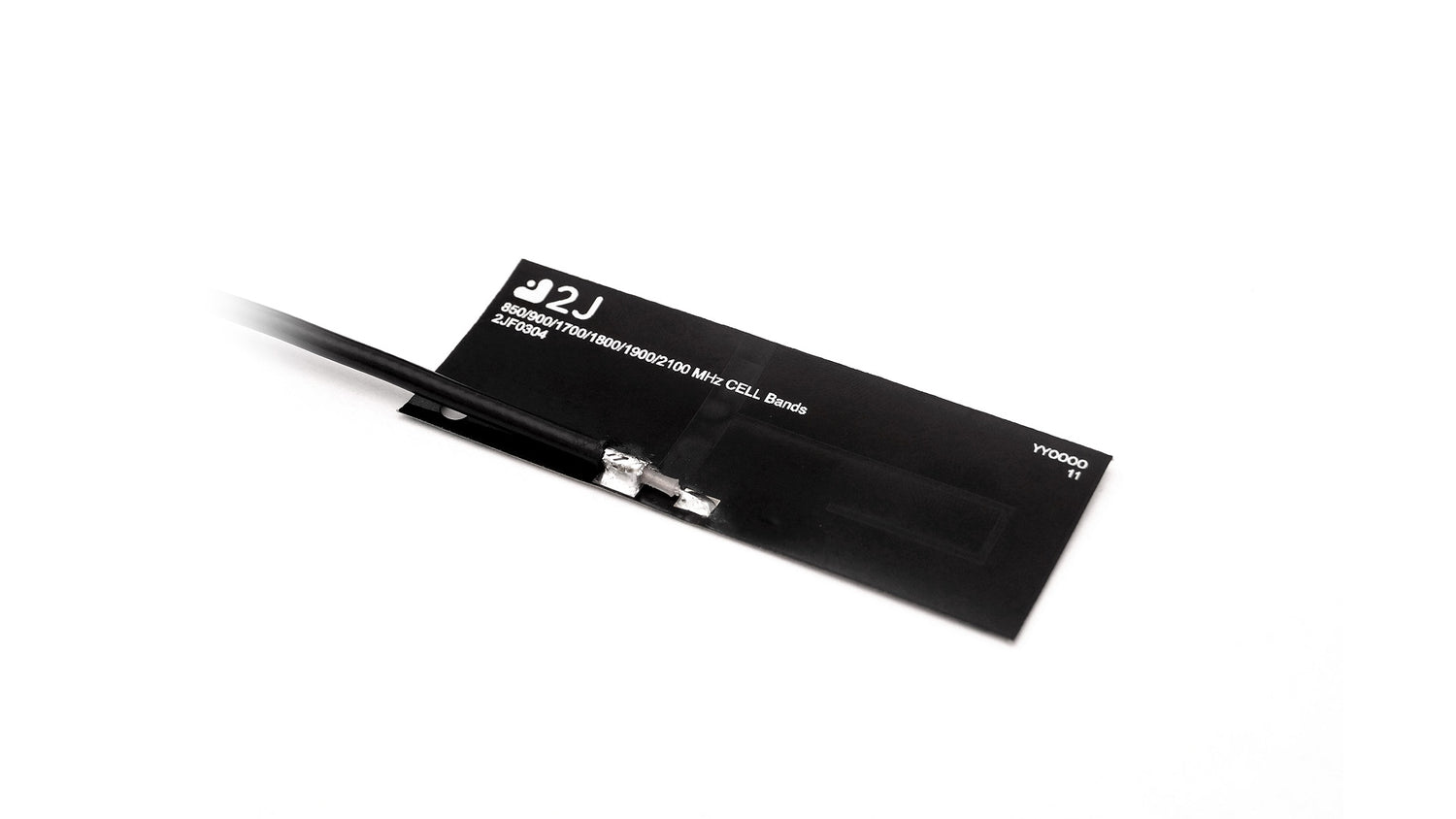

This ultra-thin, flexible adhesive mount antenna is designed for reliable 2G and 3G cellular connectivity in compact spaces. Its embedded PCB construction makes it ideal for integration into IoT devices, automotive systems, wireless routers, dash cameras, infotainment units, and more. The antenna is ground plane independent and features a self-adhesive backing for easy installation, making it suitable for a wide range of internal applications where space and performance are critical.
Connections
3G/2G/CELL
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single
Dimensions: 70.4 x 26.4 x 0.1 mm
Connection 1 - Cellular
Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ≤2.4:1, ≤1.5:1
Efficiency (%): ~41, ~61
Peak Gain (dBi): ~1, ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JF0304P",
"title": "Cellular 2G and 3G Flexible Ultra-Thin PCB Adhesive Antenna",
"mountingType": "Self-Adhesive",
"ipRating": null,
"dimensions_mm": "70.4 x 26.4 x 0.1",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"2G",
"3G"
],
"frequencies": [
{
"range_mhz": "824-960",
"returnLoss_db": "~-8.9",
"vswr": "~2.4:1",
"efficiency_percent": "~41",
"peakGain_dbi": "~1",
"averageGain_db": "~-3.9"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-13.7",
"vswr": "~1.5:1",
"efficiency_percent": "~61",
"peakGain_dbi": "~2.1",
"averageGain_db": "~-2.2"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "U.FL (Standard, customizable options available)",
"cableType": "1.37mm (Standard)",
"cableLength_mm": 100
}
]
}
