2J  |  SKU: 2JF0415P-010MC137-UFL

2JF0415P ISM Antenna flexible ultra-thin PCB adhesive U.FL 10cm

€3,60
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

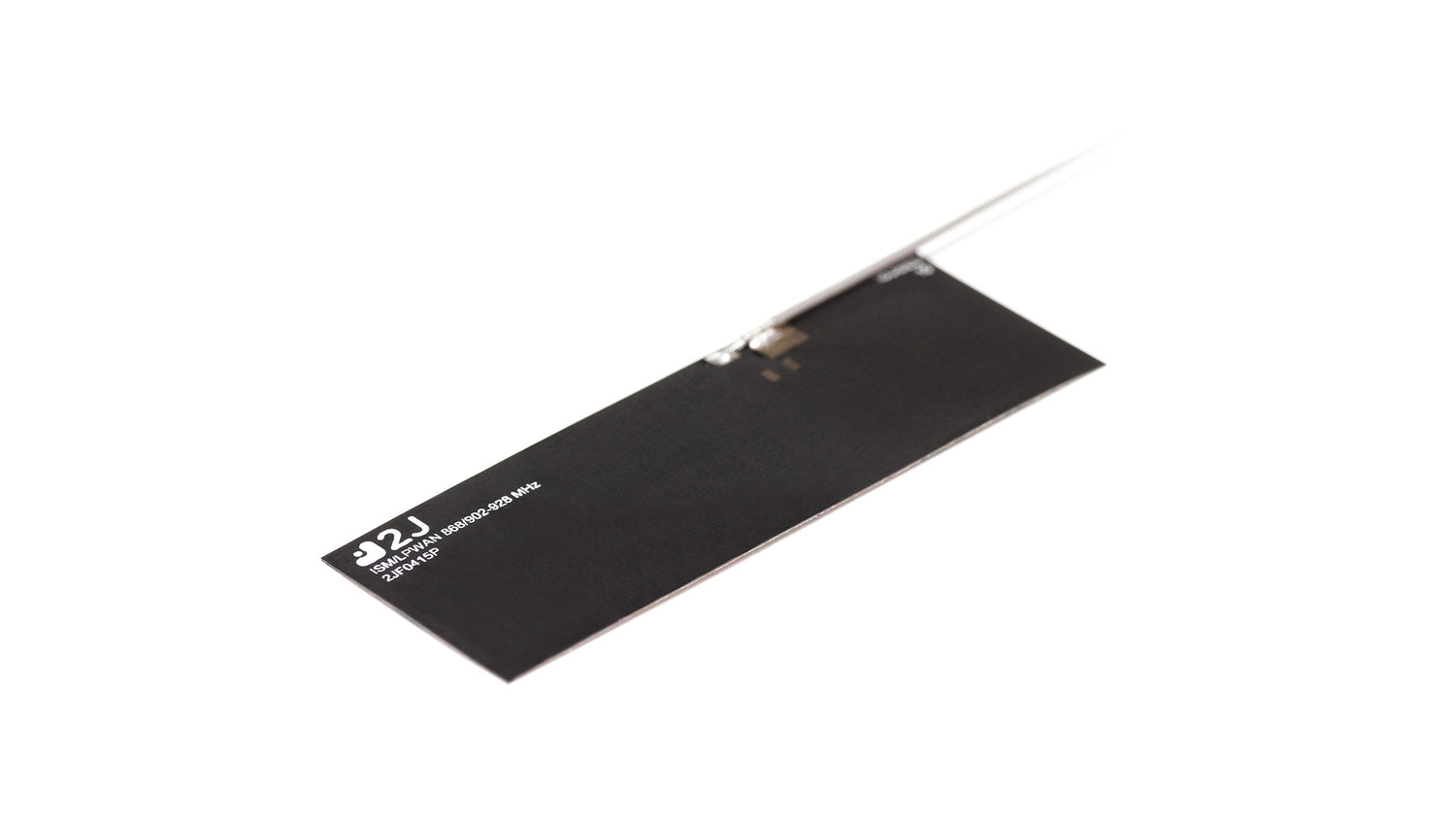

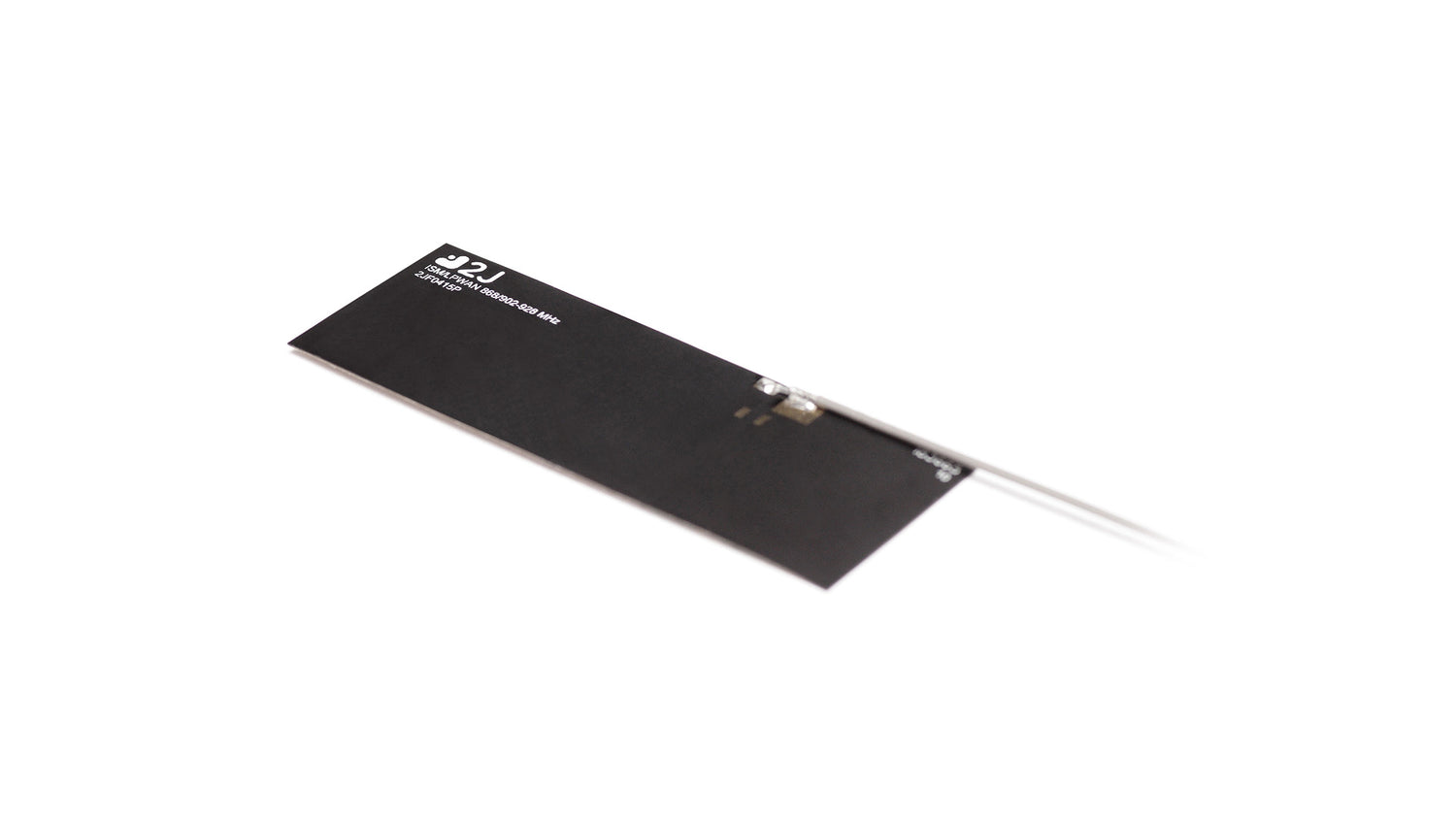

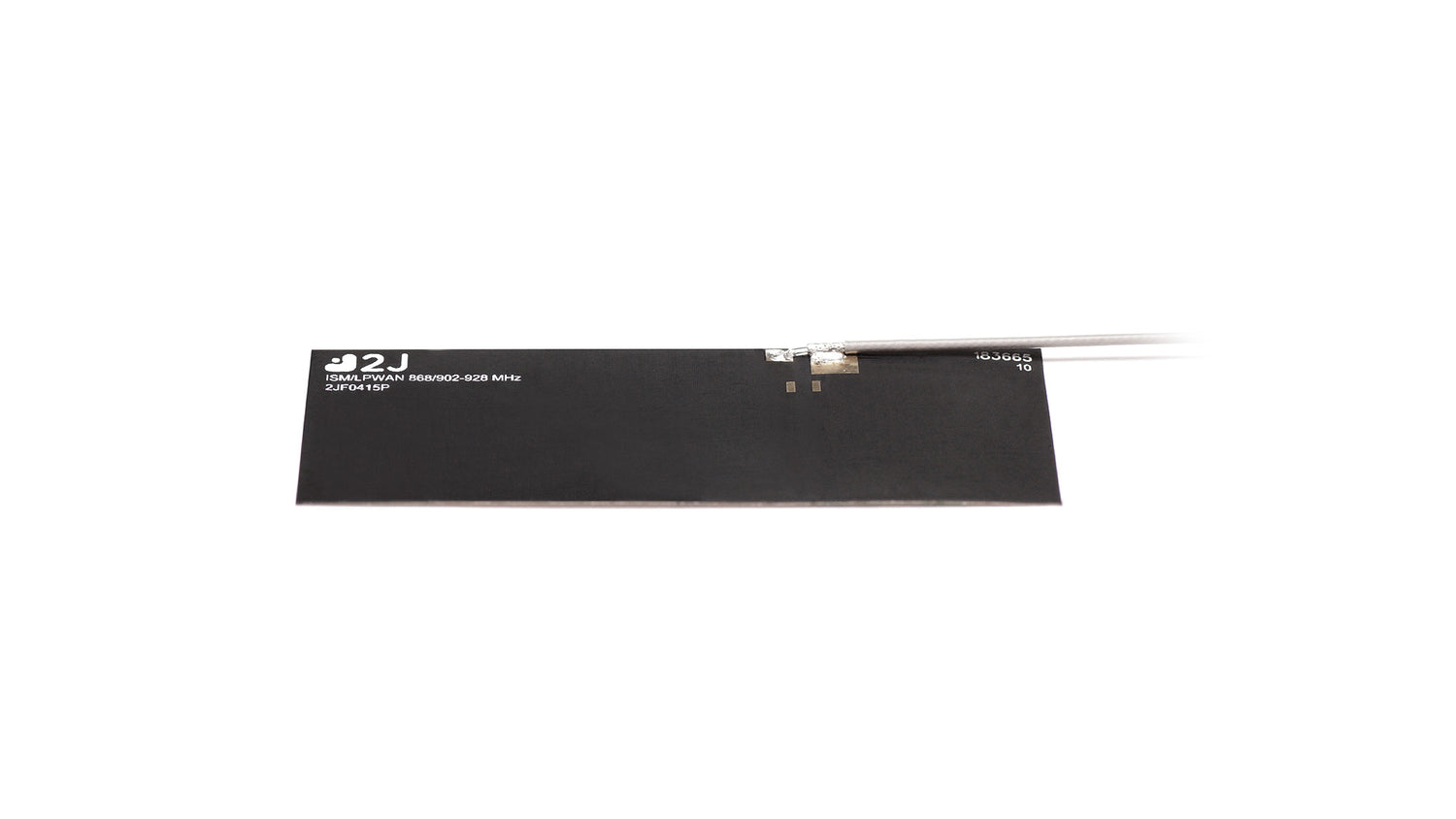

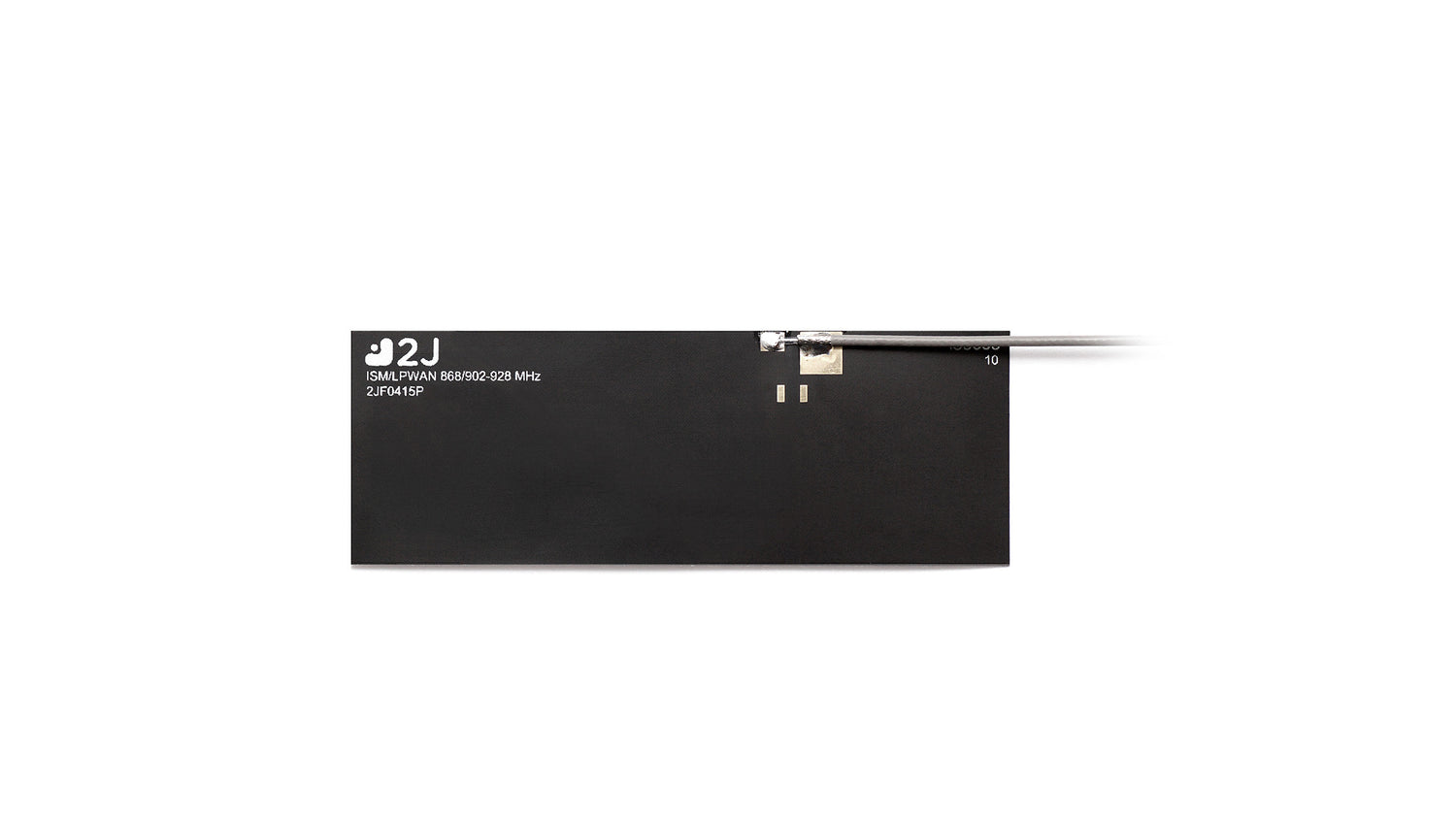

This ultra-thin, high-efficiency flexible PCB antenna is designed for NB-IoT and ISM applications where space is limited. Its omnidirectional design ensures 360° coverage, making it ideal for smart metering, M2M, precision agriculture, remote keyless systems, healthcare, and fitness monitoring devices. The antenna supports both 868 MHz (Europe) and 915 MHz (US) ISM bands, providing worldwide coverage for industrial, scientific, and medical applications. Its self-adhesive backing allows for easy integration into compact devices.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Connector & Cable

  • Connector Type: U.FL-Male
  • Cable Length: 10cm
  • Cable Type: MC137

Installation / Environmental

The compact design antenna comes with a self-adhesive peel-and-stick backside, making installations simplistic in even very space-challenged designs.


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: Internal
LPWAN & IoT Communication: Sigfox, LoRa, LPWA
Mounting: Adhesive Mount Flexible
Short-Range Wireless Standards: ZigBee
Type: Single
Dimensions: 25.0 x 70.0 x 0.2 mm

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~2.3:1, ~1.2:1
Efficiency (%): ~58, ~77
Peak Gain (dBi): ~2.7, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0415P", "title": "868/915 MHz ISM Flexible Ultra-thin PCB Adhesive Antenna", "mountingType": "Self-Adhesive (Adhesive Mount Flexible)", "ipRating": null, "dimensions_mm": "25 x 70 x 0.2", "elements": [ { "elementID": "ISM", "type": "ISM", "technologies": [ "868 MHz ISM", "915 MHz ISM", "Sigfox", "LoRa", "ZigBee" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-8.0", "vswr": "~2.3:1", "efficiency_percent": "~58", "peakGain_dbi": "~2.7", "averageGain_db": "~-2.3" }, { "range_mhz": "902-928", "returnLoss_db": "~-21", "vswr": "~1.2:1", "efficiency_percent": "~77", "peakGain_dbi": "~3.6", "averageGain_db": "~-1.1" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM", "type": "U.FL", "cableType": "1.37mm Micro-Coax", "cableLength_mm": 100 } ] }
