2J  |  SKU: 2JF0515P

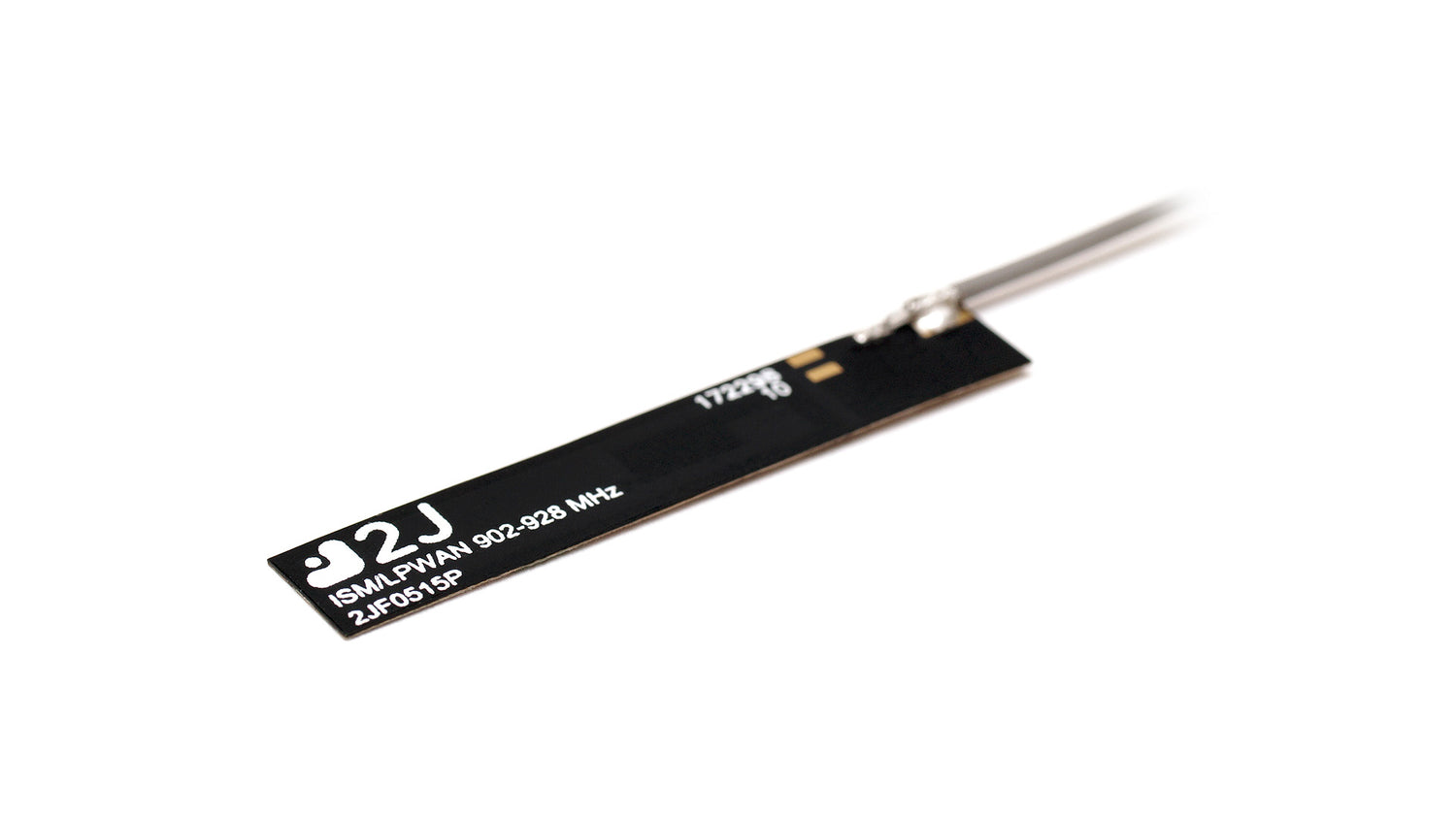

2JF0515P ISM Antenna adhesive mount flexible PCB

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This ultra-thin, flexible PCB antenna is designed for 915 MHz ISM applications, offering omnidirectional coverage and ground plane independence. Its self-adhesive backing allows for easy integration into compact devices, making it ideal for IoT, smart home, industrial, and asset tracking solutions. The antenna's small form factor and flexible design enable seamless installation in space-constrained environments.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single

Connection 1 - 915 MHz ISM

Frequency: 902-928 MHz
Standards: ZigBee, ISM, SIGFOX, LoRa
VSWR: ~1.3:1
Efficiency (%): ~33.6
Peak Gain (dBi): ~0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0515P", "title": "915 MHz ISM Flexible ultra-thin PCB Adhesive Antenna", "mountingType": "Self-Adhesive (Flexible Mount)", "ipRating": null, "dimensions_mm": "39.9 x 7.0 x 0.2", "elements": [ { "elementID": "ISM 915 MHz", "type": "ISM", "technologies": [ "ISM", "SigFox", "LoRa", "ZigBee", "LPWA", "RFID" ], "frequencies": [ { "range_mhz": "902-928", "returnLoss_db": "~-17.6", "vswr": "~1.3:1", "efficiency_percent": "~33.6", "peakGain_dbi": "~0.3", "averageGain_db": "~-4.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 915 MHz", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 100 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
