2J  |  SKU: 2JF0524P

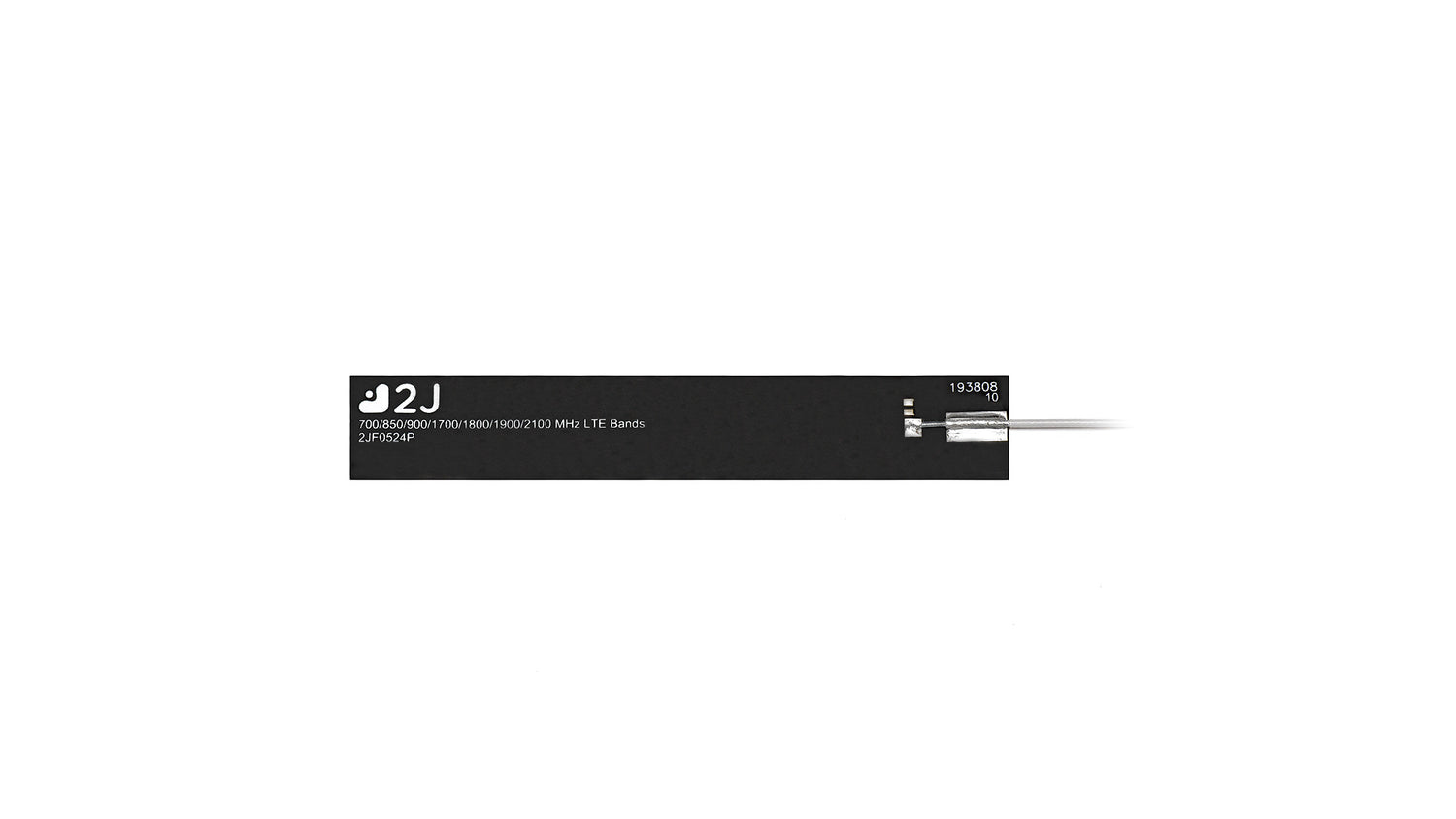

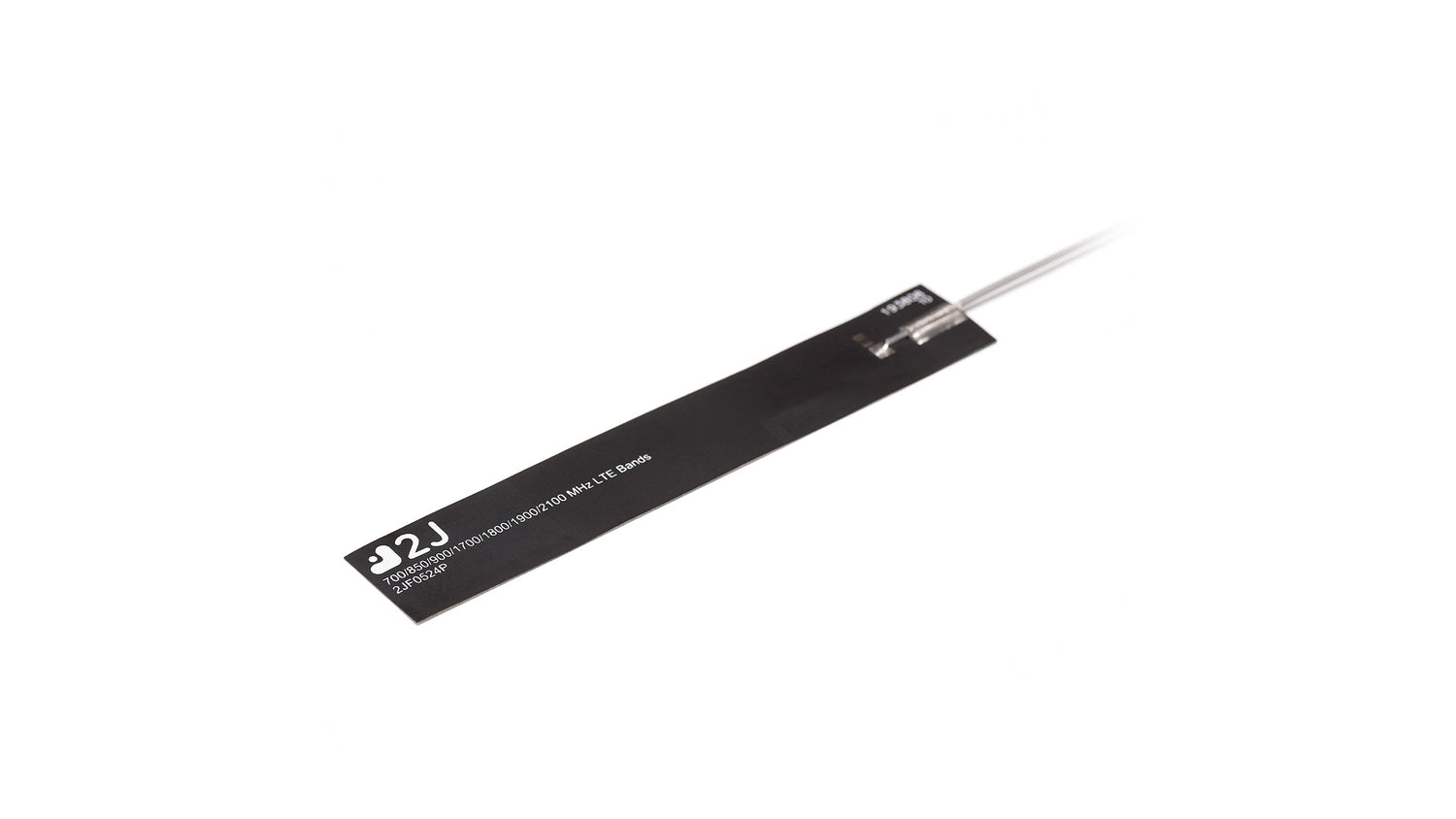

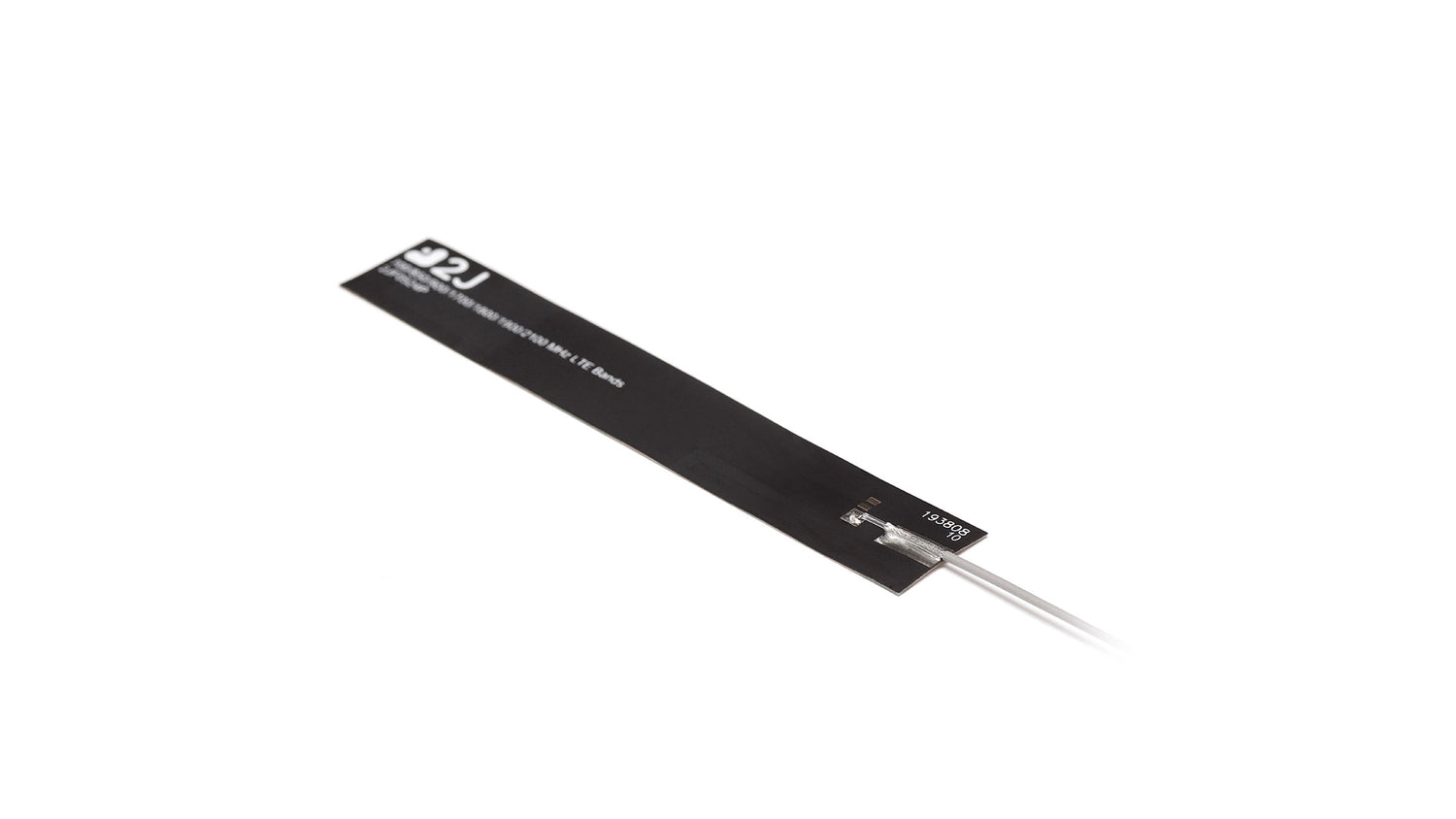

2JF0524P 4G/LTE adhesive mount flexible internal Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This ultra-thin, flexible internal antenna is designed for reliable 4G LTE, 3G, and 2G connectivity. Its self-adhesive backing allows for easy integration into a wide range of devices, making it ideal for applications where space is limited and a discreet installation is required. The omnidirectional design ensures 360° coverage and consistent performance, while the ground plane independent construction provides installation flexibility. Suitable for consumer electronics, IoT devices, robotics, wearables, asset tracking, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - Cellular/4G LTE

Frequency: 698-960, 1710-2170 MHz
Standards: 2G, 3G, 4G
VSWR: ~1.7:1, ~1.6:1
Efficiency (%): ~52, ~56
Peak Gain (dBi): ~0.9, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0524P", "title": "4G LTE/3G/2G Flexible Ultra-Thin PCB Adhesive Antenna", "mountingType": "Self-Adhesive (Adhesive Mount Flexible)", "ipRating": null, "dimensions_mm": "114.7 × 19 × 0.2", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "4G LTE", "3G", "2G", "FirstNet", "LPWA", "NB-IoT", "Cat-X-Mx-NBx" ], "frequencies": [ { "range_mhz": "698-960", "returnLoss_db": "~-12.5", "vswr": "~1.7:1", "efficiency_percent": "~52", "peakGain_dbi": "~0.9", "averageGain_db": "~-2.7" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.7", "vswr": "~1.6:1", "efficiency_percent": "~56", "peakGain_dbi": "~2.7", "averageGain_db": "~-2.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 150 } ] }
