2J  |  SKU: 2JF0604P

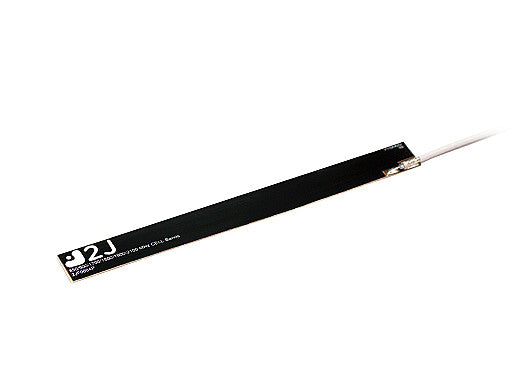

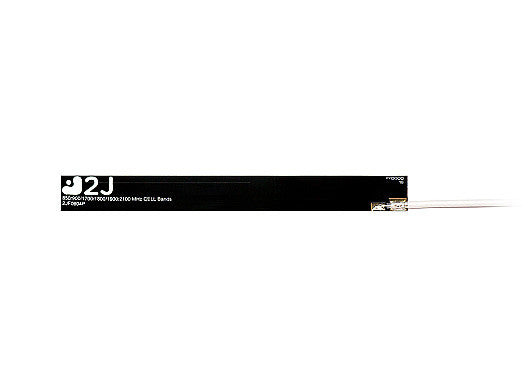

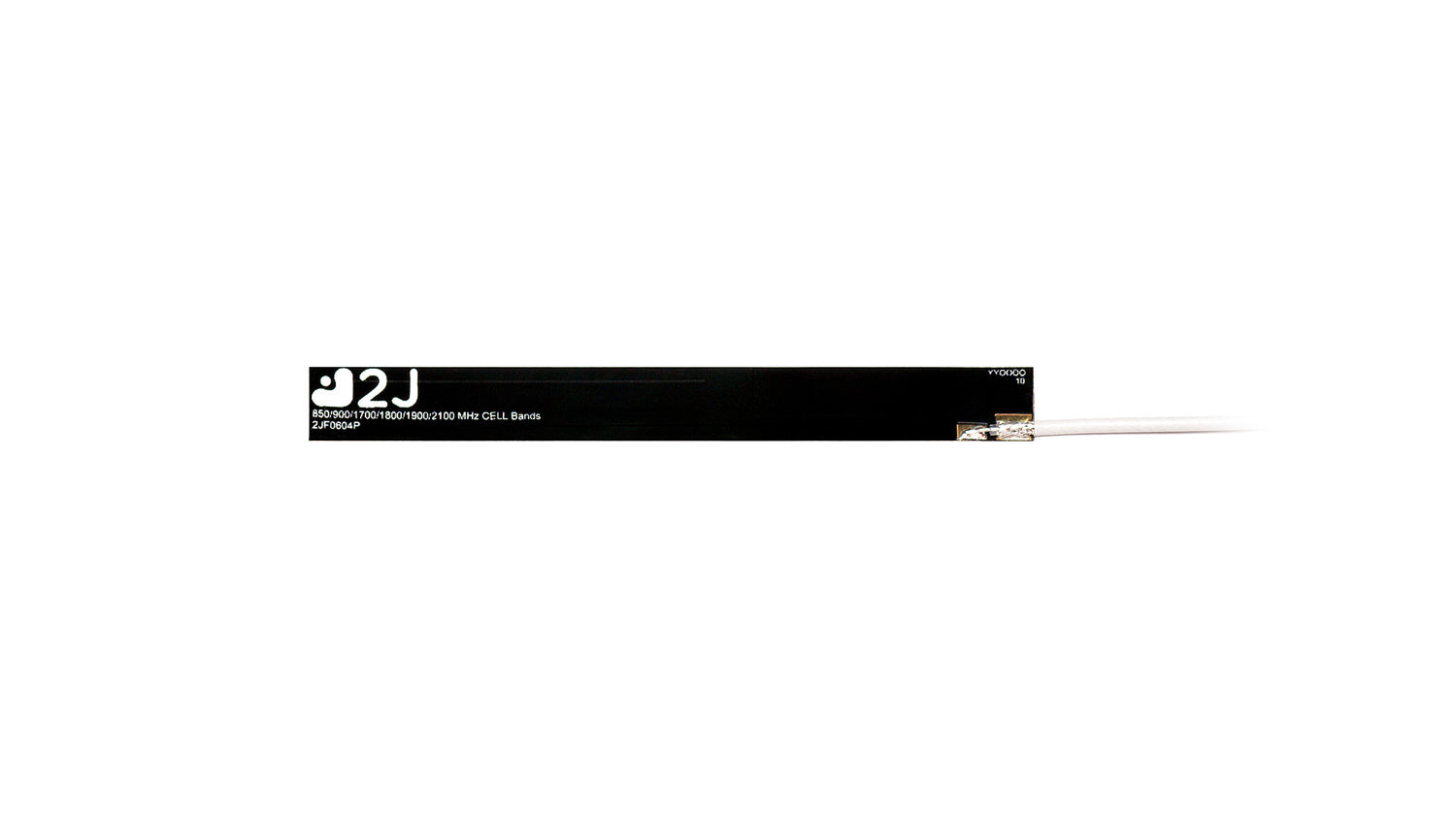

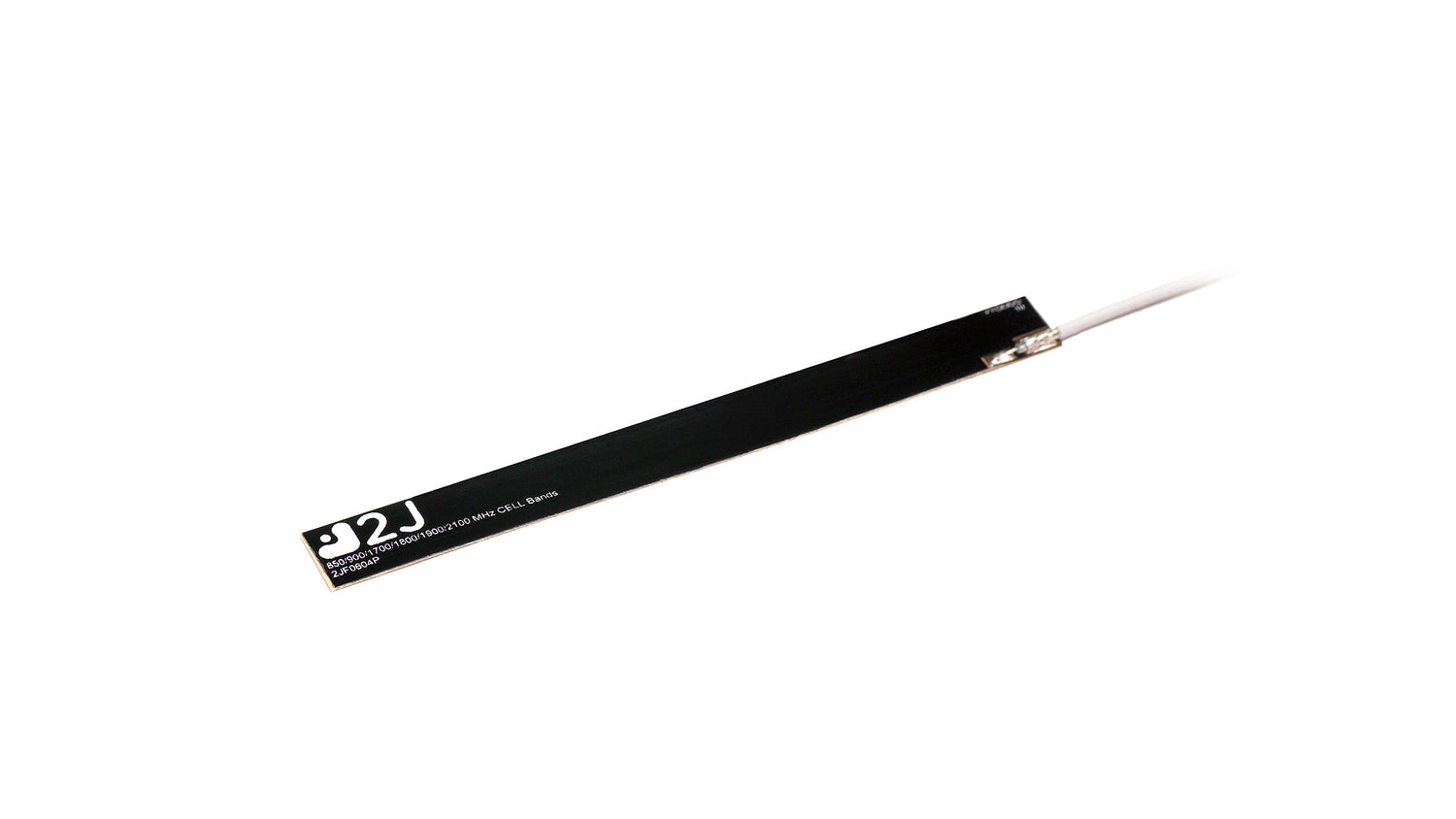

2JF0604P 3G, 2G cellular flexible adhesive Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

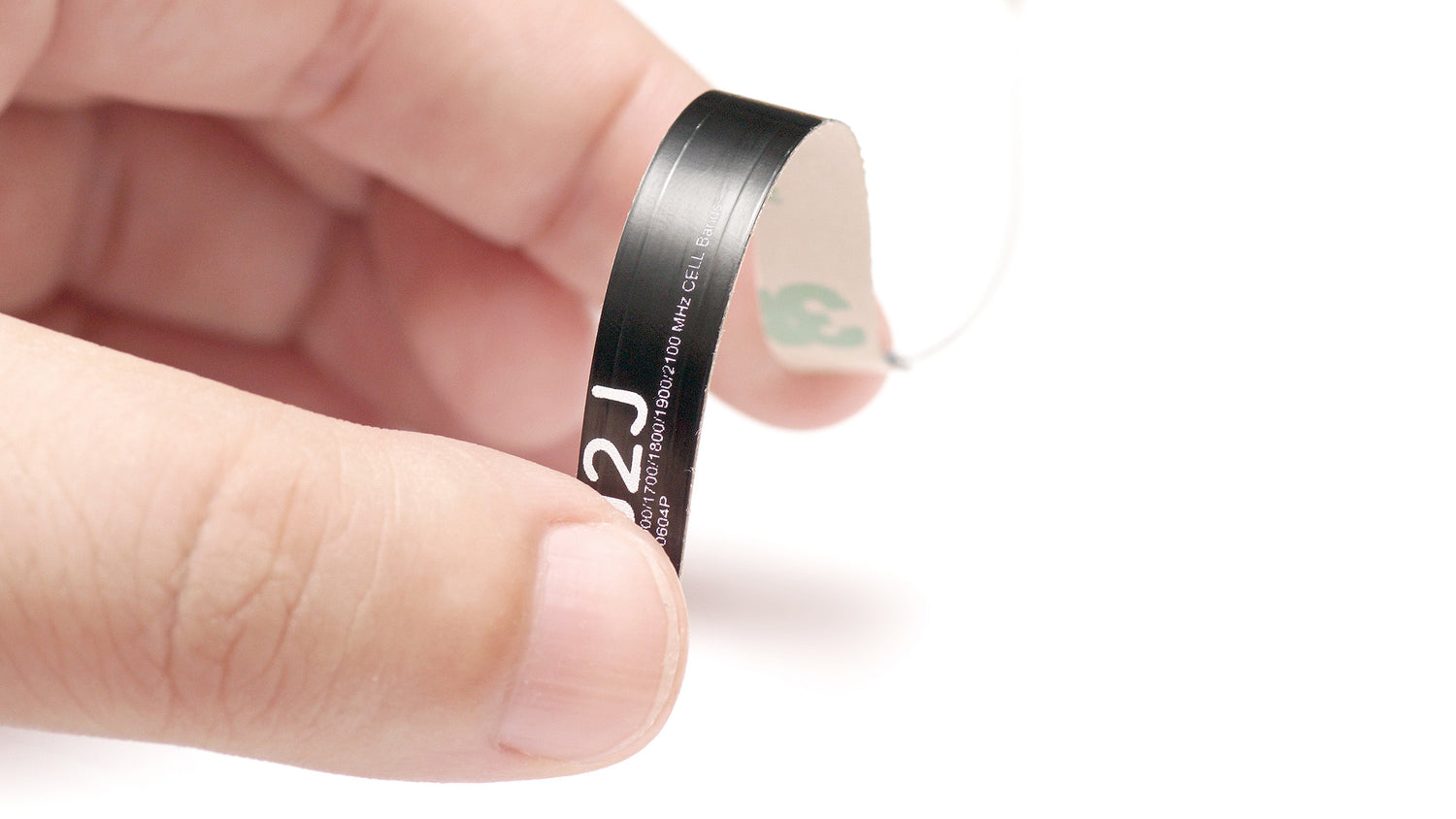

This ultra-thin, flexible adhesive antenna is designed for seamless integration into compact devices requiring reliable cellular connectivity. Its omnidirectional design ensures 360° coverage, making it ideal for applications such as consumer electronics, robotics, wearables, asset tracking, and telematics. The antenna is ground plane independent and features a self-adhesive backing for easy installation on various surfaces. High efficiency and customizable cable and connector options make it suitable for a wide range of internal device solutions.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.4:1, ~1.6:1
Efficiency (%): ~40.2, ~67.8
Peak Gain (dBi): ~0.7, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0604P", "title": "Cellular Flexible Ultra-Thin PCB Adhesive Antenna", "mountingType": "Adhesive Mount Flexible (Self-Adhesive)", "ipRating": null, "dimensions_mm": "74.9 x 8.1 x 0.1", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "~-10.0", "vswr": "~2.4:1", "efficiency_percent": "~40.2", "peakGain_dbi": "~0.7", "averageGain_db": "~-4.0" }, { "range_mhz": "1710-2170", "returnLoss_db": "~-14.0", "vswr": "~1.6:1", "efficiency_percent": "~67.8", "peakGain_dbi": "~0.7", "averageGain_db": "~-1.7" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "U.FL", "cableType": "1.37 mm", "cableLength_mm": 100 } ] }
