2J  |  SKU: 2JF0983P

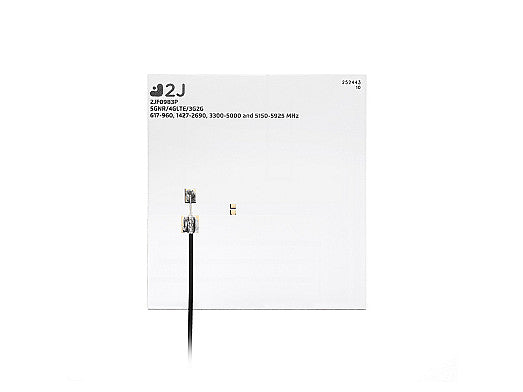

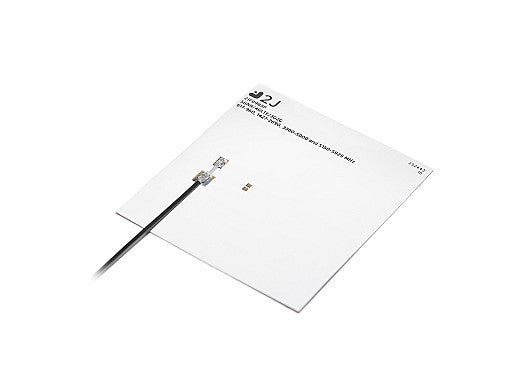

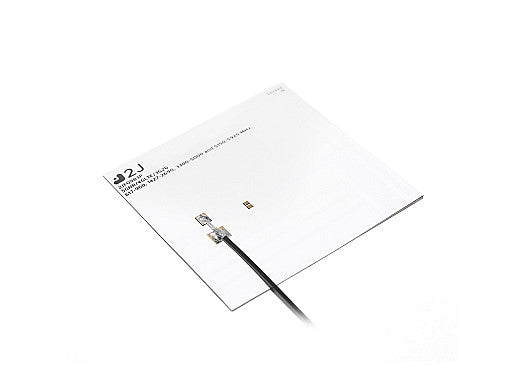

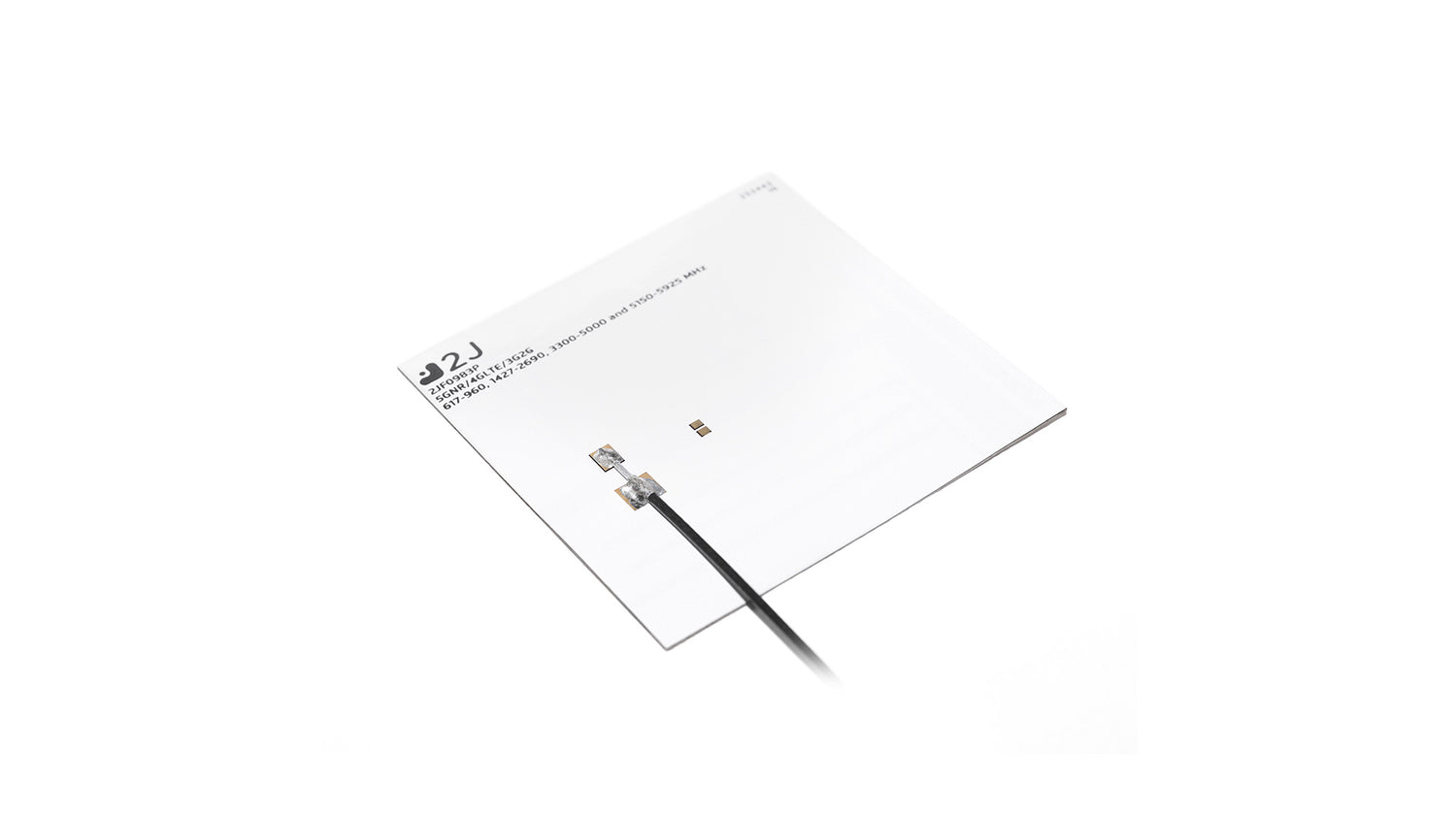

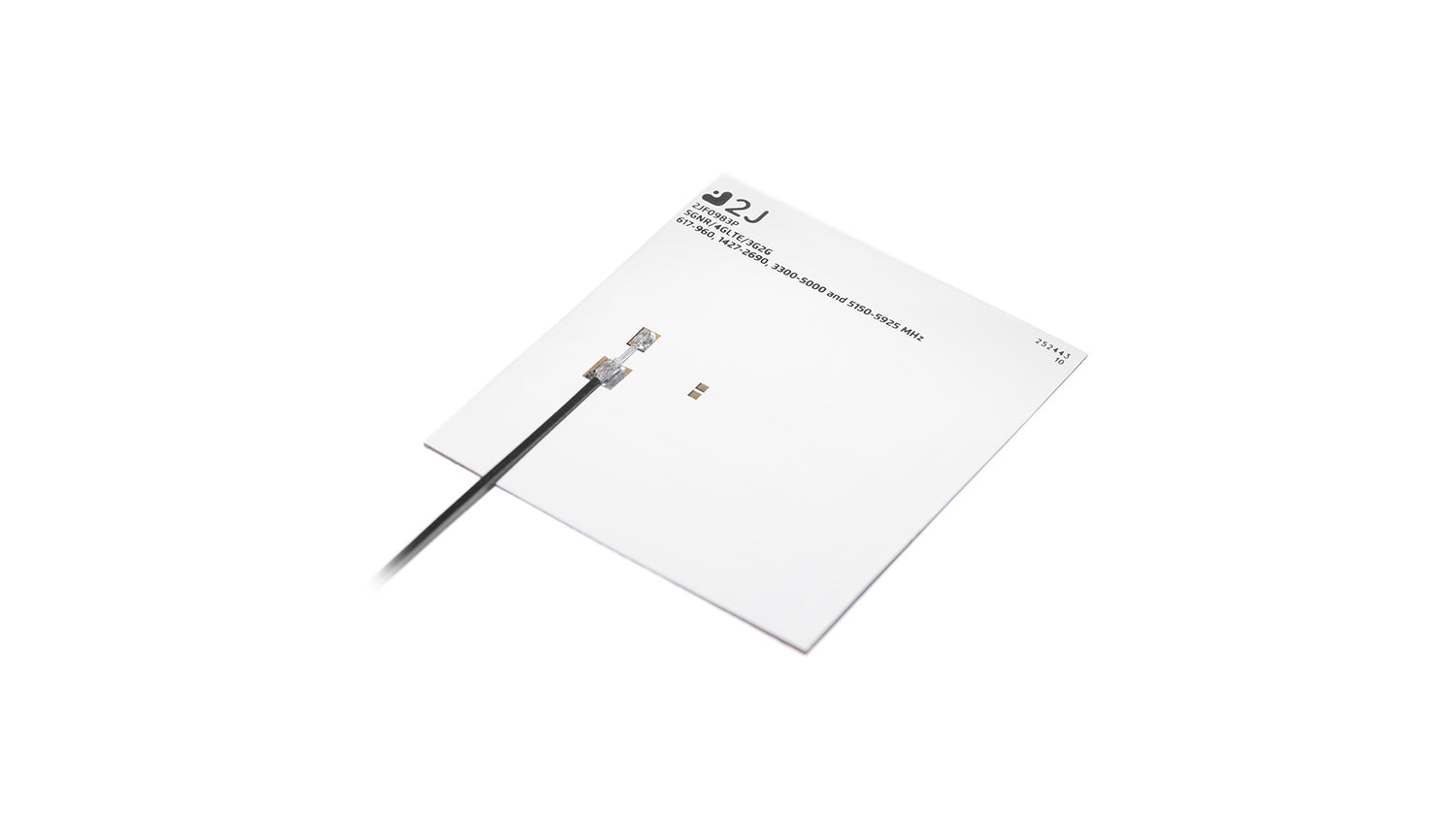

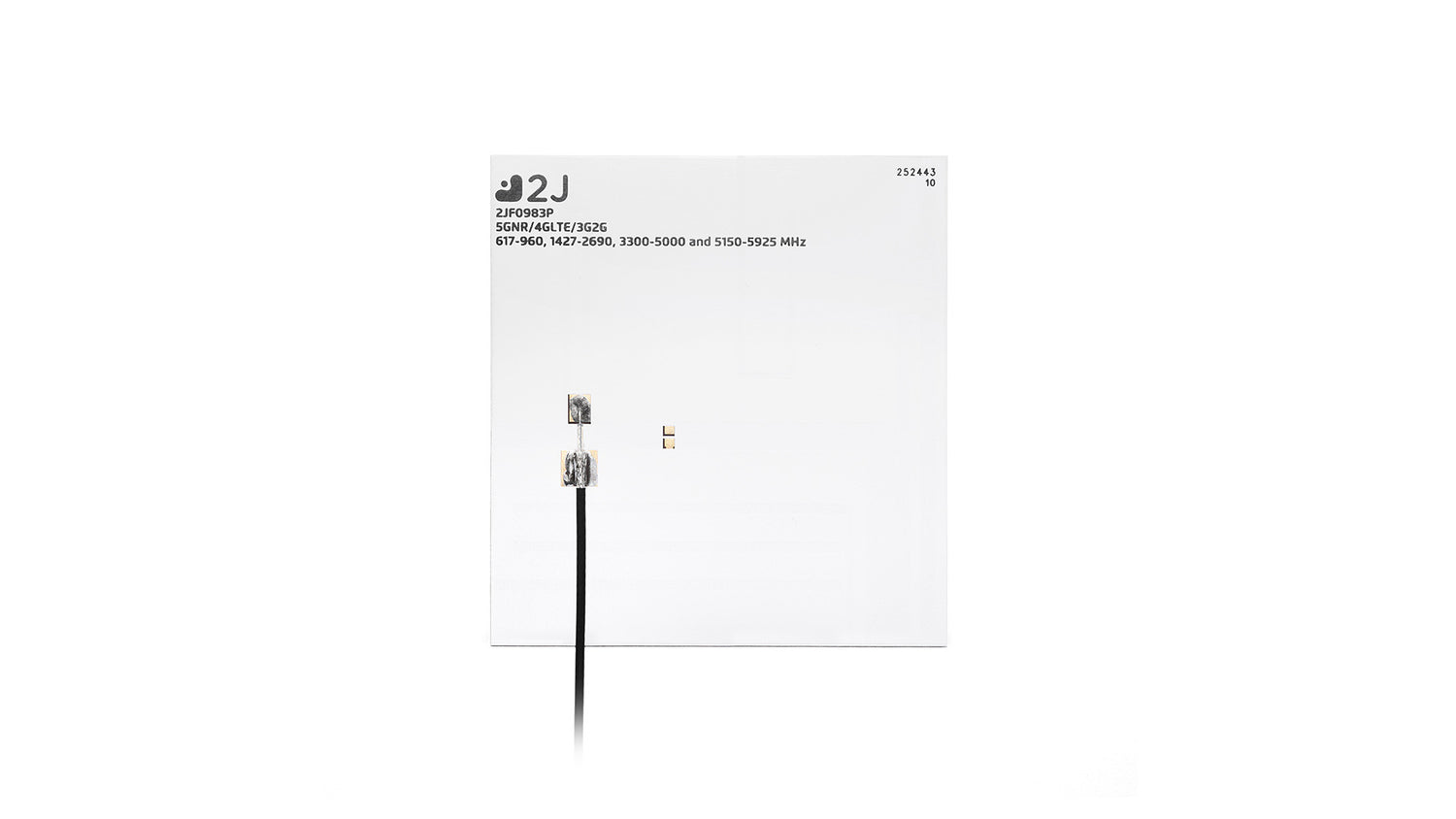

2JF0983P 5G adhesive Antenna flexible polymer adhesive mount

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This ultra-thin, flexible polymer antenna delivers high performance across 5G, 4G, 3G, and 2G bands. Its adhesive mount design allows for easy integration into a wide range of compact devices, making it ideal for IoT, wearables, drones, and other applications where space and installation flexibility are critical. The antenna is ground plane independent and supports a wide frequency range, ensuring reliable connectivity and backward compatibility with 4G LTE networks.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-14.5, ~-9.5, ~-8.6, ~-12.7
VSWR: ~1.7:1, ~2.1:1, ~2.8:1, ~1.9:1
Efficiency (%): ~63.2, ~58.9, ~56.2, ~52.0
Peak Gain (dBi): ~2.0, ~2.6, ~2.3, ~3.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF0983P", "title": "5GNR/4GLTE/3G/2G Flexible Polymer Adhesive Antenna", "mountingType": "Adhesive Mount Flexible", "ipRating": null, "dimensions_mm": "70.4 × 65.4 × 0.5", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "5GNR", "4G LTE", "FirstNet", "CBRS", "LPWA", "CAT-X", "CAT-Mx", "CAT-NBx", "NB-IoT", "3G", "2G" ], "frequencies": [ { "range_mhz": "617-960", "returnLoss_db": "~-14.5", "vswr": "~1.7:1", "efficiency_percent": "~63.2", "peakGain_dbi": "~2.0", "averageGain_db": "~-2.0" }, { "range_mhz": "1427-2690", "returnLoss_db": "~-9.5", "vswr": "~2.1:1", "efficiency_percent": "~58.9", "peakGain_dbi": "~2.6", "averageGain_db": "~-2.4" }, { "range_mhz": "3300-5000", "returnLoss_db": "~-8.6", "vswr": "~2.8:1", "efficiency_percent": "~56.2", "peakGain_dbi": "~2.3", "averageGain_db": "~-2.6" }, { "range_mhz": "5150-5925", "returnLoss_db": "~-12.7", "vswr": "~1.9:1", "efficiency_percent": "~52.0", "peakGain_dbi": "~3.3", "averageGain_db": "~-2.9" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [] }
