2J  |  SKU: 2JF1115P-010MC137-UFL

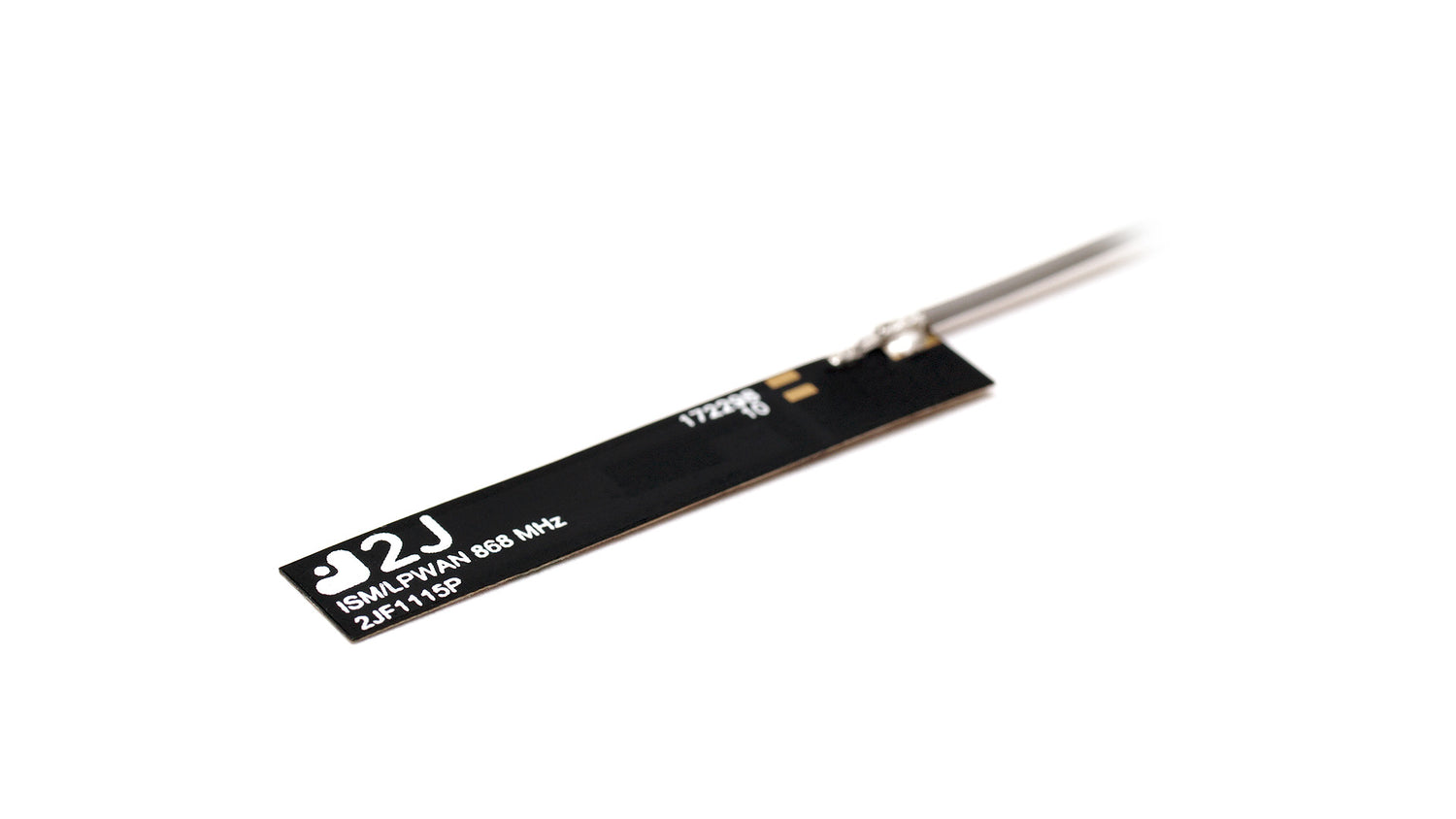

2JF1115P ISM Antenna adhesive flexible PCB U.FL 10cm

€3,05
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0139

Description

This ultra-thin, flexible PCB antenna is designed for 868 MHz ISM applications, offering omnidirectional coverage and high performance in a compact form factor. Its self-adhesive backing allows for easy integration into a wide range of devices, making it ideal for IoT, smart home, industrial, and consumer electronics where space is at a premium. The antenna is ground plane independent, ensuring consistent performance regardless of installation environment.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Connector & Cable

  • Connector Type: U.FL-Male
  • Cable Length: 10cm
  • Cable Type: MC137


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Flexible
Location: Internal
Type: Single

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.4:1
Efficiency (%): ~57.7
Peak Gain (dBi): ~1.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JF1115P", "title": "868 MHz ISM Flexible ultra-thin PCB Adhesive Antenna", "mountingType": "Self-Adhesive", "ipRating": null, "dimensions_mm": "40.0 x 7.0 x 0.2", "elements": [ { "elementID": "ISM 868 MHz", "type": "ISM", "technologies": [ "ZigBee", "ISM", "SIGFOX", "LoRa" ], "frequencies": [ { "range_mhz": "863-870", "returnLoss_db": "~-14.9", "vswr": "~1.4:1", "efficiency_percent": "~57.7", "peakGain_dbi": "~1.8", "averageGain_db": "~-2.4" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "ISM 868 MHz", "type": "U.FL", "cableType": "1.37mm Micro-Coax", "cableLength_mm": 100 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
