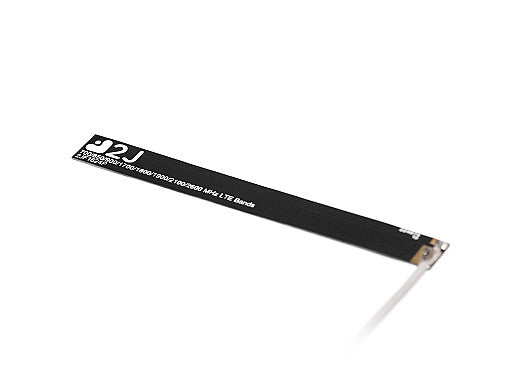

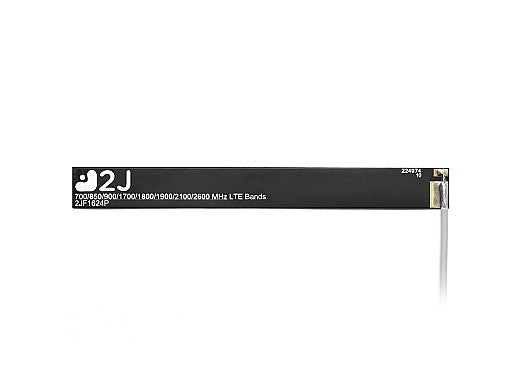

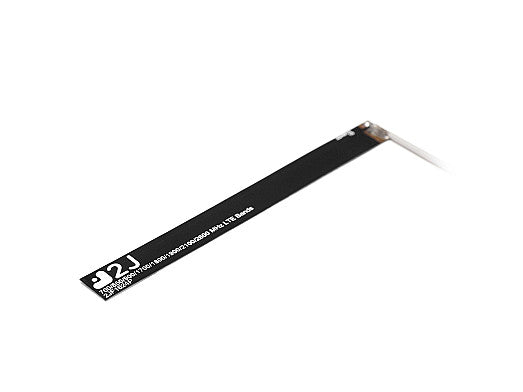

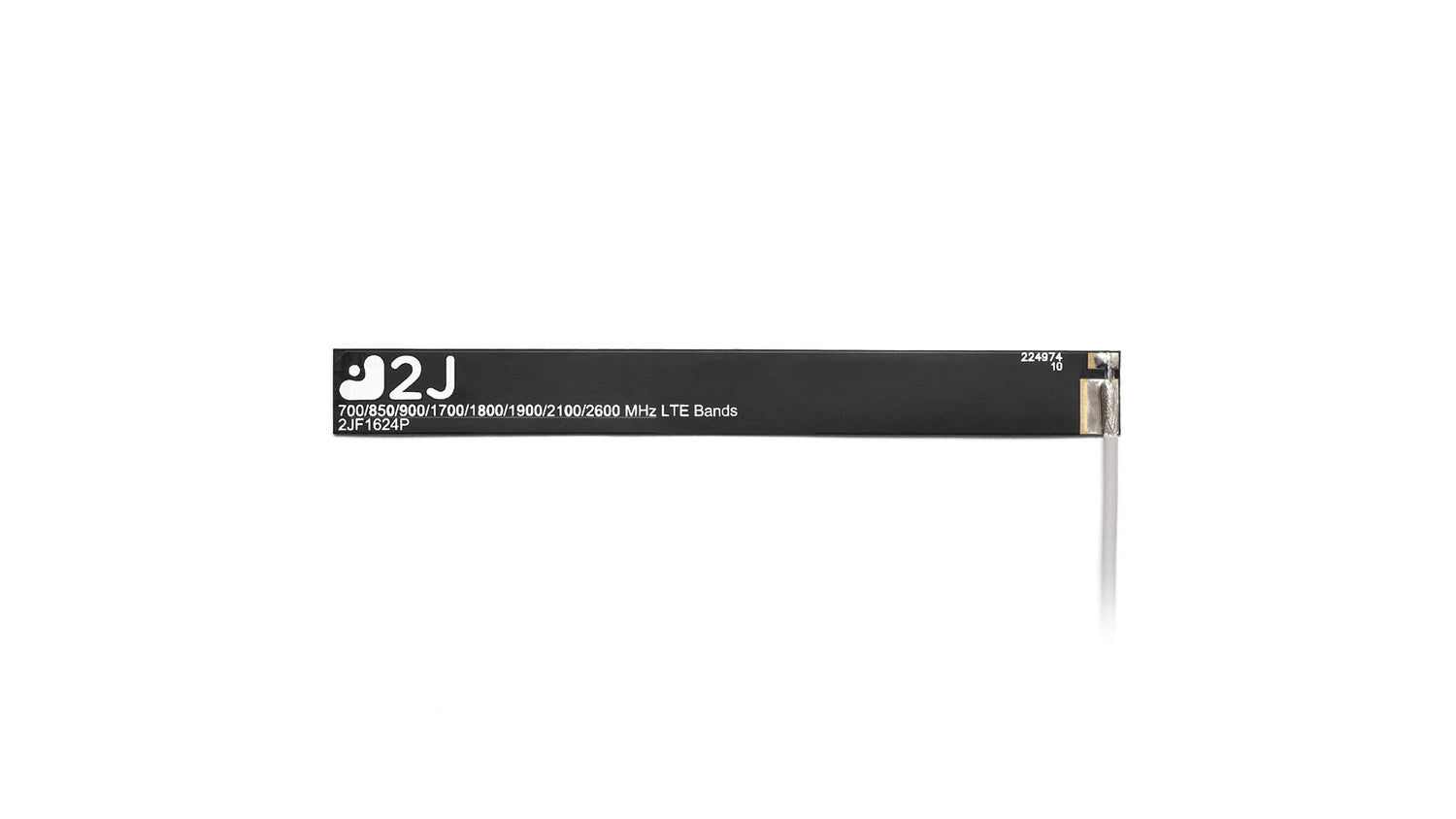

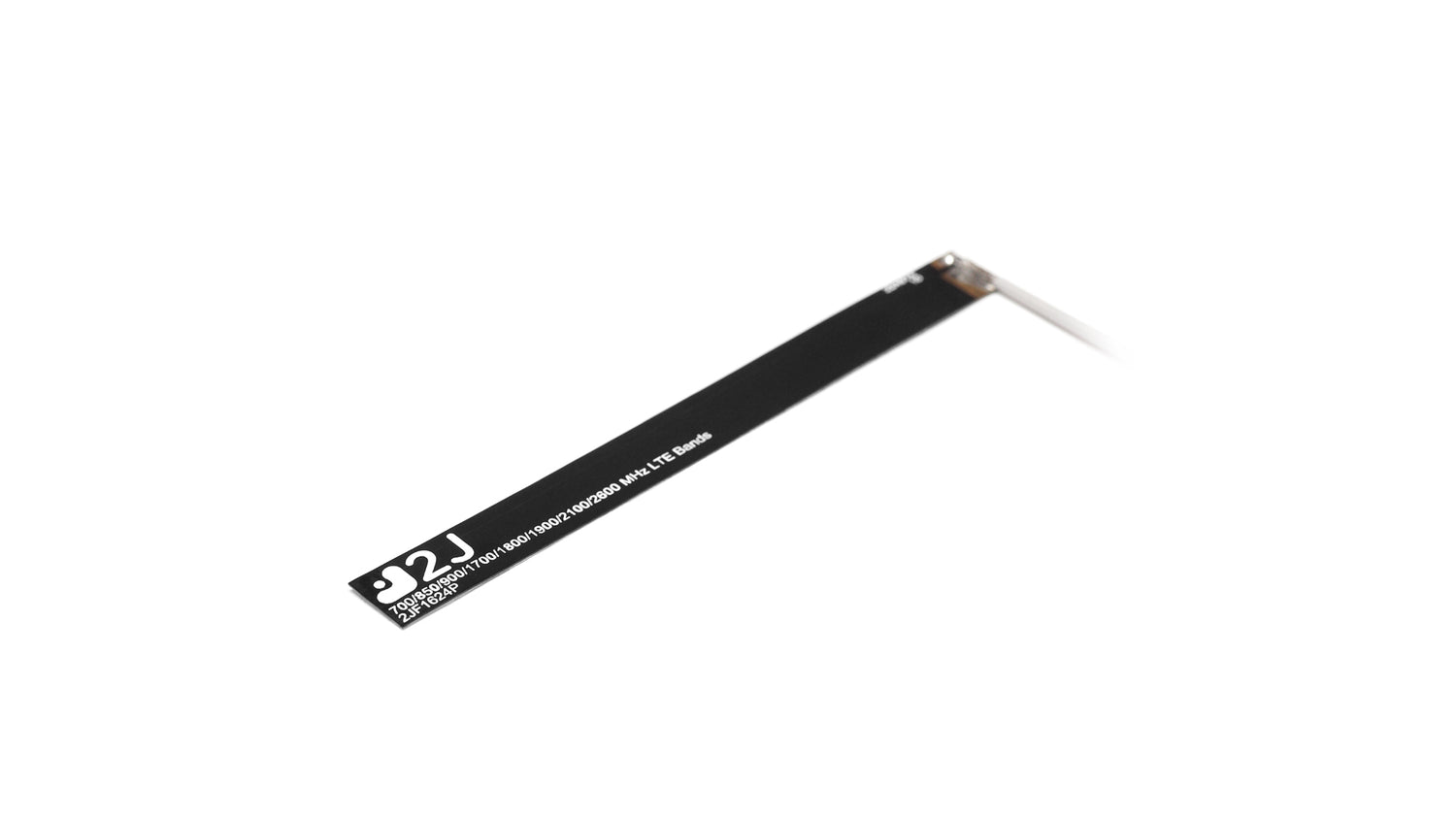

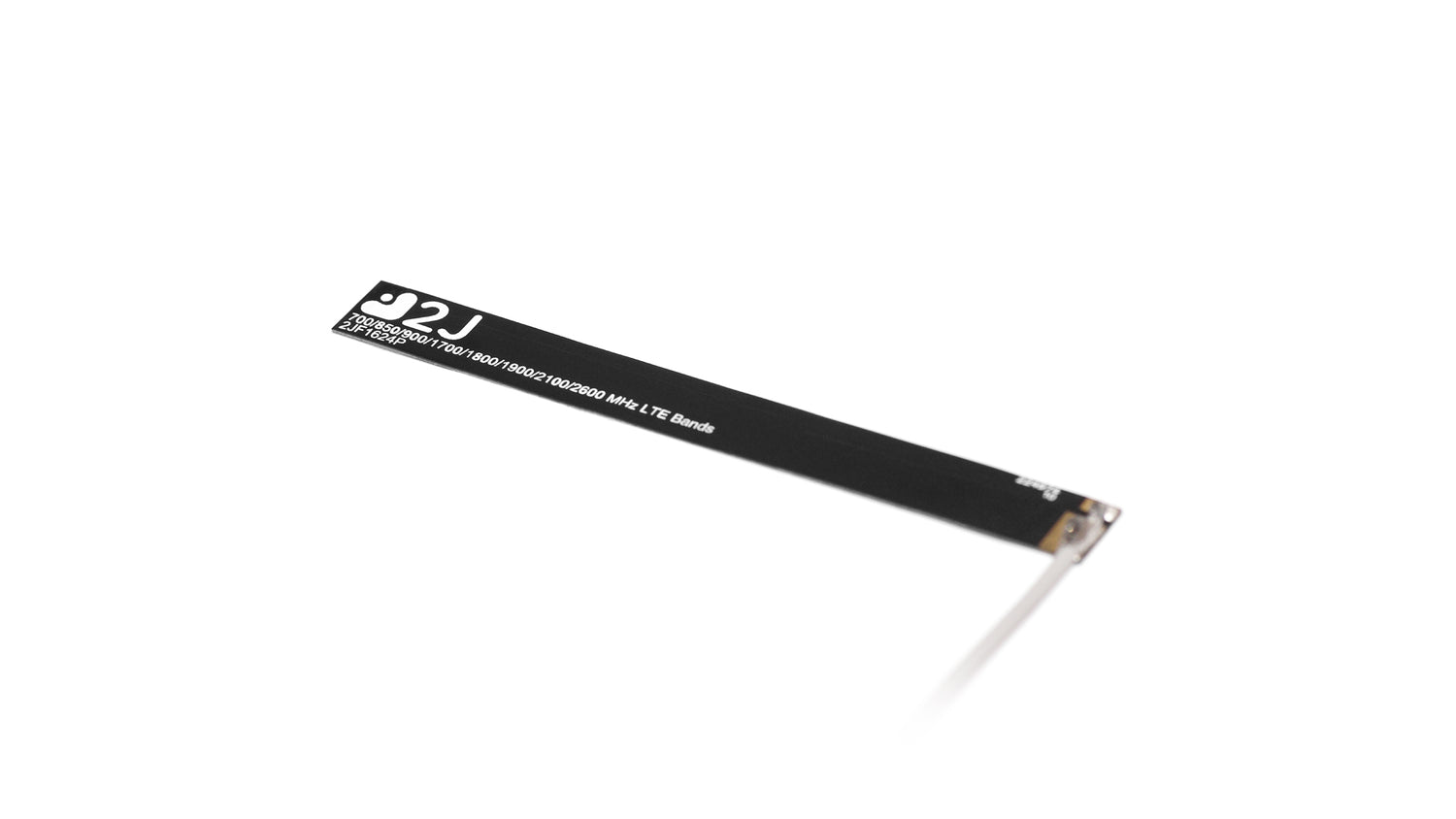

This ultra-thin, flexible PCB antenna is designed for internal installations where space is limited. Its omnidirectional pattern ensures reliable 360° coverage for 4G LTE, 3G, and 2G networks. The adhesive mount allows for easy integration into a variety of devices, making it ideal for applications such as consumer electronics, IoT, robotics, smart home, and more. The antenna is ground plane independent and offers high performance across a wide frequency range.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx
Mounting: Adhesive Mount Flexible
Type: Single
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.1:1, ~2.5:1, ~3.7:1
Efficiency (%): ~70.7, ~60.5, ~38.1
Peak Gain (dBi): ~2.3, ~2.7, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JF1624P",
"title": "4G LTE/3G/2G Flexible Ultra-Thin PCB Adhesive Mount Antenna",
"mountingType": "Self-Adhesive (Flexible Embedded Mount)",
"ipRating": null,
"dimensions_mm": "74.9 × 8.2 × 0.2",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G",
"FirstNet",
"LPWA",
"NB-IoT",
"Cat-X-Mx-NBx"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-7.5",
"vswr": "~3.1:1",
"efficiency_percent": "~70.7",
"peakGain_dbi": "~2.3",
"averageGain_db": "~-1.6"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-8.1",
"vswr": "~2.5:1",
"efficiency_percent": "~60.5",
"peakGain_dbi": "~2.7",
"averageGain_db": "~-2.3"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-4.9",
"vswr": "~3.7:1",
"efficiency_percent": "~38.1",
"peakGain_dbi": "~0.7",
"averageGain_db": "~-4.3"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "U.FL",
"cableType": "1.37mm Mini-Coax",
"cableLength_mm": 150
}
]
}
