2J  |  SKU: 2JL02

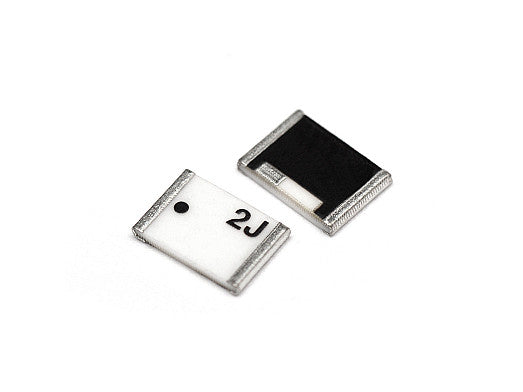

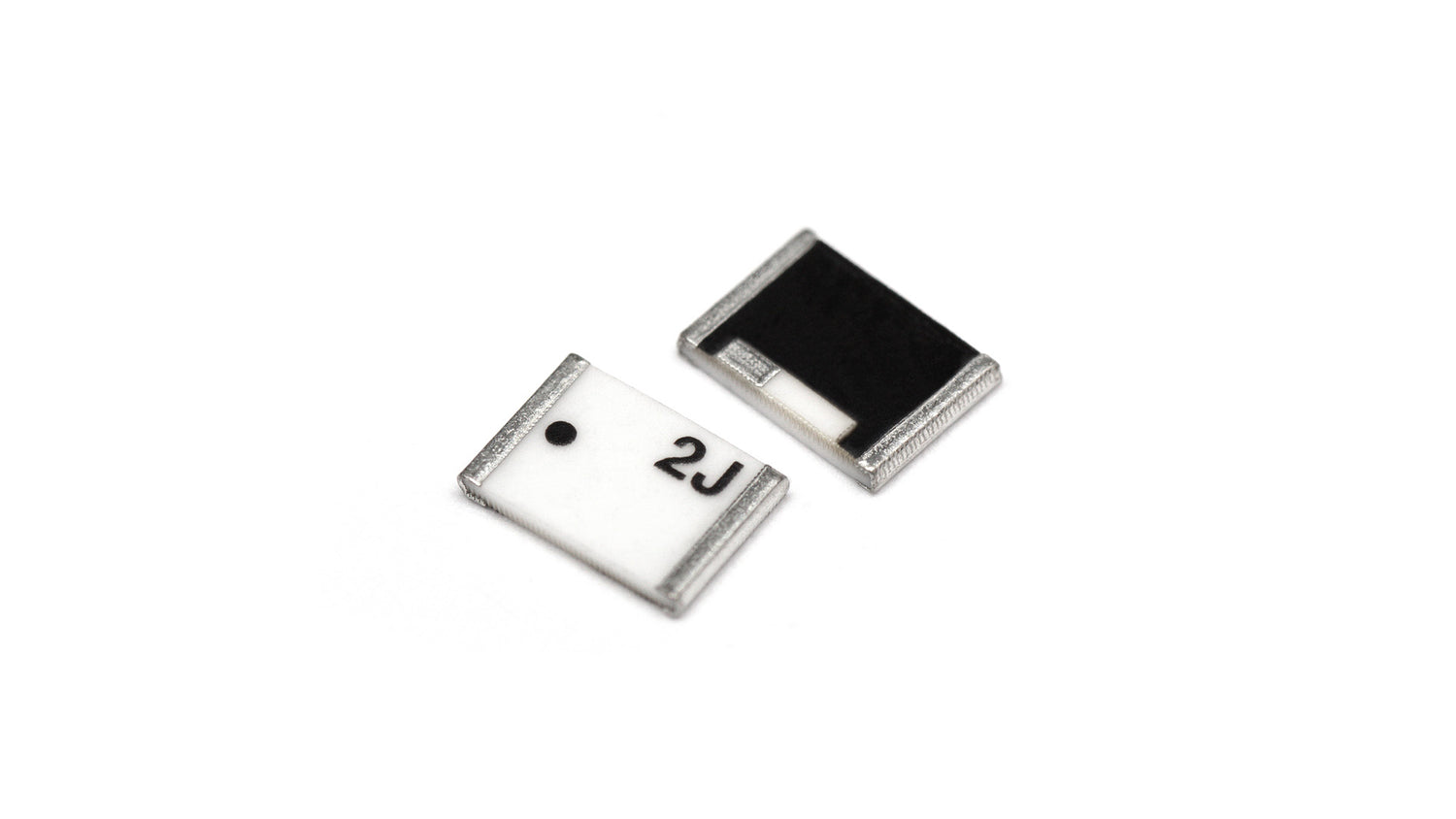

2JL02 433 MHz ISM surface mount Antenna ceramic

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact surface mount antenna is optimized for 433 MHz ISM applications, offering reliable performance for short-range wireless communication. Its ceramic construction ensures durability and stable operation, while the ground plane dependent design makes it ideal for integration into space-constrained devices. Suitable for IoT, smart home, industrial, and automation systems, this antenna is easy to integrate and supports standards such as LoRa and SigFox.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Surface Mount Ceramic
Location: Internal
Type: Single
Dimensions: 5.2 x 3.7 x 0.7 mm

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.6:1
Peak Gain (dBi): ~-6.4
Impedance (Ohm): 50
Polarisation: Linear

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JL02", "title": "433 MHz ISM Surface Mount Compact Ceramic Antenna", "mountingType": "Surface Mount", "ipRating": null, "dimensions_mm": "5.2 x 3.7 x 0.7", "elements": [ { "elementID": "ISM", "type": "ISM", "technologies": [ "ISM", "LoRa", "LPWA", "Sigfox", "RFID" ], "frequencies": [ { "range_mhz": "433-435", "returnLoss_db": "~-13.5", "vswr": "~1.6:1", "efficiency_percent": null, "peakGain_dbi": "~-6.4", "averageGain_db": "~-9.6" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [] }
