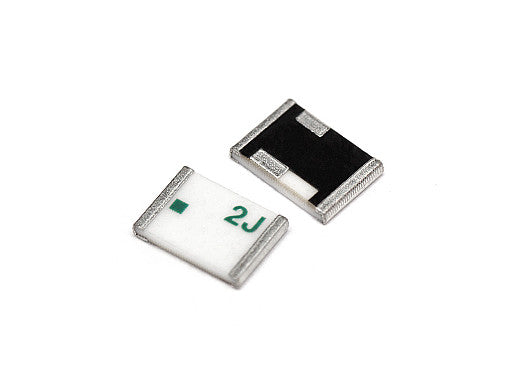

2JL41 Wi-Fi 6E/7 Antenna surface mount ceramic

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This compact surface mount ceramic antenna is designed for high-performance Wi-Fi 6E and Wi-Fi 7 applications, supporting tri-band operation across 2.4, 5.0, and 6.0 GHz frequencies. Its SMT loop embedded design ensures easy integration into space-constrained devices, making it ideal for consumer electronics, robotics, drones, smart home, IoT, and more. The antenna offers reliable connectivity for Wi-Fi, Bluetooth, ZigBee, ISM, and LPWA standards, with a ground plane dependent ceramic construction for optimal efficiency and gain.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: SMT Loop Embedded
Location: Internal
Mounting: Surface Mount Ceramic
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM, Bluetooth, ZigBee

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.7:1, ~2.9:1
Efficiency (%): ~83.2, ~80.0, ~56.2
Peak Gain (dBi): ~2.3, ~3.2, ~1.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JL41", "title": "2.4/5.0/6.0 GHz WiFi 6E / WiFi 7 Surface Mount Compact Ceramic Antenna", "mountingType": "Surface Mount", "ipRating": null, "dimensions_mm": "5.2 x 3.7 x 0.7", "elements": [ { "elementID": "Wi-Fi (Tri-Band)", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-13.9", "vswr": "~1.5:1", "efficiency_percent": "~83.2", "peakGain_dbi": "~2.3", "averageGain_db": "~-0.8" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-13.6", "vswr": "~1.7:1", "efficiency_percent": "~80.0", "peakGain_dbi": "~3.2", "averageGain_db": "~-1.0" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-8.6", "vswr": "~2.9:1", "efficiency_percent": "~56.2", "peakGain_dbi": "~1.7", "averageGain_db": "~-2.8" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 10 } ], "connectors": [] }
