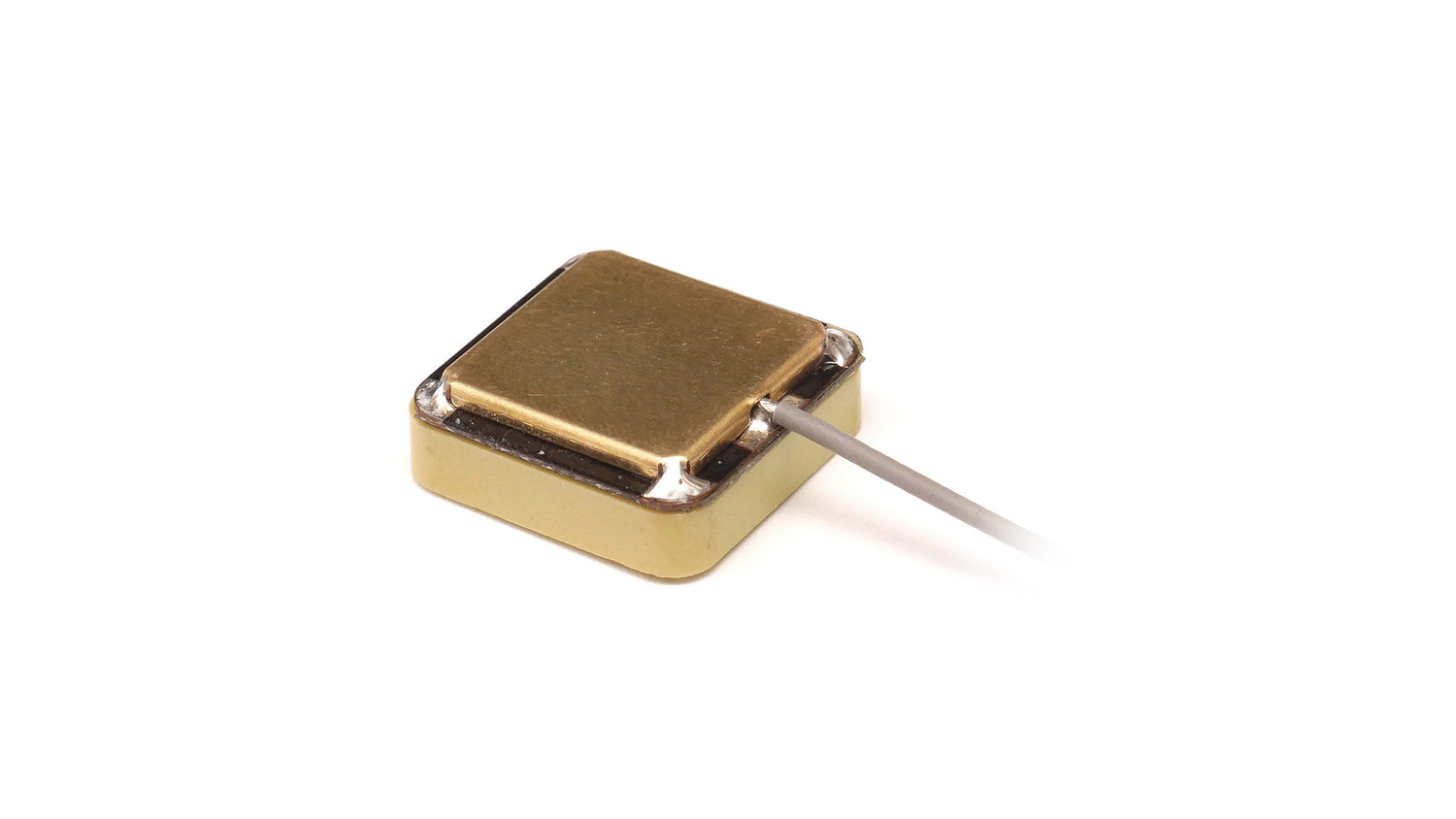

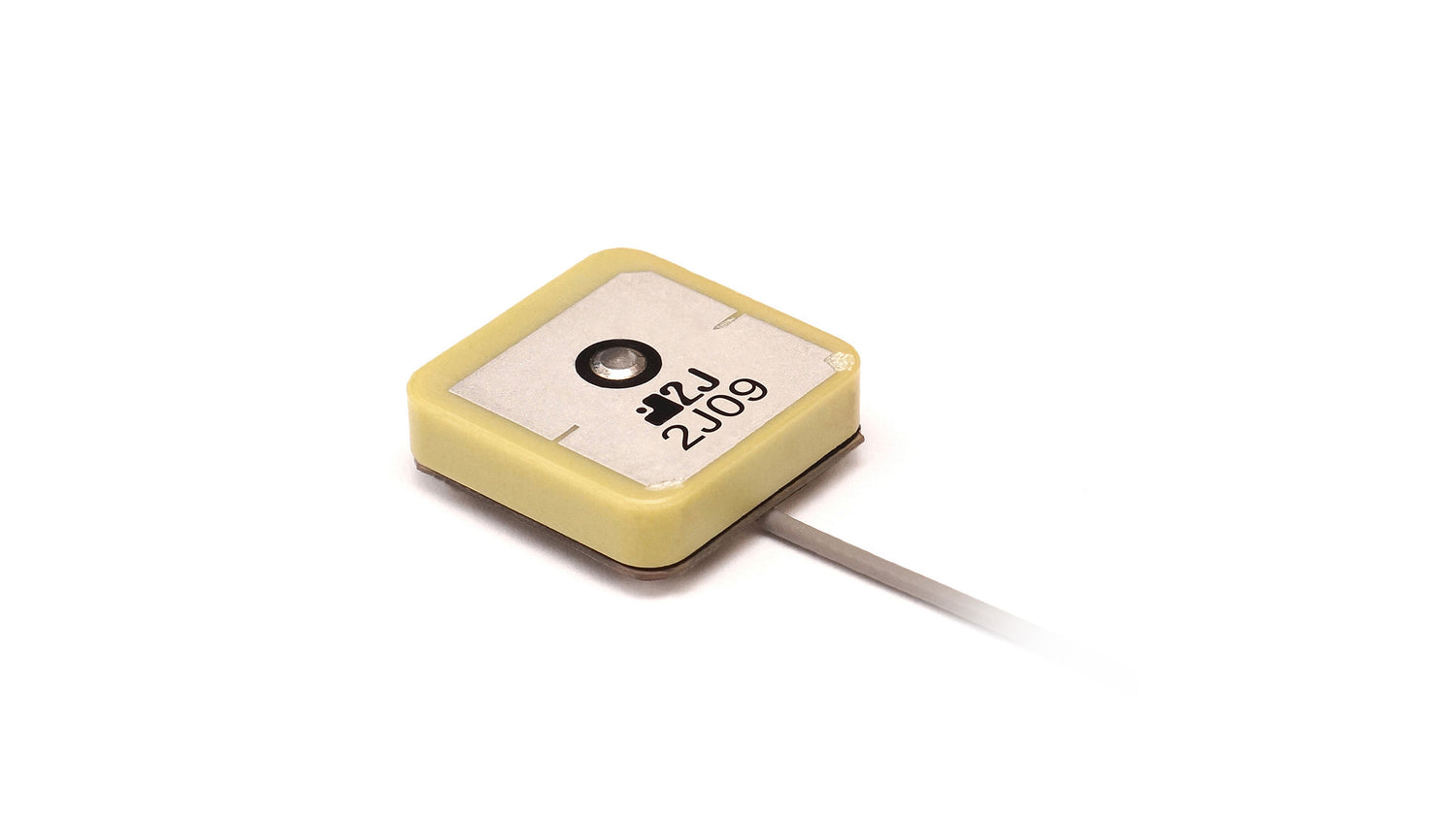

2JM0301GF GNSS embedded Antenna snap-in mount module

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact embedded antenna is designed for reliable GNSS reception, supporting GPS, GLONASS, Galileo, and QZSS systems. Its active ceramic design with pre-filter ensures high signal quality and low noise, making it ideal for integration into space-constrained devices. The antenna is ground plane independent and delivers stable performance across a wide voltage range, making it suitable for applications such as consumer electronics, robotics, drones, fleet management, and more.

Connections

GPS/GLO/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Snap-in Mount Module
Location: Internal
Satellite Navigation: GNSS
Type: Single
Dimensions: 18 x 18 x 7.3 mm

Connection 1 - GNSS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.6
Impedance (Ohm): 50
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 14 @ 2.7 V
Noise Figure (dB): 1.5 @ 2.7 V
Current Consumption (mA): 4 @ 2.7 V
Power Consumption (mW): 10.8 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JM0301GF", "title": "GPS/GLONASS/Galileo 1575-1606 MHz Pre-Filter Embedded Antenna", "mountingType": "Snap-in Mount Module", "ipRating": null, "dimensions_mm": "18 x 18 x 7.3", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "Galileo", "QZSS" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~3.6", "averageGain_db": null }, { "range_mhz": "1598-1606", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~3.6", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "GNSS", "type": "U.FL", "cableType": "1.37 mm Mini-Coax", "cableLength_mm": 100 } ] }
