2J  |  SKU: 2JM0401CF

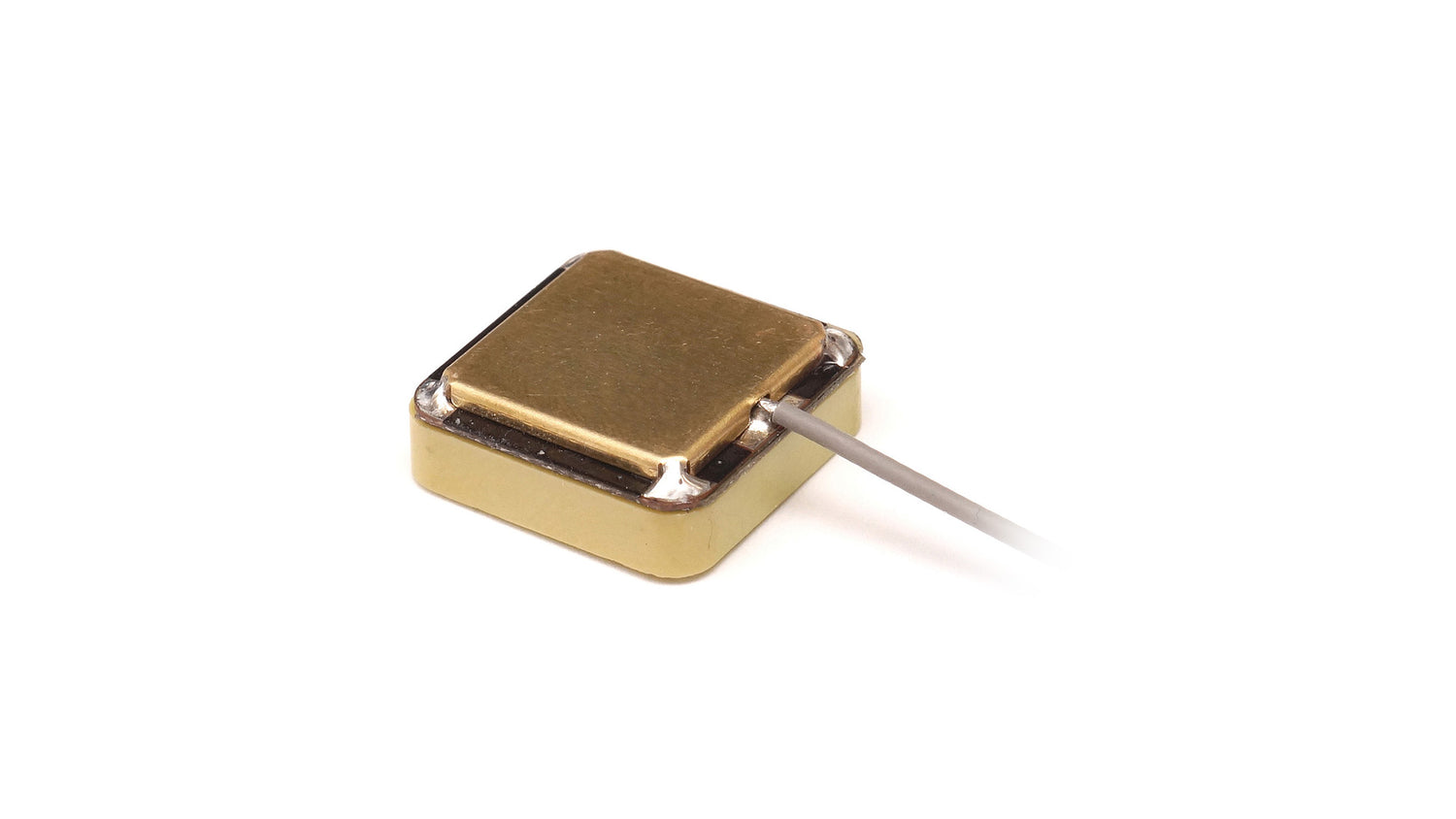

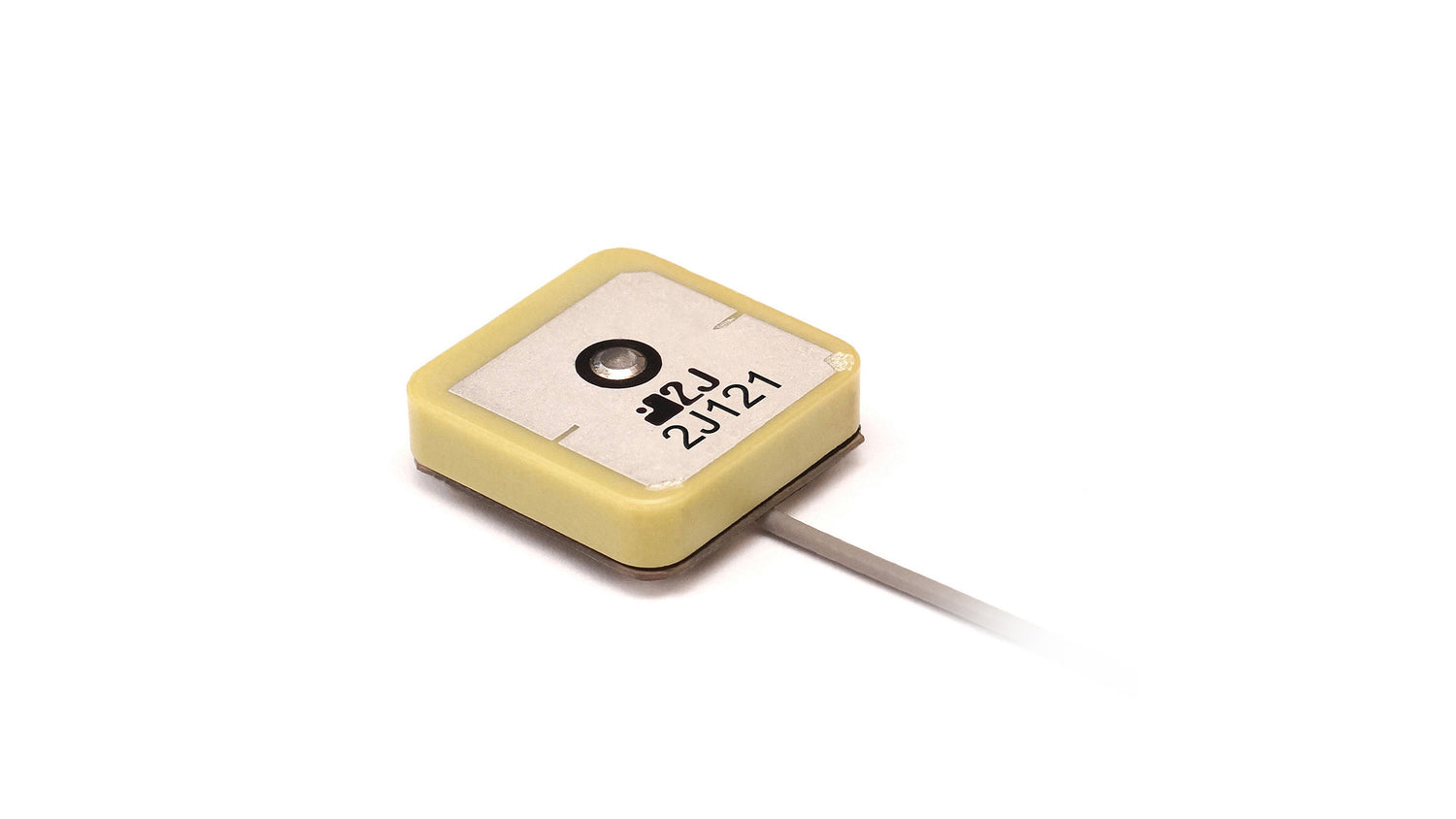

2JM0401CF GNSS snap-in mount module Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This compact snap-in mount module antenna is designed for high-precision GNSS applications, supporting GPS, GLONASS, BeiDou, QZSS, and Galileo systems. With a pre-filter and 28 dB active gain, it delivers excellent signal quality and low noise performance, making it ideal for integration into consumer electronics, robotics, drones, fleet management, and other location-based solutions. Its ground plane independence and low power consumption further enhance its suitability for embedded and portable devices.

Connections

GPS/GLO/BEI/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Snap-in Mount Module
Location: Internal
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~5.2, ~5.4, ~5.4
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
