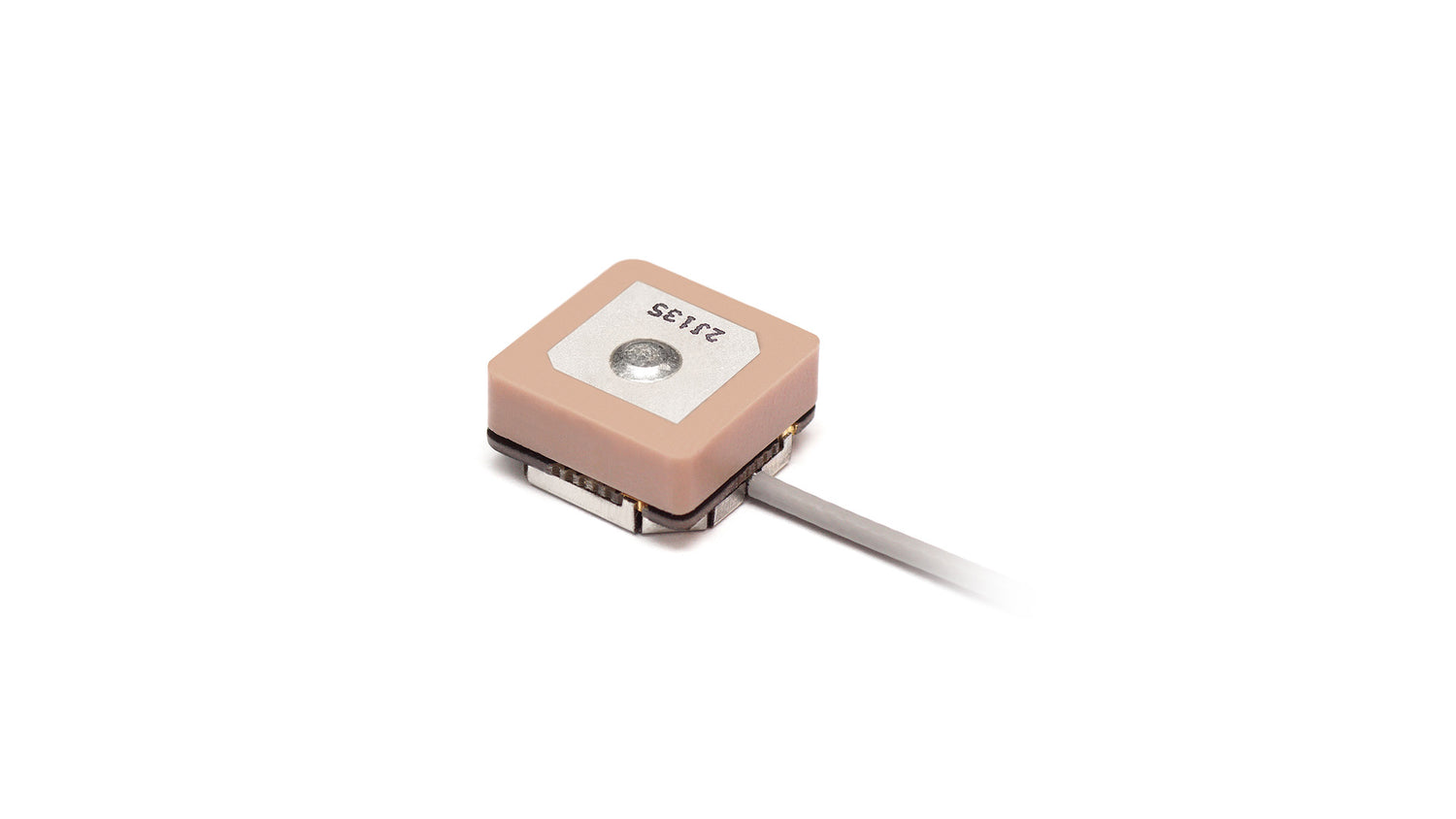

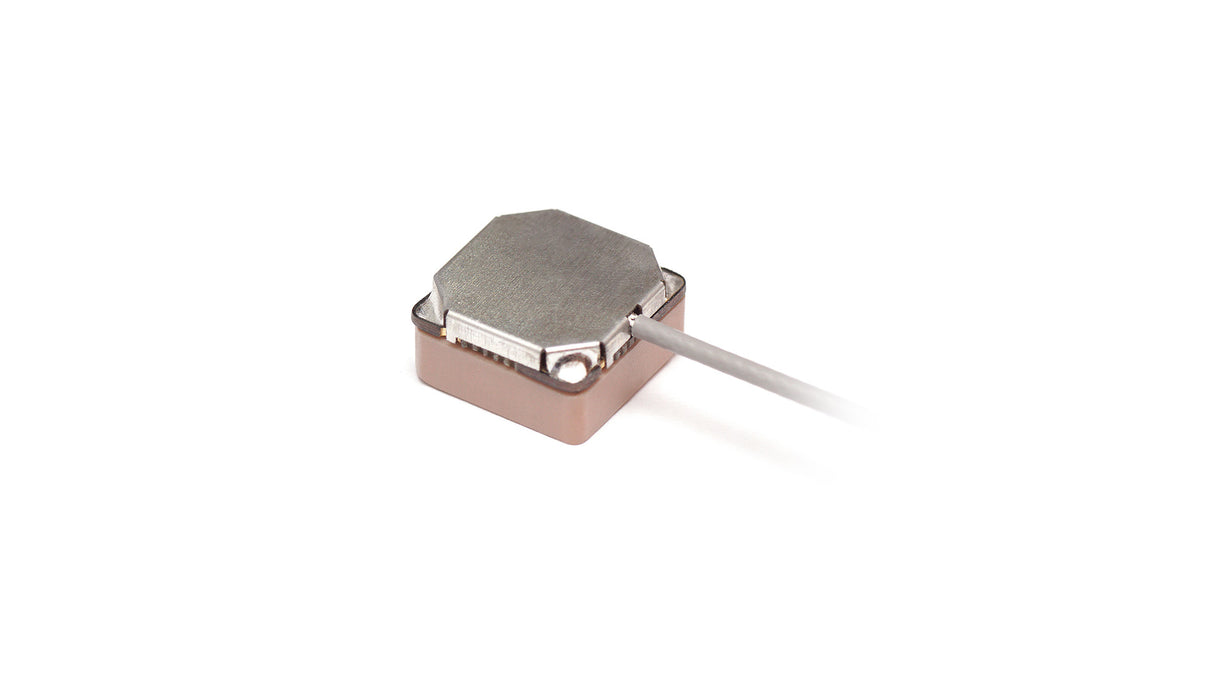

2JM1801GF GNSS embedded Antenna snap-in mount module

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This compact embedded antenna is designed for reliable GNSS performance, supporting GPS, GLONASS, Galileo, and QZSS systems. Its pre-filtered, active ceramic design ensures low noise, high gain, and efficient operation, making it ideal for integration into space-constrained devices. The antenna is ground plane independent and optimized for low power consumption, making it suitable for a wide range of applications including consumer electronics, robotics, drones, fleet management, and smart city solutions.

Connections

GPS/GLO/QZSS/Galileo/L1


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Snap-in Mount Module
Location: Internal
Satellite Navigation: GNSS
Type: Single
Dimensions: 13 × 13 × 6.6 mm

Connection 1 - GNSS

Standards: GPS/GLONASS/QZSS/Galileo
Frequency: 1575.42, 1598-1606 MHz
Impedance (Ohm): 50
Noise Figure (dB): 1.5 @ 2.7 V
Current Consumption (mA): 4 @ 2.7 V
ESD Protection (kV): 6
Passive Gain (dBi): ~2.0
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 14 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JM1801GF", "title": "GPS/GLONASS/Galileo 1575-1606 MHz Pre-Filter Embedded Antenna", "mountingType": "Snap-in Mount Module", "ipRating": null, "dimensions_mm": "13 × 13 × 6.6", "elements": [ { "elementID": "GNSS", "type": "GNSS", "technologies": [ "GPS", "GLONASS", "Galileo", "QZSS" ], "frequencies": [ { "range_mhz": "1575.42", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~2.0", "averageGain_db": null }, { "range_mhz": "1598-1606", "returnLoss_db": null, "vswr": null, "efficiency_percent": null, "peakGain_dbi": "~2.0", "averageGain_db": null } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "GNSS", "type": "U.FL", "cableType": "1.37 mm Mini-Coax", "cableLength_mm": 100 } ] }
