2J  |  SKU: 2JP0102P-SP_3-015MC137-UFL

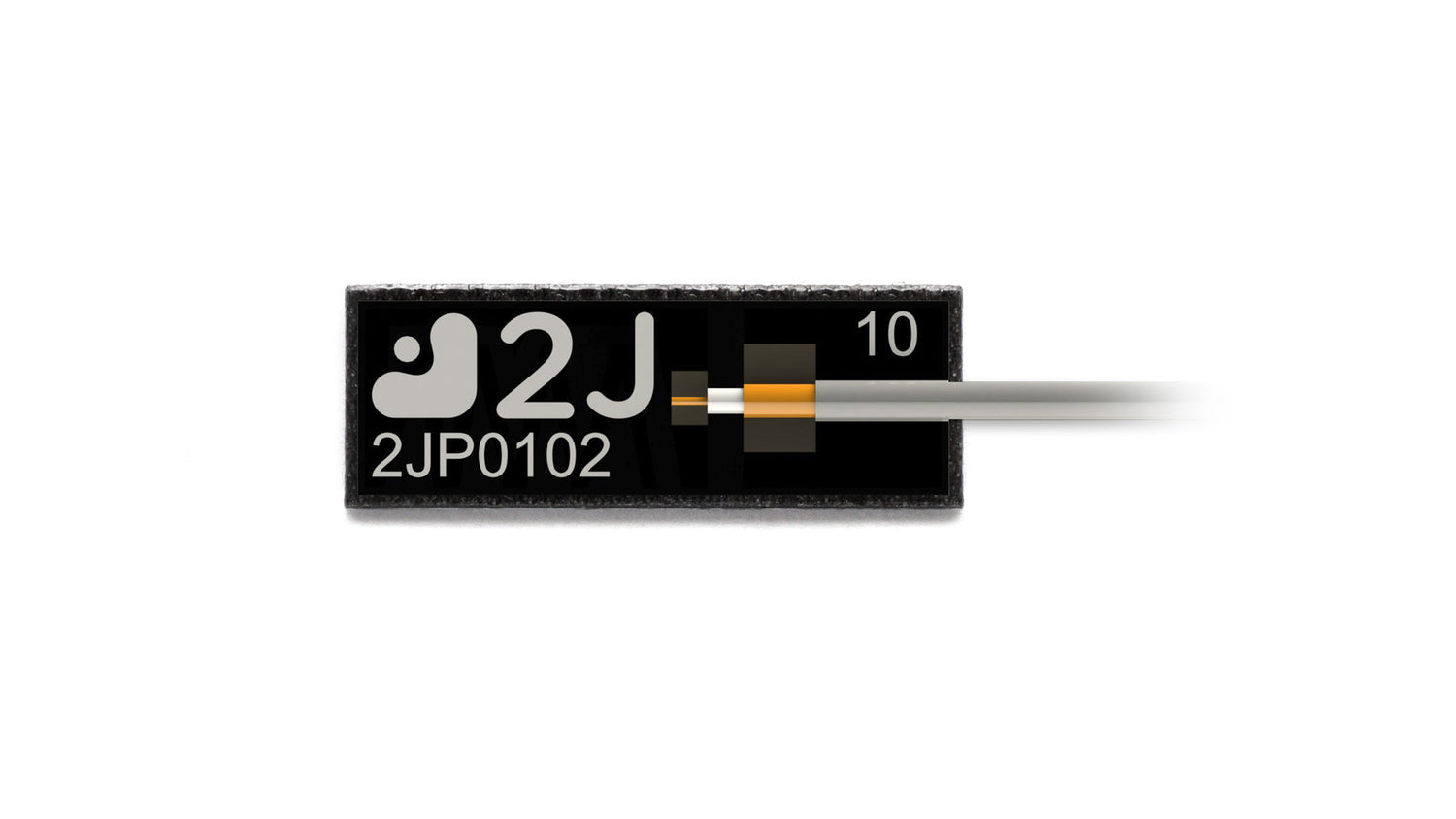

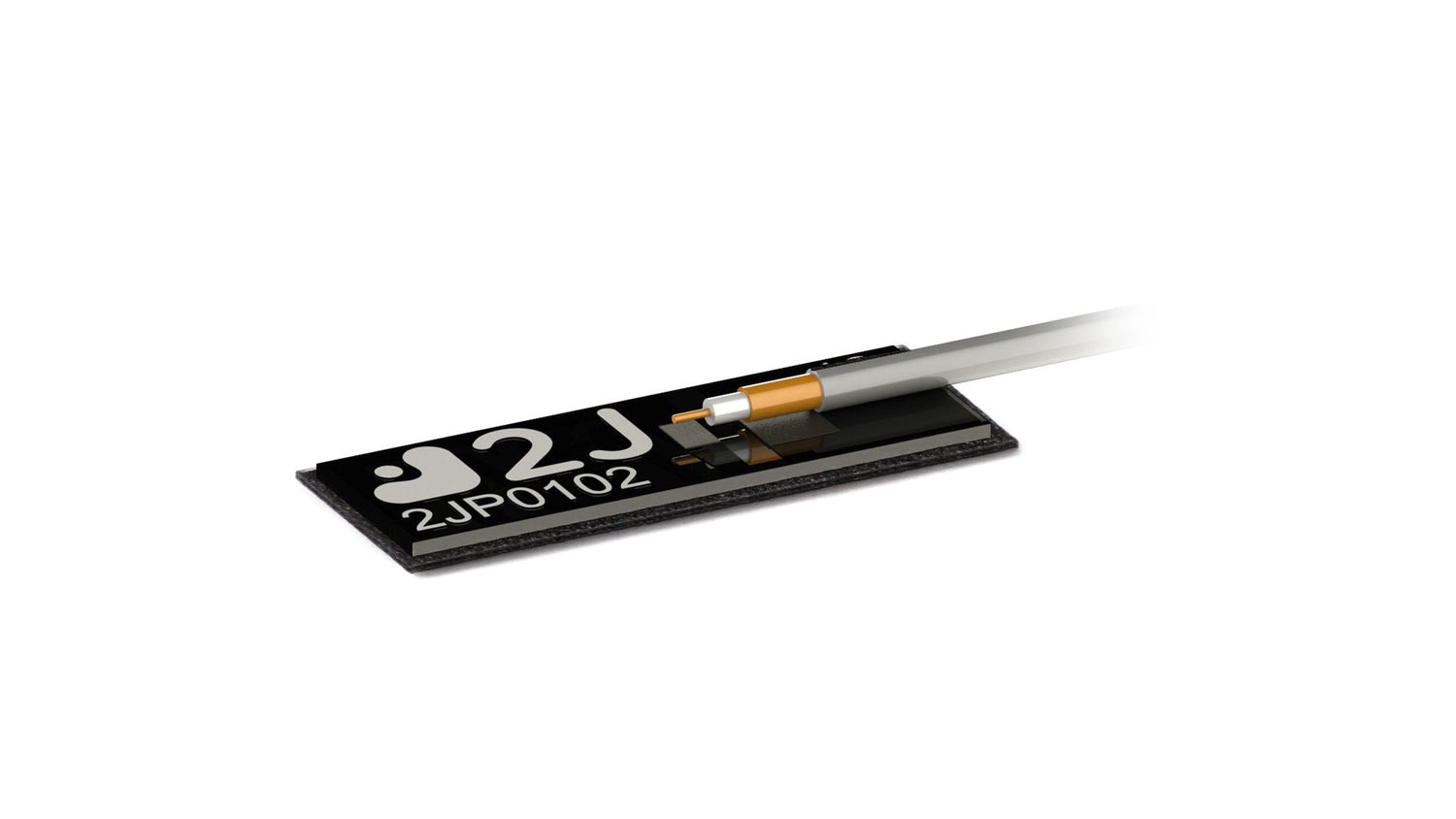

2JP0102P-SP Wi-Fi 6E/7, ISM Antenna adhesive mount rigid U.FL 15cm

€3,67
Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This high-performance rigid embedded antenna is designed for Wi-Fi 6E/7 and ISM applications, supporting tri-band operation at 2.4, 5.0, and 6.0 GHz. Its compact fiberglass construction and adhesive mounting make it ideal for integration into a wide range of internal devices where space and reliability are critical. The antenna is ground plane independent and delivers excellent efficiency and peak gain, ensuring robust wireless connectivity for demanding environments such as consumer electronics, robotics, drones, smart home, and IoT devices.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

  • Connector Type: U.FL
  • Cable Length: 15cm
  • Cable Type: MC137


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: Internal
LPWAN & IoT Communication: SigFox, LoRa
Mounting: Adhesive Mount Rigid
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
Dimensions: 17.5 × 6.5 × 1.4 mm

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.4:1, ~2.2:1, ~1.8:1
Efficiency (%): ~47, ~54, ~50
Peak Gain (dBi): ~2.5, ~3.5, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP0102P-SP", "title": "2.4/5.0/6.0 GHz WiFi 6E / WiFi 7 ISM High Performance Rigid Fiberglass Embedded Antenna", "mountingType": "Self-Adhesive (Rigid Fiberglass)", "ipRating": null, "dimensions_mm": "17.5 x 6.5 x 1.4", "elements": [ { "elementID": "Wi-Fi / ISM", "type": "Wi-Fi", "technologies": [ "Wi-Fi 6E", "Wi-Fi 7", "Bluetooth", "ZigBee", "ISM", "SigFox", "LoRa" ], "frequencies": [ { "range_mhz": "2410-2490", "returnLoss_db": "~-8.3", "vswr": "~2.4:1", "efficiency_percent": "~47", "peakGain_dbi": "~2.5", "averageGain_db": "~-3.2" }, { "range_mhz": "4920-5925", "returnLoss_db": "~-12.6", "vswr": "~2.2:1", "efficiency_percent": "~54", "peakGain_dbi": "~3.5", "averageGain_db": "~-2.7" }, { "range_mhz": "5925-7125", "returnLoss_db": "~-14.2", "vswr": "~1.8:1", "efficiency_percent": "~50", "peakGain_dbi": "~3.2", "averageGain_db": "~-3.0" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 10 } ], "connectors": [ { "elementIDRef": "Wi-Fi / ISM", "type": "U.FL", "cableType": "1.37mm Mini-Coax", "cableLength_mm": 100 } ] }
