2J  |  SKU: 2JP0104P

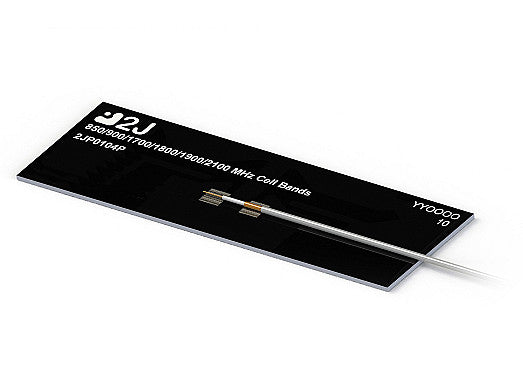

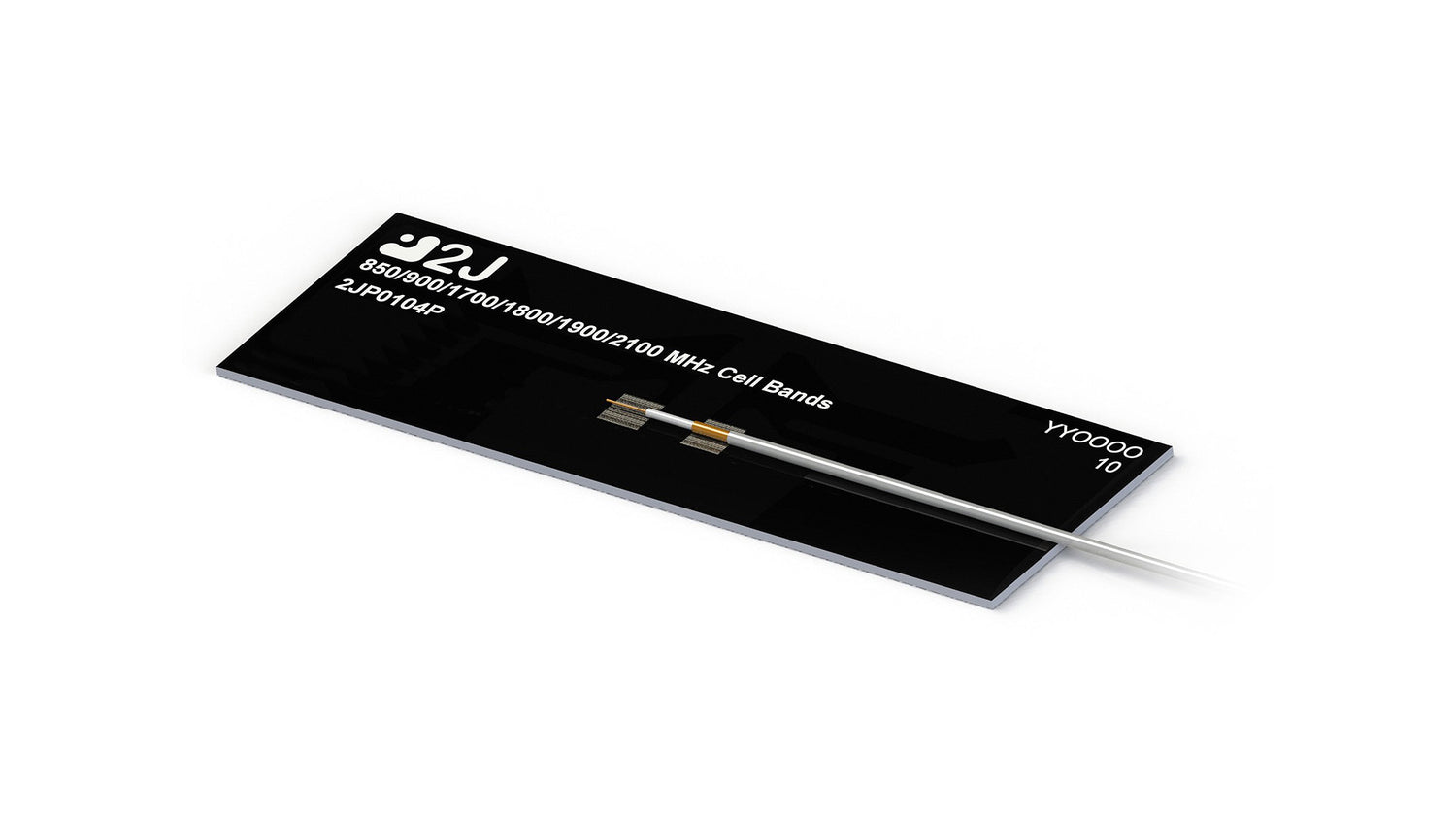

2JP0104P 3G, 2G cellular adhesive mount rigid internal Antenna

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This high-performance rigid fiberglass embedded antenna is designed for reliable 3G and 2G cellular connectivity in internal device applications. Its ground plane independence and self-adhesive mounting make it ideal for integration into compact electronic devices, wearables, asset tracking, robotics, and other mobile or embedded solutions. The antenna delivers up to 3.0 dBi peak gain, ensuring strong signal reception and transmission even in challenging environments. Customizable cable and connector options are available to suit a variety of installation requirements.

Connections

3G/2G/CELL


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 3G, 2G
Location: Internal
Mounting: Adhesive Mount Rigid
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ≤2:1, ≤2.6:1
Efficiency (%): ~45, ~60
Peak Gain (dBi): ~0.5, ~3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP0104P", "title": "Cellular High Performance Rigid Fiberglass Embedded Antenna", "mountingType": "Self-Adhesive (Adhesive Mount Rigid)", "ipRating": null, "dimensions_mm": "75 x 25 x 0.8", "elements": [ { "elementID": "Cellular", "type": "Cellular", "technologies": [ "3G", "2G" ], "frequencies": [ { "range_mhz": "824-960", "returnLoss_db": "≤-10", "vswr": "~2.0:1", "efficiency_percent": "~45", "peakGain_dbi": "~0.5", "averageGain_db": "~-3.4" }, { "range_mhz": "1710-2170", "returnLoss_db": "≤-7", "vswr": "~2.6:1", "efficiency_percent": "~60", "peakGain_dbi": "~3.0", "averageGain_db": "~-2.2" } ], "polarization": "Linear", "radiationPattern": "Omni-Directional", "impedance_ohms": 50, "maxInputPower_w": 25 } ], "connectors": [ { "elementIDRef": "Cellular", "type": "U.FL", "cableType": "1.37mm Microcoax", "cableLength_mm": 100 } ] }

Send request

Let us know your specific requirements or check the availability of this product. We will get back to you shortly.
