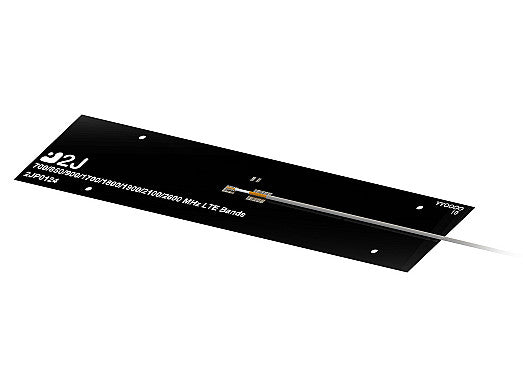

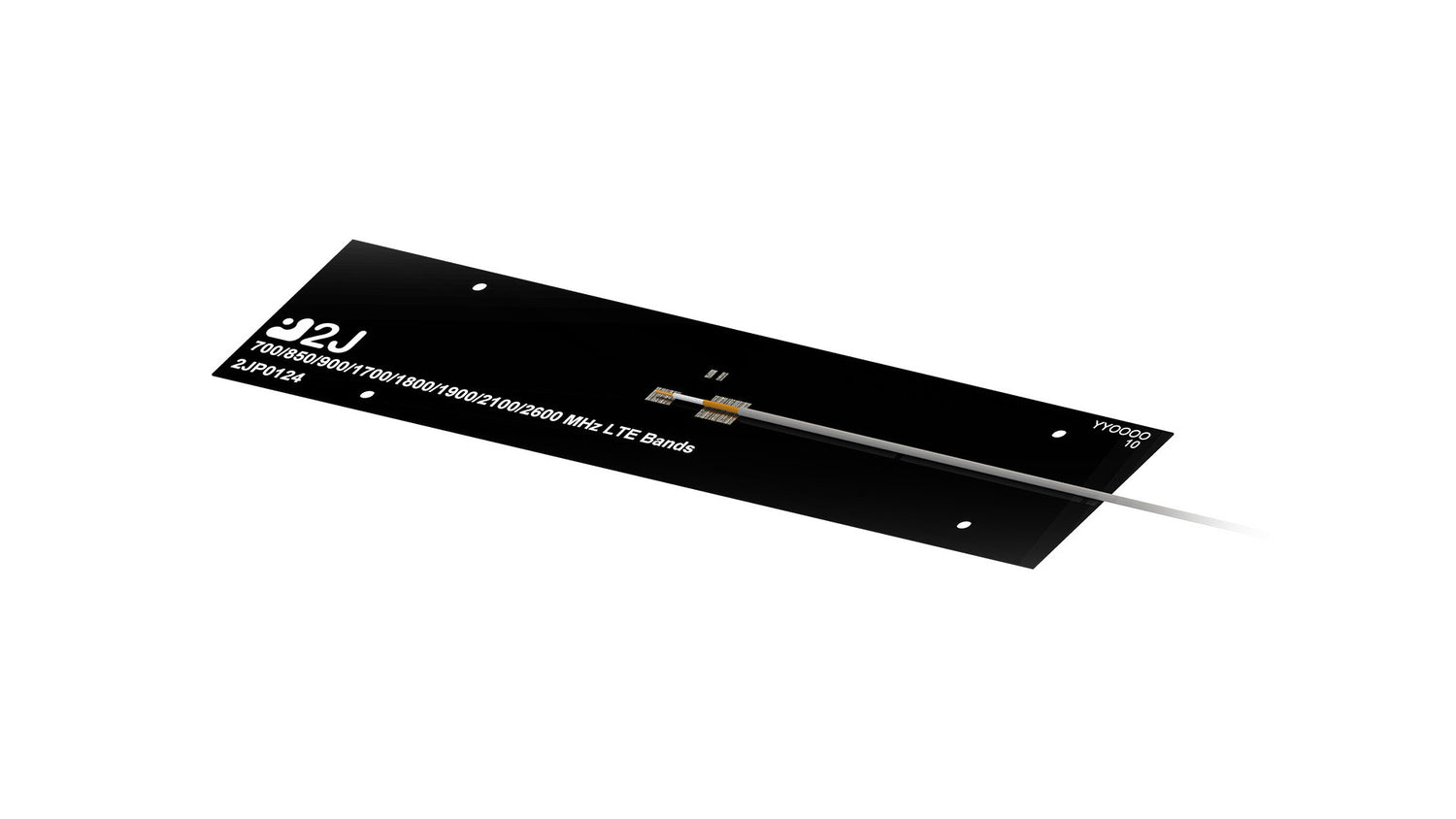

This high-performance rigid internal antenna is designed for reliable 4G/LTE, 3G, and 2G connectivity across a wide frequency range. Its ground plane independent design and self-adhesive mounting make it ideal for integration into a variety of compact devices and enclosures. The antenna is suitable for applications such as consumer electronics, robotics, drones, wearables, asset tracking, IoT, and more, where internal installation and robust cellular performance are required.
Connections
4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Cellular Technologies: 4G/LTE, 3G, 2G
Type: Single
Antenna Technologies: Monopole
Dimensions: 136.8 x 32.6 x 0.4 mm
Connection 1 - Cellular/4G LTE
Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.7:1, ~1.1:1, ~1.7:1
Efficiency (%): ~58, ~74, ~61
Peak Gain (dBi): ~1.5, ~3.1, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Download Datasheet PDF
Technical Specifications (AI Reference Data)
{
"model": "2JP0124P",
"title": "4G LTE/3G/2G Rigid Fiberglass Adhesive Mount Cellular Antenna",
"mountingType": "Adhesive Mount",
"ipRating": null,
"dimensions_mm": "136.8 x 32.6 x 0.4",
"elements": [
{
"elementID": "Cellular",
"type": "Cellular",
"technologies": [
"4G LTE",
"3G",
"2G"
],
"frequencies": [
{
"range_mhz": "698-960",
"returnLoss_db": "~-13.6",
"vswr": "~1.7:1",
"efficiency_percent": "~58",
"peakGain_dbi": "~1.5",
"averageGain_db": "~-2.4"
},
{
"range_mhz": "1710-2170",
"returnLoss_db": "~-23.5",
"vswr": "~1.1:1",
"efficiency_percent": "~74",
"peakGain_dbi": "~3.1",
"averageGain_db": "~-1.3"
},
{
"range_mhz": "2500-2700",
"returnLoss_db": "~-11.8",
"vswr": "~1.7:1",
"efficiency_percent": "~61",
"peakGain_dbi": "~3.5",
"averageGain_db": "~-2.0"
}
],
"polarization": "Linear",
"radiationPattern": "Omni-Directional",
"impedance_ohms": 50,
"maxInputPower_w": 25
}
],
"connectors": [
{
"elementIDRef": "Cellular",
"type": "U.FL",
"cableType": "1.37mm Mini-Coax",
"cableLength_mm": 150
}
]
}
