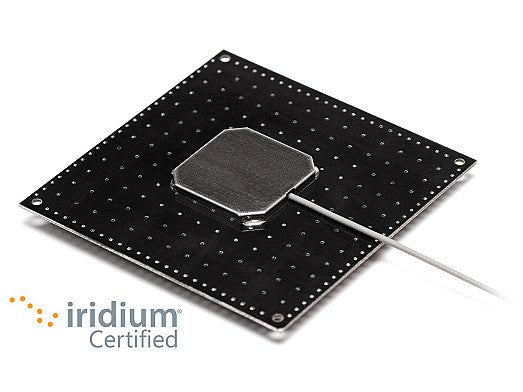

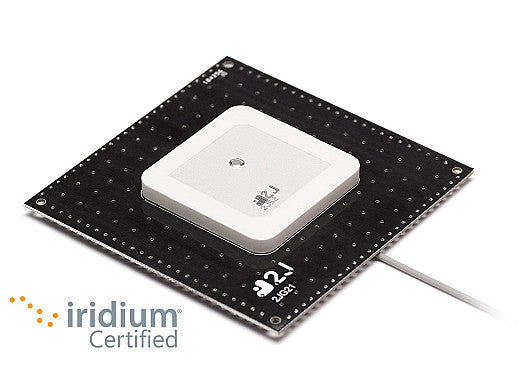

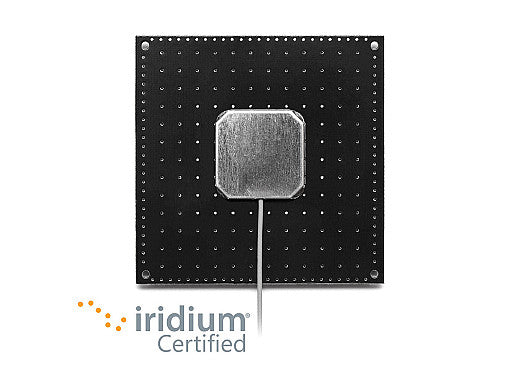

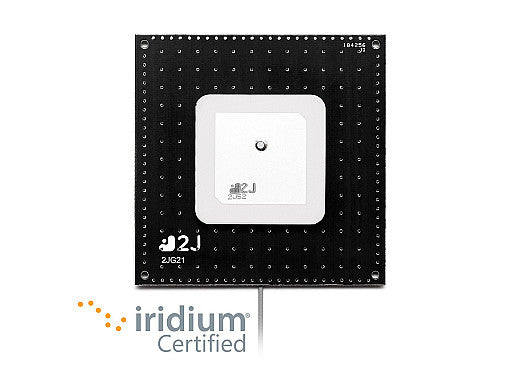

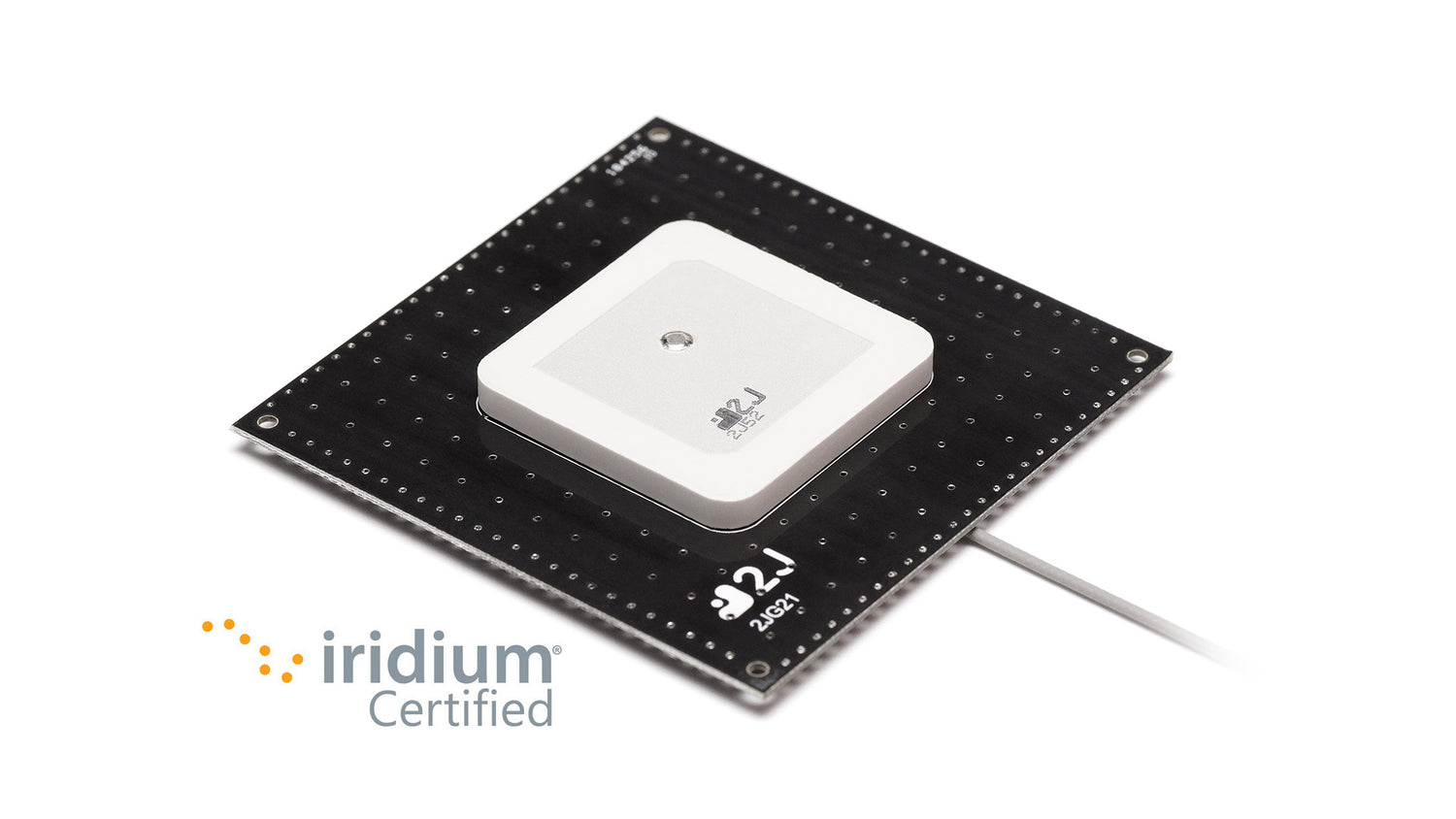

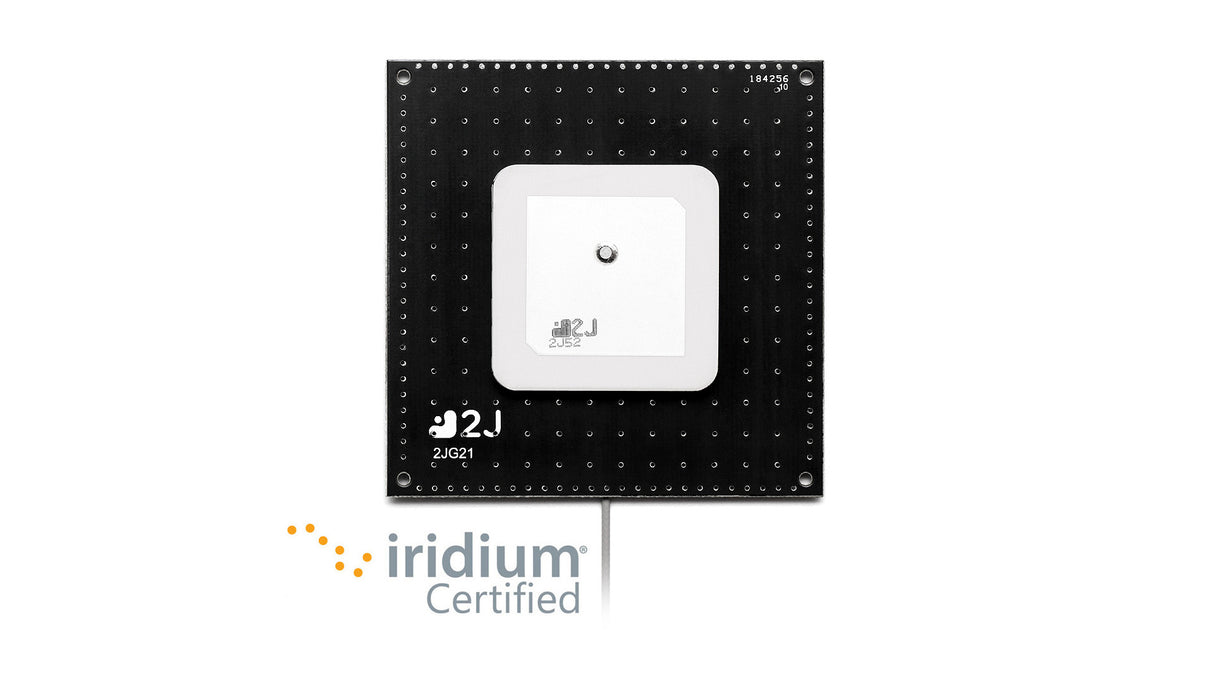

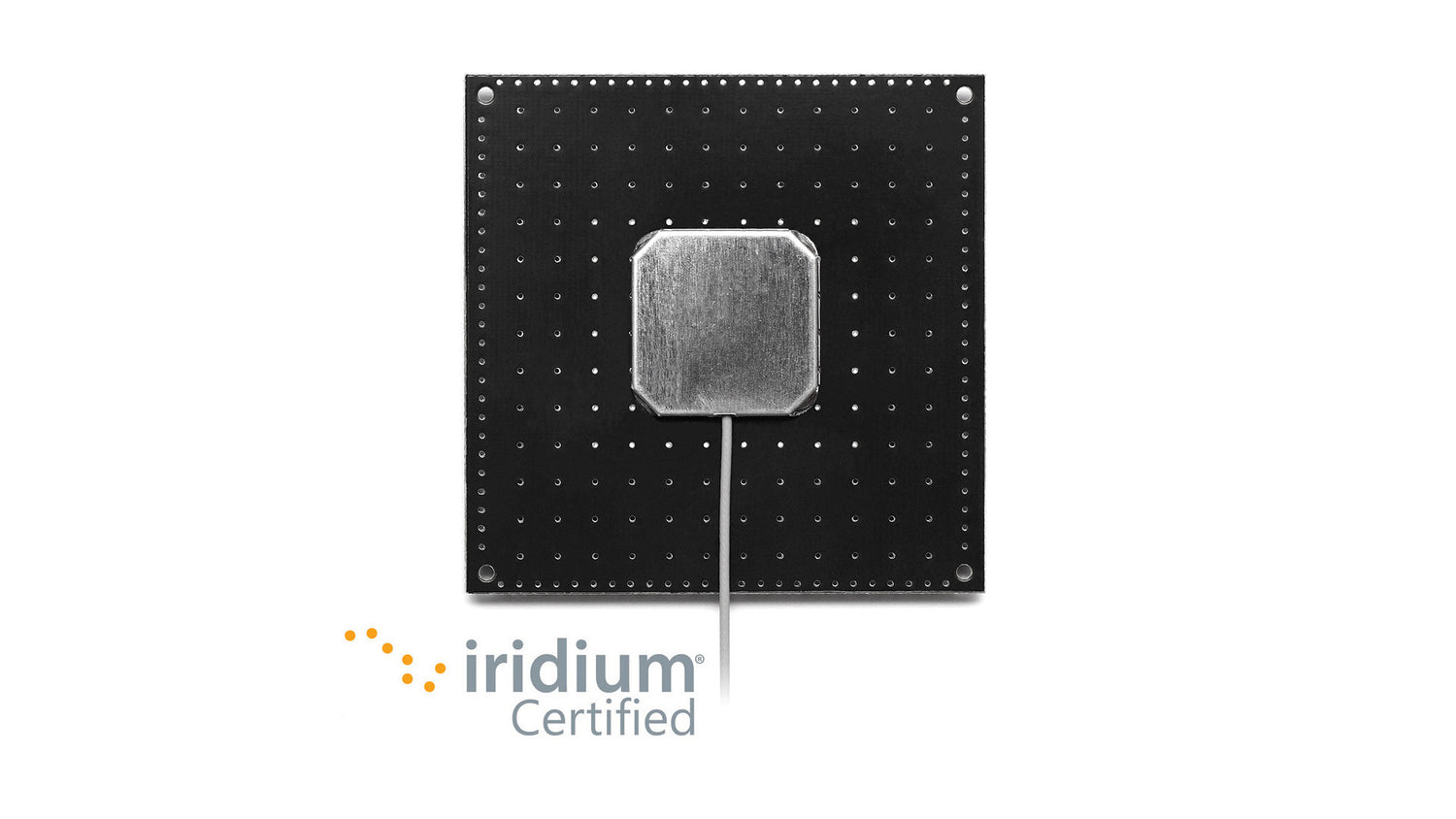

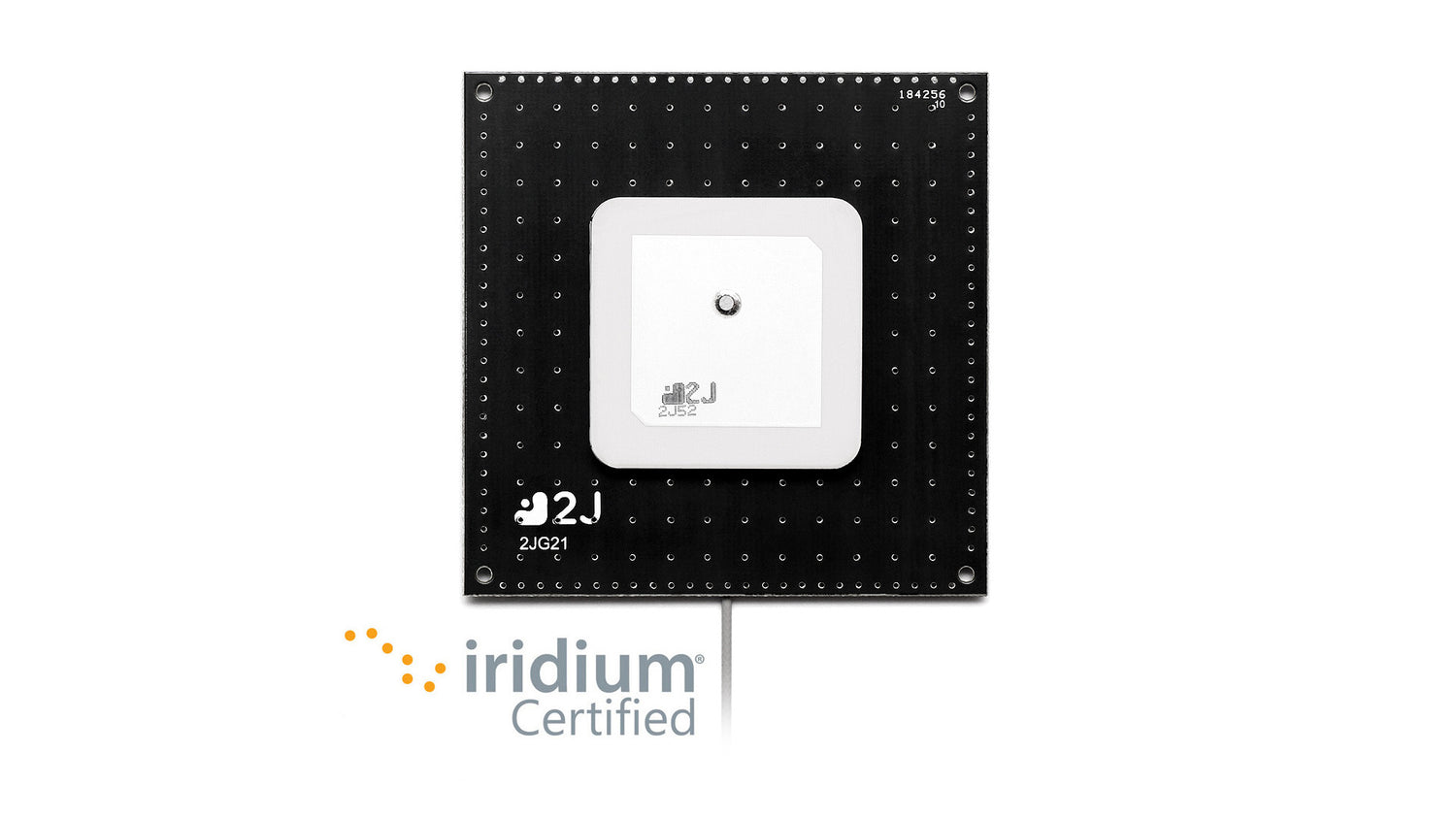

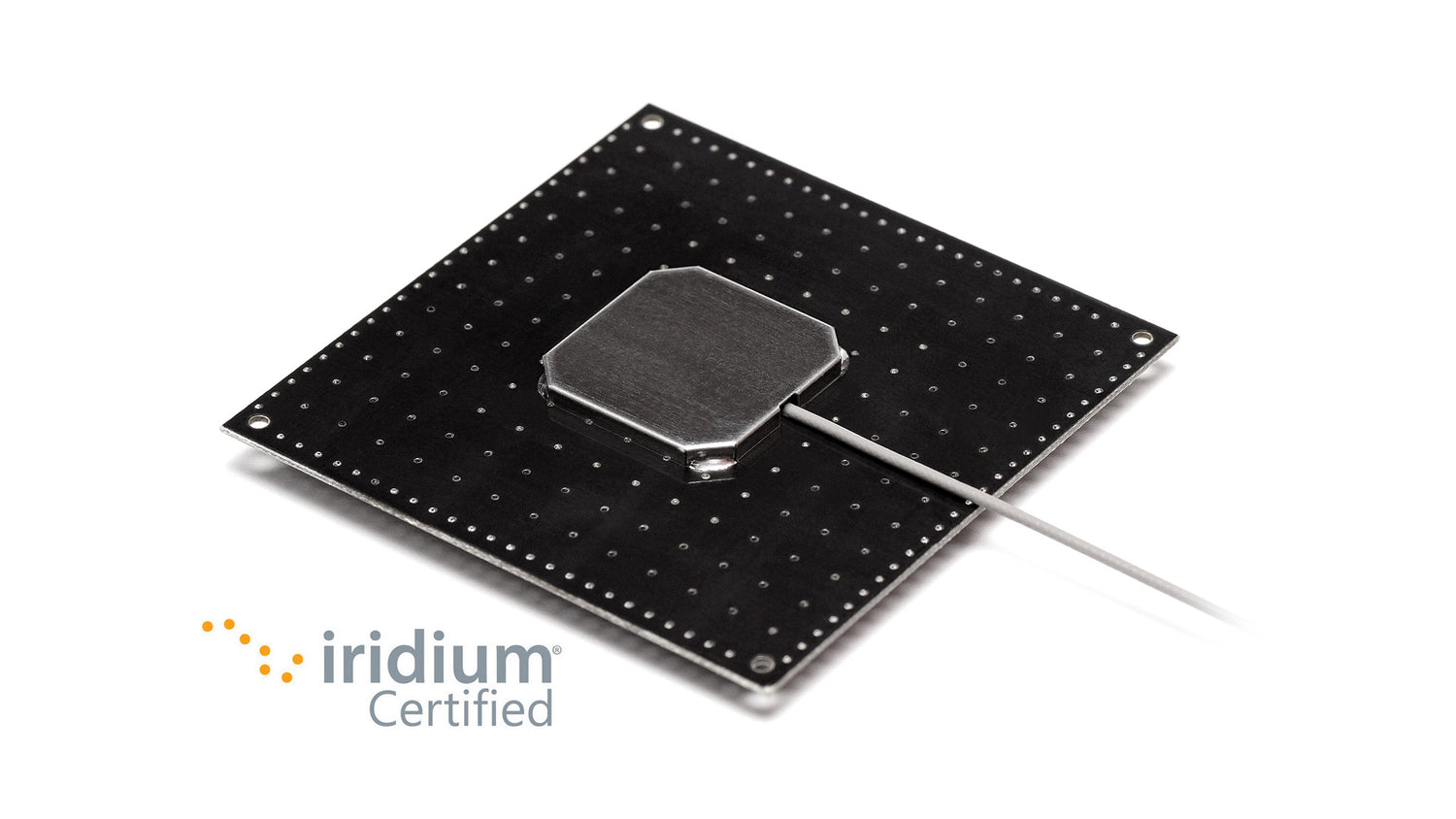

2JP0126B Iridium internal screw mount Antenna U.FL 10cm

Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-0311

Description

This high-efficiency internal antenna is engineered for reliable communication with the Iridium Satellite system. Designed for embedded PCB integration, it delivers excellent performance within the 1616–1627 MHz frequency range, offering ~84% efficiency and a peak gain of ~5 dBi. Its right-hand circular polarization (RHCP) helps reject multi-path interference and optimize signal strength. Ideal for commercial, emergency, automotive, navigation, and asset tracking applications, this antenna is ground plane independent and features a low-profile design for versatile installations.

Connections

IRIDIUM

Connector & Cable

  • Connector Type: U.FL
  • Cable Length: 10cm
  • Cable Type: 1.37 Mini-Coax

Installation / Environmental

This ground plane independent passive antenna is recommended for PCB device integration that requires a short distance between receiver and antenna. The 2JPO126B comes with a standard U. FL connector, a 100 mm long 1.37 Mini-Coax cable, and a screw mount that offers a secure installation to a wide range of surfaces. With low-profile dimensions (70 x 70 x 7.3 mm) this antenna comes with a selection of customized extension cable lengths and connector types. This antenna is manufactured without any hazardous materials while maintaining full REACH and RoHS compliance.


Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount Module
Location: Internal
Type: Single

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
Peak Gain (dBi): ~5.0
Efficiency (%): ~84.2
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{ "model": "2JP0126B", "title": "IRIDIUM High Performance Internal Screw Mount Module Antenna", "mountingType": "Screw Mount Module", "ipRating": null, "dimensions_mm": "70 × 70 × 7.3", "elements": [ { "elementID": "Iridium", "type": "Iridium", "technologies": [ "Iridium" ], "frequencies": [ { "range_mhz": "1616-1627", "returnLoss_db": "~-27.3", "vswr": "~1.1:1", "efficiency_percent": "~84.2", "peakGain_dbi": "~5.0", "averageGain_db": "~-0.7" } ], "polarization": "RHCP", "radiationPattern": "Hemispherical", "impedance_ohms": 50, "maxInputPower_w": null } ], "connectors": [ { "elementIDRef": "Iridium", "type": "U.FL", "cableType": "1.37 mm Mini-Coax", "cableLength_mm": 100 } ] }
