Description

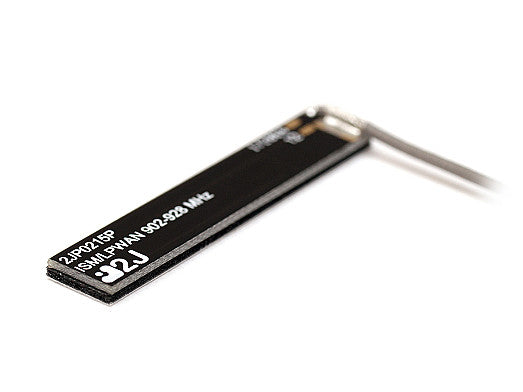

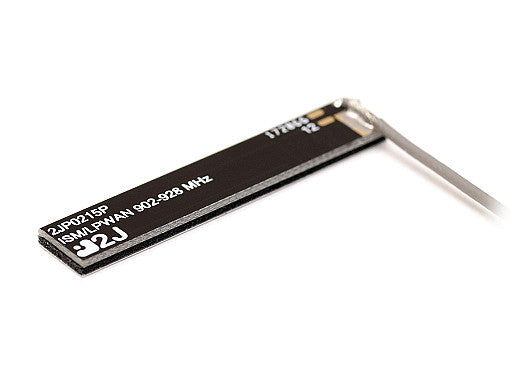

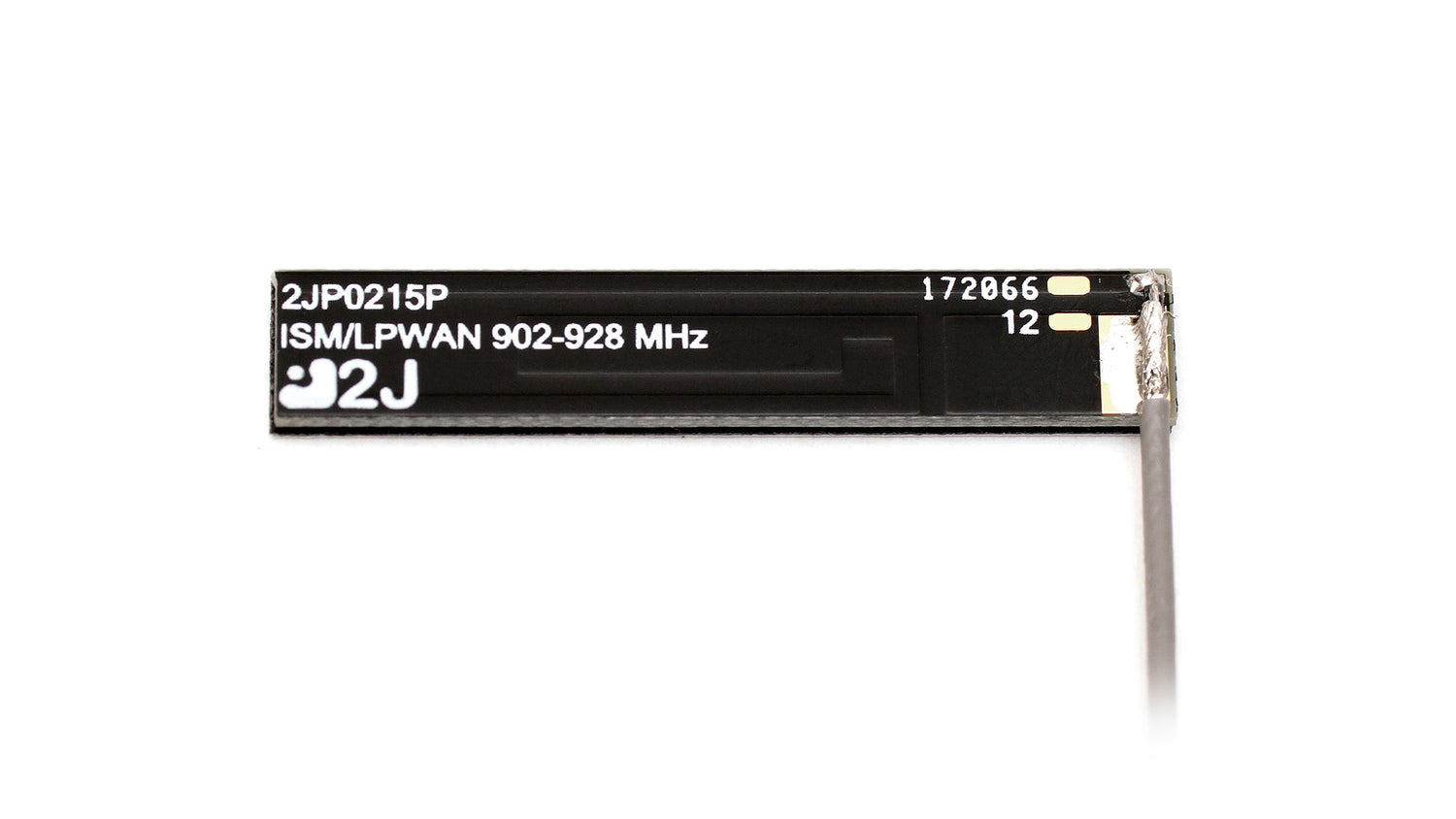

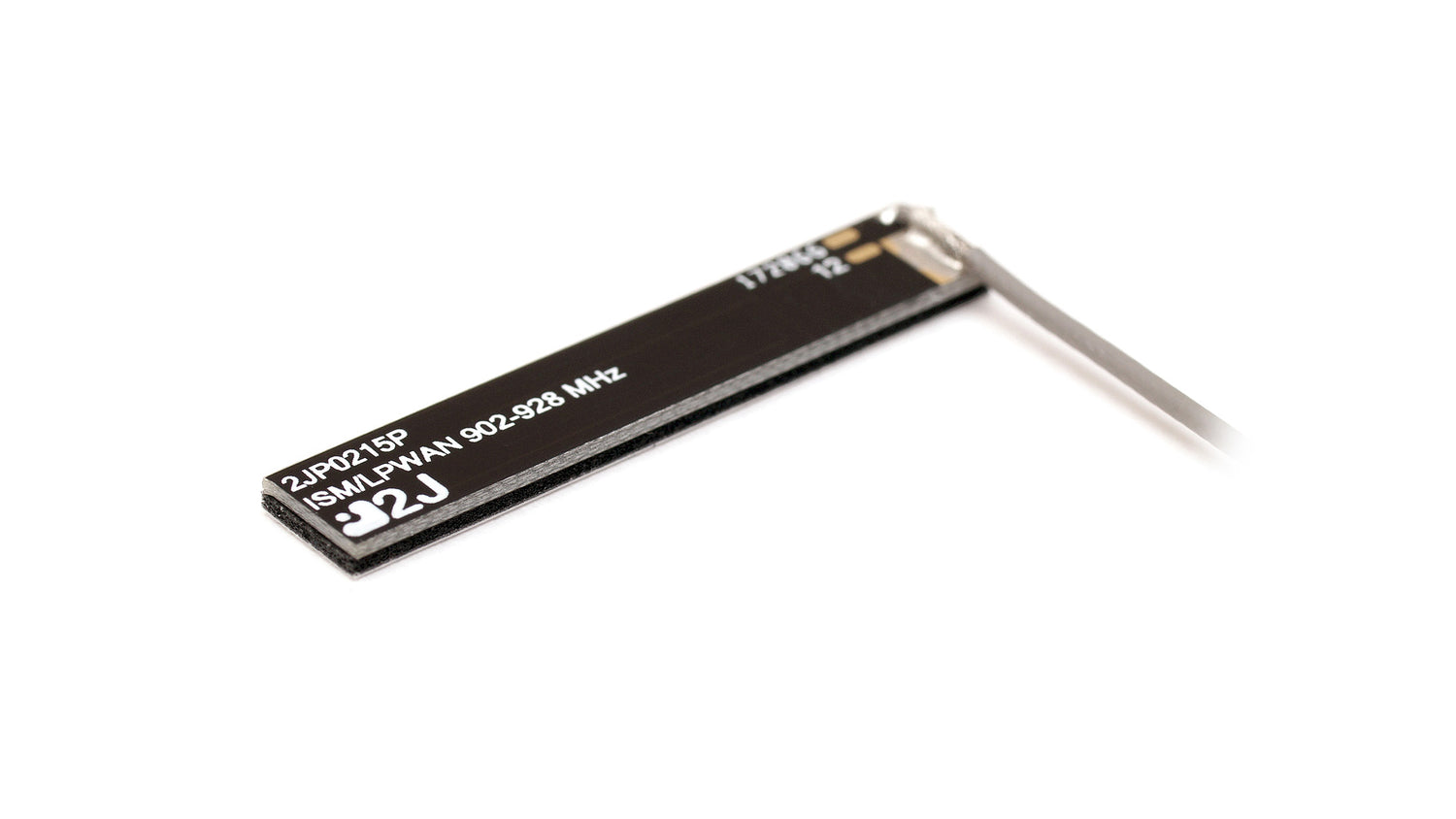

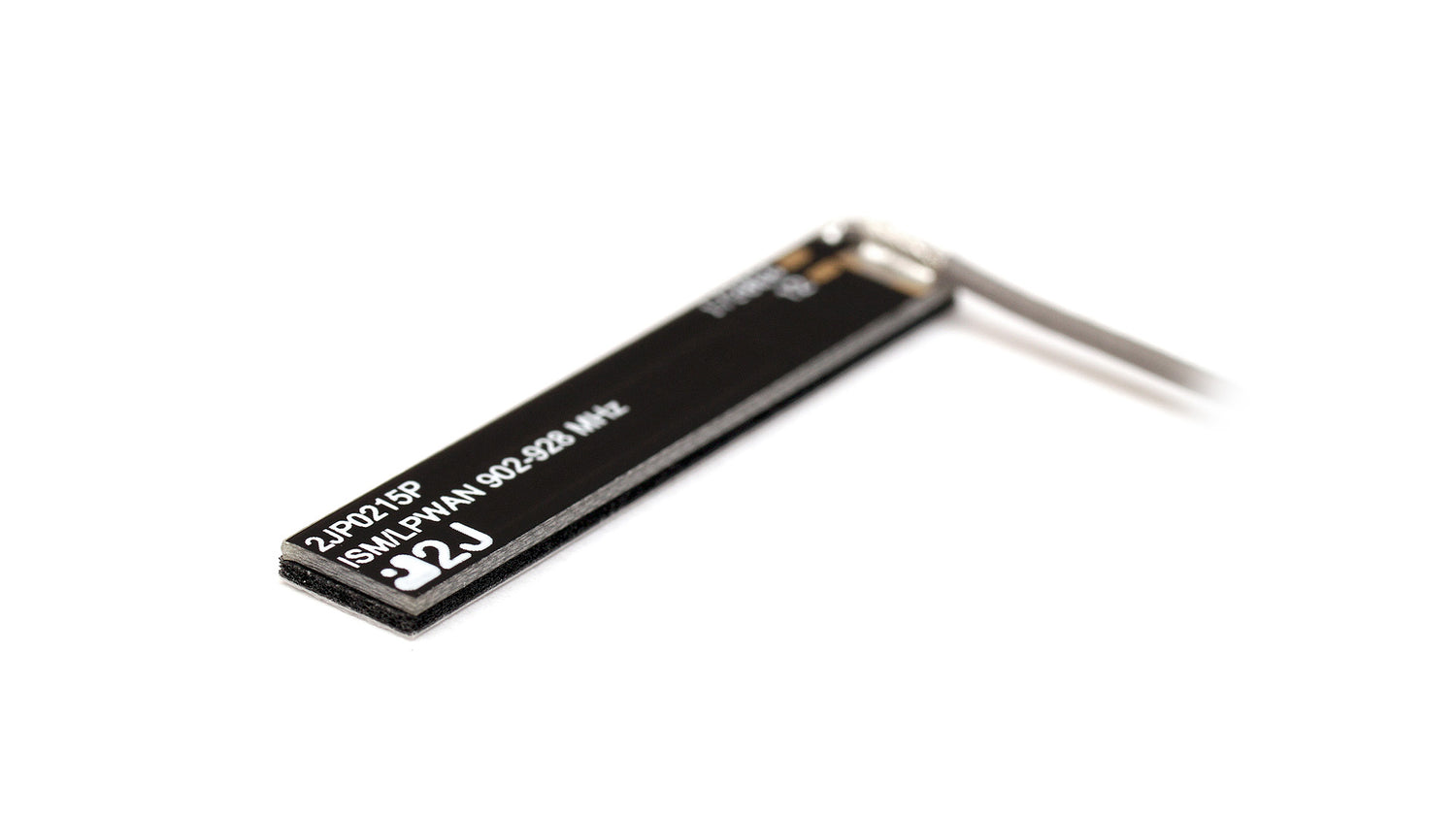

This compact rigid antenna is designed for reliable performance in the 915 MHz ISM band. Its ground plane independent design and self-adhesive mounting make it ideal for internal integration in a wide range of applications, including IoT, smart home, industrial monitoring, and asset tracking. The small form factor allows for easy installation in space-constrained environments, while the fiberglass construction ensures durability and consistent signal quality.
Connections
915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: Internal
Mounting: Adhesive Mount Rigid
Type: Single
Dimensions: 35.0 x 6.5 x 0.8 mm
Connection 1 - 915 MHz ISM
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.7:1
Efficiency (%): ~36.0
Peak Gain (dBi): ~0.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
